The most precise picture of the proton

HERA experiments H1 and ZEUS publish combined analysis

After 15 years of measurement and another eight years of scrutinizing and calculation, the particle physics collaborations H1 and ZEUS have published the most precise results about the innermost structure and behaviour of the proton. The two experiments which took data at DESY´s particle accelerator HERA from 1992 to 2007 have combined their data of over a billion collisions of protons with electrons or positrons, antiparticles of the electrons. About 300 authors of 70 institutions have contributed to the analysis.

“This publication is the culmination of HERA´s scientific programme and will be the most precise picture of the proton for a long time,” says DESY research director Joachim Mnich. “This legacy is not only important for the understanding of the very basic properties of matter but also an essential basis for experiments at proton colliders like the LHC at CERN in Geneva.”

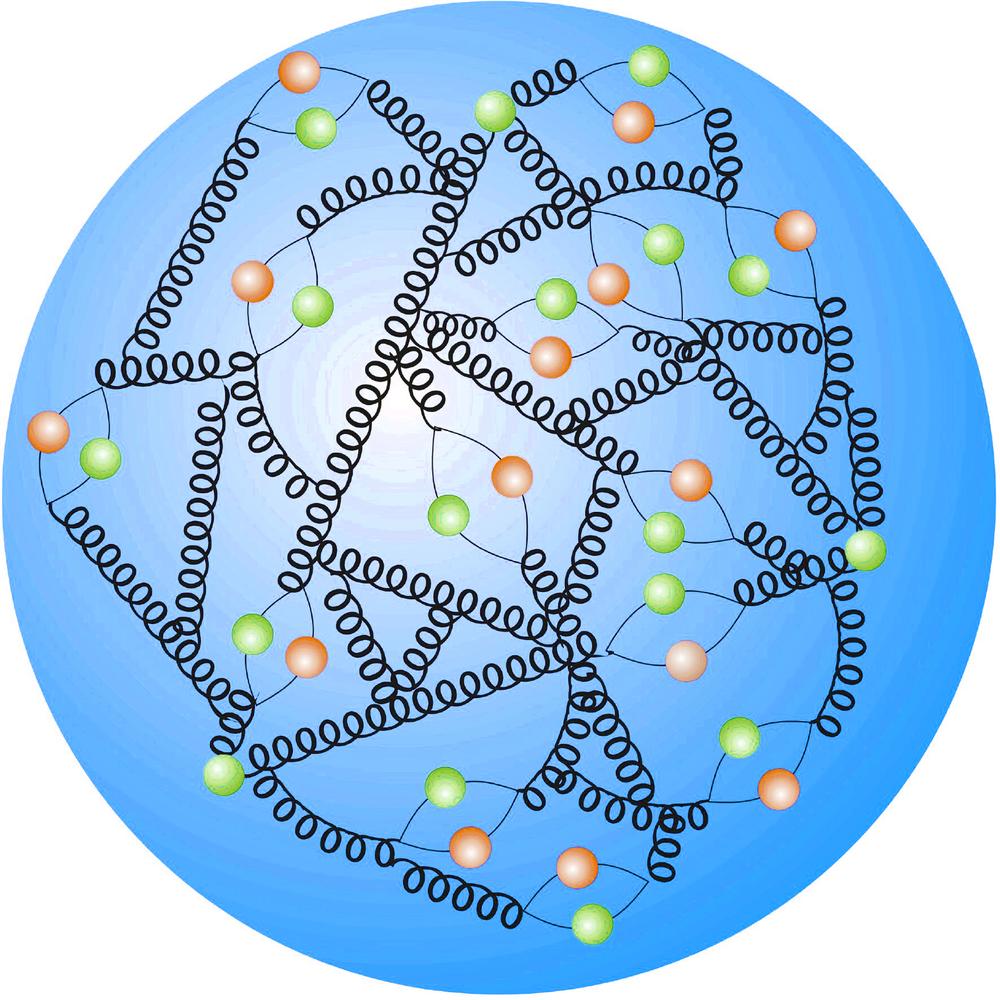

Protons are in the core of each single atomic nucleus in the universe. Their composition of three quarks – two up and one down quark – which are held together by so-called gluons, carrier particles of the strong force, is well known since decades and taught in schools. However, the real picture of the proton is much more complicated: the proton is a sizzling soup where gluons can produce more gluons and can also split into pairs of quarks and antiquarks – the so-called sea quarks – all of them interacting again very quickly.

The particle accelerator HERA (Hadron Electron Ring Accelerator) was designed to look deep inside the proton using electrons as probes in order to study proton structure in detail. For that purpose, a 6.3-kilometre long superconducting proton ring accelerated these particles close to the speed of light before smashing them together with electrons or positrons which were accelerated the other way around. Electrons and positrons are members of a particle species called leptons. The leptons penetrated deeply into the proton and were scattered off one of the proton’s constituents via exchange of the weak or the electromagnetic force. The reactions were measured by the two multi-purpose detectors H1 and ZEUS, each of them as big as a house.

As one of the results, the two experiments measured the probability for several behaviours of these lepton-proton scattering processes and confronted the results with the best understanding of the proton substructure, a theory called quantum chromodynamics (QCD). The HERA results confirmed perfectly the QCD theory, showing that the apparent structure of the proton becomes more dynamic with increasing energy at which the proton is probed.

In addition, the HERA data beautifully proves the unification of the electromagnetic and weak forces at large energies that is predicted by the Standard Model of particle physics. At small energies, the electromagnetic force is much stronger than the weak force but physicists assume that these two forces could be two sides of one coin, perhaps eventually paving the way for the unification of all the four forces in the Universe. In the HERA data the physicists were able to identify the two forces by the type of carrier particle which mediated the forces: while the electromagnetic force is mediated by the neutral photon, the weak force has a neutral but also two charged carrier particles: the so-called Z and W bosons. At high collision energies, H1 and ZEUS data show that both forces behave absolutely similar – a clear illustration of the electroweak unification.

“Through the combination of the measurements of the two experiments we achieve the highest possible precision,” says Stefan Schmitt (DESY), H1 spokesperson. “The combined data set benefits not only from increased statistics, but also from an improved understanding of each separate measurement and from an inter-calibration that occurs because the two collaborations employ different detectors and experimental techniques in their measurements.” But combining data of different particle detectors analysed by different techniques and collected over 15 years is a mammoth task. “Each of the data points has up to 20 sources of uncertainty, and in the combination of the data, each of the 20 sources may be correlated with the uncertainties of the next data point and all of these correlations need to be understood,” says Matthew Wing (University College London), spokesperson of ZEUS.

Already in 2009, the two collaborations published a joint paper on the structure of the proton, but only based on the data of the first HERA run till 2000. With 600 citations till today, it is already one of the most cited papers in the field. The recent publication is based on the fourfold amount of particle collisions and also contains data from special runs at different particle energies.

However, there is some mystery left in testing the Standard Model of particle physics. “Especially at a low energy transfer between electron and proton, the reference theory of quantum chromodynamics used cannot sufficiently describe our measurements,” says Wing. “This will definitely be something where theorists and phenomenologists will keep an eye on in the future.”
