New type of low-energy nanolaser that shines in all directions



Researchers in Eindhoven have developed a new type of low-energy, nanoscale laser that shines in all directions. The key to its omnidirectional light emission is the introduction of something that is usually highly undesirable in nanotechnology: irregularities in the materials. The researchers foresee a vast range of potential applications, but first they hope their fundamental work will inspire others to further improve it and deepen the understanding. The results are published in the journal Physical Review Letters.

Lack of control of the variables determining the response of a system is usually seen as a curse in science and technology. But what about a slight pinch of imperfection and disorder? Imperfections and irregularities are unavoidable in nanoscience due to our limited level of control of nanofabrication processes. Disorder is potentially detrimental to nanosystems, but if well-contained, disorder might not be an intruder after all, leading to novel physical concepts and applications.

Published in the journal Physical Review Letters, scientists from Eindhoven University of Technology (TU/e) and the Dutch Institute for Fundamental Energy Research (DIFFER) have investigated the role of imperfections and disorder in nanolasers. By introducing a slight degree of disorder, they have observed a dramatic change: the laser no longer emits in one specific direction, but in all directions.

Development of nanoscale lasers (smaller than the thickness of a human hair) is a very active field of research. In a normal laser, each photon (light particle) is 'cloned' many times in a medium that is located inside a cavity (e.g. a pair of mirrors between which the photon moves back and forth producing other photons with the same characteristics). This process is known as Light Amplification by Stimulated Emission of Radiation (LASER). To achieve laser emission an electrical current is usually injected through the medium, or it is illuminated with high energy light. The minimum energy needed for a laser to emit is called the lasing threshold.

A different kind of laser is the so-called polariton laser. This works on the principle not of cloning photons but making non-identical photons identical in much the same way as water vapor molecules, moving in all directions with different velocities, are condensed into a single drop. Condensation of photons gives rise to the intense and directional emission characteristic of a laser. An important advantage of polariton lasers is that they have a much lower lasing threshold, which makes them excellent candidates for many applications.

However, a major problem of polariton lasers has been that they need to operate at very low temperatures (like vapor condensation that takes place only when the temperature is lowered) but by using organic materials, it is possible to obtain polariton laser emission even at ambient temperature. The Eindhoven researchers demonstrated last year that they can realize nanoscale polariton lasers that function at ambient temperature, using metallic nanoparticles instead of mirrors as in normal lasers.

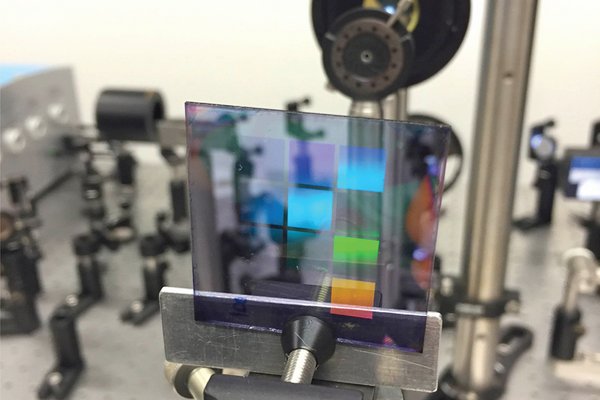

The TU/e-DIFFER researchers have now discovered a new kind of polariton laser that consists of a regular pattern of silver nanostripes covered with colored PMMA-polymer whose dye comprises organic emitting molecules. However, the silver stripes deliberately have some degree of imperfection and disorder. The emission from this non-perfect nanolaser is omnidirectional and mainly is determined by the properties of the organic molecules. This result is not expected in the framework of condensation, as omnidirectional emission requires emissions from independent organic molecules instead of the collective emission that is typical for condensation. The demonstration of omnidirectional emission defines new boundaries for the development of nanoscale lasers at ambient temperatures.

The researchers think their laser may eventually be applied in many areas. Compared to a LED, the omnidirectional laser light is much brighter and better defined. That's why it is a good candidate for microscopy lighting, which currently uses LEDs. LIDAR (Laser Imaging Detection And Ranging) is another potential application. Current LIDAR use one or more lasers and a set of fast moving mirrors in order to cover large areas to image distant objects. An omnidirectional laser does not require the moving mirrors, thereby significantly reducing the complexity. And also general illumination is an option, says lead researcher professor Jaime Gomez Rivas. "But the research is still very fundamental. We hope that our results will stimulate other researchers to improve them by further reducing the lasing threshold or increasing the range of emitted colors."

Nonlinear Emission of Molecular Ensembles Strongly Coupled to Plasmonic Lattices with Structural Imperfections.

Mohammad Ramezani, Quynh Le-Van, Alexei Halpin, Jaime Gómez Rivas.

Physical Review Letters, 2018; 121 (24)

DOI: 10.1103/PhysRevLett.121.243904

Contact information:

Prof. Jaime Gomez Rivas Eindhoven University of Technology, Dept. of Applied Physics, Center for Quantum Materials and Technology Eindhoven j.gomez.rivas@tue.nl Tel: +31 40 247 2669 URL: https://surfacephotonics.org/

Eindhoven University of Technology (TU/e)
