ARTICLE

SUTD researchers developed a unique method of fabricating 3D porous structures

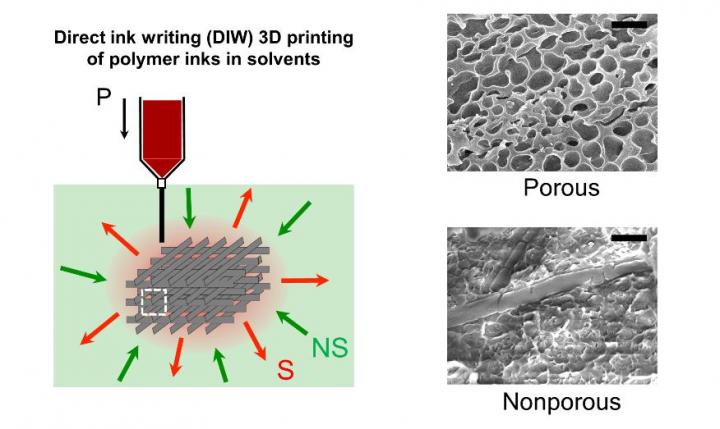

Concept of ip3DP - A polymer solution is printed by a DIW 3D printer in a nonsolvent. The printed object is solidified via immersion precipitation, and porosity is imparted to the printed object. @SUTD

Materials with controlled porosity have found diverse applications in separation, catalysis, energy storage, sensors and actuators, tissue engineering and drug delivery. Multiple methods have been developed to fabricate well-defined porous materials with the pore sizes ranging from nanometers to millimeters. For example, the introduction of sacrificial templates can impart porosity to the materials encapsulating them after the removal of embedded materials. Alternatively, procedures involving phase separation, direct templating and chemical reaction have demonstrated fabrication of hierarchical porous structures. These methods inherently require multiple steps, and are limited in the attainable complexity of the fabricated structures.


Recent advances in digital fabrication, represented by 3D printing, has enabled fabrication of porous 3D structures consisting of polymeric materials with porosity, yet limited by materials applicable to the process. For example, solvent-casting 3D printing (SC3DP)--direct 3D printing of polymer inks with in situ evaporation of solvents--has allowed fabrication of 3D porous structures with stringent requirement of rheological properties of the printing ink (e.g. high viscosity and high vapor pressure).


Researchers from the Singapore University of Technology and Design's (SUTD) Soft Fluidics Lab developed a novel 3D printing method to fabricate 3D porous models in one step, which was termed immersion precipitation 3D printing (ip3DP). In the newly developed approach, inks containing polymers were directly printed in a bath of a non-solvent, and the printed ink solidified rapidly via immersion precipitation. Spontaneous solidification via immersion precipitation generated porosity at micro-to-nano scales. The porosity of the 3D printed objects is easily controlled by the concentrations of polymers and additives, and the types of solvents. A wider selection of solvents permitted a wider range of thermoplastics to be printed. To highlight this capability, fabrications of centimeter-scale models in 13 polymers dissolved in six solvents was demonstrated.


"This work is the first demonstration of three-dimensionally controlled immersion precipitation based on digitally controlled depositions of materials," said lead author of the paper Dr Rahul Karyappa.


The principal investigator, Assistant Professor Michinao Hashimoto stated that "the wide selection of printable materials, and ability to tailor their morphologies and properties, make ip3DP a novel approach for 3D printing to fabricate functional structures."


Immersion precipitation 3D printing (ip3DP)

Rahul Karyappa, Akihiro Ohnoa and Michinao Hashimoto

Mater. Horiz., 2019


Contact information:

Michinao Hashimoto

Assistant Professor of Bio-Medical Engineering at SUTD

Tel: +65 6499 4867


Singapore University of Technology and Design (SUTD)
