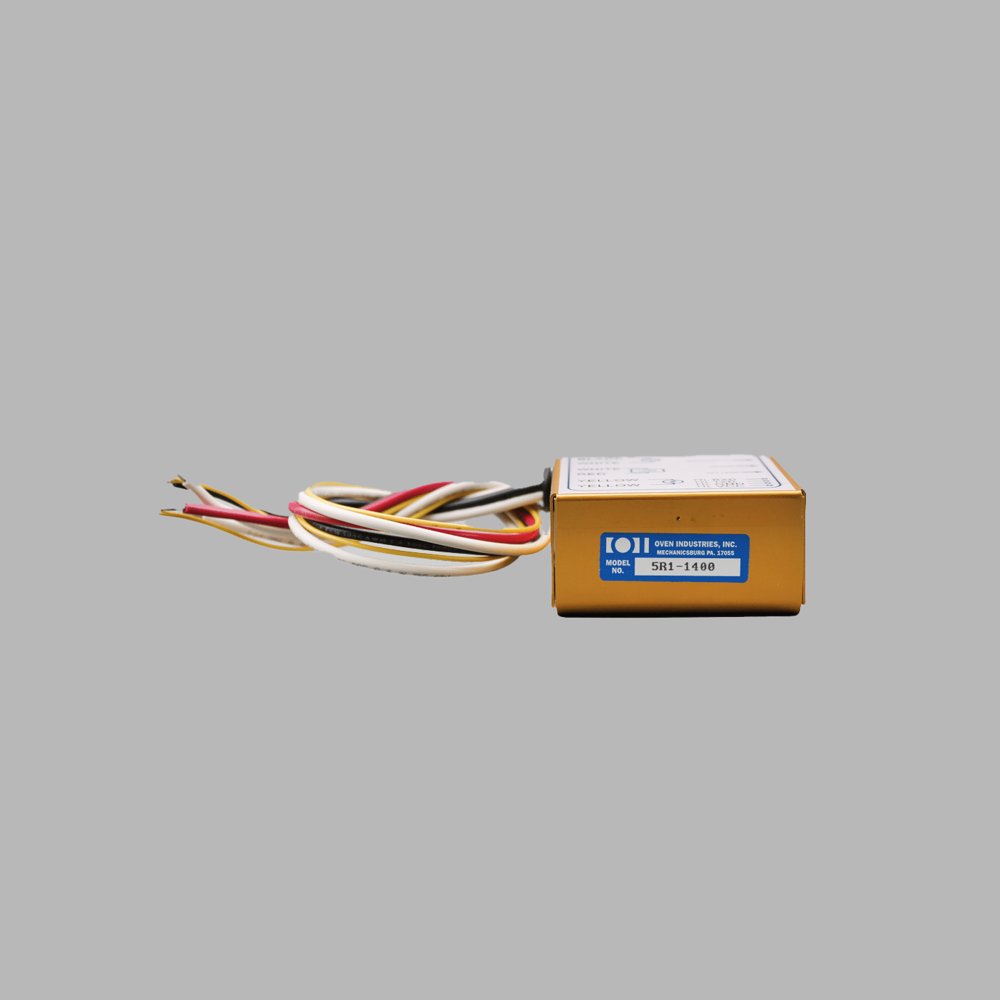

The 5R1-1400 AC temperature controller is set in the field with the integrated potentiometers or via a PC through the TTL level UART Communication port. The temperature may also be set with an optional remote potentiometer. The compact design of the 5R1-1400 AC controller measures two and one half inches square and can deliver over 15 AMPS of load current via an onboard 25A triac. Operator safety is achieved with one thousand kilovolts of power isolation from the communication port and sensor input. Specifications: - Input Voltage: 85 to 265VAC 50/60Hz - Com. Port and Sensor Isolation:1000VAC - Load Current: 15A max 15A max (Via onboard triac) - Temperature Resolution: 0.1°C - Adjustable PID Parameters - Ambient Temperature Operation:-20°C to 70°C - Dimensions: 1.32”High x 2.5” Square - Customer Drawing: CDR-00374 Features: - Universal AC Input - Set with integrated Temperature, Integral, Derivative potentiometers or via PC operator GUI - PC Programmable - TTL level UART Communication Port - Set temp range determined by thermistor type - Open Circuit Protection - RoHS Compliant Accessories: Sensors - TR67 (15K) –20 to 110°C - TR91 (10K) –40 to 150°C - TR104 (50K) 0 to 150°C - TR136 (15K) –20 to 110°C - TR165 (231.5K) 25 to 250°C Cables - OI-TTL Cables Other - FL to add flange - A to add external temperature
The 5R7-001-ULCSA temperature controller offers precise thermal management with its bi-directional or unidirectional H-bridge design, ensuring smooth transitions between heating and cooling for thermoelectric modules. Configuring the unit is simple with the included user-friendly PC software. Communication occurs via a robust RS232 interface, featuring 1500VAC isolation to minimize electrical interference from noise or stray signals. Once the device is set up, the PC can be disconnected, allowing the controller to operate independently—or remain connected for ongoing data acquisition. Temperature adjustments can also be made using an optional front panel display or an external potentiometer for added flexibility. The controller utilizes pulse-width modulation at 2.7 kHz to deliver load currents ranging from 0.1 to 25 amps, ensuring responsive and efficient power control Specifications: - Input Voltage: 12 to 36 VDC - Output Voltage: 0 to 36 VDC - Load Current: 0.1 to 25 A - Temperature Resolution: 0.01°C PID Functions: - Bandwidth: 0.1 to 50°C - Integral: 0 to 10 repeats per minute - Derivative: 0 to 10 minutes - PWM Base Frequency: 2.7 Khz - Ambient Temperature range: -20 to 70°C - Power Dissipation: < 10 Watts - Process Control Rate: 90 time per second - Output Power Resolution: ± 0.2% - Control Resolution: ± 0.01°C - Dimensions: 2” H (2.64” with HS) x 6” W x 3.63” D - Customer Drawing: CDR-00494 Features: - H-Bridge Control - PC Programmable - PID or On/Off Control - PC Configurable Alarm Circuit - 0-36 VDC Output using Split Power Supply - RS232 Communication Port - RoHS Compliant - Set Temperature range of –40 to 250°C - Large program memory space for customization - UL Approved Accessories: Digital Display: - 5R6-576 Temperature Display with 4 digit readout Heat Sink: - H-2 heat sink - H-3 heat sink Sensors: - TR67 (15K) –20 to 110°C - TR91 (10K) –40 to 150°C - TR104 (50K) 0 to 150°C - TR136 (15K) –20 to 110°C - TR165 (231.5K) 25 to 250°C Please contact for higher volumes
CATEGORY
The Bi-directional or unidirectional H-bridge configuration of the 5R7-001-SM temperature controller creates a seamless transition between heating and cooling as it commands the thermoelectric modules. The included user friendly PC software makes it easy for the user to change control configurations through the RS232 interface which has 1500VAC isolation from the electronic circuitry, virtually eliminating interference from noise or errant signals. Once the 5R7-001-SM temperature controller is set-up, the computer may be disconnected and the 5R7-001-SM temperature controller becomes a stand alone unit or the computer can remain connected for data acquisition. The temperature may also be set through the optional display for the 5R7-001-SM or remote potentiometer. The load circuit is pulse width modulated at 2.7 Khz and delivers a load current of.1 to 25 Amps. Specifications: - Input Voltage:12 to 36 VDC - Output Voltage:0 to 36 VDC - Load Current:0.1 to 25 A - Temperature Resolution:0.01°C PID Functions: - Bandwidth:0.1 to 50°C - Integral:0 to 10 repeats per minute - Derivative:0 to 10 minutes - PWM Base Frequency:2.7 Khz - Ambient Temperature range:-20 to 70°C - Power Dissipation:< 10 Watts - Process Control Rate:90 time per second - Output Power Resolution:± 0.2% - Control Resolution:± 0.01°C - Dimensions:2” H (2.64” with HS) x 6” W x 3.63” D - Customer Drawing:CDR-00572 Features: - Bluetooth Low Energy Capable - H-Bridge Control - PC Programmable - PID or On/Off Control - PC Configurable Alarm Circuit - 0-36 VDC Output using Split Power Supply - RS232 Communication Port - RoHS Compliant - Set Temperature range of –40 to 250°C - Large program memory space for customization Accessories: Displays: - 5R6-576 Temperature Display Heat Sink: - Heat Sink Sensors: - TR67 (15K) –20 to 110°C - TR91 (10K) –40 to 150°C - TR104 (50K) 0 to 150°C - TR136 (15K) –20 to 110°C
CATEGORY
The Bi-directional or unidirectional H-bridge configuration of the 5R7-002 temperature controller creates a seamless transition between heating and cooling as it commands the thermoelectric modules. The included user friendly PC software makes it easy to change configurations through the RS485 interface which has 1500VAC isolation from the electronic circuitry, virtually eliminating interference from noise or errant signals. Once the 5R7-002 temperature controller is set-up, the computer may be disconnected and the 5R7-002 temperature controller becomes a stand alone unit or the computer can remain connected for data acquisition. The temperature may also be set through the optional display for the 5R7-002 or remote potentiometer. The load circuit is pulse width modulated at 2.7 Khz and delivers a load current of.1 to 25 Amps. Specifications: - Input Voltage:12 to 36 VDC - Output Voltage:0 to 36 VDC - Load Current:0.1 to 25 A - Temperature Resolution:0.01°C PID Functions: - Bandwidth:0.1 to 50°C - Integral:0 to 10 repeats per minute - Derivative:0 to 10 minutes - PWM Base Frequency:2.7 Khz - Ambient Temperature range:-20 to 70°C - Power Dissipation:< 10 Watts - Process Control Rate:90 time per second - Output Power Resolution:± 0.2% - Control Resolution:± 0.01°C - Dimensions:2” H (2.64” with HS) x 6” W x 3.63” D - Customer Drawing: CDR-00198 Please call for higher volumes. Accessories: Digital Display: - 5R6-576 Temperature Display with 4 digit readout Heat Sink: - Heat Sink Power Supplies: - 12 Volt/150W - 24 Volt/150W - 24 Volt/320W Sensors: - TR67 (15K) –20 to 110°C - TR91 (10K) –40 to 150°C - TR104 (50K) 0 to 150°C - TR136 (15K) –20 to 110°C - TR165 (231.5K) 25 to 250°C
CATEGORY
The Bi-directional or unidirectional H-bridge configuration of the 5R7-001 temperature controller creates a seamless transition between heating and cooling as it commands the thermoelectric modules. The included user friendly PC software makes it easy for the user to change control configurations through the RS232 interface which has 1500VAC isolation from the electronic circuitry, virtually eliminating interference from noise or errant signals. Once the 5R7-001 temperature controller is set-up, the computer may be disconnected and the 5R7-001 temperature controller becomes a stand alone unit or the computer can remain connected for data acquisition. The temperature may also be set through the optional display for the 5R7-001 or remote potentiometer. The load circuit is pulse width modulated at 2.7 Khz and delivers a load current of.1 to 25 Amps. Specifications: - Input Voltage: 12 to 36 VDC - Output Voltage: 0 to 36 VDC - Load Current: 0.1 to 25 A - Temperature Resolution: 0.01°C PID Functions: - Bandwidth: 0.1 to 50°C - Integral: 0 to 10 repeats per minute - Derivative: 0 to 10 minutes - PWM Base Frequency: 2.7 Khz - Ambient Temperature range: -20 to 70°C - Power Dissipation: < 10 Watts - Process Control Rate: 90 time per second - Output Power Resolution: ± 0.2% - Control Resolution: ± 0.01°C - Dimensions: 2” H (2.64” with HS) x 6” W x 3.63” D - Customer Drawing: CDR-00120 Features: - H-Bridge Control - PC Programmable - PID or On/Off Control - PC Configurable Alarm Circuit - 0-36 VDC Output using Split Power Supply - RS232 Communication Port - RoHS Compliant - Set Temperature range of –40 to 250°C - Large program memory space for customization
