'Quantum material' has shark-like ability to detect small electrical signals
A "quantum material" that mimics a shark's ability to detect the minute electric fields of small prey has been shown to perform well in ocean-like conditions, with potential applications from defense to marine biology.
The material maintains its functional stability and does not corrode after being immersed in saltwater, a prerequisite for ocean sensing. Surprisingly, it also functions well in the cold, ambient temperatures typical of seawater, said Shriram Ramanathan, a Purdue professor of materials engineering.
Such a technology might be used to study ocean organisms and ecosystems and to monitor the movement of ships for military and commercial maritime applications.
"So, it has potentially very broad interest in many disciplines," said Ramanathan, who led research to develop the sensor, working with a team that included Purdue postdoctoral research associate Zhen Zhang and graduate student Derek Schwanz.
Findings are detailed in a research paper appearing online Dec. 18 in the journal Nature. The paper's lead authors were Zhang and Schwanz, working with colleagues at Argonne National Laboratory, Rutgers University, the National Institute of Standards and Technology, the Massachusetts Institute of Technology, the Canadian Light Source at the University of Saskatchewan, Columbia University, and the University of Massachusetts. A complete list of co-authors is included in the abstract.
The new sensor was inspired by an organ near a shark's mouth called the ampullae of Lorenzini, which is capable of detecting small electric fields from prey animals.
"This organ is able to interact with its environment by exchanging ions from seawater, imparting the so-called sixth sense to sharks," Zhang said.
The organ contains a jelly that conducts ions from seawater to a specialized membrane located at the bottom of the ampulla. Sensing cells in the membrane allow the shark to detect bioelectric fields emitted by prey fish.
The new sensor is made of a material called samarium nickelate, which is a quantum material, meaning its performance taps into quantum mechanical interactions. Samarium nickelate is in a class of quantum materials called strongly correlated electron systems, which have exotic electronic and magnetic properties.
Because this material can conduct protons very fast, the researchers wondered whether they might develop a sensor that mimics the shark's organ.
"We have been working on this for a few years," Ramanathan said. "We show that these sensors can detect electrical potentials well below one volt, on the order of millivolts, which is comparable to electric potentials emanated by marine organisms. The material is very sensitive. We calculated the detection distance of our device and find a similar length scale to what has been reported for electroreceptors in sharks."
The quantum effect causes the material to undergo a dramatic "phase change" from a conductor to an insulator, which allows it to act as a sensitive detector. The material also exchanges mass with the environment, as protons from the water move into the material and then return to the water, going back and forth.
"Having a material like that is very powerful," Schwanz said.
Metals such as aluminum, for example, immediately form an oxide coating when placed in seawater. The reaction protects against corrosion but prevents further interaction with the environment.
"Here, we start with the oxide material and we are able to maintain its functionality, which is very rare," Ramanathan said.
The material also changes optical properties, becoming more transparent as it becomes more insulating.
"If the material transmits light differently, then you can use light as a probe to study the property of the material and that is very powerful. Now you have multiple ways to study a material, electrically and optically."
The material was tested by immersing it in simulated ocean water environments designed to cover the wide ranges of temperature and pH found across earth's oceans. In future work, researchers plan to test the devices in real oceans instead and may team with biologists to apply the technology to broader studies.
A technique called neutron reflectometry was performed at NIST. Adding protons to the crystal lattice of the quantum material causes the lattice to swell slightly. Shining a neutron beam on the material allows researchers to detect this swelling and determine that the protons moved into the material.
"Neutrons are very sensitive to hydrogen, making neutron reflectometry the ideal technique to determine whether or not the swelling and huge resistance change is caused by hydrogen entering the material from salt water," said Joseph Dura, a NIST physicist.
Perovskite nickelates as electric-field sensors in salt water Zhen Zhang, Derek Schwanz, Badri Narayanan, Michele Kotiuga, Joseph A. Dura, Mathew Cherukara, Hua Zhou, John W. Freeland, Jiarui Li, Ronny Sutarto, Feizhou He, Chongzhao Wu, Jiaxin Zhu, Yifei Sun, Koushik Ramadoss, Stephen S. Nonnenmann, Nanfang Yu, Riccardo Comin, Karin M. Rabe, Subramanian K. R. S. Sankaranarayanan & Shriram Ramanathan Nature doi:10.1038/nature25008

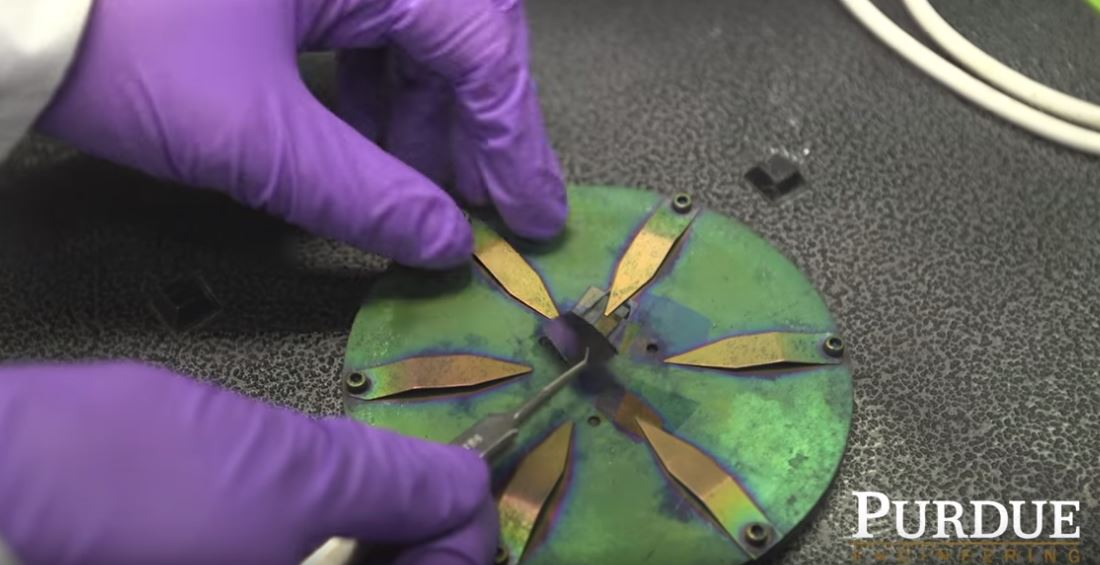

Researchers manufactured the device at Purdue using a method called physical vapor deposition.
