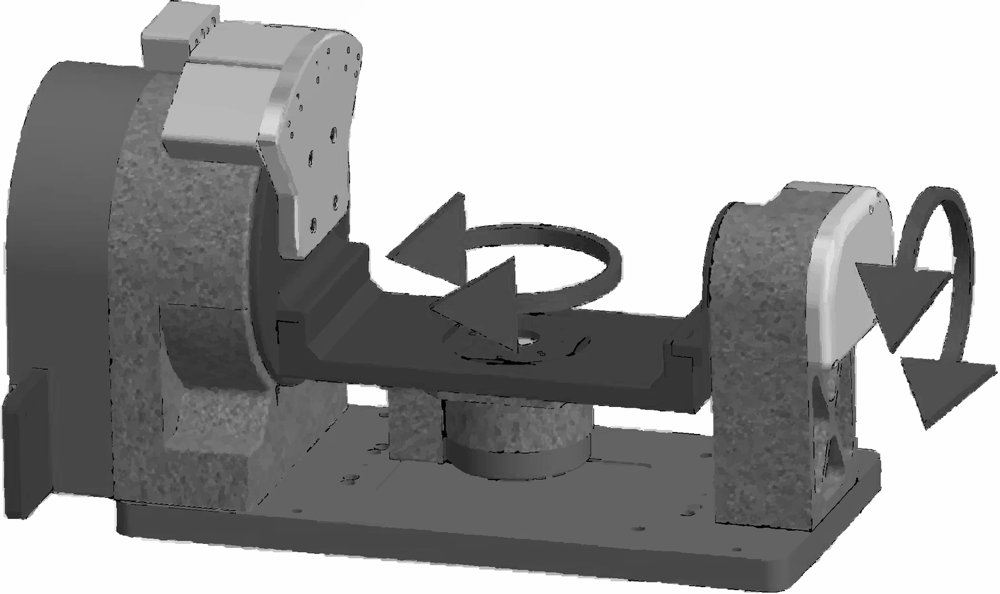

Rotary Motion System - 2 Axis Rotary Gimbal Is our AI-TM-154RA + AI-TM-208RA-GMB-CB fit for your requirements? Scanning / Smooth Continuous Movement: Best Fit Step and Settle: Best Fit No Movement on Power Loss: Good Fit Aperture / Open Center: N/A Precision: N/A Throughput: N/A Product Specifications Model AI-TM-154RA + AI-TM-208RA-GMB-CB Stage 2 Axis Rotary Gimbal Travel (Theta Z)360 degrees continuous (Theta Z) Travel (Theta Y)+/- 100 degrees (Theta Y) Optional: up to +/- 172 deg Dimensions (Length x Width x Height)571 mm x 230 mm x 362.5 mm Drive Torque Motor Feedback Non-Contact Optical Rotary Encoder Bearings Angular Contact (Duplex Pair) Counterbalance Counterweight Capability (Adjustable with Provided Weights) Cables High Flex, 10M Cycle, 3m Length Structure Anodized Aluminum 6061-T6 Environment Ambient Operating Temperature 0°C to 50°C Humidity 10% to 80% Non-Condensing Axis A (THETA Z)B (THETA Y) Performance Specifications [2]STD ULTRA NANO STD ULTRA NANO Angular Accuracy With Compensation n/a+/-3 arc-sec n/a+/-3 arc-sec Bidirectional Angular Repeatability+/- 0.5 arc-sec+/- 0.4 arc-sec Resolution 0.01 arc-sec (analog)0.01 arc-sec (analog) Axial Runout 10 µm 4 µm 2 µm 10 µm 5 µm 3 µm Radial Runout 10 µm 4 µm 2 µm 10 µm 5 µm 3 µm Axis Wobble 16 arc-sec 10 arc-sec 8 arc-sec 10 arc-sec 7 arc-sec 5 arc-sec B Axis To A Mount Surface Distance 60 mm +/- 0.5 mm Nominal (exact distance provided for each S/N at shipment) Max Velocity [3]360 deg/s (~6.28 rad/s)360 deg/s (~6.28 rad/s) Max Acceleration [3]`2300 deg/s (~40 rad/s) Max Load (Axial)12 kg 40 kg Max Load (Radial)12 kg 40 kg Customer Specified Payload 8 kg (+/- 4 kg or 12 kg maximum) Assembly Mass (With Counterweight)39 kg
Nano Z® – Dual Voice Coil Stage with Air Bearings When Nanometer-Level Vertical Precision Is the Priority Some applications place ultimate Z-axis precision above almost every other consideration. ALIO's patented NANO Z® architecture combines air bearings with dual voice-coil motors to provide frictionless vertical motion in a compact platform. By aligning vertical force with the payload, the architecture reduces the cantilever effects that can translate into pitch, yaw and roll errors at the work point. The system offers up to 50 mm of travel, while variable counterbalancing enables demanding payloads such as wafer chucks to be managed without surrendering nano-level positioning performance. Air-bearing operation also eliminates mechanical contact and associated friction, supporting extremely smooth motion and repeatability into the low double-digit nanometer range. For semiconductor processing, advanced metrology and other applications where vertical motion can directly influence measurement or process integrity, NANO Z® provides precision by architecture rather than compensation. View datasheet
CATEGORY
ALIO’s Micron 2 Rotary Stages utilize frameless torque motors and angular contact, duplex pair bearings. These stages are designed to achieve maximum possible throughput without compromising on precision, regardless of whether the application requires a smooth, continuous movement or a fast step and settle process. Also allowing decent sized apertures, those rotational stages are used in a broad selection of applications and industries such as industrial manufacturing, photonics or semiconductor metrology. Micron II Rotary: AI-TM-(DIAMETER)RA-UII
CATEGORY
ALIO Industries offers mechanical bearing rotary stages with angular contact bearings to meet the requirements of applications that demand a compact and flat rotary stage with a decent aperture size. With torque motors, these stages enable a smooth continuous movement or a step-and-settle process over the full 360 degrees, without compromising precision or throughput. The stages are highly versatile and suitable for various industries and applications. To know more about this family of stages, check out the spec sheet.
CATEGORY
ALIO Industries' open-center rotary stages utilize tangential linear direct drives with angular contact bearings for up to +/-7.5 degrees of angular movement and an extreme aperture. These stages are ideal for high-precision applications, including the semiconductor, metrology, and life science industries. With rigid bearings and a powerful linear direct motor, they are designed to meet the high-throughput needs of the high-precision market. Download our product spec sheet for more details.
