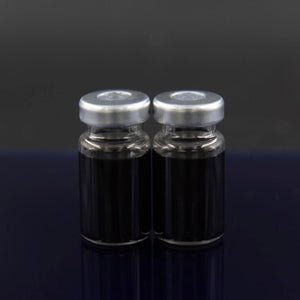

Lead sulfide (PbS) quantum dots from NN-Labs can be excited over a broad range of wavelengths and emit a finite position in the near-IR region. PbS quantum dots are inorganic semiconductors with an outer surface coating of organic ligands (oleic acid). These ligands allow for the stability, solubility, and processability in organic solution. Potential applications: biomedicine, solar cell development, LED lighting applications. Please contact us for information about available solvents or if you need a specific solvent. Specifications: - Oleic acid stabilizing ligands - 2.7-5.7 nm particle size - Absorption peaks 800-2000 nm Catalog No. Item/Description PBS800-50 PbS, Absorption 800 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS900-50 PbS, Absorption 900 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1000-50 PbS, Absorption 1000 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1100-50 PbS, Absorption 1100 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1200-50 PbS, Absorption 1200 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1300-50 PbS, Absorption 1300 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1400-50 PbS, Absorption 1400 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1500-50 PbS, Absorption 1500 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1600-50 PbS, Absorption 1600 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1800-50 PbS, Absorption 1800 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS1900-50 PbS, Absorption 1900 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS2000-50 PbS, Absorption 2000 ± 50nm, 50 mg sample in 5 mL organic solvent ($345) PBS800-100 PbS, Absorption 800 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS900-100 PbS, Absorption 900 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1000-100 PbS, Absorption 1000 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1100-100 PbS, Absorption 1100 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1200-100 PbS, Absorption 1200 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1300-100 PbS, Absorption 1300 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1400-100 PbS, Absorption 1400 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1500-100 PbS, Absorption 1500 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1600-100 PbS, Absorption 1600 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1800-100 PbS, Absorption 1800 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS1900-100 PbS, Absorption 1900 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS2000-100 PbS, Absorption 2000 ± 50nm, 100 mg sample in 10 mL organic solvent ($575) PBS800-250 PbS, Absorption 800 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS900-250 PbS, Absorption 900 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1000-250 PbS, Absorption 1000 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1100-250 PbS, Absorption 1100 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1200-250 PbS, Absorption 1200 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1300-250 PbS, Absorption 1300 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1400-250 PbS, Absorption 1400 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1500-250 PbS, Absorption 1500 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1600-250 PbS, Absorption 1600 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1800-250 PbS, Absorption 1800 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS1900-250 PbS, Absorption 1900 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS2000-250 PbS, Absorption 2000 ± 50nm, 250 mg sample in 25 mL organic solvent ($1380) PBS800-500 PbS, Absorption 800 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS900-500 PbS, Absorption 900 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1000-500 PbS, Absorption 1000 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1100-500 PbS, Absorption 1100 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1200-500 PbS, Absorption 1200 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1300-500 PbS, Absorption 1300 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1400-500 PbS, Absorption 1400 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1500-500 PbS, Absorption 1500 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1600-500 PbS, Absorption 1600 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1800-500 PbS, Absorption 1800 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS1900-500 PbS, Absorption 1900 ± 50nm, 500 mg sample in 50 mL organic solvent ($2300) PBS2000-500 PbS, Absorption 2000 ± 50nm, 500 mg sample in 50mL organic solvent ($2300)
The amine gold nanoparticles offer narrow size distribution with the added benefit of amine groups on the surface, suitable for conjugation of proteins and DNA using standard EDC/NHS coupling chemistry. Potential applications: bioconjugations, drug delivery, bioimaging Specifications: - 5000 Da PEG surface spacers - 5-100 nm particle size - 95% spherical - Uniform size distribution (CV<12) Catalog No. / Item/Description CGA5K-5-25 5nm Amine Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water ($268) CGA5K-10-25 10nm Amine Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-15-25 15nm Amine Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-20-25 20nm Amine Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-30-25 30nm Amine Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-40-25 40nm Amine Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-50-25 50nm Amine Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-60-25 60nm Amine Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-70-25 70nm Amine Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-80-25 80nm Amine Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-90-25 90nm Amine Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-100-25 100nm Amine Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 0.5ml (50 OD), supplied in USP grade purified water($268) CGA5K-5-50 5nm Amine Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water ($445) CGA5K-10-50 10nm Amine Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-15-50 15nm Amine Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-20-50 20nm Amine Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-30-50 30nm Amine Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-40-50 40nm Amine Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-50-50 50nm Amine Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-60-50 60nm Amine Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-70-50 70nm Amine Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-80-50 80nm Amine Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-90-50 90nm Amine Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445) CGA5K-100-50 100nm Amine Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 1.0ml (50 OD), supplied in USP grade purified water($445)
CATEGORY
The biotin functionalized gold nanoparticles offer narrow size distribution with the added benefit of biotin groups on the surface, suitable for binding of streptavidin labeled conjugates. These gold nanoparticles are specifically engineered to achieve optimal streptavidin binding while minimizing other non-specific binding. Potential applications: bioconjugations, detection of streptavidin Specifications: - 5000 Da PEG surface spacers - 5-100 nm particle size - 95% spherical - Uniform size distribution (CV<12) Catalog No. Item/Description CGB5K-5-25 5nm Biotin Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGB5K-10-25 10nm Biotin Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-15-25 15nm Biotin Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-20-25 20nm Biotin Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-30-25 30nm Biotin Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-40-25 40nm Biotin Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-50-25 50nm Biotin Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-60-25 60nm Biotin Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-70-25 70nm Biotin Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-80-25 80nm Biotin Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-90-25 90nm Biotin Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-100-25 100nm Biotin Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water($268) CGB5K-5-50 5nm Biotin Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGB5K-10-50 10nm Biotin Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-15-50 15nm Biotin Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-20-50 20nm Biotin Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-30-50 30nm Biotin Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-40-50 40nm Biotin Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-50-50 50nm Biotin Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-60-50 60nm Biotin Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-70-50 70nm Biotin Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-80-50 80nm Biotin Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-90-50 90nm Biotin Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445) CGB5K-100-50 100nm Biotin Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water($445)
CATEGORY
The carboxylated gold nanoparticles offer narrow size distribution with the added benefit of carboxyl groups on the surface, suitable for conjugation of proteins using standard EDC/NHS coupling chemistry. These gold nanoparticles are precisely engineered to have optimal carboxyl group density for easy conjugation. Potential applications: immunoblotting, lateral flow assays, LSPR assays, microscopy applications (i.e. TEM) Catalog No. / Item/Description: CGC5K-5-25 5nm Carboxylated Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-10-25 10nm Carboxylated Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-15-25 15nm Carboxylated Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-20-25 20nm Carboxylated Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-30-25 30nm Carboxylated Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-40-25 40nm Carboxylated Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-50-25 50nm Carboxylated Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-60-25 60nm Carboxylated Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-70-25 70nm Carboxylated Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-80-25 80nm Carboxylated Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-90-25 90nm Carboxylated Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-100-25 100nm Carboxylated Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 0.5mL (50OD), supplied in USP grade purified water ($268) CGC5K-5-50 5nm Carboxylated Gold Nanoparticles (5kDa PEG), 515-520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-10-50 10nm Carboxylated Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-15-50 15nm Carboxylated Gold Nanoparticles (5kDa PEG), 520nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-20-50 20nm Carboxylated Gold Nanoparticles (5kDa PEG), 524nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-30-50 30nm Carboxylated Gold Nanoparticles (5kDa PEG), 526nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-40-50 40nm Carboxylated Gold Nanoparticles (5kDa PEG), 530nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-50-50 50nm Carboxylated Gold Nanoparticles (5kDa PEG), 535nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-60-50 60nm Carboxylated Gold Nanoparticles (5kDa PEG), 540nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-70-50 70nm Carboxylated Gold Nanoparticles (5kDa PEG), 548nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-80-50 80nm Carboxylated Gold Nanoparticles (5kDa PEG), 553nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-90-50 90nm Carboxylated Gold Nanoparticles (5kDa PEG), 564nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445) CGC5K-100-50 100nm Carboxylated Gold Nanoparticles (5kDa PEG), 572nm absorption peak, 1.0mL (50OD), supplied in USP grade purified water ($445)
CATEGORY
Non-functionalized Gold NanoUrchins have unique optical properties compared to spherical gold nanoparticles of the same core diameter. The spiky uneven surface causes a red shift in the surface plasmon peak and a larger enhancement of electromagnetic fields at the tips of the Gold NanoUrchin spikes. As an example, 100nm spherical gold nanoparticles have an SPR peak at 570nm while 100nm Gold NanoUrchins have a SPR peak at around 680nm. In addition, binding of ligands such as proteins to the Gold NanoUrchin surface causes a larger shift in the surface plasmon peak compared to standard spherical gold nanoparticles. The citrate-covered surface of the Gold NanoUrchins allows for efficient adsorption of primary antibodies and other proteins. Also, Gold NanoUrchins can be further modified and functionalized through ligand-exchange with e.g. thiol-containing ligands such as PEG and oligonucleotides. These particles can be used as an alternative to standard spherical gold nanoparticles in a wide range of applications. Potential applications: electron microscopy, immunostaining, development of biological sensors. Specifications: - 50-100 nm particle size - 95% reactant free - Uniform size distribution (CV<8%) Catalog No. Item/Description GU-50-40 50nm Gold NanoUrchins, 40mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free ($192) GU-60-40 60nm Gold NanoUrchins, 40mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($192) GU-70-40 70nm Gold NanoUrchins, 40mL, 600nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($192) GU-80-40 80nm Gold NanoUrchins, 40mL, 620nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($192) GU-90-40 90nm Gold NanoUrchins, 40mL, 630nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($192) GU-100-40 100nm Gold NanoUrchins, 40mL, 680nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($192) GU-50-100 50nm Gold NanoUrchins, 100mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free ($289) GU-60-100 60nm Gold NanoUrchins, 100mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($289) GU-70-100 70nm Gold NanoUrchins, 100mL, 600nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($289) GU-80-100 80nm Gold NanoUrchins, 100mL, 620nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($289) GU-90-100 90nm Gold NanoUrchins, 100mL, 630nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($289) GU-100-100 100nm Gold NanoUrchins, 100mL, 680nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($289) GU-50-500 50nm Gold NanoUrchins, 500mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free ($995) GU-60-500 60nm Gold NanoUrchins, 500mL, 585nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($995) GU-70-500 70nm Gold NanoUrchins, 500mL, 600nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($995) GU-80-500 80nm Gold NanoUrchins, 500mL, 620nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($995) GU-90-500 90nm Gold NanoUrchins, 500mL, 630nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($995) GU-100-500 100nm Gold NanoUrchins, 500mL, 680nm absorption peak (1 OD), supplied in 0.1mM phosphate-buffered saline – Purity: 95.0% reactant free($995)
CATEGORY
