By acniti

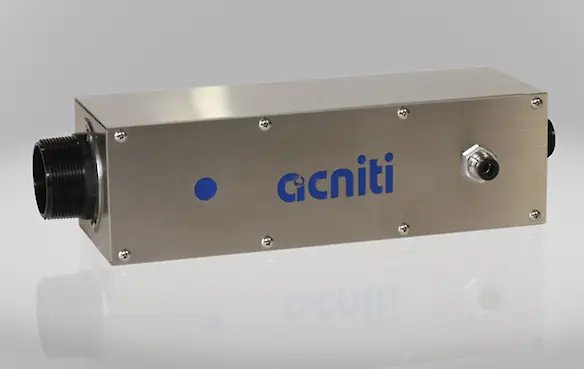

The Turbiti 737 is a passive nanobubble mixer using turbulent ejector technology. It handles 150 to 400 LPM of water and 5 to 8 LPM of gas input, with no electrical connections required. Compatible with submersible and centrifugal pumps, it suits water treatment, aquaculture, and agriculture aeration. General - Model name: Turbiti Turbulent Mixer Nanobubble Generator for Industrial Use - Model number: turbiti_737_box304 - Technology: Turbulent Mixer Ejector Liquid (Metric / Imperial) - Minimum flow / minute: 150 Liter / 40 Gallon - Maximum flow / minute: 400 Liter / 106 Gallon - Minimum flow / hour: 9.0 M3 / 317.8 CF - Maximum flow / hour: 24 M3 / 848 CF - water temperature minimum: -20 ℃ / -4 ℉ - water temperature maximum: 50 ℃ / 122 ℉ - Strainer availability and size: No strainer, strainer required when particles larger than 1 or 2 mm. Ambient (Metric / Imperial) - Ambient temperature minimum: -20 ℃ / -4 ℉ - Ambient temperature maximum: 50 ℃ / 122 ℉ - Relative humidity minimum: 0 % - Relative humidity maximum: 100 % Gas (Metric / Imperial) - Minimum flow / minute: 5.0 Liter / 1.3 Gallon - Maximum flow / minute: 8.0 Liter / 2.1 Gallon - Minimum flow / hour: 300 Liter / 79 Gallon - Maximum flow / hour: 480 Liter / 127 Gallon - Pressure minimum: 40 kPa / 6 PSI - Pressure maximum: 350 kPa / 51 PSI - Gas quality: No corrosive gasses: suitable for O2, air, CO2, N2 - Gas remark: The mentioned pressures are recommended pressures for bubble generation. The product itself can withstand pressures up to 400 kPa. Electrical (Metric / Imperial) - Unit power consumption: No pump included with this product. Estimated power consumption 750-1000 watts. / 0 HP - Wetted parts: nylon based resins, silicone tube, PPS, EPDM - Pump model: This product works both with submersible pumps and single stage centrifugal pumps. - Pump pressure setting: This product works well with most low head pumps. Head 10 to 15 meters. (Ask us for more details). - Control: No automatic operation Pump options - Grundfos CM10-1 - Ebara pump DWO-400 Connections - Water inlet: R 2" male connector (50 mm) - Water outlet: R 1" male connector (25 mm) - Gas inlet: 10mm standard push-to-connect fitting, 3/8 on request Dimensions & weight (Metric / Imperial) - Dim. (w) x (d) x (h): 405 x 100 x 130 mm / 15.9 x 3.9 x 5.1 inch - weight: 2.8 Kg / 6.2 lbs. - HS code: 8479.82.0040 - Shipping dim. (w)x(d)x(h): 12 x 34 x 12 cm / 5 x 13 x 5 inch - Shipping weight: 5 Kg / 11 lbs. Remarks - Other remarks: The turbiti UFB mixer works normally well with low head pumps using 750 to 1000 watt of power. (ask us for more details)
microStar Tech: Hammermill rotation Oyster and mussel desinfection Chemical waste water treatment Hydrodynamic Stability Disease Prevention Lowest energy consumption, no pump, no turbulence. Hammer-mill based nanobubble generation with microStar made the process energy-efficient.
CATEGORY
The UltramaxO2 Oxygen Analyzer is a high-performance device that accurately measures oxygen levels in various applications. Engineered for precision and reliability, it delivers exceptional performance in multiple industries, including healthcare, manufacturing, environmental monitoring, and more. Key Features: - Advanced Sensing Technology: Equipped with state-of-the-art oxygen sensing technology, the UltramaxO2 delivers fast and accurate measurements, ensuring real-time monitoring of oxygen concentrations. - Wide Measurement Range: This analyzer can measure oxygen levels across a broad range, from low to high concentrations, making it suitable for various applications, including industrial processes and medical settings. - User-Friendly Interface: The UltramaxO2 features an intuitive display and easy-to-navigate controls, ensuring effortless operation. Its user-friendly interface allows for quick setup and simplified monitoring. - Durable and Robust Design: Built to withstand demanding environments, the UltramaxO2 is housed in a rugged casing, ensuring long-lasting performance and protection against dust, moisture, and harsh conditions. - Fast Response Time: With a rapid response time, the UltramaxO2 guarantees immediate results, allowing quick decision-making in critical situations. - Versatile Calibration Options: The UltramaxO2 offers flexible calibration options, ensuring precise and reliable measurements for a wide range of applications and environments. - Compact and Portable: The UltramaxO2's compact, lightweight design makes it easy to transport and use in both fixed and portable setups. Benefits: - Time-Saving: Quick setup and fast readings streamline the testing process - Cost-Effective: Eliminates the need for sensor replacements, reducing long-term ownership costs - Versatile: Integrated pressure monitoring eliminates the need for additional equipment - Reliable: Self-diagnostics and error code display ensure accurate measurements Applications: - Medical Industry: To monitor oxygen levels in gas systems, hospitals, and clinics. - Industrial Applications: Ideal for oxygen analysis in manufacturing, welding, and gas production. - Environmental Monitoring: Used to measure oxygen levels in air quality studies and environmental testing. - Research and Development: Essential for laboratories conducting experiments requiring precise oxygen measurements. Technical Specifications: - Oxygen Measurement Accuracy: ±1.5% of full scale at constant temperature and optimal flow - Flow Measurement Accuracy: ±0.2 LPM - Pressure Measurement Accuracy: ±0.5% PSI (±0.5% kPa) - Power: 2 AA Alkaline batteries with long battery life - E6 error 6: Operating Temperature: 15°C - 40°C (59°F - 104°F) The UltramaxO2 Oxygen Analyzer is your trusted solution for accurate, reliable, and efficient oxygen measurement. Ensure safety and optimize performance in your industry with this cutting-edge analyzer. - 3-in-1 Functionality: Measures oxygen purity (20.9-96%), flow rate (0-10 LPM), and outlet pressure (0.5-50 PSI / 3.4-344 kPa) - Ultrasonic Sensor Technology: No need for traditional oxygen sensors, reducing maintenance costs and extending device lifespan - No In-Field Calibration Required: Features a calibration verification button for quick accuracy checks - User-Friendly Design: Large, easy-to-read LCD display with clear, bold numbers for quick readouts - Durable and Portable: Compact size with a protective silicone case for easy transport and increased durability General - Model name: Ultramax O2 - Model number: Ultramax O2 - Technology: coming soon Ambient - Ambient temperature minimum: 15 ℃ (59 ℉) - Ambient temperature maximum: 40 ℃ (104 ℉) - Relative humidity minimum: 0 % - Relative humidity maximum: 95 % Gas - Minimum flow / minute: 0.0 Liter (0.0 Gallon) - Maximum flow / minute: 10 Liter (2.6 Gallon) - Minimum flow / hour: 0.0 Liter (0.0 Gallon) - Maximum flow / hour: 600 Liter (159 Gallon) - Pressure minimum: 3.4 kPa (0 PSI) - Pressure maximum: 344 kPa (50 PSI) - Gas remark: oxygen only Dimensions & weight - Dim. (w) x (d) x (h): 80.3 x 129.5 x 26.4 mm (3.2 x 5.1 x 1.0 inch) - weight: 181 Kg (399.0 lbs.) Pricing: Ultramax O2 EUR € 1,150 / USD $ 1,300 / AUD $ 1,800 / NZD $ 2,250 / CAD $ 1,800 / SGD $ 1,600. in stock
CATEGORY
The Acniti Ozone Monitor is a state-of-the-art instrument designed for accurate, real-time measurements of ozone concentration in a variety of industries. Whether you're working in an industrial setting, greenhouse, laboratory, or water treatment facility, ozone plays a vital role in many processes, but it can be harmful even at low concentrations. Our Ozone Gas Sensors provide fast, accurate, and stable measurements to keep your environment safe and your systems under control. Key features High precision ozone detection: Our monitor uses advanced sensor technology to measure ozone concentrations with exceptional accuracy in real time. It detects even the smallest fluctuations in ozone levels, ensuring optimal performance in critical environments. Wide measurement range: The Acniti Ozone Monitor has an impressive measurement range of 0-60 mg/L, making it suitable for a variety of applications. Whether you are monitoring ambient air quality or assessing high ozone concentrations in industrial environments, our device delivers reliable measurements across the spectrum. Real-time monitoring with instant measurements: Get instantaneous data on ozone concentrations to make quick and informed decisions. This feature is critical in industrial environments where fast response times are essential for worker safety. Compact and portable design: The lightweight and portable design of our monitor allows for easy deployment in both stationary and mobile applications. Take accurate measurements wherever you need them without sacrificing performance. User-friendly interface: The Acniti Ozone Monitor features an intuitive, easy-to-read display that requires minimal training to operate. This simplicity ensures that experienced professionals and newcomers alike can use the device effectively. Durable construction: Built to withstand challenging environments, our monitor maintains high performance even when exposed to moisture, dust or extreme temperatures. Applications The Acniti Ozone Monitor excels in a variety of industries and applications: - Environmental monitoring: Assess air quality and ozone pollution levels with precision - Industrial Safety: Ensure worker safety and regulatory compliance in manufacturing, water treatment and chemical production facilities - Healthcare & Laboratories: Monitor ozone levels in sterilization processes to maintain a safe environment for staff and patients - Agriculture: Monitor ozone levels in greenhouses and warehouses for pest control and product preservation Benefits of the Acniti Ozone Monitor - Accuracy and reliability: Advanced sensors deliver reliable ozone concentration measurements in a variety of environments - Portability: Conduct on-the-go assessments with our compact, lightweight design - Real-time data: Receive instant ozone concentration readings for fast decision-making - User-friendly operation: Intuitive interface requires minimal training, accessible to users of all experience levels - Versatility: Suitable for a wide range of industries and applications Conclusion The Acniti Ozone Monitor stands out as a powerful, reliable and easy-to-use tool for accurate ozone measurement in a variety of environments. Its advanced sensor technology, portable design and real-time data capabilities make it an indispensable tool for professionals requiring accurate ozone concentration monitoring. Choose the Acniti Ozone Monitor for unmatched performance in environmental monitoring, industrial safety, healthcare, agriculture and more. - High-Precision Ozone Detection - Wide Measurement Range - Real-Time Monitoring with Instant Readings - Fast response time - Compact and Portable Design - Long Sensor Lifespan - Versatile use Specifications - EG-550 Series: General - Model name: EG-550 Series - Model number: EG-550 - Technology: UV Absorption Method Gas - Minimum flow / minute: 0.1 Liter (0.0 Gallon) - Maximum flow / minute: 3.0 Liter (0.8 Gallon) - Minimum flow / hour: 3.0 Liter (0.8 Gallon) - Maximum flow / hour: 180 Liter (48 Gallon) Electrical - Pump phase Ø voltage: AC 100V~220 V Dimensions & weight - Dim. (w) x (d) x (h): 220 x 105 x 150 mm (8.7 x 4.1 x 5.9 inch) - weight: 2.2 Kg (4.9 lbs.) - HS code: 9027.9090
CATEGORY
O3 Waste Sensor Overview What makes the Acniti Ozone Waste Water Sensor unique? The Ozone Wastewater Sensor of Acniti utilizes a proven electrochemical measurement principle, in which dissolved ozone diffuses through a polymeric membrane and reacts within an electrolyte layer. This reaction generates an electric current that is directly proportional to the ozone concentration. Thanks to the use of three electrodes (working, counter, and reference), the measurement remains stable, and the sensor is less susceptible to aging or contamination. Applications - Water treatment facilities - Pharmaceutical production - Food and beverage industry - Research laboratories - Disinfection control in process water Key Benefits - Accurate: Measurements within ±2.5% of full scale - Fast: 90% response within 60 seconds - Compact: Lightweight and easy to mount - Flexible: Available in measurement ranges of 0–1.00 mg/L and 0–10.0 mg/L - Automatically compensated: For temperature variations (5–30°C) - Versatile output: Isolated 4–20 mA output + contact alarms - Cost-effective: No additional control equipment needed Easy Installation The sensor comes with a mounting board and all necessary accessories. The flow cell is pre-installed, and smart connectors make the sensor quick and easy to set up. For calibration of the unit CX100, a calibration kit is required. Measuring Principle The ELP-200 dissolved ozone sensor is an electrochemical sensor that uses a "membrane ozone monitor" based on the polarographic measurement principle. As an electrochemical device, it operates by facilitating the chemical reaction (specifically, reduction or oxidation) of ozone at an electrode, producing an electrical current proportional to the ozone concentration. The inclusion of a membrane allows only ozone to pass through and reach the electrode, enhancing selectivity and reducing interference. In this context, "polarographic" refers to a type of amperometric electrochemical measurement in which the sensor detects ozone by measuring the current generated during the redox reaction at the electrode surface, thereby translating chemical information into a quantifiable electrical signal. Ozone penetrates a membrane – Ozone (O₃) present in the water diffuses through a special polymer membrane to the inside of the sensor. Ozone reaches the electrolyte layer – Between the working and counter electrodes, there is a thin layer of electrolyte. The ozone dissolves here as it passes through the membrane. Electrochemical reaction – At the surface of the working electrode, the ozone reacts: In acidic conditions: O₃ + 2H⁺ + 2e⁻ → O₂ + H₂O In basic conditions: O₃ + H₂O + 2e⁻ → O₂ + 2OH⁻ – Simultaneously, an oxidation reaction takes place at the counter electrode, releasing electrons. Current intensity = ozone concentration – The amount of electrical current generated is directly proportional to the amount of ozone in the water. This is known as the limiting current region – a voltage range where the measured current remains constant despite increasing voltage. Stable and linear measurement – Thanks to the stable design with three electrodes (working, counter, and reference electrodes), the measurement remains reliable over a long period, with minimal sensor contamination. In short, the Ozone Waste Water Sensor converts ozone in water into an electrical signal that precisely indicates the amount of ozone present. Reliable, linear, and accurate, exactly what you want in a critical measurement application. Important Specifications - Model: ELP-200 - Measurement Principle: Electrochemical via a gas-permeable membrane - Measurement Range: 0–10 mg/L dissolved ozone - Accuracy: ±2.5% of full scale - Response Time: 90% response within 60 seconds - Temperature Range: Water: 5–30°C; Ambient: 5–40°C - Power Supply: 100 - 220 V AC, 50/60 Hz (~5 VA) - Connections: Stainless steel fittings for water inlet and outlet - Dimensions: 125 x 81 x 560 mm - Calibration: CX100 is required - Reliable, interference-free measurements - Instant insight into ozone levels - Fast and accurate response - Automatic temperature compensation - Smart alarm and control outputs - Compact, durable, and long-lasting - Amperometric Ozone Sensor specifically polarographic Pricing table ELP-200: EUR € 3,700 / USD $ 4,150 ELP-200: AUD $ 5,950 / NZD $ 7,400 ELP-200: CAD $ 5,900 / SGD $ 5,300 Specifications General - Model name: ELP-200 - Model number: ELP-200 - Technology: Polarographic Liquid - Minimum flow / minute: 0.5 Liter (0.1 Gallon) - Maximum flow / minute: 1.0 Liter (0.3 Gallon) - Minimum flow / hour: 30 Liter (7.9 Gallon) - Maximum flow / hour: 60 Liter (16 Gallon) - water temperature minimum: 5 ℃ (41 ℉) - water temperature maximum: 30 ℃ (86 ℉) Ambient - Ambient temperature minimum: 5 ℃ (41 ℉) - Ambient temperature maximum: 40 ℃ (104 ℉) - Relative humidity minimum: 0 % - Relative humidity maximum: 90 % Electrical - Unit phase Ø voltage: AC 100~240V 50/60Hz - Unit power consumption: 5 VA Connections - Water inlet: Fitting straight tightening joint stainless steel Dimensions & weight - Dim. (w) x (d) x (h): 125 x 81 x 560 mm (4.9 x 3.2 x 22.0 inch) - HS code: 9027-9090 - Dissolved ozone analyzer for sewage. - Measures dissolved ozone through a gas-permeable membrane, not easily affected to residual chlorine and dissolved organic substance. - This compact dissolved ozone monitor uses a diaphragm polarograph sensor with excellent selectivity and is not easily affected by various metal ions or conductivity in the sample water. - The three-electrode configuration greatly suppresses the formation of electrode reaction byproducts that deteriorate the sensor's aging characteristics.
CATEGORY
