By Qsonica

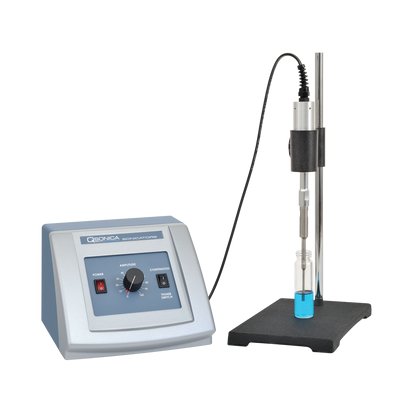

Compact and cost effective The Q55 Sonicator® is a compact and cost-effective ultrasonic processor that will occupy less bench space than any unit on the market. It may be small and simple, but you still get the same renowned Sonicator performance. This model is effective for standard cell disruption and many other small volume applications. Probes are available in three different sizes. Ordering information: Part #Q55 includes a standard 1/8” diameter probe (#4422). A variety of probe/horn options are available. If you do not require the standard probe (#4422) the system can be purchased without it. Part #Q55A is the Sonicator system (power supply, converter, cables and wrench set) but excludes the standard probe. Part #Q55S includes 460 (stand). - Smallest unit available - Thumb-switch or continuous operation - Simple and effective operation PART NO. Q55 INCLUDES: - Generator - Converter - 1/8” diameter probe - Power cable - Converter cable - Wrench set Power Rating 55 Watts Frequency 20 kHz Dimensions 8" W x 7.5" L x 5.75" H Voltage 110V, 50/60Hz * 220V not available online, contact us for local distributor Volume Up to 50 ml
For Q500 / Q700 Sonicators The Cup Horn for the Q500 and Q700 (431C2) includes tube holders 440 and 451. In addition to the standard holders, Qsonica offers custom sample tube racks to meet your specific process requirements. Please, contact a Qsonica representative for more information. Part Description Sample tube size 440 8 Tube Holder (white) 1.5ml polystyrene (Evergreen tubes) 451 8 Tube Holder (green) 1.5ml polypropylene (Eppendorf tubes) 449 12 Tube Holder (black) 500ul thin walled PCR tubes 445 24 Tube Holder (blue) 200ul thin walled PCR tubes 4550 Bridge N/A Evergreen Scientific; Sample tube ref 214-3721-010, Cap part 300-2911-020 are recommended Brand Tech Scientific tubes ref781312 are recommended
CATEGORY
Standard Probes For Q500 / Q700 Sonicators Horns (also known as probes) are made from titanium and machined to specific sizes and shapes. When driven at their resonant frequency, they expand and contract longitudinally. This mechanical vibration is amplified and transmitted down the length of the probe. In liquid, the probe causes cavitation which constitutes the main mechanism for sample processing. Choosing the appropriate horn is extremely important. The sample volume to be processed is directly related to the tip diameter. Smaller tip diameters (Microtip probes) deliver high intensity sonication, but the energy is focused within a small, concentrated area. Larger tip diameters can process larger volumes, but offer lower intensity. Probes are offered with replaceable or solid tips. Probe tips will pit or erode over time and require replacement. Using an excessively worn tip can affect your results and possibly overload the generator. Solid probes must be used for samples containing organic solvents or low surface tension liquids. Part Type of Tip Processing Volume Tip Diameter Amplitude (microns) 4220 Replaceable 20-250 ml 1/2" (12.7mm) 120 μm 4219 Solid 20-250 ml 1/2" (12.7mm) 120 μm 4207 Replaceable 50-500 ml 3/4" (19.1mm) 60 μm 4208 Solid 50-500 ml 3/4" (19.1mm) 60 μm 4210 Replaceable 100-1,000 ml 1" (25.4mm) 35 μm 4209 Solid 100-1,000 ml 1" (25.4mm) 35 μm
CATEGORY
The 15ml and 50ml tube holders are made to accommodate conical screw cap tubes. In addition to these tube holders, Qsonica can design and manufacture custom sample tube racks to meet your specific process requirements. Please contact a Qsonica representative for more information. Photos show 431C2 cup horn with tube holder. Cup horn accessory is sold separately. Use of polystyrene or similar tube material is recommended. Polypropylene or soft plastics do not work as efficiently and will result in poor sample processing. Part Description 454 15ml Tube Holder 455 50ml Tube Holder
