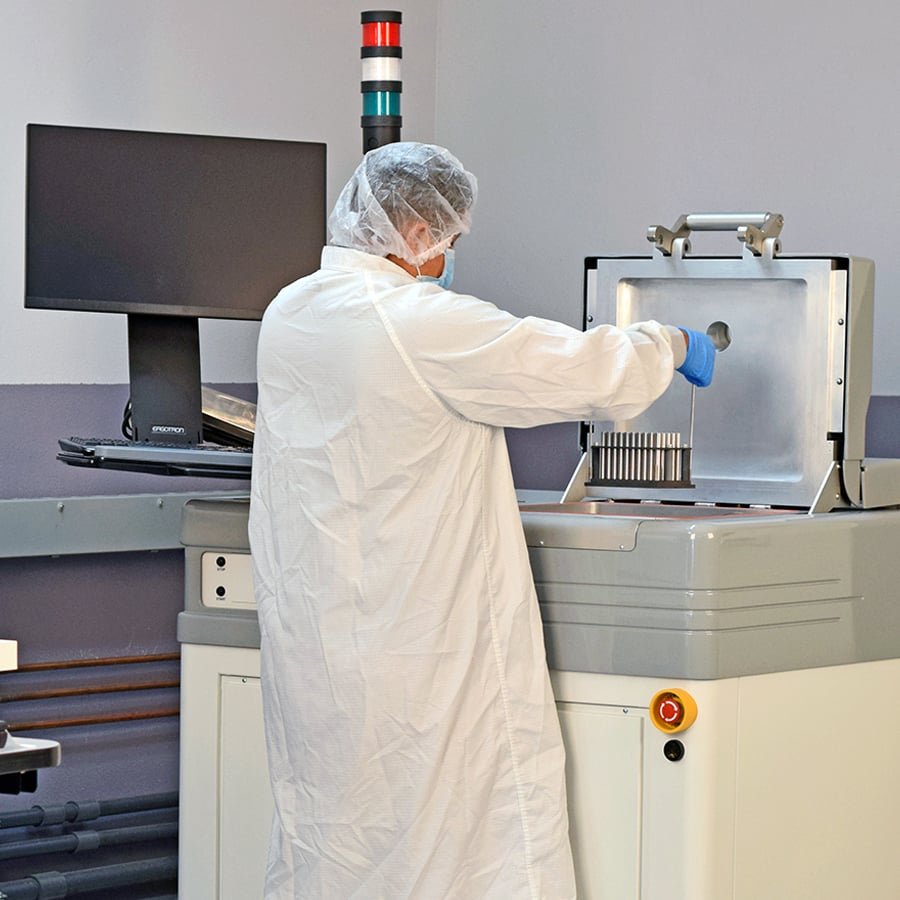

Run analyzer provides ability to graphically review data from logged profiles and export data. This includes real-time display of the thermal and pressure profiles as well as the ability to aid in process development by helping identify plating or material changes in your products.

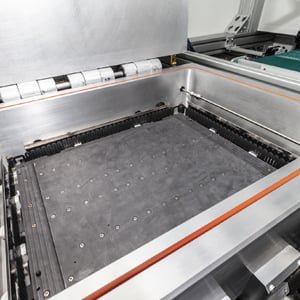

Mid Vacuum option allows the oven to achieve a chamber vacuum level in the range of 10-5 Torr or lower. This option often used for the sealing of the IR Sensors, where specific vacuum level needs to be sealed inside the package for the optimal functionality of the sensor.
CATEGORY

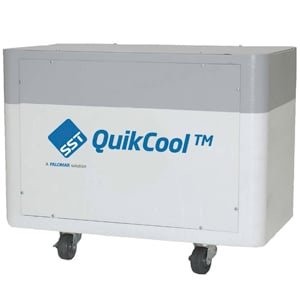

QuikCool™ is an auxiliary cooling unit designed to rapidly reduce the temperature of the target plate to enable a faster production process. The entire process takes place in one chamber to reduce handling and increase speed of production.
CATEGORY

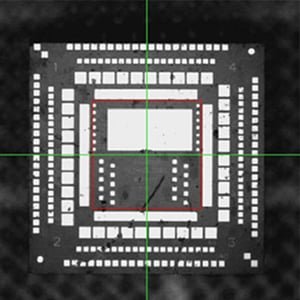

Utilizes advanced geometric pattern matching technology to reliably and accurately locate parts that are randomly oriented or have greyscale variations by using a set of boundary curves that are not tied to a traditional pixel-grid. Vision Standardization ensure consistency across systems and throughout the lifetime of the machine; reducing process maintenance and maximizing production.
CATEGORY
VisionPilot with Vision Standardization Utilizes advanced geometric pattern matching technology to reliably and accurately locate parts that are randomly oriented or have greyscale variations by using a set of boundary curves that are not tied to a traditional pixel-grid. Vision Standardization ensure consistency across systems and throughout the lifetime of the machine; reducing process maintenance and maximizing production. Automated Tool Changer Automated access to nearly unlimited tools. Enables use of as many tools as needed for any process. Keep up to 8 tools loaded in the tool turret for near-instant access. Keep back-ups of tools on hand for rapid changing when current tools wear out. Bond Data Miner A comprehensive and centralized data management and analysis system that provides machine and process trend monitoring, storage and traceability of data across platforms, and closed loop process control for increased yields and predictive maintenance. High Force Tool Option Reach high levels of force while maintaining high precision for low force operations. Tight planarity control even for extremely large components. Can automatically change tools while handling unique and oversized tools with ease at the high force position. Pulsed Heat Systems Highly accurate computer-controlled heating solution for solder based applications. Available in several forms ranging from a large surface area model to accommodate all part sizes to a heating source incorporated into the tool itself for localized heating. Dispensing Solutions Dispensing solutions range from the highly consistent Musashi Jetter which is not only surface height and temperature independent but also the highest throughput option for small controlled dispensing and the perfect option for 5G applications to the precisely controlled Nordson Micro Dot time-pressure solution which is capable of dispensing all the way down to “0.006 diameter dots. Automated Handler System Automated inline handlers and conveyor systems to seamlessly bring parts in and out of the workspace. Custom designed for all process to fit all components and even apply heat for both die and wire applications. Built with integration in mind for fully automatic assembly lines that can include all of our bonders. UV Systems A wide variety of options for UV sources ranging from custom designed stages with mirrored surfaces and actuating covers for maximum UV exposure to head mounted UV sources with programmable intensities that can provide the perfect cure profile for the best results. Identification Systems Seamless integration with all types of barcode scanners, from 2D to 3D, which can be mounted on the bond head or integrated within the workspace of our bonders. Characters on chips can even be read with the onboard vision system. All identification information is tracked and collected in a report for easy review. Epoxy Stamp Station Designed to be simple and quick to maintain while supporting high repeatability daubing. Perform rapid cleaning in seconds due to quick release of blade and epoxy well. The repeatability and sturdiness of the design means greater consistency of daubing – both during production and between setups. Designed to inhibit overflow and conserve material use.
