Columbia engineers invent method to control light propagation in waveguides

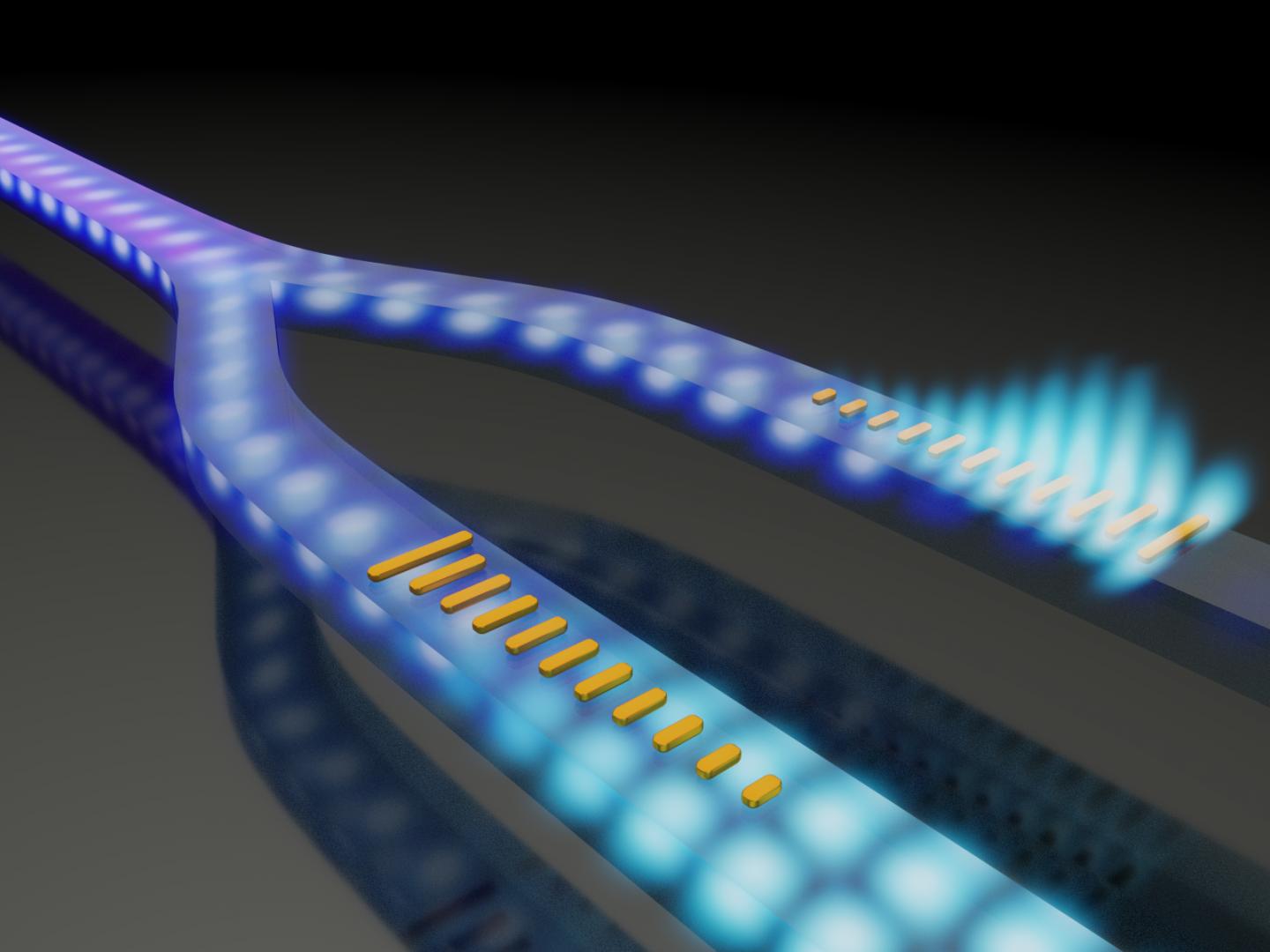

Fig 2. Artistic illustration of a photonic integrated device that in one arm an incident fundamental waveguide mode (with one lobe in the waveguide cross-section) is converted into the second-order mode (with two lobes in the waveguide cross-section), and in the other arm the incident fundamental waveguide mode is converted into strong surface waves, which could be used for on-chip chemical and biological sensing. @ Nanfang Yu/Columbia Engineering

A team of Columbia Engineering researchers, led by Applied Physics Assistant Professor Nanfang Yu, has invented a method to control light propagating in confined pathways, or waveguides, with high efficiency by using nano-antennas. To demonstrate this technique, they built photonic integrated devices that not only had record-small footprints but were also able to maintain optimal performance over an unprecedented broad wavelength range.

Photonic integrated circuits (ICs) are based on light propagating in optical waveguides, and controlling such light propagation is a central issue in building these chips, which use light instead of electrons to transport data. Yu's method could lead to faster, more powerful, and more efficient optical chips, which in turn could transform optical communications and optical signal processing. The study is published online in Nature Nanotechnology April 17.

"We have built integrated nanophotonic devices with the smallest footprint and largest operating bandwidth ever," Yu says. "The degree to which we can now reduce the size of photonic integrated devices with the help of nano-antennas is similar to what happened in the 1950s when large vacuum tubes were replaced by much smaller semiconductor transistors. This work provides a revolutionary solution to a fundamental scientific problem: How to control light propagating in waveguides in the most efficient way?"

The optical power of light waves propagating along waveguides is confined within the core of the waveguide: researchers can only access the guided waves via the small evanescent "tails" that exist near the waveguide surface. These elusive guided waves are particularly hard to manipulate and so photonic integrated devices are often large in size, taking up space and thus limiting the device integration density of a chip. Shrinking photonic integrated devices represents a primary challenge researchers aim to overcome, mirroring the historical progression of electronics that follows Moore's law, that the number of transistors in electronic ICs doubles approximately every two years.

Yu's team found that the most efficient way to control light in waveguides is to "decorate" the waveguides with optical nano-antennas: these miniature antennas pull light from inside the waveguide core, modify the light's properties, and release light back into the waveguides. The accumulative effect of a densely packed array of nano-antennas is so strong that they could achieve functions such as waveguide mode conversion within a propagation distance no more than twice the wavelength.

"This is a breakthrough considering that conventional approaches to realize waveguide mode conversion require devices with a length that is tens of hundreds of times the wavelength," Yu says. "We've been able to reduce the size of the device by a factor of 10 to 100."

Yu's teams created waveguide mode converters that can convert a certain waveguide mode to another waveguide mode; these are key enablers of a technology called "mode-division multiplexing" (MDM). An optical waveguide can support a fundamental waveguide mode and a set of higher-order modes, the same way a guitar string can support one fundamental tone and its harmonics. MDM is a strategy to substantially augment an optical chip's information processing power: one could use the same color of light but several different waveguide modes to transport several independent channels of information simultaneously, all through the same waveguide.

"This effect is like, for example, the George Washington Bridge magically having the capability to handle a few times more traffic volume," Yu explains. "Our waveguide mode converters could enable the creation of much more capacitive information pathways."

He plans next to incorporate actively tunable optical materials into the photonic integrated devices to enable active control of light propagating in waveguides. Such active devices will be the basic building blocks of augmented reality (AR) glasses--goggles that first determine the eye aberrations of the wearer and then project aberration-corrected images into the eyes--that he and his Columbia Engineering colleagues, Professors Michal Lipson, Alex Gaeta, Demetri Basov, Jim Hone, and Harish Krishnaswamy are working on now. Yu is also exploring converting waves propagating in waveguides into strong surface waves, which could eventually be used for on-chip chemical and biological sensing.

Controlling propagation and coupling of waveguide modes using phase-gradient metasurfaces Zhaoyi Li, Myoung-Hwan Kim, Cheng Wang, Zhaohong Han, Sajan Shrestha, Adam Christopher Overvig, Ming Lu, Aaron Stein, Anuradha Murthy Agarwal, Marko Lončar & Nanfang Yu Nature Nanotechnology (2017) doi:10.1038/nnano.2017.50
