Topology protects light propagation in photonic crystal

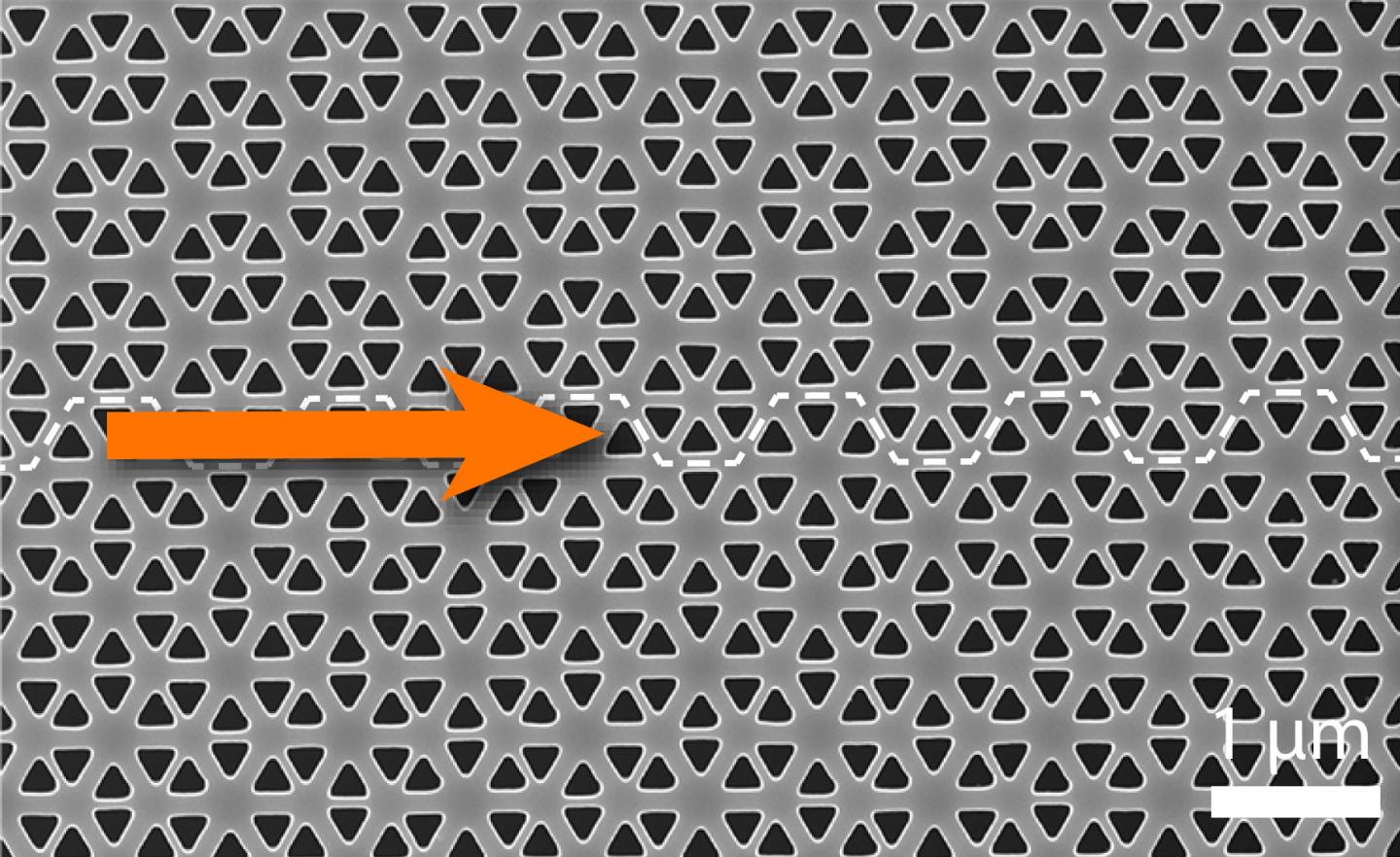

Electron microscopy image of topological photonic crystals in a perforated slab of silicon. The top and bottom crystal structures differ slightly; along the boundary between two parts (dotted line) light can be guided. The disparate mathematical description (topology) of the light fields in the two crystals prescribes that their boundary has to conduct light; that conduction is thus 'topologically protected'. @ AMOLF

Researchers of research institute AMOLF and TU Delft have seen light propagate in a special material without it suffering from reflections. The material, a photonic crystal, consists of two parts that each have a slightly different pattern of perforations. Light can propagate along the boundary between these two parts in a special way: it is 'topologically protected' and, therefore, does not bounce back at imperfections. Even when the boundary forms a sharp corner, the light follows it without a problem. "For the first time, we have seen these fascinating light waves move at the technologically relevant scale of nanophotonics," says Ewold Verhagen, group leader at AMOLF. The results are published on March 6th in the scientific journal Science Advances.


Topological insulators: special electronics


Verhagen and his collaborator Kobus Kuipers from TU Delft were inspired by electronic materials, where so-called topological insulators form a new class of materials with remarkable behavior. Where most materials are either conductive for electrons or not (which makes them an insulator), topological insulators exhibit a strange form of conduction. "The inside of a topological insulator does not allow electron propagation, but along the edge electrons can move freely", says Verhagen. "Importantly, the conduction is 'topologically protected'; the electrons are not impacted by disorder or imperfections that would typically reflect them. So the conduction is profoundly robust."


Translation to photonics


In the past decade, scientists have tried to find this behavior for the conduction of light as well. "We really wanted to accomplish topological protection of light propagation at the nanoscale and thus open the door to guiding light on optical chips without it being hindered by scattering at imperfections and sharp corners", says Verhagen.


For their experiments, the researchers used two-dimensional photonic crystals with two slightly different hole patterns. The 'edge' that enables light conduction is the interface between the two hole patterns. "Light conduction at the edge is possible because the mathematical description of light in these photonic crystals can be described by specific shapes, or more accurately by topology," Kuipers says. The topology of the two different hole patterns differs and precisely this property allows light conduction at the boundary, similar to electrons in topological insulators. Because the topology of both hole patterns is locked, light conduction cannot be revoked; it is 'topologically protected'."


Imaging topological light


The researchers managed to image light propagation with a microscope and saw that it behaved as predicted. Moreover, they witnessed the topology, or mathematical description, in the observed light. Kuipers: "For these light waves the polarization of light rotates in a certain direction, analogous to the spin of electrons in topological insulators. The spinning direction of light determines the direction in which this light propagates. Because polarization cannot easily change, the light wave can even flow around sharp corners without reflecting or getting scattered, as would happen in a regular waveguide.


Technological relevance


The researchers are the first to directly observe the propagation of topologically protected light on the technologically relevant scale of nanophotonic chips. By purposely using silicon chips and light of a similar wavelength as used in telecommunication, Verhagen expects to increase the application prospects. "We are now going to investigate if there are any practical or fundamental boundaries to topological protection and which functionalities on an optical chip we could improve with these principles. The first thing we are thinking of is to make the integrated light sources on a photonic chip more reliable. This is important in view of energy efficient data processing or 'green ICT'. Also, to efficiently transfer small packages of quantum information, the topological protection of light can be useful.


Direct observation of topological edge states in silicon photonic crystals: Spin, dispersion, and chiral routing

Nikhil Parappurath, Filippo Alpeggiani, L. Kuipers and Ewold Verhagen

Science Advances (2020) Vol. 6, no. 10, eaaw4137

DOI: 10.1126/sciadv.aaw4137
