Ultrathin transistors for faster computer chips

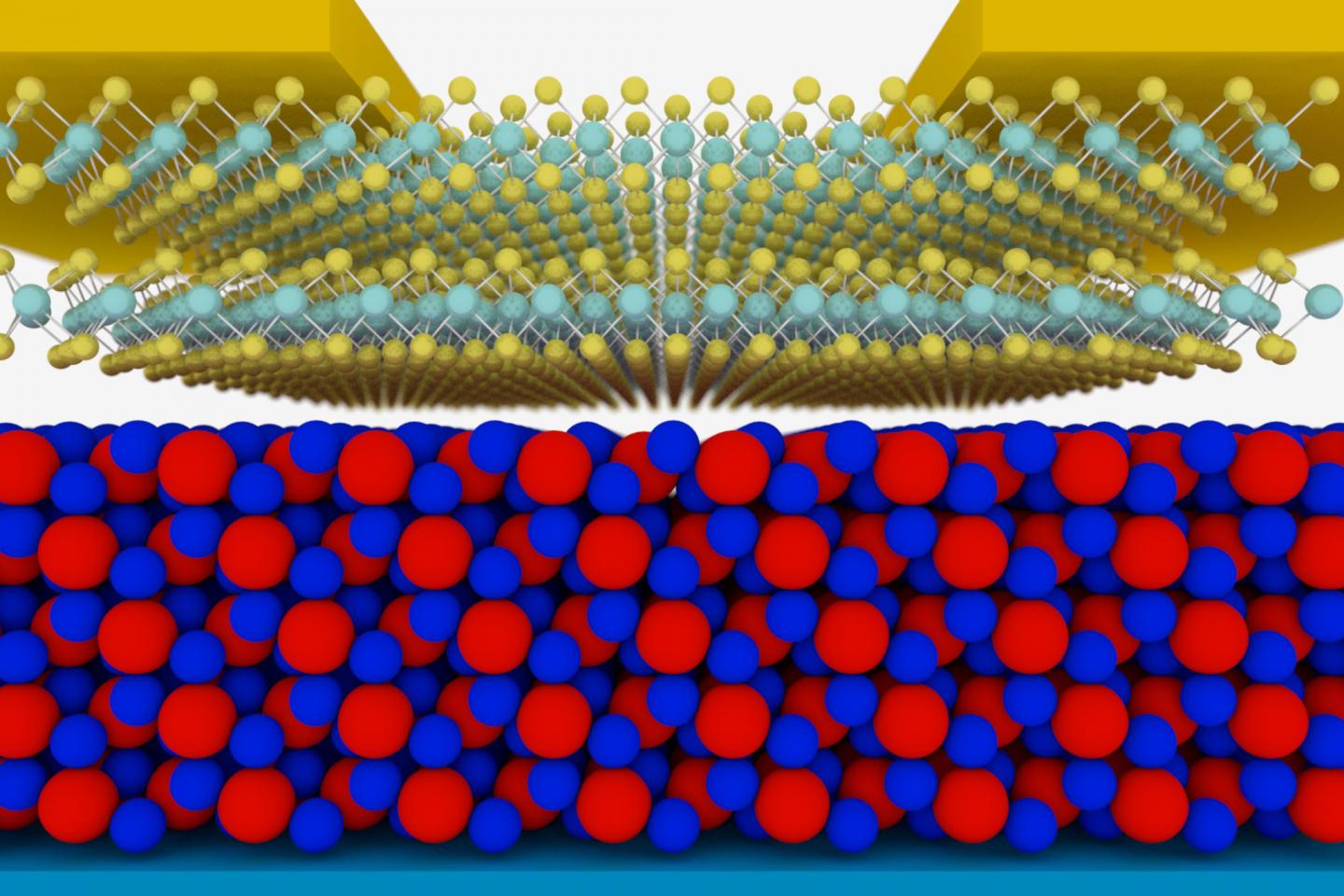

Schematics of the new transistor: the insulator in red and blue, and the semiconductor above @ TU Wien

For decades, the transistors on our microchips have become smaller, faster and cheaper. Approximately every two years the number of transistors on commercial chips has doubled - this phenomenon became known as "Moore's Law". But for several years now, Moore's law does not hold any more. The miniaturization has reached a natural limit, as completely new problems arise when a length scale of only a few nanometers is approached.

Now, however, the next big miniaturization step could soon become possible - with so-called "two-dimensional (2D) materials" that may consist of only a single atomic layer. With the help of a novel insulator made of calcium fluoride, scientists at TU Wien (Vienna) have created an ultra-thin transistor, which has excellent electrical properties and, in contrast to previous technologies, can be miniaturized to an extremely small size. The new technology has now been presented in the journal Nature Electronics.

Ultra-Thin Semiconductors and Insulators

Research on semiconductor materials needed to fabricate transistors has seen significant progress in recent years. Today, ultra-thin semiconductors can be made of 2D materials, consisting of only a few atomic layers. "But this is not enough to build an extremely small transistor," says Professor Tibor Grasser from the Institute of Microelectronics at TU Wien. "In addition to the ultra-thin semiconductor, we also need an ultra-thin insulator."

This is due to the fundamental design structure of a transistor: current can flow from one side of the transistor to the other, but only if a voltage is applied in the middle, creating an electric field. The electrode providing this field must be electrically insulated from the semiconductor itself. "There have already been transistor experiments with ultra-thin semiconductors, but until now they were coupled with ordinary insulators," says Tibor Grasser. "There is not much benefit in reducing the thickness of the semiconductor when it still has to be combined with a thick layer of insulator material. There is no way of miniaturizing such a transistor any further. Also, at very small length scales the insulator surface turned out to disturb the electronic properties of the semiconductor."

Therefore, Yury Illarionov, a postdoc in Tibor Grasser's team, tried a novel approach. He used ultra-thin 2D-materials not only for the semiconductor part of the transistor, but also for the insulating part. By selecting ultra-thin insulating materials such as ionic crystals, a transistor with a size of only a few nanometers can be built. The electronic properties are improved because ionic crystals can have a perfectly regular surface, without a single atom protruding from the surface, which could disturb the electric field. "Conventional materials have covalent bonds in the third dimension - atoms that couple to the neighboring materials above and below," explains Tibor Grasser. "This is not the case in 2D materials and ionic crystals, and so they do not interfere with the electrical properties of the semiconductor."

The Prototype is a World Champion

To produce the new ultra-thin transistor, calcium fluoride was selected as the insulating material. The calcium fluoride layer was produced at the Ioffe Institute in St. Petersburg, where the first author of the publication, Yury Illarionov, is originally from before joining the team in Vienna. The transistor itself was then manufactured by Prof. Thomas Müller's team at the Institute of Photonics at TU Wien and analyzed at the Institute for Microelectronics.

The very first prototype already surpassed all expectations: "For years, we have received quite a number of different transistors to investigate their technical properties - but we have never seen anything like our transistor with the calcium fluoride insulator," says Tibor Grasser. "The prototype with its superior electrical properties outshines all previous models."

Now the team wants to find out which combinations of insulators and semiconductors work best. It may take a few more years before the technology can be used for commercially available computer chips as the manufacturing processes for the material layers still need to be improved. "In general, however, there is no doubt that transistors made of 2D materials are a highly interesting option for the future," says Tibor Grasser. "From a scientific point of view, it is clear that the fluorides we have just tested are currently the best solution for the insulator problem. Now, only a few technical questions remain to be answered. "

This new kind of smaller and faster transistor should enable the computer industry to take the next big step. This way, Moore's law of exponentially increasing computer power could soon come to life again.

Ultrathin calcium fluoride insulators for two-dimensional field-effect transistors

Yury Yu. Illarionov, Alexander G. Banshchikov, Dmitry K. Polyushkin, Stefan Wachter, Theresia Knobloch, Mischa Thesberg, Lukas Mennel, Matthias Paur, Michael Stöger-Pollach, Andreas Steiger-Thirsfeld, Mikhail I. Vexler, Michael Waltl, Nikolai S. Sokolov, Thomas Mueller & Tibor Grasser

Nature Electronics volume 2, pages 230–235 (2019)

DOI: 10.1038/s41928-019-0256-8

Contact information:

Tibor Grasser

Professor of microelectronics reliability at Institute for Microelectronics, TU Wien


Tel: +43-1-58801-36000
