By Silmeco ApS

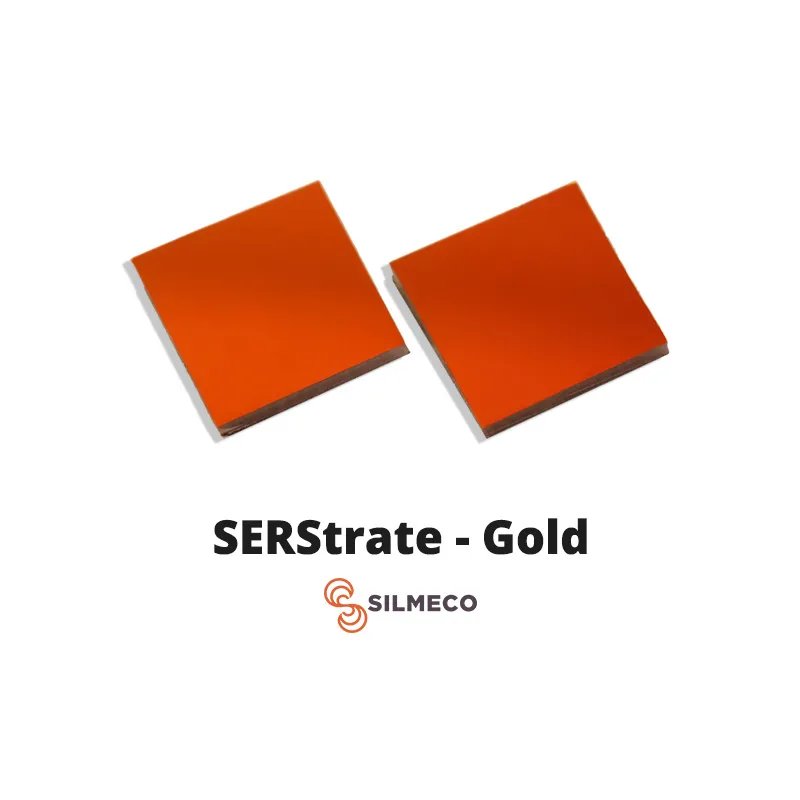

Enabling ultrasensitive molecular detection down to pM concentrations. Gold SERStrate is an extremely sensitive SERS substrate that enables trace detection of wide range of molecules spanning from life science to military applications. Gold SERStrate has higher Raman enhancement than any other gold SERS substrate on the market today Designed for 785 nm laser excitation Uniform Raman enhancement across the entire substrate Reproducible enhancement between different substrates and batches enabling quantitative analysis Low background signal Most cost effective gold substrate commercially available Can be used in aggressive solvents and at high temperatures If you have any questions about high volume pricing, please contact us, info@silmeco.com or tel. +45 72 300 212. Additional information Dimensions 3 mm x 3 mm SERS active area 9mm² Sensitivity ppm to ppb SERStrate surface metals Gold (Au) Substrate material Gold coated freestanding silicon nanopillars Active area 3 mm x 3 mm Recommended sampling methods Vapor deposition, drop deposition, substrate incubation (immersion) Recommended laser excitation wavelengths 785 nm Recommended laser power density<10 W/cm² Downloads Product sheet User manual

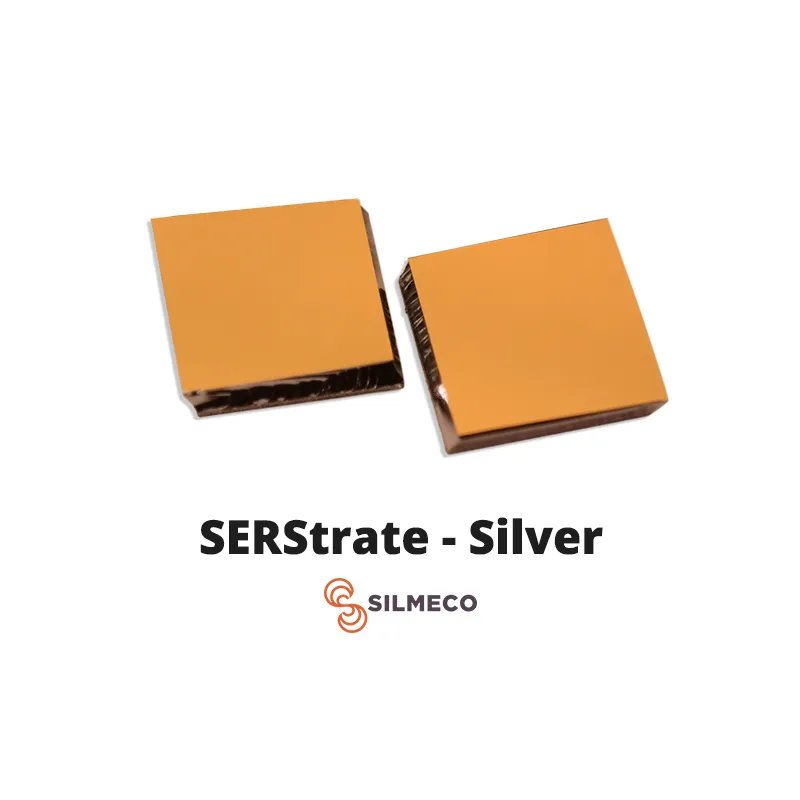

Enabling ultrasensitive molecular detection down to pM concentrations. Silver SERStrate is an extremely sensitive SERS substrate that enables trace detection of wide range of molecules spanning from life science to military applications. - Silver SERStrate has higher Raman enhancement than any other SERS substrate on the market today - Designed for laser excitation in the range of 532 nm to 785 nm - Uniform Raman enhancement across the entire substrate - Reproducible enhancement between different substrates and batches enabling quantitative analysis - Low background signal - Most cost effective substrate commercially available If you have any questions about high volume pricing, please contact us, info@silmeco.com or tel. +45 72 300 212. Additional information Dimensions 3mm x 3mm SERS active area 9mm² Sensitivity ppm to ppb SERStrate surface metals Silver (Ag) Substrate material Silver coated freestanding silicon nanopillars Active area 3mm x 3mm Recommended sampling methods Vapor deposition, drop deposition, substrate incubation (immersion) Recommended laser excitation wavelengths 532 nm to 785 nm Recommended laser power density<10 W/cm² Downloads - Product sheet - User manual
