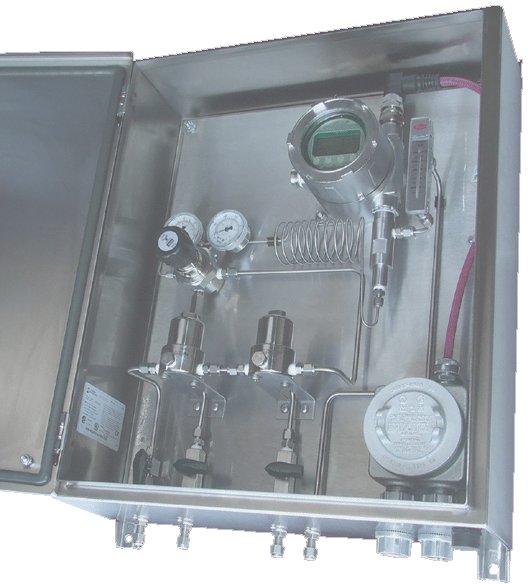

PhyMetrix Sampling Systems - Custom Made Moisture Analyzer Sample Systems to meet even the most demanding Application Requirements. Fill out our Moisture Analyzer Application Worksheet, and our experts will provide you with a recommended system configuration for your specific application. You will $ave Time & Money while achieving optimum performance for your moisture measurement. On Phymetrix Sample Systems, all NPT fittings are torqued to specification. Our systems are designed with straight NPT to swage adapters only, thus component and pipe positions are independent of NPT fitting orientation. Other manufacturers depend on the orientation of the NPT fitting to position the sample system components, therefore the NPT fittings are either over or under tightened, which results in leaks and thus erroneous measurements. PhyMetrix Sample Systems provide: - Better accuracy and reliability - Easy Field Calibration - Ease of Service & Maintenance - Longer Sensor Life - Quality Assurance - Built to API Recommended Practice 555 Some of the available options are: - Mounting: wall, 2" pipe, fiberglass or stainless steel enclosures - Multiple stream inlets - Shutoff isolation for calibration and service - Pressure regulation for optimal measurement - Particulate filtration and Liquid knock-out - Temperature control - Automatic Calibration - Hazardous Area Installations - As built system drawings
PhyMetrix Compressed Air Moisture Analyzer model: DewPatrol Cost Effective compressed air / instrument air moisture measurement! Use as a Battery Powered Portable or Permanently installed On-Line at a very low cost - Rechargeable Battery with weatherproof connector - Integral flow control valve - Built-in flow meter - Integral demister with 360° view of contaminants and drain valve - Optional Pressure Sensor with automatic dewpoint correction - Direct on-the-pipe mounting - Swiveling Quick Connect - -110°C to +20°C dewpoint Sensor - Fast, Accurate and Repeatable - Built-in temperature compensation - State-of-the-art electronics & software - Advanced User-friendly Interface - Small & Lightweight - Optional NFPA compliant Audio Visual Alarm - Optional 4/20mA output with HART® - Optional Relay contacts - Graphical display - Programmable data logging - Battery backed clock calendar - 1/4” NPT port on a swivel to adapt to any quick connect - On-screen histogram and trend graph - Impact resistant IP65 enclosure - NIST calibrations - Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H2O vapor pressure, grams of H2O / m3, Lbs H2O/10^6 standard cubic feet Natural Gas - Virtual Analyzer PC training & demo software Technical Specifications Moisture Sensor - Range: -110°C to +20°C dewpoint ( -166°F to +68°F dewpoint ) - Accuracy: ±2°C temperature corrected - Repeatability: 0.8°C - Response time: 95% of step change in 3 min. - Sample flow: 1 LPM Temperature Sensor - Range: -40°C to +70°C - Accuracy: ±2°C Pressure Sensor (optional) - 2 to 300 PSIA ±1%, 316L stainless steel wetted parts, higher pressures can be ordered optionally Flow meter - Body: Styrene Acrylonitrile, Max Pressure: 50 psi (3.4 bar) [ this pressure limitation is for the exhaust ] Inlet Metering Valve - Max pressure: 300 psi (20 bar) [ this pressure limitation is for the inlet, and can be utilized only if outlet is unrestricted] Ergonomics - Easy to carry or use on desktop, lightweight 2 Lbs - Easy to read graphic LCD display with user controlled backlight brightness (LCD is readable without the backlight) - Snap dome tactile membrane switches with dynamically assigned legends - Audible feedback upon button press as well as for warnings and alarms - Auto scaling graph/histogram on moisture measurement display for stability verification - Easy to use with verbose built-in context sensitive Help screens - Battery Saver, with user selectable Auto-power-down times, can also be disabled - Built-in pressure measurement and pressure corrected moisture readings, simultaneously displayed with the uncorrected reading for greater ease of understanding - Verbose Status bar with indications, warnings and audible errors - User selectable locking with or without a password. - Built-in battery backed clock calendar Electrical - External AC Universal Power adapter (100-240VAC 50-60Hz) with USB connector - Rechargeable Li-Ion battery, recharges through the USB connector from the PC or from the supplied universal power adapter - Sampling system and sensor are isolated from electrical interface and supply grounds - Measurement resolution of moisture sensor: 1pF resulting in less than 0.01 °C - External power and I/O: USB mini B female connector – IP67 / IP68 with Sealing Cap - Alarm Relay Option – 3A, 250VAC30VDC contacts - AV alarm 80 dB @ 3′, 3 jumbo Red LEDs 5100 mcd each, complies with NFPA99, 1996 edition Mechanical - Enclosure - ABS (UL94-HB), with EDPM gasket to meet IP65, NEMA-4X - Dimensions H: 5.71″(145mm) W: 4.13″(105mm) D: 2.56″(65mm) - Weight Total: 2 Lbs (~1 Kg) - 1/4″ NPT Female Swivel inlet, allowing connection with standard quick connect - Aluminum and Viton wetted parts, small surface area sampling chamber for fast response time. - Pressure: Inlet 300 psi (20 bar) Outlet 50 psi (3.4 bar) Temperature Range - dewPatrol Analyzer: -20°C to +60°C - Electronics: -40°C to +85°C - Moisture Sensor: -20°C to +60°C - Pressure Sensor: -20°C to +85°C - LCD operating: -20°C to +70°C storage: -30°C to +80°C - Enclosure: -40°C to +60°C Miscellaneous Features - NIST traceable calibrations - Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H2O vapor pressure, grams of H2O / m3, Lbs H2O /10^6 standard cubic feet in Natural Gas. (All units auto-scaled) - Digital & Analog I/O: USB, 4/20mA with HART® - Data logging – single point, multipoint, time stamping, each sample records: dewpoint, temperature and pressure, ( memory 4,000 samples) - Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations Options & Accessories STANDARD ACCESSORIES Not Shown But Included - USB Cable - Universal AC Charger - Plug set for international shipments - User’s Manual - NIST Certificate OPTIONS PhyMetrix DewPatrol Moisture Analyzer Model: PDPa Included Accessories: USB cable (mini B male to A male), AC universal power adapter with USB connector — PDPa Pressure Sensor Option 0-150 PSIA W/ Automatic Pressure Correction — suffix -P Analog Output 4/20 mA with HART® Option — suffix -A AC powered option (comes with AC power cord instead of USB) — suffix -W Alarm Relay option (only with AC powered option) — suffix -R Audio-Visual Alarm option (only with AC powered option) — suffix -L
CATEGORY
Phymetrix Explosion-Proof Moisture analyzer Model: ExMa Complete Sampling System and Natural Gas Dew Point Meter! Unique State of the Art Features; Menu-driven, intuitive, easy-to-use Natural Gas Dew Point Meter - -110°C to +20°C dewpoint Sensor - Fast, Accurate and Repeatable Moisture Meter - Built-in temperature compensation - optional built-in pressure sensor with compensation - optional 4/20 mA sink or source output with HART - optional RS-485 Modbus interface - 3″ viewport, NEMA 4X/IP67 & Explosion-proof - State-of-the-art electronics & software - Advanced User-friendly Interface - Continuous Status and Diagnostics display - On-screen histogram and trend graph - Programmable data logging, clock calendar - Virtual Analyzer PC s/w for training & evaluation - 316 Stainless Steel & PTFE wetted parts - Diverse Selection of Inlet Port Fittings - NIST calibrations - Cost Effective Complete On-Line System - Built-in flow regulation, cleanable filter & flow meter - Extractive or Bypass Installation - Thru-the-Glass Touch User Buttons - Approved Explosion-Proof Installations USA, Canada, ATEX - Installation Indoor/Outdoor On-The-Pipe or Panel Technical Specifications natural gas dew point meter Sensor - Range: -110°C to +20°C dewpoint ( -166°F to +68°F dewpoint ) - Accuracy: ±2°C temperature corrected - Repeatability: 0.8°C - Response time: 95% of step change in 3 min. - Sample flow:1 LPM Temperature Sensor - Range: -40°C to +70°C; Accuracy: ±2°C Pressure Sensor - 2 to 1000 PSIA ±1%, 316L stainless steel wetted parts (higher pressure ranges available) Electrical - 3 automatic detection – self configuring power modes: 1) 90-260VAC 47-440Hz 2) 12-24VDC 10VA 3) Optional 4/20mA Loop Powered - Power modes 1 or 2 have the following I/O options: a) RS-422 isolated b) Analog Output 4/20mA sink or source isolated with HART® c) up to 3 Alarm Relays – 3A, 250VAC contacts Mechanical - 3/4″ OD tube and 1/4″ NPTF Inlet, 1/8″ NPTF Outlet - All 316 Stainless Steel and PTFE wetted parts, small surface area stainless steel sampling chamber for fast response time. - Enclosure - Aluminum or optional 316 Stainless Steel, Glass lens, IP66 & IP68 - FM/CSA Explosion Proof Certified Class I, Div I, Groups B, C And D Class II, III, Div 1, Groups E, F And G ATEX Explosion Proof Certified ATEX 2 GD, Exd I & IIC; IECEx, Exd I & IIC - Dimensions- L: 8.9″ (226mm) W: 5.8″ (147mm) H: 5.8″ (147mm) - Weight Total: 5.5 Lbs (2.5 Kg) - Pressure: 5000 PSIA (345 Bar) - Flow Control Orifice can be placed at Inlet (default) or Outlet; Built in serviceable/cleanable 100 micron Filter Temperature Range - ExMa Moisture Meter: -20°C to +60°C - Electronics: -40°C to +85° - Moisture Sensor: -20°C to +60°C - Pressure Sensor: -20°C to +85°C - LCD operating: -20°C to +70°C storage: -30°C to +80°C Miscellaneous Features - Through the glass user interface buttons, allow operation while enclosure is closed - NIST traceable calibrations - Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H 2 O vapor pressure, grams of H 2 O / m 3, Lbs H 2 O /10 6 standard cubic feet in Natural Gas. (All units auto-scaled) - Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations Options & Accessories Standard Accessories for ExMa moisture meter: - Pluggable Electrical Screw Terminal Connectors - Inlet Orifice - 100 micron Stainless Steel Inlet Filter - Ex Certified Side Port (3/4″ NPT) Plug OPTIONS Analog Output 4/20 mA with HART® optionsuffix -A ORDERING INFORMATION | PART NUMBER PhyMetrix Explosion Proof Moisture Analyzer Model: ExMa Included: Inlet Filter, Inlet Orifice (specify nominal pressure) | ExMa Stainless Steel Enclosure | suffix -S Pressure sensor option 0-1000 psia automatic pressure correction | suffix -P Mounting Legs | suffix -M Analog Output 4/20 mA with HART® option | suffix -A RS-485 with Modbus® option | suffix -D Explosion Proof ATEX option | suffix -I If Required Specify Inlet and/or Outlet Adapters
CATEGORY
PhyMetrix Portable Benchtop dewpoint Analyzer Model: PPBa Multifunctional Multi-Purpose Cost Effective Menu-driven, intuitive, easy-to-use Portable Dew point Meter - Continuous Status and Diagnostics display - Optional Pressure Sensor with automatic dewpoint correction - Built-in metering valve and flow meter - Optional built-in Vacuum Pump for sub atmospheric samples - On~screen histogram and trend graph - USB data interface, also charges battery - -110°C to +20°C dewpoint Sensor - Fast, Accurate and Repeatable - Built-in temperature compensation - State-of-the-art electronics & software - Advanced User-friendly Interface - Small & Lightweight - Graphical display - Programmable data logging - Battery backed clock calendar - 1/8″ Swagelok® compression fittings - 316 Stainless Steel & PTFE wetted parts - Built-in Sensor desiccant store for rapid results - optional 4/20 mA output - NIST calibrations - Virtual Analyzer PC training & demo software Technical Specifications Moisture Sensor - Range: -110°C to +20°C dewpoint ( -166°F to +68°F dewpoint ) - Accuracy: ±2°C (3.6°F) temperature correcte - Repeatability: 0.8°C (1.5°F) - Response time: 95% of step change in 3 min. - Sample flow:1 LPM Temperature Sensor - Range: -40°C to +70°C (-40°F +158°F) - Accuracy: ±2°C (3.6°F) Pressure Sensor - 2 to 150 PSIA ±1%, 316L stainless steel wetted parts Ergonomics - Easy to carry or use on desktop, lightweight 3.5 Lbs - Easy to read graphic LCD display with user controlled backlight brightness (LCD is readable without the backlight) - Snap dome tactile membrane switches with dynamically assigned legends - Audible feedback upon button press as well as for warnings and alarms - Auto scaling graph / histogram on moisture measurement display for stability verification - Easy to use with verbose built-in context sensitive Help screens - Battery Saver, with user selectable Auto-power-down times, can also be disabled - Built-in pressure measurement and pressure corrected moisture readings, simultaneously displayed with the uncorrected reading for greater ease of understanding - Verbose Status bar with indications, warnings and audible errors - User selectable locking with or without a password. - Built-in battery backed clock calendar Electrical - External AC Universal Power adapter (100-240VAC 50-60Hz) with USB connector - Rechargeable Li-Ion battery, recharges through the USB connector from the PC or from the supplied universal power adapter - Sampling system and sensor are isolated from electrical interface and supply grounds - Measurement resolution of moisture sensor: 1pF resulting in less than 0.01°C - External power and I/O: USB mini B female connector – IP67 / IP68 with Sealing Cap Mechanical - 1/8″ Swagelok® Inlet and Outlet bulkhead fittings - All 316 Stainless Steel and PTFE wetted parts, small surface area stainless steel sampling chamber for fast response time. - Integral Sensor retraction into desiccant storage chamber for fast response-time when measuring low moisture - Enclosure - Extruded aluminum - Dimensions- L: 7.83″ (199mm) W: 6.38″ (162mm) H: 3.32″ (84mm) - Weight Total: 3.5 Lbs (1.6 Kg) - Pressure: Inlet 2000 psi (137 bar) Outlet 50 psi (3.4 bar) Temperature Range - PPBa Analyzer: -20°C to +60°C - Electronics: -40°C to +85°C - Moisture Sensor: -20°C to +60°C - Pressure Sensor: -20°C to +85°C - LCD operating: -20°C to +70°C storage: -30°C to +80°C Miscellaneous Features - NIST traceable calibrations - Built-in metering valve and flow meter, no need for external pressure regulator etc… - Units of measure: °C & °F dewpoint, ppmV, ppmW, µB H 2 O vapor pressure, grams of H 2 O / m 3, Lbs H 2 O /10 6 standard cubic feet in Natural Gas. (All units auto-scaled) - Digital & Analog I/O: USB, 4/20mA with HART® - Data logging – single point, multipoint, time stamping, each sample records: dewpoint, temperature and pressure, ( memory 4,000 samples) - Built-in Vacuum Pump Option, for low pressure or sub atmospheric sample sources. Includes internal dedicated rechargeable battery and external charger. - Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations Typical Applications · Petrochemical · Industrial Gases · Natural Gas · Power Generation · Furnace Gas / Heat Treating · Air Dryers · Pharmaceutical · Aerospace · Medical Phymetrix Benchtop Portable dew point meter model PPBa STANDARD ACCESSORIES for portable dew point meter Included - Exhaust Pigtail - USB Cable - Universal AC Charger - Plug set for international shipments Not Shown But Included - 1/8″ Teflon Tube - User’s Manual - NIST Certification OPTIONS PhyMetrix Portable Benchtop Analyzer Model: PPBa Included Accessories: USB cable (mini B male to A male) AC universal power adapter with USB connector — PPBa Pressure Sensor Option 0-150 PSIA W/ Automatic Pressure Correction — suffix -P Analog Output 4/20 mA with HART® Option — suffix -A Intrinsically Safe ATEX Option — suffix -I Vacuum Pump (built-in), includes high capacity internal battery and external charger — suffix -V
CATEGORY
Phymetrix Moisture Monitor Models: PMi, WMi, RMi Provides Remote Display and Power for PLMa’s Multifunctional Multi-Purpose Cost Effective Menu-driven, intuitive, easy-to-use - Fast, Accurate and Repeatable - Continuous Status and Diagnostics display - On~screen histogram and trend graph - WMi & PMi: NEMA 4X for Outdoor use - WMi: Impact resistant IP65 enclosure - RMi: Built-in sample cell, detachable for remote use - Advanced User-friendly Interface - Small & Lightweight - Graphical display - Programmable data logging - Battery backed clock calendar - Available Options: Isolated 4/20 mA output 2 programmable Alarm Relays w/hysteresis MODBUS Interface Built-in Self Verification & Calibration WMi battery backup w/USB data interface - Universal AC Power Input, and 12-24VDC - NIST calibrations - Virtual Analyzer PC training & demo software Technical Specifications Moisture Transmitter Sensor Consult transmitter model: PLMa Specifications Range -110°C to +20°C Accuracy: ±2°C temperature corrected Repeatability: 0.8°C Response time: 95% of step change in 3 min. Sample flow: 1 LPM Temperature Sensor - Range: -40°C to +70°C - Accuracy: ±2°C Electrical 2 automatic detection – self configuring power modes: 1) 90-260VAC 47-440Hz or 2) 12-24VDC 10VA Optional I/O: a) RS-422/485 isolated MODBUS b) 4/20mA sink or source with HART® c) 2 Alarm Relays – 3A, 250VAC / 30VDC contacts Mechanical PMI: ABS Panel Mount DIN 43700 dimensional standard 5.39″ w x 2.64″ h panel cutout, 3″ deep Weight Total: 1.5 Lbs (0.7 Kg) NEMA 12 type protection gasketing optionally available. WMi: ABS Wall Mount Enclosure Dimensions 5.16″ w x 7.32″ h x 3.25″ d A rear suspension unit, ensures a concealed fit on the wall. Separate terminal section pre-punched for cable grips Weight Total: 1.5 Lbs (0.7 Kg) IP65 protection Optional Shock-mount vibration isolation. RMi: Built-in sample cell: 1/8″ NPTF Inlet & Outlet ports, typically provided with ¼” Swagelok compression fittings All 316 Stainless Steel wetted parts, small surface area stainless steel sampling chamber for fast response time, built-in SS self-cleaning filter. Sample cell can be removed and placed remotely (up to 5,000 feet away) 10 foot cable provided. Pressure: 5000 PSIA (345 Bar) Dimensions (painted steel enclosure): 19″ Rack Mount 2U, 3.5″ high x 8″ deep Weight Total: 12.5 Lbs (5.7 Kg) Temperature Range - Electronics: -40°C to +85°C - LCD operating: -20°C to +70°C - storage: -30°C to +80°C Miscellaneous Features - NIST traceable calibrations - Units of measure:°C & °F dewpoint, ppmV, ppmW, µB H2O vapor pressure, grams of H2O / m3 and Lbs H2O /106 standard cubic feet in Natural Gas. (All units autoscaled) - Data logging – single point, multipoint, time stamping, each sample records: dewpoint, temperature and pressure, ( memory 4,000 samples) - Virtual Analyzer PC software for training and evaluation, allows the user to experience the exact interface on their own PC with voice explanations Typical Applications Dew Point Monitor to be used with model PLMa for: Compressed Air, Natural Gas, Cryogenic Gasses, Welding Gasses, Insulating Gasses SF6, H2, N2 etc….. Options & Accessories STANDARD ACCESSORIES OPTIONS ORDERING INFORMATION | PART NUMBER PhyMetrix Panel-mount Moisture Monitor Indicator Model | PMi PhyMetrix Wall-mount Moisture Monitor Indicator Model | WMi PhyMetrix Rack-mount Moisture Monitor Indicator Model | RMi Analog Output 4/20mA | suffix -A Alarm Relays | suffix -R Digital RS485 Modbus interface | suffix -D Shock-mount vibration isolation (only WMi) | suffix -S Rechargeable battery backup (only WMi) | suffix -B
