By InRedox

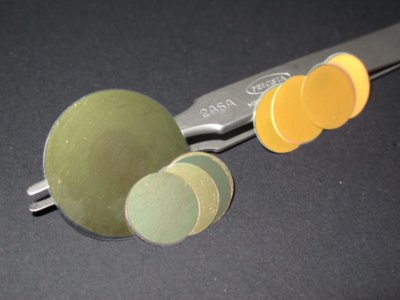

InRedox offers free-standing Anodic Aluminum Oxide wafers (also known as AAO nanotemplates) with integrated metal contacts for templated electrodeposition of uniform arrays of nanowires, nanorods, nanotubes and nanodots. These are typically used with AAO wafer holders that are designed for electrochemical deposition of materials inside the pores. Standard Specifications (stock products) * - Form Factor: Round Wafers - Wafer Diameter, mm: 10, 13, 25 (other sizes for custom order) - AAO thickness, mm: 0.05 (0.02 – 0.1 for custom order) - Pore Diameter, nm: 10 (very brittle), 20, 40, 60, 80, 120, 160, 200 (±10% + 2) - Contact Material: Cu and Au – standard (Ni available as custom order) - Contact Thickness, µm: 0.5 (0.001 – 1 for custom orders) * Custom specifications within these ranges are available upon request. Visit AAO wafers product page to review the full range of available specifications and contact us with your requirements. Lead time for standard specifications is 2 to 10 days and 2-6 weeks for custom orders. * Volume discounts are available on orders over $750. Contact us for to request a formal quotation. Additional information - Wafer Size: 10 mm diameter, 13 mm diameter, 25 mm diameter - Pore Diameter: 10 nm, 20 nm, 40 nm, 80 nm, 120 nm, 160 nm, 200 nm - Wafer Thickness: 50 µm - Contact Material: 0.5 µm copper, 0.5 µm gold SKU: AAO|Au-010-DP-050
Isotropic ceramic membranes from from self-organized nanoporous alumina (also known as Anodic Aluminum Oxide or AAO) have uniform pore structure across the entire thickness and on both faces of the membrane, making them ideal for transport studies in nanochannels. The range of standard pore diameters is from 10 to 200 nm; custom membranes with pores in the 5 to 500 nm range are available with some restrictions. The FWHM (full width at half maximum) distribution of the pore diameter is typically less than 10%, which means that the pores are essentially monodisperse. InRedox maintains a wide selection of nanoporous anodic alumina membranes with different sizes, pore diameters and thicknesses in stock for convenient on-line ordering and quick delivery. Isotropic AAO Membranes details: Isotropic ceramic membranes from from self-organized nanoporous alumina (also known as Anodic Aluminum Oxide or AAO) have uniform pore structure across the entire thickness and on both faces of the membrane, making them ideal for transport studies in nanochannels. The range of standard pore diameters is from 10 to 200 nm; custom membranes with pores in the 5 to 500 nm range are available with some restrictions. The FWHM (full width at half maximum) distribution of the pore diameter is typically less than 10%, which means that the pores are essentially monodisperse. InRedox maintains a wide selection of nanoporous anodic alumina membranes with different sizes, pore diameters and thicknesses in stock for convenient on-line ordering and quick delivery. AAO membrane holders designed to take full advantage of unique AAO attributes in filtration and separation are also available. The general range of AAO pore geometries available for isotropic anodic alumina membranes. PARAMETER | AVAILABLE RANGE | STANDARD SPECIFICATIONS (STOCK PRODUCTS) Pore Diameter, nm | 10 – 450 | 10, 20, 50,100, 150, 200 (±10% + 2) AAO Membrane Size, mm | 1 – 200 | 10, 13, 25, 47, 90 Membrane Shape | any | round (all sizes) or square (10 x 10, 25×20) Thickness, µm | 10 – 200 | 50, 100 (±10% + 1 µm) Pore Density, cm-2 | 10 12 – 10 8 | depends on the pore diameter Porosity, % | 1 – 60 | 10 – 15 Custom specifications within these ranges are available upon request, contact us with your requirements. Not all combinations of specifications are possible. Lead time is 2 to 5 days for standard specifications, 3 to 6 weeks for out of stock and custom products. Volume discounts are available on orders over $750. Contact us to request a quote.
CATEGORY
Vertically aligned arrays of high aspect ratio high density Si nanowires on Si wafers are prepared using metal-assisted chemical etching of silicon (MACE). These arrays could be made over large areas, with adjustable diameter, density, and length of the nanowires. A thin layer of catalytic metal remaining at the base of the nanowires can be removed by selective etching. Standard offerings currently include: - Pack of 3 of 1 cm x 1 cm pieces of Si wafer with nanowires on one face. - One nanowire diameter (200±50 nm), trending lower with increasing length. - Three nanowire lengths (0.5, 1, 3 and 5 µm) are in stock. - Longer nanowires (10 µm) are under development. Inquire for availability. To purchase standard product, select the specifications from the menu below and click add to cart. For other nanowire geometries and substrates, contact us with your requirements. Silicon nanowire arrays have been utilized in a variety of applications, including Li-ion batteries, solar cells, optical coatings, microfluidics, biosensing and photocatalysis. These materials are especially well-suited for applications that require large surface areas and could take advantage of the broader silicon know-how. PARAMETER | AVAILABLE RANGE | STANDARD PRODUCTS Process & Material | visit Si Nanowires Technology page | Si, without residual Ag catalyst Nanowire diameter, nm | 75 – 600 | 200 ± 50 (target value, trending lower for length ≥5 µm) Nanowire Length, µm | 0.1 – 10 | 0.5, 1, 2, 3, 5 (±50%) Fill Fraction, % | 10 – 45 | 25 – 30 Substrate Size, mm | up to 50 mm Si wafer | 10 x 10 Substrate Type | Si wafers, poly Si on different substrates | prime grade Si <100 wafers, p-type, 1-10 Ohm-cm Lead time for standard specifications is 2 – 3 days. Due to limited inventory, some of the standard specifications may be temporarily out of stock. Lead time for out of stock and custom specifications s 3-6 weeks. For availability of Si nanowires with custom specifications, contact us with your requirements. Volume discounts are available in quantities over 20 substrates. Products are designed and fabricated by InRedox partner, Advanced Silicon Group, a global leader in silicon nanotexturing and its applications, pat. http://www.advancedsilicongroup.com/patents.html. Additional information: Dimensions | 10 × 10 × 0.28 mm Size & Qty | 3 pcs of 1 cm x 1 cm, inquire for other sizes Si NW diameter | 150±75 nm, 200±50 nm Si NW length | 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10 µm
CATEGORY
Films of nanotubular Anodic Titanium Oxide (NTO or ATO) on Ti foil are a convenient low-cost alternative to synthesizing ATO in-house. These products are offered with ATO thickness (or nanotube length) from 0.5 to 20 micrometers and nanotube diameters from 50 nm to 500 nm. Not every combination of nanotubes diameter and lengths is available – use the pull-down menus below to check the price and availability. Product Features - ATO is grown on and inherently adheres to the surface of Ti foil - Starting Ti foil thickness 0.03 mm - ATO is typically grown one side of Ti foil - Nanotubes have an open channel or pore along the center axis - The bottom of the nanopore is separated from Ti by a thin (10's to 100's nm) layer of dense titania ("barrier layer"). - Available in different shapes and sizes Do not hesitate to contact us if your requirements differ from what is offered on this page. ATO|Ti Size ATO|Ti Nanotube Diameter ATO|Ti Thickness ATO Films on Ti Foil quantity SKU: AAO|Ti-Categories: ATO Films on Ti, ATO Products, Nanofabrication Toolbox Tag: ATO The general range of AAO geometries and specifications for our standard stock products. Parameter | Available Range | Standard Specifications (stock products) Nanotube Diameter, nm | 15 – 750 | 50, 100, 150, 300, 500 (±10% + 2) Size, mm (in) | 5 – 200 (1/8" – 8") | 10 mm and 25 mm OD round; 10 mm x 10 mm and 25 mm x 25 mm square Shape | any | round or square ATO Thickness (Nanotube Length), µm | 0.05 – 100 | 0.5, 1, 2, 5, 10, 20 (±10% + 1 µm) Nanotube Density, cm-2 | 10 10– 10 8 | depends on nanotube diameter Porosity, % | 5 – 80 | 15– 80 Custom specifications within these ranges are available upon request, email your requirements to in @ ox.com. Lead time for standard specifications is 2 to 10 days and 2-6 weeks for custom orders. Volume discounts are available on orders over $750. Email your inquiry to in @ ox.com. Additional information ATO|Ti Size | 10 mm OD, 10 mm x 10 mm, 25 mm OD, 25 mm x 25 mm ATO|Ti Nanotube Diameter | 50 nm, 100 nm, 150 nm, 300 nm, 500 nm ATO|Ti Thickness | 0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm, 20 µm
CATEGORY
Anodic Aluminum Oxide (AAO) films on Al are a convenient low-cost alternative to free-standing AAO wafers or membranes for many applications, such as templated growth of uniform arrays of nanowires, nanotubes and nanodots. Other uses of AAO films on Al include chemical and biological sensing, energy conversion, SERS substrates, photonic and metamaterials, reference substrates for Atomic Layer Deposition (ALD) and many more. Product features: - Broad range of pore diameters from 2.5 nm to 300 nm. - Thicknesses from 0.05 to 50 micrometers (minimal thickness is 3x pore diameter) - AAO is grown on 0.1 mm thick Al foil; thicker substrates are available as custom product - Inherently strong adhesion of AAO to Al substrate - Pores are separated from Al by a thin (10’s to 100’s nm) layer of dense alumina - AAO grown on one or both sides of Al foil - Barrier layer could be tailored to facilitate electrodeposition (custom option, please inquire) - Contact tab could be provided as an option for custom orders Contact us if you need a combination of AAO parameters not available in standard products offered on this page. Data sheet with detailed specifications for standard products is available upon request. PARAMETER | AVAILABLE RANGE | STANDARD SPECIFICATIONS (STOCK PRODUCTS) Pore Diameter, nm | 2.5 – 500 | 2.5, 5, 10, 20, 40, 80, 120, 160, 200, 250, 300 (±10% + 2) Size, mm (in) | 5 – 200 (1/8″ – 8″) | 10 to 100 (3/8″ to 4″) per side Shape | any | square or rectangular AAO Thickness (Pore Length), µm | 0.1 – 300 | 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50 (±10%) (minimal thickness is 2 to 5 times the pore diameter) Pore Density, cm-2 | 10 12 – 10 7 | depends on pore diameter Porosity, % | 1 – 60 | 10 – 25, depends on pore diameter Custom specifications within these ranges are available upon request, contact us with your requirements. Lead time for standard specifications is 2 to 10 days and 2-6 weeks for custom orders. Volume discounts are available for orders over $750. Contact us to request a formal quotation. Price range: $0.00 through $518.00
