By ISP System

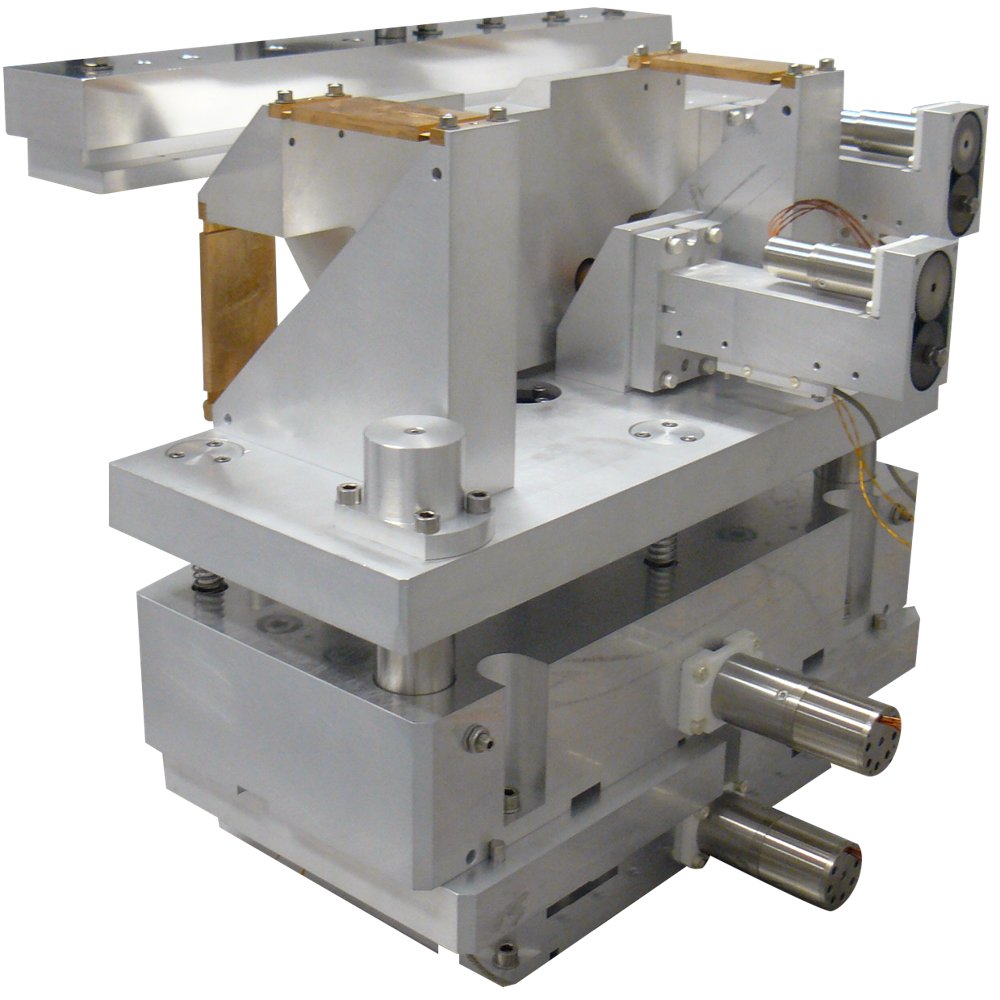

Positioningt 5 axes: Tx, Tz – motorized translation according to X, Z Rx – Manual rotation according to X Rz, Rs – motorised rotation Z, S M2 horizontal focusing mirror. Translation Tx / Fine adjustment Travel: ± 3 mm / Resolution: < 10 µm / Accuracy: ± 10 µm Translation Tz / Fine adjustment Travel: ± 10 mm / Resolution: < 10 µm / Accuracy: ± 10 µm Rx Rotation / Pre-alignment Travel: ± 2° / Resolution: - / Accuracy: ± 100 µrad Rotation Rz / Fine adjustment Travel: 5 mrad / Resolution: <0.5 µrad / Accuracy: ± 1 µrad Rotation Rs / Fine adjustment * Travel: ± 10 rad / Resolution: <0.5 µrad / Accuracy: ± 7 µrad M2 mirror fitted with a water-cooling system
Semi-automated system for deploying the stairs on a CS25-type business jet. The complete system comprises six actuators that control the opening of the door and the movement of the onboard stairs. Number of actuators: 6 Rated for extreme conditions: 9g Tight fit Withstands 9g Compact Controlled multi-axis system
CATEGORY
Adaptive optical loop comprising a Phasics SID4 wavefront analyser and an ISP SYSTEM deformable mirror Adaptive optical loop for high-intensity lasers - Circular laser beam D30 mm, AOI 10° - 35 actuators - AIR Environment Please contact us for a quote or for information about a product
CATEGORY
Laser beam deflection by 45° along the X and Y axes, which are perpendicular to the Z axis. - Trajectory mode Ø1: accuracy during movement 2 mrad - Scan mode Ø2: accuracy during movement 0.45 mrad Angle de course ± 10° Résolution 0,015 mrad Répétabilité 0,15 mrad
CATEGORY
