By MEMSIC Inc.

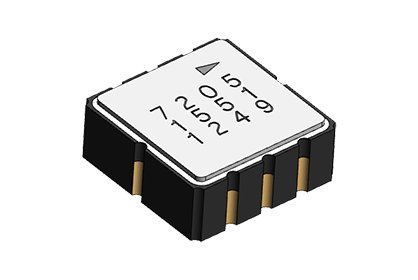

LCC package, 5x5x2mm, SPI interface, ±5g range, high reliability Automotive Grade 2-axis thermal accelerometer Application - Rollover - EPB - ESC >50,000g shock survival rating Dual axis accelerometer fabricated on a single CMOS IC Monolithic design with mixed mode signal processing Zero-g temperature stability better than ±30mg from –40℃ to 105℃ Sensitivity temperature compensation better that ±3% from -40℃ to 105℃ ±5g dynamic range, 800LSB/g sensitivity 29Hz bandwidth On Demand Self Test 4.50V to 5.25V single supply operation Small surface mount package, 5mm x 5mm x 2mm RoHS compliant
WLP package, 0.85x0.85x0.4mm, I²C/I³C interface, ±30g range, high performance AMR Magnetometer Application: Smart Phone/Pad/NoteBook; Wearable Device; Smart Home; Smart Device Monolithic integrated 3-axis AMR magnetic sensor and electronic circuits requiring fewer external components Superior Dynamic Range and Accuracy ±30 G FSR 20bits operation mode 0.0625mG per LSB resolutio 2 mG total RMS noise Enables heading accuracy of ±1º Sensor true frequency response up to 1KHz Ultra-Small Wafer Level Package 0.8x0.8x0.4mm On-chip automatic degaussing with built-in SET/RESET function Eliminates thermal variation induced offset error (Null field output) Clears the residual magnetization resulting from strong external fields On-chip sensitivity compensation On-chip temperature sensor Selftest signal available Dataready Interrupt (I³C only) Low power consumption 1µA power down current I²C slave, FAST (≤400 KHz) mode I³C interface, Compatible with MIPI I³C pecfication version 1.0 1.62V to 3.6V wide range single power supply 1.2V compatible I²C interface 1.8V 1.8V compatible I³C interface RoHS complian
CATEGORY
BGA package, 1.2x1.2x0.5mm, I²C interface, ±30g range, high performance AMR Magnetometer Application: Wearable Device, Smart Home, Smart Device Fully integrated 3-axis magnetic sensor and electronic circuits requiring fewer external components Superior Dynamic Range and Accuracy ±30G FSR with 16bits operation 1mG per LSB resolution 2mG total RMS noise Enables heading accuracy of 1º Output data rate up to 600 Hz Ultra Small Low profile package 1.2x1.2x0.5mm Degaussing with built-in SET/RESET function Eliminates thermal variation induced offset error (Null field output) Clears the residual magnetization resulting from strong external fields On-chip sensitivity compensation On-chip temperature sensor MotionDetection and DataReady Interrupt Low power consumption 1µA power down current I²C Slave, FAST (≤400 KHz) mode 1.8V single low power supply compatible Low to 1.2V I²C interface RoHS compliant
CATEGORY
BGA package, 1.6x1.6x0.6mm, multiple I²C device addresses, I²C interface, ±16g range, high performance AMR Magnetometer Fully integrated 3-axis magnetic sensor and electronic circuits requiring fewer external components Superior Dynamic Range and Accuracy ±16G FSR with 16/14bits operation 0.5mG/2mG per LSB resolution in 16/14bits operation mode 1.5mG total RMS noise Enables heading accuracy of ±1º Max output data rate of 800 Hz (12 bits mode) Ultra Small Low profile package 1.6x1.6x0.6mm Allows for elimination of temperature variation induced offset error (Null field output) Clears the sensors of residual magnetization resulting from strong external fields On-chip sensitivity compensation Low power consumption (140µA @ 7Hz ) 1µA (max) power down function I²C Slave, FAST (≤400 KHz) mode 1.62~3.6V wide power supply operation supported, 1.8 V I/O compatibility RoHS compliant
CATEGORY
WLP package, 0.8x0.8x0.4mm, I²C interface, ±30g range, high performance AMR Magnetometer Monolithic integrated 3-axis AMR magnetic sensor and electronic circuits requiring fewer external components Superior Dynamic Range and Accuracy ±30G FSR 20bits operation mode 0.0625mG per LSB resolution 2mG total RMS noise Enables heading accuracy of 1º Sensor true frequency response up to 1KHz Ultra-Small Wafer Level Package 0.8x0.8x0.4mm On-chip automatic degaussing with built-in SET/RESET function Eliminates thermal variation induced offset error (Null field output) Clears the residual magnetization resulting from strong external fields On-chip sensitivity compensation On-chip temperature sensor Selftest signal available Low power consumption 1µA power down current I²C slave, FAST (≤400 KHz) mode 1.62V to 3.6V wide range single power supply 1.2V logic IO RoHS compliant
CATEGORY
