By Alnair Laboratories Corporation
Generate high-speed electrical pulses as short as 30ps 17ps fast rise-time for driving modulators and lasers Generate pulses on-demand or at repetition rates up to 5GHz The EPG-210 is a specially-designed short electrical pulse generator. The output pulse can be as short as 30ps, ad with the high-voltage option, it can drive most off-the-shelf laser diodes of LN modulators to generate short optical pulses. The tunability of the pulse-width and frequency repetition rate offers flexibility in laser machining application, where control of laser pulse energy is required. Short electrical pulse down to 30ps Sharp rise/fall time Adjustable pulsewidth and frequency repetition rate Triggerable from external clock Single ended or differential output available Optical pulse generation Laser diode gain-switching Laser machining LIDAR
O-band Ultra-Narrow, Ultra sharp Tunable Optical Filter CVF-300BO / BVF-300BO Porgrammable / Manual Features - O-band coverage 1260nm~1360nm - Narrow-ness bandwidth: min. bandwidth 50pm (6GHz) - Flexible: both bandwidth- and wavelength-tunable Applications - Automated inspection systems in prodcution lines - Narrow-band filtering for DWDM systems - Pulse-shaping and ASE-noise filtering
CATEGORY
Broadband, high-power, stable ASE source VFD display for easy viewing from shallow angle Flat spectrum option available Applications: - Fiber sensing - Optical tomography - DWDM component inspection - Optical gyroscope
CATEGORY
Features 1550nm-band, Extremely High Gain of Typ 50dB WDM Type, Low Input Power of <-50dBm Superior OSNR of 10dB at Pin -40dBm/ch All polarization maintaining, Szie of 90mm x 95mm
CATEGORY

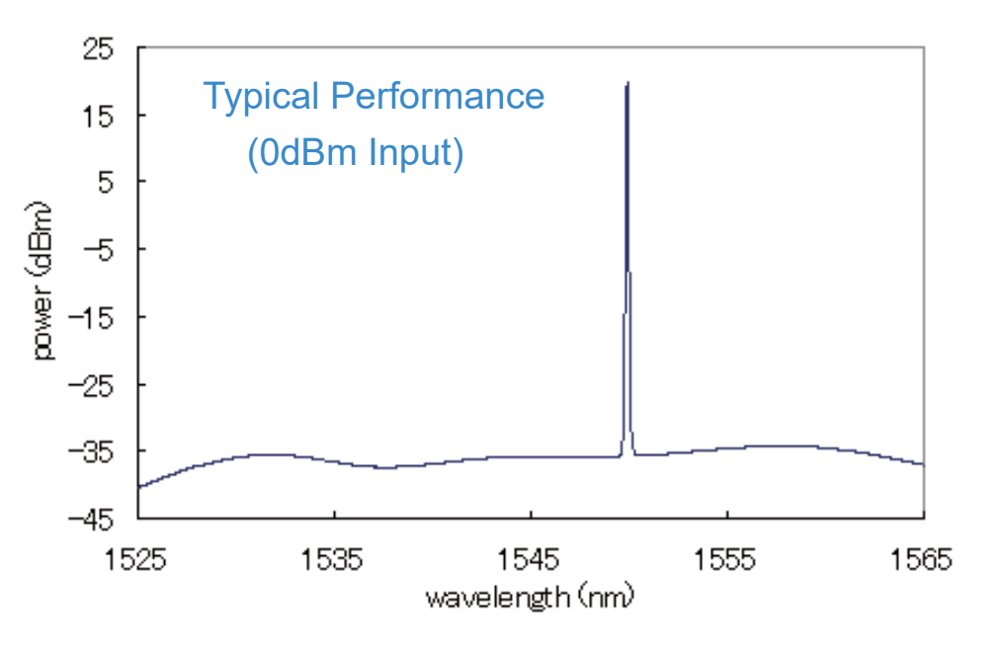

Low power consumption EDFA (<3W, up to 70% lower than previous models) Compact size (width is <1/3 of 19 inch rack) High cost-performance The EFA-200C is a compact, cost-effective and low power consumption fiber amplifier. The compact size is <1/3 the width of a 19" rack, and is easy to carry and share in multiple experimental setups.The power consumption is approx. 1/3 of existing Alnair EDFAs, making the EFA-200C ideal for system-level experiments that require multiple EDFAs. - Low power-consumption (<3 W, up to 70% lower than previous models) - Optical output up to +20 dBm - Compact size, with <1/3 the width of a 19" rack - Cost effective - Optical metrology - Amplification of laser output
CATEGORY
