A key addition to Chamber A was the addition of a set of six custom 10,000 lb. capacity Minus K Technology's negative-stiffness vibration isolators. The Minus K passive isolators do not require air and offer better isolation than air and active isolation systems. A major factor in the selection of the of the vibration isolators was that they not only isolate vibration vertically, but also horizontally at less than 1 Hz. The isolators utilize Minus K's patented Thermal Responsive Element (TRE) compensator device, a passive mechanical device, requiring no air or electricity just like the isolators. The TRE compensator adjusted the isolators as the temperature changes throughout the testing at JSC, keeping the JWST in the proper position. The Critical Design Review for Spacecraft-to-Optical Telescope Element vibration isolation system was completed one month earlier than scheduled at the end of 2011. The six Minus K negative-stiffness vibration isolators were installed on top of Johnson Space Center's Thermal Vacuum Chamber A in March 2014. Engineers installed a massive steel platform suspended from the six vibration isolators via steel rods about 60 feet long (18.2 meters) each and about 1.5 inches (or 38.1 mm) in diameter, to hold the telescope and key pieces of test equipment.

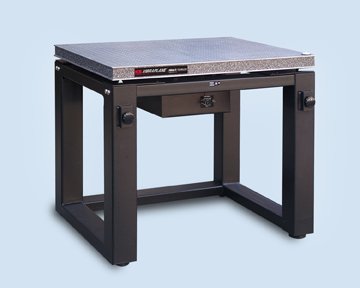

The MK52 Series Vibration Control Optical Table with more ergonomic comfort is designed specifically for ultra-low natural frequency applications. The system utilizes Minus K's patented negative stiffness vibration isolators to provide a compact, passive optical table with ultra-low natural frequencies, higher internal structural frequencies, and excellent vertical and horizontal isolation efficiencies. It also does this without any air or electricity! The premier choice for large applications requiring high resolution such as: Raman spectroscopy, atomic force microscopy (AFM), AFM-Raman integration, and micro hardness testing. The MK52 Series can be configured for a wide variety of applications and customized with most of our vibration isolation workstation accessories. - Ultra-Low Natural Frequencies - Vibradamped Frame - Customizable Accessories - No Air Supply Needed - Easy to Use - Choice of Tabletops - Ergonomic Styling Table top options include Granite, Steel, Composite & Honeycomb. The MinusK vertical isolator uses a stiff spring and negative-stiffness mechanism to achieve a low net vertical stiffness without affecting the static load supporting capability. Horizontal vibration isolation is provided by beam columns connected in series with the vertical-motion isolator. Adjusted to a 1/2 Hz natural frequency, the workstation achieves about 93% isolation efficiency at 2 Hz, 99% at 5 Hz and 99.7% at 10 Hz. The MK52 Series optical table can be designed for a wide variety of applications and customized with auxiliary work surfaces, enclosures, shelves, seismic restraints, retractable casters, and many other options. Typical Vibration Control Applications for the MK52 Vibration Isolation Workstation: The MK52 Series is the premier choice for large applications requiring high resolution such as: Raman spectroscopy, atomic force microscopy (AFM), AFM-Raman integration, and micro hardness testing and other sensitive equipment in fields such as semiconductor processing, telecommunications, aerospace engineering, and medical research. Manufactured in conjunction with Kinetic Systems. For International Orders, A Handling Fee of 5% is Added. Contact Minus K for custom payload ranges and sizes. Configurations: MK52 - 36" x 48" Frame (91 cm X 122 cm) Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5201-3648-XX: 250BM-1 Isolators; 2" Composite Payload Range: 164 lb -344 lb (74 kg - 156 kg); 2" Honeycomb Payload Range: 199 - 379 lb (90 kg - 172kg); 4" Honeycomb Payload Range: 147 lb - 327 lb (67 kg - 148 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $28,530; -22 Composite (2") w/stainless laminate $28,530; -23 Composite (2") w/black plastic laminate $28,530; -24 Composite (2") w/anti-static laminate $29,180; -40 Honeycomb (2") /no holes $30,530; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $31,190; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $31,190; -80 Honeycomb (4") /no holes $30,900; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $32,310; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $32,310 MK5202-3648-XX: 350BM-1 Isolators; 2" Composite Payload Range: 348 lb -544 lb (174 kg - 247 kg); 2" Honeycomb Payload Range: 419lb - 579 lb (190 kg - 262 kg); 4" Honeycomb Payload Range: 367 lb - 527 lb (166 kg - 239 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $29,090; -22 Composite (2") w/stainless laminate $29,090; -23 Composite (2") w/black plastic laminate $29,090; -24 Composite (2") w/anti-static laminate $29,740; -40 Honeycomb (2") /no holes $31,090; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $31,750; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $31,750; -80 Honeycomb (4") /no holes $31,480; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $32,870; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $32,870 MK5203-3648-XX: 500BM-1 Isolators; Composite Payload Range: 524 lb - 854 lb (238 kg - 387 kg); Honeycomb Payload Range: 559 lb -889 lb (253 kg - 403 kg); 4" Honeycomb Payload Range: 507 lb -837 lb (230 kg - 380 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $29,660; -22 Composite (2") w/stainless laminate $29,660; -23 Composite (2") w/black plastic laminate $29,660; -24 Composite (2") w/anti-static laminate $30,310; -40 Honeycomb (2") /no holes $31,660; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $32,320; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $32,320; -80 Honeycomb (4") /no holes $32,050; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $33,440; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $33,440 MK5204-3648-XX: 650BM-1 Isolators; Composite Payload Range: 804 lb - 1154 lb (365 kg - 528 kg); 4" Honeycomb Payload Range: 787 lb 1147lb (357 kg - 520 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $30,320; -22 Composite (2") w/stainless laminate $30,320; -23 Composite (2") w/black plastic laminate $30,320; -24 Composite (2") w/anti-static laminate $30,880; -80 Honeycomb (4") /no holes $32,620; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $34,010; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $34,010 MK5205-3648-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 1047 lb 1587 lb (475 kg - 720 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $41,460; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $42,850; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $42,850 MK5206-3648-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1567 lb 1887 lb (711 kg - 856 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $42,110; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $43,500; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $43,500 MK52 - 36" x 60" Frame (91 cm X 152 cm) Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5201-3660-XX: 250BM-1 Isolators; 2" Composite Payload Range: 104 lb -284 lb (47 kg - 129 kg); 2" Honeycomb Payload Range: 147 - 327 lb (67 kg - 148 kg); 4" Honeycomb Payload Range: 82 lb - 262 lb (37 kg - 119 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $29,840; -22 Composite (2") w/stainless laminate $29,840; -23 Composite (2") w/black plastic laminate $29,840; -24 Composite (2") w/anti-static laminate $30,770; -40 Honeycomb (2") /no holes $31,860; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $32,870; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $32,870; -80 Honeycomb (4") /no holes $33,350; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $33,560; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $33,560 MK5202-3660-XX: 350BM-1 Isolators; 2" Composite Payload Range: 324 lb -484 lb (147 kg - 219 kg); 2" Honeycomb Payload Range: 367 lb - 527 lb (166 kg - 239 kg); 4" Honeycomb Payload Range: 302 lb - 462 lb (137 kg - 210 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $30,400; -22 Composite (2") w/stainless laminate $30,400; -23 Composite (2") w/black plastic laminate $30,400; -24 Composite (2") w/anti-static laminate $31,340; -40 Honeycomb (2") /no holes $32,510; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $33,440; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $33,440; -80 Honeycomb (4") /no holes $32,910; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $34,130; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $34,130 MK5203-3660-XX: 500BM-1 Isolators; 2" Composite Payload Range: 464 lb - 794 lb (210 kg - 360 kg); 2" Honeycomb Payload Range: 507 lb -837 lb (230 kg - 380 kg); 4" Honeycomb Payload Range: 442 lb -772 lb (200 kg - 350 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $30,970; -22 Composite (2") w/stainless laminate $30,970; -23 Composite (2") w/black plastic laminate $30,970; -24 Composite (2") w/anti-static laminate $31,900; -40 Honeycomb (2") /no holes $33,060; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $34,010; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $34,010; -80 Honeycomb (4") /no holes $33,470; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $34,710; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $34,710 MK5204-3660-XX: 650BM-1 Isolators; 2" Composite Payload Range: 744 lb - 1104 lb (337 kg - 501 kg); 4" Honeycomb Payload Range: 722 lb - 1082 lb (327 kg - 491 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $32,320; -22 Composite (2") w/stainless laminate $32,320; -23 Composite (2") w/black plastic laminate $32,320; -24 Composite (2") w/anti-static laminate $32,470; -80 Honeycomb (4") /no holes $34,050; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $35,260; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $35,260 MK5205-3660-XX: 850BM-1 Isolators; 2" Composite Payload Range: 1004 lb -1544 lb (455 kg - 700 kg); 4" Honeycomb Payload Range: 982 lb -1522 lb (445 kg - 690 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $42,890; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $44,110; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $44,110 MK5206-3660-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1502 lb -1822 lb (681 kg - 826 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $43,540; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $44,750; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $44,750 MK52 - 36" x 72" Frame (91 cm X 183 cm) Height w/ 2" Table top 30.5" - 32" ( 77.5 - 81.25cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5201-3672-XX: 250BM-1 Isolators; 2" Composite Payload Range: 43 lb -223 lb (20 kg - 101 kg); 2" Honeycomb Payload Range: 95 - 275 lb (43 kg - 125 kg); 4" Honeycomb Payload Range: 17 lb - 197 lb (8 kg - 89 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $30,550; -22 Composite (2") w/stainless laminate $30,550; -23 Composite (2") w/black plastic laminate $30,550; -24 Composite (2") w/anti-static laminate $31,480; -40 Honeycomb (2") /no holes $32,630; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $33,360; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $33,360; -80 Honeycomb (4") /no holes $33,030; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $34,490; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $34,490 MK5202-3672-XX: 350BM-1 Isolators; 2" Composite Payload Range: 263 lb -423 lb (119 kg - 192 kg); 2" Honeycomb Payload Range: 315 lb - 475 lb (143 kg - 215 kg); 4" Honeycomb Payload Range: 237 lb - 397 lb (108 kg - 180 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $31,120; -22 Composite (2") w/stainless laminate $31,120; -23 Composite (2") w/black plastic laminate $31,120; -24 Composite (2") w/anti-static laminate $32,050; -40 Honeycomb (2") /no holes $33,200; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $33,910; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $33,910; -80 Honeycomb (4") /no holes $33,600; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $35,060; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $35,060 MK5203-3672-XX: 500BM-1 Isolators; 2" Composite Payload Range: 403 lb - 773 lb (183 kg - 333 kg); 2" Honeycomb Payload Range: 455 lb - 785 lb (206 kg - 356 kg); 4" Honeycomb Payload Range: 377 lb - 707 lb (171 kg - 321 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $31,690; -22 Composite (2") w/stainless laminate $31,690; -23 Composite (2") w/black plastic laminate $31,690; -24 Composite (2") w/anti-static laminate $32,620; -40 Honeycomb (2") /no holes $33,770; -45 SPILLPRUF Honeycomb (2") 1/4-20 x 1" centers $34,480; -46 SPILLPRUF Honeycomb (2") M6 x 25mm centers $34,480; -80 Honeycomb (4") /no holes $34,170; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $35,630; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $35,630 MK5204-3672-XX: 650BM-1 Isolators; 2" Composite Payload Range: 683 lb - 1043 lb (310 kg - 473 kg); 4" Honeycomb Payload Range: 657 lb - 1017 lb (298 kg - 461 kg). Table Top Options Price: -21 Composite (2") w/white plastic laminate $32,250; -22 Composite (2") w/stainless laminate $32,250; -23 Composite (2") w/black plastic laminate $32,250; -24 Composite (2") w/anti-static laminate $33,180; -80 Honeycomb (4") /no holes $34,740; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $36,200; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $36,200 MK5205-3672-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 917 lb - 1457 lb (416 kg - 661 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $43,580; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $45,040; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $45,040 MK5206-3672-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1437 lb - 1757 lb (652 kg - 797 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $44,230; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $45,690; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $45,690 MK52 - 36" x 96" Frame (91 cm X 244 cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5202-3696-XX: 350BM-1 Isolators; 4" Honeycomb Payload Range: 108 lb - 268 lb (49 kg - 121 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $35,250; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $36,470; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $36,470 MK5203-3696-XX: 500BM-1 Isolators; 4" Honeycomb Payload Range: 248 lb - 578 lb (112 kg - 262 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $35,820; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $37,030; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $37,030 MK5204-3696-XX: 650BM-1 Isolators; 4" Honeycomb Payload Range: 528 lb - 888 lb (239 kg - 403 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $36,380; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $37,600; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $37,600 MK5205-3696-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 788 lb - 1328 lb (357 kg - 602 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $45,230; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $46,440; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $46,440 MK5206-3696-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1308 lb - 1628 lb (593 kg - 738 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $45,870; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $47,090; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $47,090 MK52 - 48" x 60" Frame (122 cm X 152 cm) MK5202-4860-XX: 350BM-1 Isolators; 4" Honeycomb Payload Range: 194 lb - 354 lb (88 kg - 161 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $33,830; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $35,300; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $35,300 MK5203-4860-XX: 500BM-1 Isolators; 4" Honeycomb Payload Range: 334 lb - 664 lb (151 kg - 301 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $34,400; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $35,870; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $35,870 MK5204-4860-XX: 650BM-1 Isolators; 4" Honeycomb Payload Range: 614 lb - 974 lb (279 kg - 442 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $34,950; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $36,440; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $36,440 MK5205-4860-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 874 lb - 1414 lb (396 kg - 641 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $43,810; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $45,280; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $45,280 MK5206-4860-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1394 lb - 1714 lb (632 kg - 777 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $44,460; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $45,930; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $45,930 MK52 - 48" x 72" Frame (122 cm X 183 cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5202-4872-XX: 350BM-1 Isolators; 4" Honeycomb Payload Range: 108 lb -268 lb (49 kg - 121 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $35,250; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $36,470; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $36,470 MK5203-4872-XX: 500BM-1 Isolators; 4" Honeycomb Payload Range: 248 lb -578 lb (112 kg - 262 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $35,820; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $37,030; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $37,030 MK5204-4872-XX: 650BM-1 Isolators; 4" Honeycomb Payload Range: 528 lb -888 lb (239 kg - 403 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $36,380; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $37,600; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $37,600 MK5205-4872-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 788 lb -1328 lb (357 kg - 602 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $45,230; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $46,440; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $46,440 MK5206-4872-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1308 lb -1628 lb (593 kg - 738 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $45,870; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $47,090; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $47,090 MK52 - 48" x 96" Frame (122 cm X 244 cm) Height w/ 4" Table top 32.5" - 34" ( 82.5 - 86.5cm) MK5202-4896-XX: 350BM-1 Isolators; 4" Honeycomb Payload Range: 0 lb - 95 lb (0 kg - 43 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $36,880; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $38,360; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $38,360 MK5203-4896-XX: 500BM-1 Isolators; 4" Honeycomb Payload Range: 75 lb - 405 lb (34 kg - 184 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $37,450; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $38,910; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $38,910 MK5204-4896-XX: 650BM-1 Isolators; 4" Honeycomb Payload Range: 355 lb - 715 lb (161 kg - 324 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $38,020; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $39,480; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $39,480 MK5205-4896-XX: 850BM-1 Isolators; 4" Honeycomb Payload Range: 615 lb - 1155 lb (279 kg - 524 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $46,860; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $48,320; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $48,320 MK5206-4896-XX: 1000BM-1 Isolators; 4" Honeycomb Payload Range: 1135 lb - 1455 lb (515 kg - 660 kg). Table Top Options Price: -80 Honeycomb (4") /no holes $47,510; -85 SPILLPRUF Honeycomb (4") 1/4-20 x 1" centers $48,970; -86 SPILLPRUF Honeycomb (4") M6 x 25mm centers $48,970
CATEGORY
Compact Suspension Isolators with 1/2 Hz performance vertical for weight loads from 30 to 640 lbs. [3 or 4 units per system] The CS-1 is a compact, 0.5 Hz, passive mechanical negative-stiffness vibration isolator. Like other Minus K Technology isolators, they use no air or electricity. It is the first standard sub-hertz isolators designed to be used in suspension, not compression. The isolator mounts above the intended payload and use a load rod to connect to it. The CS-1 is a vertical only isolator. Horizontal isolation is be provided by the pendular load rod itself. The longer the load rod, the lower the horizontal resonant frequency will be [load rod varies according to customer needs]. The isolators upper mounting point can be customized to adapt to the customer's needs. They can be used in small spaces where previously getting this level of vibration isolation, was simply not possible. The CS-1 is vacuum compatible, and can be modified to be up to UHV compatibility. - Compact suspension loaded isolator - Individual capacities 10 to 160 lbs. - 0.5 Hz Vertical Natural Frequency - Room temperature - vacuum compatible - Combined into multi- isolator systems to support heavy payloads from 30 - 640 lbs [3 or 4 units per system] Weight: Approximately 4.4 lbs. (2 kg) Dimensions: 5.75" H x 3.5" W x 7" D (146 mm H x 89 mm W x 178 mm D) Approximate payload weight range: Model Payload Range Price 25CS-1 10 -28 lb. (4.5– 12.7 kg) $2,800 50CS-1 27 - 55 lb. (12.2- 25 kg) $2,950 75CS-1 35 - 75 lb. (15.9- 34 kg) $3,100 100CS-1 50 - 100 lb. (22.7– 45.4 kg) $3,250 125CS-1 95 - 128 lb. (43.1– 58.1. kg) $3,400 150CS-1 122 - 160 lb. (55.4– 72.7 kg) $3,550 Performance - Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range. - There is NO horizontal isolation built in to the isolator. [horizontal isolation is provided by means of the load rod, designed for each application] - For use at near room temperature. [not cryogenically compatible] The CS-1 isolators are to be used in either three or four isolator configurations to provide a properly constrained system (even though each isolator is vertical only). The CS-1s load rods work with the other isolators to make a stable system that can provide levels of isolation, not available before in such a small package.
CATEGORY
The new MK26 Series Vibration Control Workstation with more ergonomic comfort is designed specifically for ultra-low natural frequency applications. Kinetic Systems manufactures the system utilizing the Minus K patented negative stiffness vibration isolators in order to provide a compact, passive Vibration Isolation Workstation with ultra-low natural frequencies, higher internal structural frequencies, and excellent vertical and horizontal isolation efficiencies. The MK26 has also been upgraded to provide much better user comfort and additional leg space. The Minus K vertical isolator uses a stiff spring and negative-stiffness mechanism to achieve a low net vertical stiffness without affecting the static load supporting capability. Horizontal vibration isolation is provided by beam columns connected in series with the vertical-motion isolator. Adjusted to a 1/2 Hz natural frequency, the workstation achieves 93% isolation efficiency at 2 Hz, 99% at 5 Hz and 99.7% at 10 Hz. The MK26 Series can be configured for a wide variety of applications and customized with most of our vibration isolation workstation accessories. Typical Vibration Control Applications for the MK26 Vibration Isolation Workstation The MK26 Series offers the ultimate performance for a wide range of instruments, such as analytical balances, cell injection, confocal microscopes, patch clamping, optical microscopes, wafer probing, sensor calibration atomic force microscopes and other sensitive equipment in fields such as semiconductor processing, telecommunications, aerospace engineering, and medical research. Features/Benefits - New Ergonomic Design - Ultra-Low Natural Frequencies - Vibradamped Frame - Customizable Accessories - No Air Supply Needed – Easy to Use - Choice of Tabletops - Ergonomic Styling - Class 100 Cleanroom Compatible - Class 10 Available Specifications - Max. Load Capacity: 650 lbs. - Max. Width of Tabletop: 48” - Max. Depth of Tabletop: 36” - Vertical Natural Frequency: 0.5 Hz - Horizontal Natural Frequency: 0.5 Hz - Isolation Efficiency @ 2 Hz: 93% - Isolation Efficiency @ 5 Hz: 99% - Isolation Efficiency @ 10 Hz: 99.7%
CATEGORY
Low frequency vibration isolator for weight loads from 15 to 130 lbs. and 1/2 Hz performance vertical and horizontal. Minus K's LC-4 is an ultra compact, low-frequency negative-stiffness isolator. It comes in two configurations, our low horizontal frequency performance of 1.5 Hz or our ultra low horizontal frequency performance of 0.5 Hz. Both configurations offer our signature 0.5 Hz vertical natural frequency. The LC-4 isolators can be combined into multi isolator systems to support heavier payloads while taking up very little room themselves. The isolators are passive, manually-adjustable and require no air or electricity. If needed, the LC-4 isolators can be customized to achieve user specific needs. Eg., different horizontal and vertical frequencies, damping, etc. They can also be made cleanroom and vacuum compatible. For International Orders, A Handling Fee of 5% is Added. Weight: Approximately 7 lb (3.1 kg) Low Frequency Horizontal (LC-4) Dimensions: 4.75" W x 4.75" D x 7" H (121mm W x 121mm D x 178mm H) Ultra Low Frequency Horizontal (LC-4U) Dimensions: 4.75" W x 4.75" D x 8" H (121mm W x 121mm D x 203mm H) Load Capacities (approximate): Model Payload Range LC-4 1.5 Hz Horizontal LC-4U 0.5 Hz Horizontal Price / Price 25LC-4 10 - 28 lb (4.5 - 12.7 kg): $2740.00 / $2975.00 35LC-4 29 - 40 lb (13.2 - 18.2 kg): $2810.00 / $3045.00 50LC-4 38 - 65 lb (17.3 - 29.5 kg): $2885.00 / $3120.00 70LC-4 48 - 75 lb (21.8 - 34 kg): $2955.00 / $3190.00 100LC-4 75 - 100 lb (34 - 45.3 kg): $3030.00 / $3265.00 125LC-4 95 - 130 lb (43 - 59 kg): $3105.00 / $3335.00 150LC-4 125 - 158 lb (56.7 - 71.7 kg): $3180.00 / $3410.00 Performance - Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range. - Horizontal natural frequency is load dependent. 1 1/2 Hz (low horiz. freq.) or 1/2 Hz (ultra low horiz. freq.) or less natural frequencies can be achieved at or near the nominal load. - See Performance for a typical transmissibility curve with 1/2 Hz natural frequency.
