By ISP System

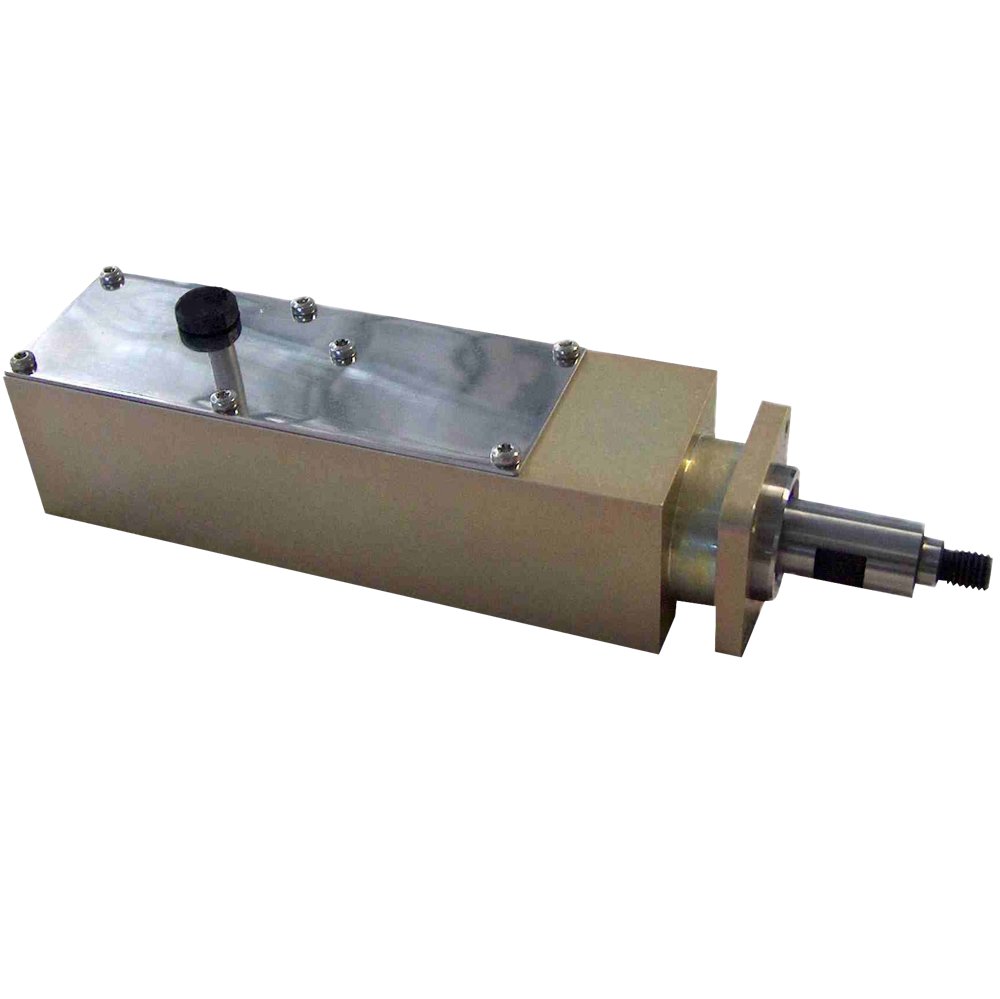

Compact actuator resistant to lateral loads 30: Travel (mm) 30: Radial load (N) 300: Axial load (N) 55: Resolution (µm/motor step) – minimum 3 steps Anti-rotation rod Repeatability <0.5 µm RMS Linearity <1%
Semi-automated system for deploying the stairs on a CS25-type business jet. The complete system comprises six actuators that control the opening of the door and the movement of the onboard stairs. Number of actuators: 6 Rated for extreme conditions: 9g Tight fit Withstands 9g Compact Controlled multi-axis system
CATEGORY
Adaptive optical loop comprising a Phasics SID4 wavefront analyser and an ISP SYSTEM deformable mirror Adaptive optical loop for high-intensity lasers - Circular laser beam D30 mm, AOI 10° - 35 actuators - AIR Environment Please contact us for a quote or for information about a product
CATEGORY
Laser beam deflection by 45° along the X and Y axes, which are perpendicular to the Z axis. - Trajectory mode Ø1: accuracy during movement 2 mrad - Scan mode Ø2: accuracy during movement 0.45 mrad Angle de course ± 10° Résolution 0,015 mrad Répétabilité 0,15 mrad
CATEGORY
