By Ondax

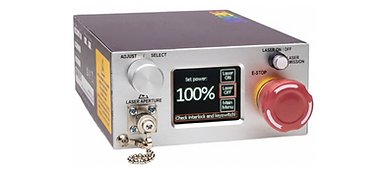

SureLock™ wavelength-stabilized laser diodes and modules incorporate our ultra-narrowband VBGs, forming an external cavity using TruSet to precisely lock the laser’s wavelength to the needs of the application. This enhances spectral brightness and optical performance stability across the entire power range and extended temperature conditions. The extremely short external cavity offers superior mode selection and a smaller footprint than Littrow or Littman cavity designs while reducing the spectral bandwidth of a typical laser by an order of magnitude. With fast warm-up times, flexible power options, and consistent performance, these lasers are ideal for demanding applications such as analytical instruments. Available as modules or components, SureLock® lasers offer flexibility for seamless development and system integration. Applications - Raman spectroscopy - Holography - HeNe replacement - Particle characterization - Analytical instrumentation - Speckle interferometry - Metrology and inspection
SIERRA™ Raman Spectrometer with SURELOCK™ laser is engineered to be ultra-compact, durable, and easy to use, making it an ideal choice for any Raman spectroscopy applications. Featuring the SureLock™ Laser, it ensures steady, high-power, and spectrum-narrowed performance while maintaining low power consumption. The SIERRA™ platform combines a well-established SureLock wavelength-stabilized laser source with an integrated spectrometer in a single compact housing. This architecture reduces alignment complexity and simplifies system integration. Sierra is designed to accelerate the development of Raman solutions by providing a turnkey optical engine that ensures consistent, reproducible performance while lowering overall system size and cost.
CATEGORY

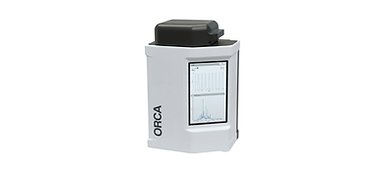

ORCA is a THz-Raman™ crystallinity meter that uses a scanning laser beam to detect and identify low concentrations of specific polymorphs of Active Pharmaceutical Ingredients (APIs) within complex mixtures. By probing low-frequency lattice vibrations that are highly sensitive to crystal structure, ORCA enables reliable detection of targeted polymorphic forms even at very low concentrations. This rapid, non-destructive technique requires little to no sample preparation and provides a powerful complement to PXRD for solid-form characterization. ORCA supports polymorph screening, crystallinity analysis, and pharmaceutical quality control, enabling fast identification of crystalline phases directly within heterogeneous samples.
CATEGORY

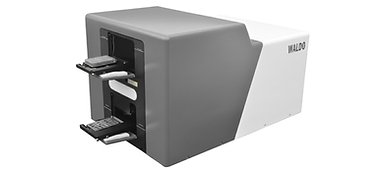

WALDO builds on the WPS high-throughput THz-Raman™ screening platform by adding flexible measurement geometries for a wider range of microplate formats. WALDO supports laser scanning through transparent well plates as well as top-down excitation for opaque plates, including stainless steel and Kapton plates commonly used for PXRD experiments. This dual-mode capability allows researchers to perform rapid polymorph screening and crystallinity analysis across different sample holders while leveraging the sensitivity of low-frequency THz-Raman™ spectroscopy to probe crystal lattice structure and molecular composition.
CATEGORY

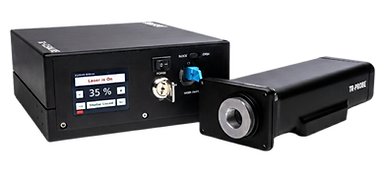

WALDO SHIM integrates Second Harmonic Imaging Microscopy (SHIM) with THz-Raman™ high-throughput screening platforms to enable rapid detection and characterization of crystalline materials during automated screening workflows. THz-Raman™ is selective but not sensitive to detect very small crystals (<10um). SHIM is a nonlinear optical imaging technique that used a ultrafast femtosecond laser to selectively detect non-centrosymmetric crystalline structures, allowing the visualization of early-stage crystals and <10um crystallites that are often invisible to conventional bright-field imaging. SHIM is a sensitive method but not selective. By combining SHIM imaging with Raman spectroscopy, WALDO SHIM provides both early crystal detection and molecular identification within the same screening system. The SHIM module identifies the presence and location of nascent crystals across high-density microplate wells, while THz-Raman™ analysis confirms chemical composition and polymorphic form.
CATEGORY
