By Alnair Laboratories Corporation

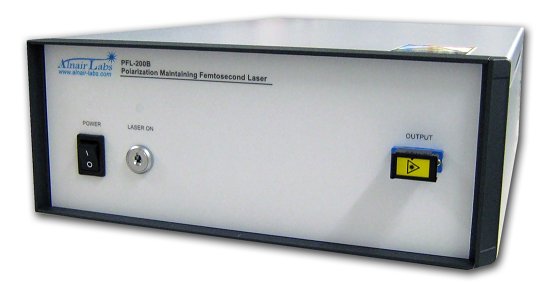

The PFL-200 is a compact polarization-maintaining femtosecond pulsed laser incorporating out proprietary carbon-nanotube mode-locker. The laser is highly stable with an all-polarization-maintaining configuration to provide transform-limited soliton pulses with a typical pulse width of 450fs. The PFL-200 module has a compact design with a package size of merely 90x70x15mm. All driver electronics are integrated within the module and only 5VDC supply is required. Benchtop version is also available for turn-key easy operation in laboratory. PFL-200 is the most compact femtosecond pulsed laser source in the industry for various embedded applications that requires high performance and affordable pulsed laser. - Ultra compact module size: 90 x 70 x 15 mm - Femtosecond pulsewidth: 450 fs typical - Low repetition rate drift: < 1 kHz/o c - Polarization maintained output - Carbon nanotube (CNT) passively mode-locked fiber laser - CNT saturable absorber: enhances reliability & life-time - All-PM-fiber configuration provides ultra-high stability
O-band Ultra-Narrow, Ultra sharp Tunable Optical Filter CVF-300BO / BVF-300BO Porgrammable / Manual Features - O-band coverage 1260nm~1360nm - Narrow-ness bandwidth: min. bandwidth 50pm (6GHz) - Flexible: both bandwidth- and wavelength-tunable Applications - Automated inspection systems in prodcution lines - Narrow-band filtering for DWDM systems - Pulse-shaping and ASE-noise filtering
CATEGORY
Generate high-speed electrical pulses as short as 30ps 17ps fast rise-time for driving modulators and lasers Generate pulses on-demand or at repetition rates up to 5GHz The EPG-210 is a specially-designed short electrical pulse generator. The output pulse can be as short as 30ps, ad with the high-voltage option, it can drive most off-the-shelf laser diodes of LN modulators to generate short optical pulses. The tunability of the pulse-width and frequency repetition rate offers flexibility in laser machining application, where control of laser pulse energy is required. Short electrical pulse down to 30ps Sharp rise/fall time Adjustable pulsewidth and frequency repetition rate Triggerable from external clock Single ended or differential output available Optical pulse generation Laser diode gain-switching Laser machining LIDAR
CATEGORY
Broadband, high-power, stable ASE source VFD display for easy viewing from shallow angle Flat spectrum option available Applications: - Fiber sensing - Optical tomography - DWDM component inspection - Optical gyroscope
