By FRITSCH GMBH - Milling and Sizing

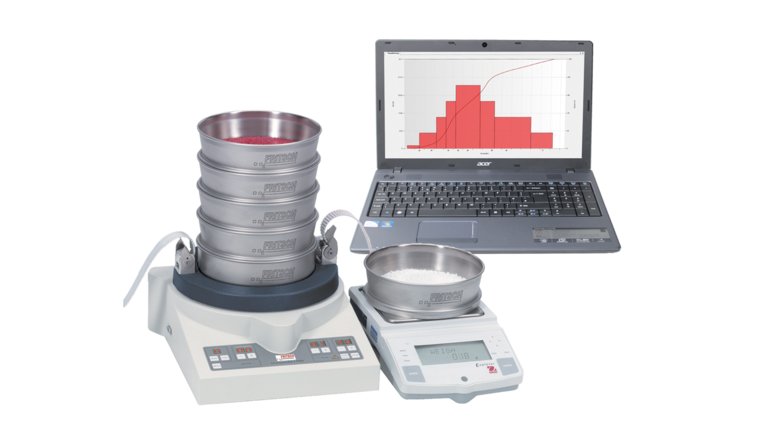

For automatic evaluation, simple monitoring and documentation of your sieving results – just download the multilingual evaluation software AUTOSIEVE and test it non-binding and free of charge for 90 days. Download Software AUTOSIEVE free of charge now PERFECT EVALUATION OF YOUR SIEVE ANALYSIS The extensive software AUTOSIEVE enables the automatic sieve evaluation with the Vibratory Sieve Shakers ANALYSETTE 3 PRO and ANALYSETTE 3 SPARTAN and with the Heavy Duty Analytical Sieve Shaker ANALYSETTE 18. AUTOSIEVE is largely self-explanatory and enormously eases the weighing and the evaluation of your sieve analysis. Simple, flexible, reliable. AUTOSIEVE is easy to install and can be downloaded from here. All you have to do is to connect a laboratory analysis balance and then weigh the sieves before and after sieving using differential weighing. AUTOSIEVE will do the rest. The software enables the simple saving and retrieving of empty sieve weights, both of single sieves and complete sieve sets. FRITSCH Advantage: by utilizing the Software AUTOSIEVE, the FRITSCH Vibratory Sieve Shaker ANALYSETTE 3 PRO can be controlled via a RS232-interface. All functions such as amplitude, sieving time, interval operation and type of sieving can be entered comfortably via the computer. The interface and AUTOSIEVE allow the monitoring of the sieving process via the online comparison of the set and actual amplitude and therefore an automatic validation of the sieving process. Features - Software AUTOSIEVE for all WINDOWS™-Versions as of Windows 7 or higher - Auto-Validation of the sieving process with the FRITSCH Vibratory Sieve Shaker ANALYSETTE 3 PRO - Database for sieve sets and sieve tare weights - Control of various balances - Automatic weighing of single sieves or complete sieve sets - Extensive presentation of the results: Display and printout as cumulative or frequency distribution and as graphs according to DIN ISO 9276-1 - Pre-defined printout of results - Fixed value files for displaying quality relevant parameters - Display of reference curves - Subsequent input of already available sieving results - Different language modules - Rec
Reproducible comminution for a wide range of samples The quietly operating Knife Mill PULVERISETTE 11 is the ideal laboratory mixer for very fast and gentle comminution and homogenisation of moist, oily and fatty as well as of dry, soft, medium-hard and fibrous samples. The specially curved knife blades of the PULVERISETTE 11 achieve with up to 56,000 cutting processes per minute, significantly faster a homogeneous sample than comparable instruments at the same grinding time and rotational speed. And in reverse mode, the PULVERISETTE 11 enables a better thorough mixing if necessary. Max. feed size (depends on material): 40 mm Max. sample quantity: 1,400 ml Final fineness: < 300 µm Rotational speed: 2,000 - 10,000 rpm, turbo function with 14,000 rpm
CATEGORY
Use the A-22 to conduct soil particle size analysis helping in the determination of key properties like texture and permeability. The video highlights a standardized workflow ensuring reliable and reproducible results. N e XT Generation - Particle measurement by laser diffraction. Ideal for efficient particle size analysis – in production and quality control as well as in research and development or for controlling manufacturing processes. Laser particle size measuring instruments for the determination of particle size distributions. Laser diffraction - for quick and reliable determination of the particle size is almost an indispensable method in modern quality control. See how you can effectively combine our Particle Sizers ANALYSETTE 22 NeXT for the measurement of particle size and the ANALYSETTE 28 for Dynamic Image Analysis.
CATEGORY
High-Tech - Disk Mill premium line Efficient premium fine grinding down to 50 µm - Fine grinding down to 0.05 mm - Especially safe - due to automatic safety locks, simply push a button to automatically clamp and lock the grinding chamber and drawer - Precise motor driven adjustment of the distance between the grinding by means of the plus/minus buttons on the digital display with accuracy of 50 μm - The digital display is used to set the grinding time accurately to the second - Fast, residue-free cleaning due to Clean Design - Especially convenient motor-driven zero-point adjustment - for regularly compensating wear on the grinding disks and for easy precise re-adjustment after replacement - Easy change of the grinding disks: For the disk change, the disk is simply driven forward by the motor, allowing the retaining screws to be easily loosened - Large, removable funnel – for especially easy cleaning and optimal material feeding - Optimum airflow for fast comminution, anti-clogging and for grinding larger quantities due to sample exhaustion with high-performance cyclone - Dust-free grinding due to the connection of a dust exhaust system – directly controlled via the instrument Max. feed size (depends on material): 20 mm Max. throughput (depends on material): 150 kg/h Final fineness: 0.05 - 12 mm Motor speed: 440 rpm
CATEGORY
All-Rounder - Disk Mill classic line High final fineness for large quantities - Fine grinding down to 0.1 mm - Safety due to centrally located tension lock of the grinding chamber - Gap adjustment with an accuracy of 0.1 mm with a crank - Easy gap width check from the outside - Extension of the service life of the grinding disks due to reversal of the direction of rotation of the three-phase geared motor - High service life due to generously dimensioned bearings - Simple cleaning: completely accessible grinding chamber and optional dust exhaust system - Optimum airflow for fast comminution, anti-clogging and for grinding larger quantities due to sample exhaustion with high-performance cyclone Max. feed size (depends on material): 20 mm Max. throughput (depends on material): 150 kg/h Final fineness: 0.1 - 12 mm Motor speed: 440 rpm
CATEGORY
