By MEMSCAP
The MEMSCAP TP1200 series digital-output pressure transducer is a high-precision device designed for critical applications in industries such as aerospace, defense, and medical. It provides reliable and accurate differential pressure measurements, making it ideal for environments that require precise sensing. Key Features - Advanced MEMS Technology: At the core of the TP1200 is a highly sensitive MEMS differential pressure sensor engineered to deliver accuracy and reliability. It is designed to perform consistently even in harsh environmental conditions, ensuring precise pressure difference measurements over time. - Integrated ADC and EEPROM for Enhanced Performance: The TP1200 features an integrated Analog to Digital Converter (ADC) for high-resolution digital outputs, ensuring accurate data. It also includes Electrically Erasable Programmable Read-Only Memory (EEPROM) that stores essential compensation data, enabling external adjustments for temperature variations and non-linearity, ensuring sustained accuracy across diverse operating conditions. - Comprehensive Pressure Range: Available in ranges up to 1.5 bar, the TP1200 is suitable for low to moderate pressure applications, offering flexibility across aerospace, industrial, and medical needs. - Wide Differential Pressure Range and Compensation: The TP1200 offers a broad differential pressure range, suitable for low to moderate pressure applications. It is equipped with over 400 compensation datasets, covering a wide range of temperature and pressure conditions, ensuring precise measurements under varying environments. - Seamless Integration and Flexibility: Designed as a board-to-board solution, the TP1200 facilitates easy integration into final products, enhancing manufacturing efficiency and reducing downtime. The pre-calibrated sensor allows for quick replacement without the need for recalibration, making it advantageous in maintenance, repair, and overhaul (MRO) situations.

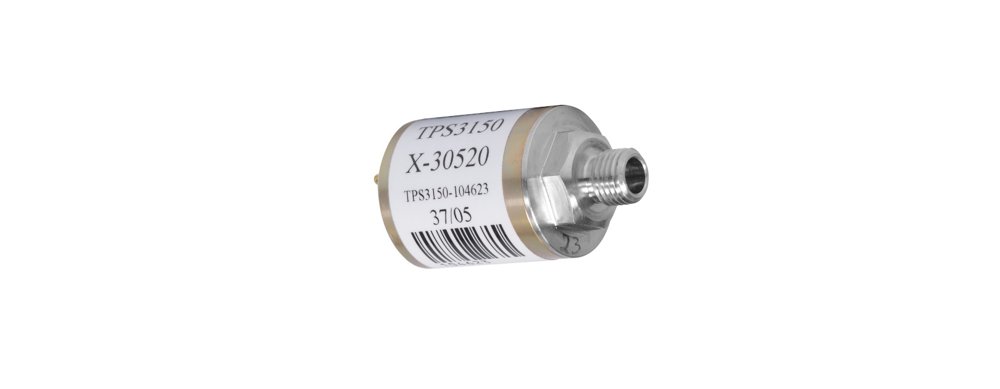

The TP 3150 is a fully compensated, linearised high-precision unit available in absolute and relative versions. It is equipped with MEMSCAP high-performance high stability SP82 pressure sensor and exhibits excellent long term stability. The TPS 3150 product is a high accuracy factory programmable set/trig point pressure switch with a transistor switch output, compliant with RTCA DO-178B-Level D requirements (one of the most stringent certifications for aerospace products and components) of Civil Aviation Authority. Its Stainless Steel body and cromatized Aluminum cover make it a MIL Std 883 compliant hermetic sensor. The high proven quality, reliability and accuracy of our sensors that match aerospace and defense standards offer unmatched results in a wide variety of applications such as UAVs/ Drones, Auxiliary Power units, and cabin pressure control systems of Boeings and Boeings and Embra-er, where it is an important element of the pressure valve that regulates pressure within the cabin.
CATEGORY
Customization Options MEMSCAP® offers tailored solutions to meet application needs, including specific electrical and mechanical interfaces, and calibration data.
CATEGORY
Generic Description Based on Silicon On Insulator fabrication techniques, MEMSCAP® offers a large variety of Thermally Actuated Variable Optical Attenuators. APPLICATIONS Our devices can be used in applications like: - Power equalization in multi-channel, optically amplified networks - Power Balancing Between Amplification Stages) - Gain-tilt control in erbium doped fiber amplifiers (EDFAs) - Dynamic Gain/Channel Equalizers (DGE/DCE) in Dense WDM/ Coarse WDM networks - Dynamic Optical Power Control and Channel Equalization - Channel Balancing for Optimizing Transmission Performance - For ROADM power balance - Photoreceiver trimming - Receiver protection/switch during transmitter turn-ons Custom designs can be developed for customers who have specific application needs. Die level tests on the Thermally Actuated MEMS Variable Optical Attenuator product line confirmed that the MEMS devices operate within all specifications even after 200 millions cycles with all optical, mechanical and electrical properties remaining within their strict initial specifications. The key operating parameters of electrical resistance and power consumption of the units exhibit excellent stability over the full duration of the test.
CATEGORY
MEMSCAP® offers world class analog pressure sensors for critical aerospace/defense applications. The sensitive elements of our sensors are based on a stack of multiple MEMS silicon dies, assembled together using a MEMSCAP® proprietary process. Our devices exhibit ultra high long term stability and reliability. They are available in relative, absolute and differential configurations for a large variety of pressure ranges. Not only are size and mass optimized, but at the same time unwanted effects like hysteresis and non-linearity are also kept to a minimum.
CATEGORY
