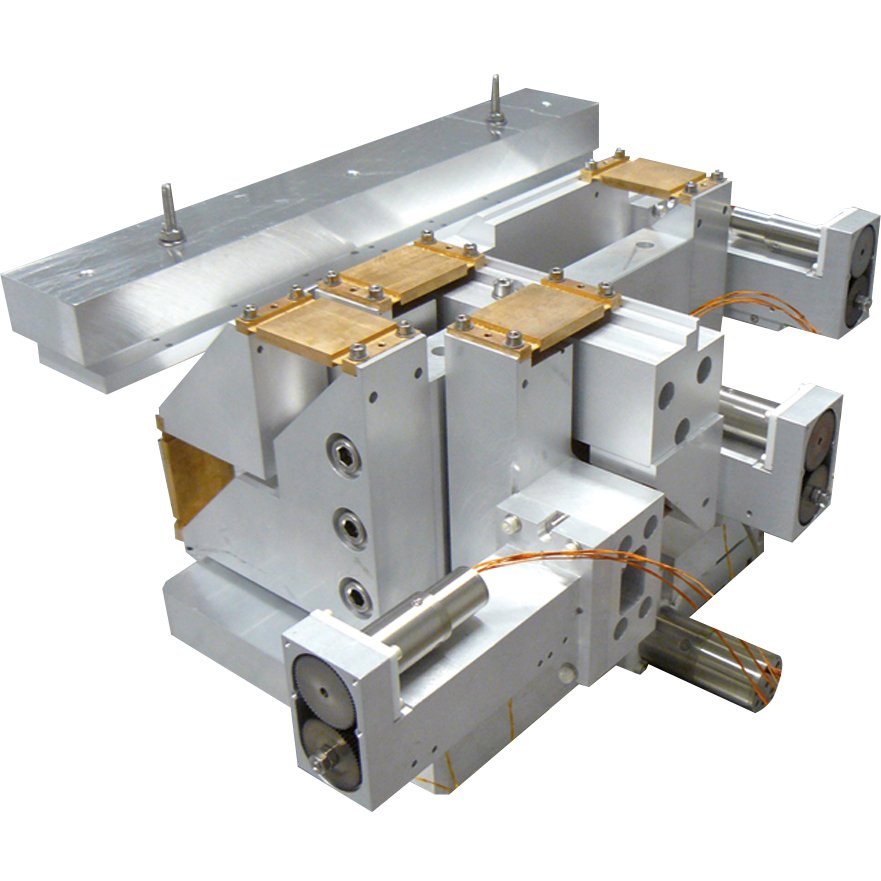

4-axis positioning: Tx – Motorised translation along the X axis; Rx, Rz, Rs – Motorised rotation along the X, Z and S axes M1 vertical focusing mirror Translation Tx / Fine-tuning - Travel: ± 2 mm - Resolution: < 10 µm - Accuracy: ± 10 µm Rx rotation / Fine-tuning Rx rotation / Fine adjustment - Travel: ± 3° - Resolution: < 2 µrad - Accuracy: ± 4 µrad Rotation Rz / Fine adjustment - Travel: -0.1 to +0.2° - Resolution: 0.1 µrad - Accuracy: ± 1 µrad Rotation Rs / Fine adjustment - Travel: -0.1 to +0.2° - Resolution: 0.1 µrad - Accuracy: ± 7 µrad M1 mirror fitted with a water-cooling system
Semi-automated system for deploying the stairs on a CS25-type business jet. The complete system comprises six actuators that control the opening of the door and the movement of the onboard stairs. Number of actuators: 6 Rated for extreme conditions: 9g Tight fit Withstands 9g Compact Controlled multi-axis system
CATEGORY
Adaptive optical loop comprising a Phasics SID4 wavefront analyser and an ISP SYSTEM deformable mirror Adaptive optical loop for high-intensity lasers - Circular laser beam D30 mm, AOI 10° - 35 actuators - AIR Environment Please contact us for a quote or for information about a product
CATEGORY
Laser beam deflection by 45° along the X and Y axes, which are perpendicular to the Z axis. - Trajectory mode Ø1: accuracy during movement 2 mrad - Scan mode Ø2: accuracy during movement 0.45 mrad Angle de course ± 10° Résolution 0,015 mrad Répétabilité 0,15 mrad
