By Alnair Laboratories Corporation

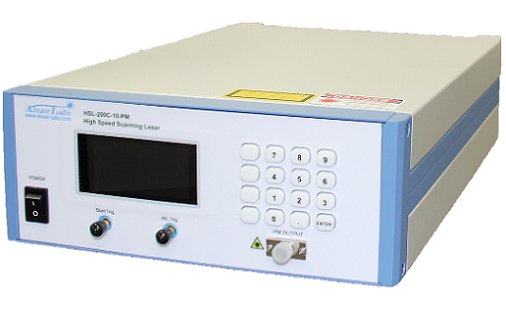

Fast wavelength scanning speed of <100ms C-band coverage Laser start trigger & wavelegth trigger output The HSL-200 is a rapid scanning wavelengtn laser source for applications of optical devices characterization, thickness measurement or FBG interrogation sensing. The wavelength of laser can be operated in scanning mode as well as stationary mode. The laser can be controlled on the front panel or remotely via USB. Rack-mount version can host up to 2 separate lasers, with two individual C- band tunable lasers. Fast wavelength scanning speed of <100ms C-band coverage Wavelength setting resolution of 5pm Polarization maintaining output Single-channel and multi-channel up to 2 channels Optical device characterization Laser source for thickness measurement Optical sensing
O-band Ultra-Narrow, Ultra sharp Tunable Optical Filter CVF-300BO / BVF-300BO Porgrammable / Manual Features - O-band coverage 1260nm~1360nm - Narrow-ness bandwidth: min. bandwidth 50pm (6GHz) - Flexible: both bandwidth- and wavelength-tunable Applications - Automated inspection systems in prodcution lines - Narrow-band filtering for DWDM systems - Pulse-shaping and ASE-noise filtering
CATEGORY
Generate high-speed electrical pulses as short as 30ps 17ps fast rise-time for driving modulators and lasers Generate pulses on-demand or at repetition rates up to 5GHz The EPG-210 is a specially-designed short electrical pulse generator. The output pulse can be as short as 30ps, ad with the high-voltage option, it can drive most off-the-shelf laser diodes of LN modulators to generate short optical pulses. The tunability of the pulse-width and frequency repetition rate offers flexibility in laser machining application, where control of laser pulse energy is required. Short electrical pulse down to 30ps Sharp rise/fall time Adjustable pulsewidth and frequency repetition rate Triggerable from external clock Single ended or differential output available Optical pulse generation Laser diode gain-switching Laser machining LIDAR
CATEGORY
Broadband, high-power, stable ASE source VFD display for easy viewing from shallow angle Flat spectrum option available Applications: - Fiber sensing - Optical tomography - DWDM component inspection - Optical gyroscope
CATEGORY
