By TelAztec LLC

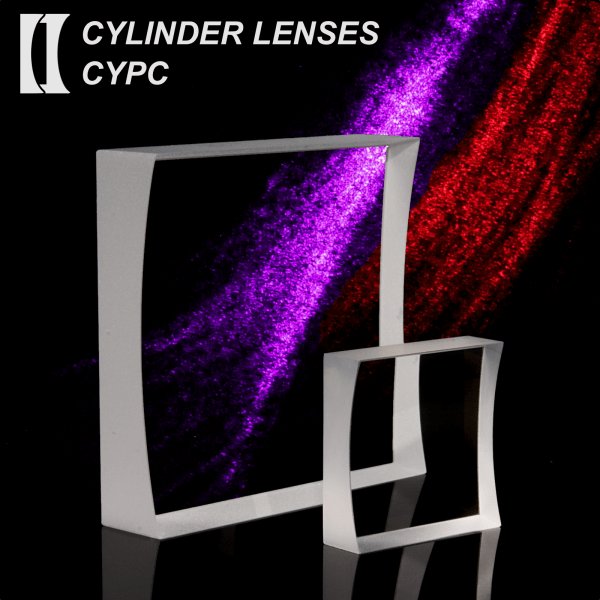

A selection of laser-quality plano-concave cylinder lens optics treated with the RAR nano-texture solution. Material options are UV-FS C7980, IR-FS C7979, and UV/IR-FS C8655. Size ranges from 12.7×12.7—26.0×28.0 (W×L, mm). Focal length ranges from -742.0— -45.0 (mm). Select Material, Size, and Focal Length based on your application, then choose your RAR Variant. Random Anti-Reflection, or RAR, is a novel nanotechnology for reducing external reflections. The optic can be selected for treatment with one of several commercial variants, from Short Wave (RAR-S) through Very Long Wave NIR (RAR-XL). The RAR nano-texture is etched directly into the bulk optical material on both surfaces. Each optic is made from Corning High-Purity Fused Silica, either 7980 UV, 7979 IR, or 8655 UV/IR, and are graded either 0A or 0F, with laser-quality edge polish. Some optics marked with laser scribe arrow and short name. Base Part #: CPC2525F110 $815.00 Additional Information Specifications: Type: Plano-Concave Cylinder Lenses Grade: Grade 0A, Grade 0F Scratch-Dig: 10-5 OD Finish: Fine Ground 400 Grit Edge Marking: Laser Scribe Arrow and Short Name, None Etched Surface: S1, S2 Shipping: Currently we only ship and process payments online for orders that are within the United States. If you are requesting shipment to a location outside of the United States, please add your products to the cart and create a purchase order instead of proceeding to checkout. After submitting the form, our sales team will contact you directly. International shipments either through FedEx or DHL have a handling fee of $50.00. All costs including shipping, duties, and taxes are paid by customer. Domestic shipments go by FedEx Ground, flat rate $30.00, or you may provide your own shipping information at checkout for no additional fee. Quantities: Individual products within an order cannot exceed five units. However, you may order additional units of the same product with different RAR variants. Please fill in the request form for bulk orders. Product prices for larger orders are substantially discounted. Pricing: Product prices are based on orders of five units or less, but are substantially discounted for bulk orders. Product prices increase when requesting longer wavelength variants of RAR. RAR-S through RAR-L2 have standard pricing. RAR-VL has higher pricing, and RAR-XL has the highest pricing. Base Part # | Short # | Material | Size | Focal Length | R | Tc/Te | Grade | Specifications CPC1313F55 | CYL5 | UV-FS | 12.7×12.7 | -55.0 | -24.5 | 2.6/3.4 | 0A | View CPC1313F55-55 | C5-55 | UV/IR-FS | 12.7×12.7 | -55.0 | -25.4 | 2.6/3.4 | 0A | View CPC1313F50 | CYL7 | UV-FS | 12.7×12.7 | -50.0 | -22.9 | 2.6/3.5 | 0A | View CPC1313F50-55 | C7-55 | UV/IR-FS | 12.7×12.7 | -50.0 | -22.9 | 2.6/3.5 | 0A | View CPC1313F45 | CYL6 | UV-FS | 12.7×12.7 | -45.0 | -20.3 | 2.6/3.6 | 0A | View CPC2525F110 | CPC88 | UV-FS | 25.4×25.4 | -110.0 | -50.9 | 4.4/6.0 | 0F | View CPC2525F110-IR | CPC88-IR | IR-FS | 25.4×25.4 | -110.0 | -50.9 | 4.4/6.0 | 0F | View CPC2525F55 | CPC83 | UV-FS | 25.4×25.4 | -55.0 | -25.4 | 2.6/6.0 | 0F | View CPC2525F55-IR | CPC83-IR | IR-FS | 25.4×25.4 | -55.0 | -25.4 | 2.6/6.0 | 0F | View CPC2628F742 | CYL76 | UV-FS | 26.0×28.0 | -742.0 | -353.3 | 3.0/3.2 | 0A | View CPC2628F590 | CYL78 | UV-FS | 26.0×28.0 | -590.0 | -280.8 | 2.9/3.2 | 0A | View Products: 11 Dimensions: mm

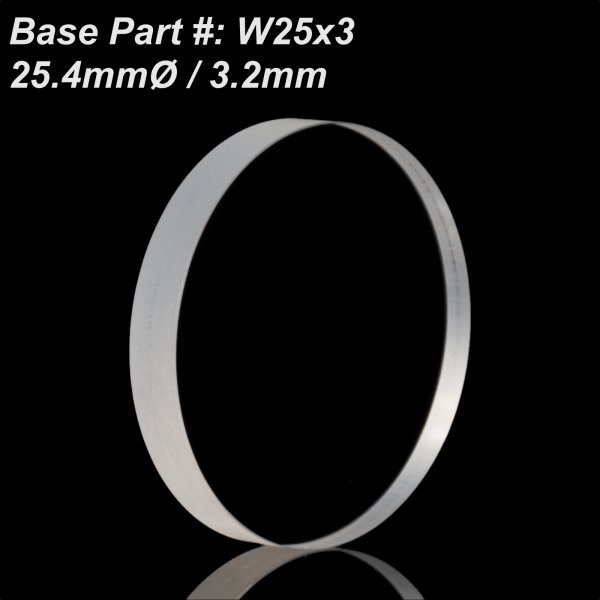

A selection of laser-quality plane-parallel round window optics treated with the RAR nano-texture solution. Size ranges from 10.0—76.2 (mm) diameter, and 1.0—9.5 (mm) thickness. Choose Diameter and Thickness based on your application, then choose your RAR Variant. Random Anti-Reflection, or RAR, is a novel nanotechnology for reducing external reflections. The optic can be selected for treatment with one of several commercial variants, from Short Wave (RAR-S) through Very Long Wave NIR (RAR-XL). The RAR nano-texture is etched directly into the bulk optical material on both surfaces. Each optic is made from Corning 7980 High-Purity UV Fused Silica, and are graded either 0A or 0F, with laser-quality edge polish. Some optics marked with laser scribe arrow and/or short name. Base Part : W25x3 Specifications: - Type: Plane-Parallel Round Windows - Material: UV Fused Silica Corning 7980 - Grade: Grade 0A, Grade 0F - Scratch-Dig: 10-5 - OD Finish: Fine Ground 400 Grit, Fine Ground 600 Grit - Edge Marking: Laser Scribe Arrow and/or Short Name, None - Etched Surface: S1, S2 RAR variants are tailored to different applications, primarily grouped by the wavelength range. View the guide to center the huge bandwidth of RAR that best fits your system. A guide to our optical materials is also available. Available base part numbers (Diameter, Thickness, Material, Grade): W10x3 (10.0, 3.0, UV-FS C7980, 0A); W13x3 (12.7, 3.2, UV-FS C7980, 0A); W15x3 (15.0, 3.2, UV-FS C7980, 0A); W19x3 (19.1, 3.2, UV-FS C7980, 0A); W19x6 (19.1, 6.4, UV-FS C7980, 0A); W20x3 (20.0, 3.0, UV-FS C7980, 0A); W22x4 (22.4, 4.0, UV-FS C7980, 0A); W25x3 (25.4, 3.2, UV-FS C7980, 0A); W25x4 (25.4, 4.0, UV-FS C7980, 0A); W27x2 (27.0, 2.0, UV-FS C7980, 0A); W28x2 (28.0, 2.2, UV-FS C7980, 0F); W30x3 (30.0, 3.0, UV-FS C7980, 0A); W38x4 (38.1, 4.0, UV-FS C7980, 0A); W40x4 (40.0, 4.0, UV-FS C7980, 0A); W50x1 (50.0, 1.0, UV-FS C7980, 0F); W50x5 (50.0, 5.0, UV-FS C7980, 0A); W51x3 (50.8, 3.2, UV-FS C7980, 0F); W51x6 (50.8, 6.4, UV-FS C7980, 0A); W76x6 (76.2, 6.4, UV-FS C7980, 0F); W76x9 (76.2, 9.5, UV-FS C7980, 0F). Products: 20. Dimensions: mm. International Shipping Information: Currently we only ship and process payments online for orders that are within the United States. If you are requesting shipment to a location outside of the United States, please add your products to the cart and create a purchase order instead of proceeding to checkout. After submitting the form, our sales team will contact you directly. International shipments either through FedEx or DHL have a handling fee of $50.00. All costs including shipping, duties, and taxes are paid by customer. Domestic shipments go by FedEx Ground, flat rate $30.00, or you may provide your own shipping information at checkout for no additional fee. Order Quantities Information: Individual products within an order cannot exceed five units. However, you may order additional units of the same product with different RAR variants. Please fill in the request form for bulk orders. Product prices for larger orders are substantially discounted. Variant Pricing Information: Product prices are based on orders of five units or less, but are substantially discounted for bulk orders. Product prices increase when requesting longer wavelength variants of RAR. RAR-S through RAR-L2 have standard pricing. RAR-VL has higher pricing, and RAR-XL has the highest pricing.
CATEGORY

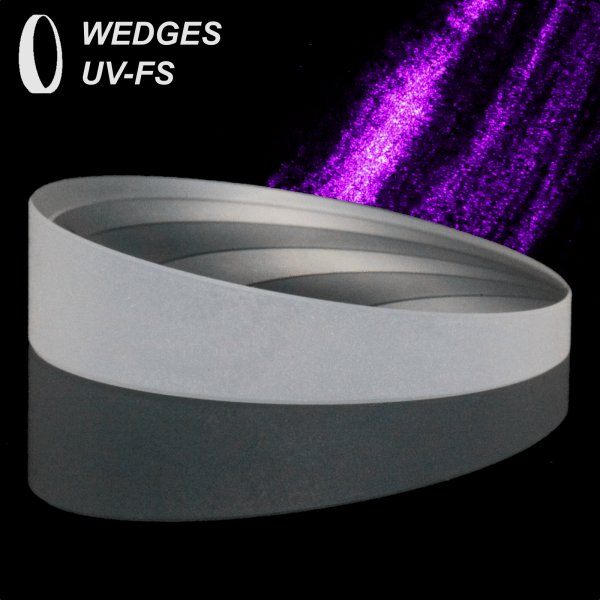

A selection of laser-quality wedge window optics treated with the RAR nano-texture solution. 12.7 or 25.4 (mm) diameter, 3.2, 5.0, or 3.0-7.0 (mm) thickness. Wedge angles are 0.5º or 9.0º. Choose Diameter and Thickness based on your application, then choose your RAR Variant. Random Anti-Reflection, or RAR, is a novel nanotechnology for reducing external reflections. The optic can be selected for treatment with one of several commercial variants, from Short Wave (RAR-S) through Very Long Wave NIR (RAR-XL). The RAR nano-texture is etched directly into the bulk optical material on both surfaces. Each optic is made from Corning 7980 High-Purity UV Fused Silica, and are graded either 0A or 0F, with laser-quality edge polish. Marked with laser scribe arrow and/or short name. RAR variants are tailored to different applications, primarily grouped by the wavelength range. View the guide to center the huge bandwidth of RAR that best fits your system. A guide to our optical materials is also available. Base Part WW13x3-05 | Diameter 12.7 | Thickness 3.2 | Angle 0.5° | Material UV-FS C7980 | Grade 0A WP1 | Diameter 25.4 | Thickness 3.0-7.0 | Angle 9.0° | Material UV-FS C7980 | Grade 0F WW25x5-05 | Diameter 25.4 | Thickness 5.0 | Angle 0.5° | Material UV-FS C7980 | Grade 0A Specifications - Type: Wedge Windows - Material: UV Fused Silica Corning 7980 - Grade: Grade 0A, Grade 0F - Angle: 0.5º, 9.0º - Scratch-Dig: 10-5, 20-10 - OD Finish: Fine Ground 400 Grit - Edge Marking: Laser Scribe Arrow and/or Short Name - Etched Surface: S1, S2 International Shipping Information Currently we only ship and process payments online for orders that are within the United States. If you are requesting shipment to a location outside of the United States, please add your products to the cart and create a purchase order instead of proceeding to checkout. After submitting the form, our sales team will contact you directly. International shipments either through FedEx or DHL have a handling fee of $50.00. All costs including shipping, duties, and taxes are paid by customer. Domestic shipments go by FedEx Ground, flat rate $30.00, or you may provide your own shipping information at checkout for no additional fee. Order Quantities Information Individual products within an order cannot exceed five units. However, you may order additional units of the same product with different RAR variants. Please fill out the request form for bulk orders. Product prices for larger orders are substantially discounted. Variant Pricing Information Product prices are based on orders of five units or less, but are substantially discounted for bulk orders. Product prices increase when requesting longer wavelength variants of RAR. RAR-S through RAR-L2 have standard pricing. RAR-VL has higher pricing, and RAR-XL has the highest pricing. From: $265.00
CATEGORY

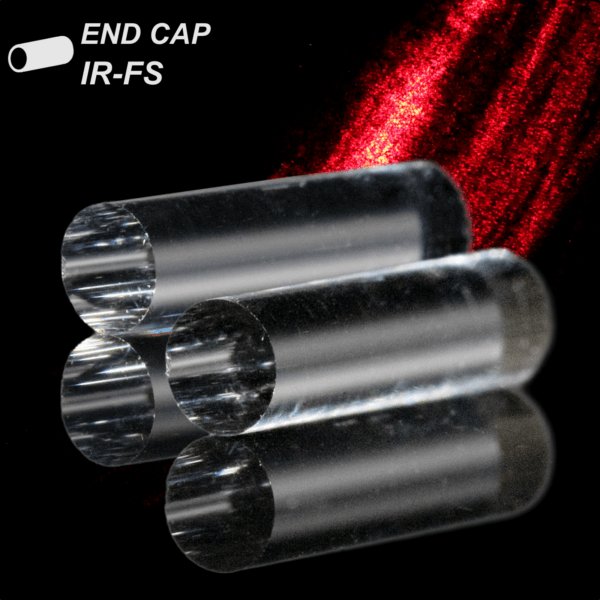

A selection of laser-quality fiber end cap optics treated with the RAR nano-texture solution. Types of cylinder besides standard are angled, beveled, angled beveled, stepped, and stepped beveled. Size ranges from 0.6—3.0/1.4 (mm) diameter, and 3.0—8.0 (mm) length. Choose Type, Diameter, and Length based on your application, then choose your RAR Variant. Random Anti-Reflection, or RAR, is a novel nanotechnology for reducing external reflections. The optic can be selected for treatment with one of several commercial variants, from Short Wave (RAR-S) through Very Long Wave NIR (RAR-XL). The RAR nano-texture is etched directly into the bulk optical material on both surfaces. Each optic is made from High-Purity IR Fused Silica, either Corning 7979 grade 0F, or Heraeus Suprasil 300. Some optics marked with laser scribe short name. From: $300.00 RAR variants are tailored to different applications, primarily grouped by the wavelength range. View the guide to center the huge bandwidth of RAR that best fits your system. A guide to our optical materials is also available. Optic Name: Fiber End Caps, Fiber End Blocks Optic Type: Cylinder (Angled, Beveled, Angled Beveled, Stepped, Stepped Beveled) Material: IR Fused Silica Corning 7979, IR Fused Silica Heraeus Suprasil 300 Grade: Grade 0F, 300 (3001/3002) Scratch-Dig: 10-5, 20-10 OD Finish: Inspection Polish, Commercial Polish 120-8, Fine Ground 400 Grit, Fine Ground 20µm Grit Edge Chips: 0.03mm MAX, 0.05mm MAX, 0.2mm MAX Edge Marking: Laser Scribe Short Name, None Etched Surface: S1, S2 Products: 11 Dimensions: mm During the present study, samples of nickel (Ni) and gold (Au) periodic nanodot arrays with dot diameters ranging from 60–170 nm were fabricated by e-beam lithography on a silicon substrate. The magnetic properties of these nanodot arrays were characterized using a vibrating sample magnetometer (VSM) and magnetic force microscopy (MFM). Such stringent requirements of high resolution and high sensitivity in characterization techniques are fulfilled only by Vibrating Sample Magnetometer (VSM) and Magnetic Force Microscopy (MFM). It is interesting to note that the magnetic properties of nanodots have a strong dependence on size, shape, and inter-particle separation. The dipolar interactions and magnetic anisotropy in nanodots are affected by dot size and shape. Also, the magnetic behavior of nanodots is significantly influenced by the presence of a non-magnetic matrix. - Frequency Range: DC to 10 MHz - Field Range: ±3 T - Magnetic Moment Sensitivity: 10^-6 emu - Temperature Range: 2 K to 1000 K - Sample Size: up to 5 mm x 5 mm - Spatial Resolution: < 50 nm - Magnetic Field Resolution: < 1 Oe - Cantilever Type: Si, SiN, and magnetic coated probes
CATEGORY

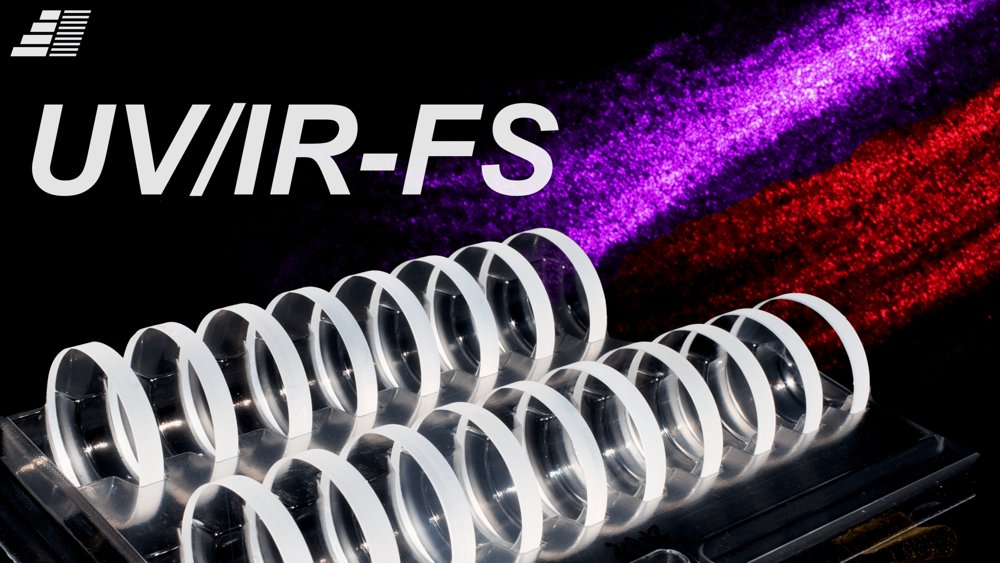

TelAztec optics are made from certified Corning fused silica—traceable, high-purity materials chosen for performance and reliability. The three material types (7980, 7979, and 8655) that our optics use are suited to specific wavelength ranges and laser power requirements. TelAztec manufactures RAR nano-textured optics using three types of Corning fused silica materials: 7980, 7979, and 8655. Corning 7980 (UV-FS) is a high-quality, general-purpose material covering ultraviolet (UV) through near-infrared (NIR) applications, offering excellent transmission and homogeneity. Corning 7979 (IR-FS) is optimized for NIR use, with low bulk absorption and strong transmission at longer wavelengths above 2000 nanometers (2 µm). Corning 8655 (UV/IR-FS) provides ultra-low absorption across the UV to NIR range and is the highest-performance option, combining the benefits of both 7980 and 7979 at a higher cost. Corning fused silica is defined by a two-part grade: a number for bubble content and a letter for optical uniformity. Grade 0 materials are virtually bubble-free and ideal for high-power laser applications. The letter grade ranges from A to H, with Grade A providing the highest optical uniformity and Grade F allowing slight, often imperceptible variations. UV lasers benefit most from Grade 0A materials, while NIR applications perform equally well with Grade 0A or 0F. TelAztec optics use Grade 0A or Grade 0F. Grade 0A typically costs about 50% more than Grade 0F, and large optics are often made with Grade 0F due to the difficulty and cost of maintaining 0A quality at larger sizes. This tradeoff is practical, as UV systems rarely require large windows. We also offer Heraeus Suprasil 300 or 3001/3002 as an option for certain optics, in addition to standard material options. In short, Corning 7980 suits most UV–NIR applications, 7979 is preferred for NIR and long-wavelength infrared, and 8655 offers top performance across all wavelengths. TelAztec optics are built exclusively from certified Corning fused silica to ensure maximum performance, traceability, and reliability. Read the PDF below for more data directly from Corning.
CATEGORY
