By A123 Systems
The 12V low-voltage battery power system features an integrated standard design for vehicles, offering qualities such as lightweight construction, extended lifespan, stable and safe power supply, which is suitable for the layout of the majority of mainstream passenger car models. This system contributes to optimizing the overall layout of passenger cars while providing an efficient, stable and long-lasting power supply solution for cars' start-stop systems, power acceleration and vehicle equipments. - Excellent Cold Start Performance: Capable of starting the vehicle reliably at -30°C - Smart Control: A comprehensive Battery Management System that provides real-time monitoring and control of battery operations - High Safety: Multi-angle and comprehensive protection of material safety, structural safety and functional safety - Long Lifespan: Mature structural design and performance that supports the vehicle's normal usage throughout its entire lifecycle

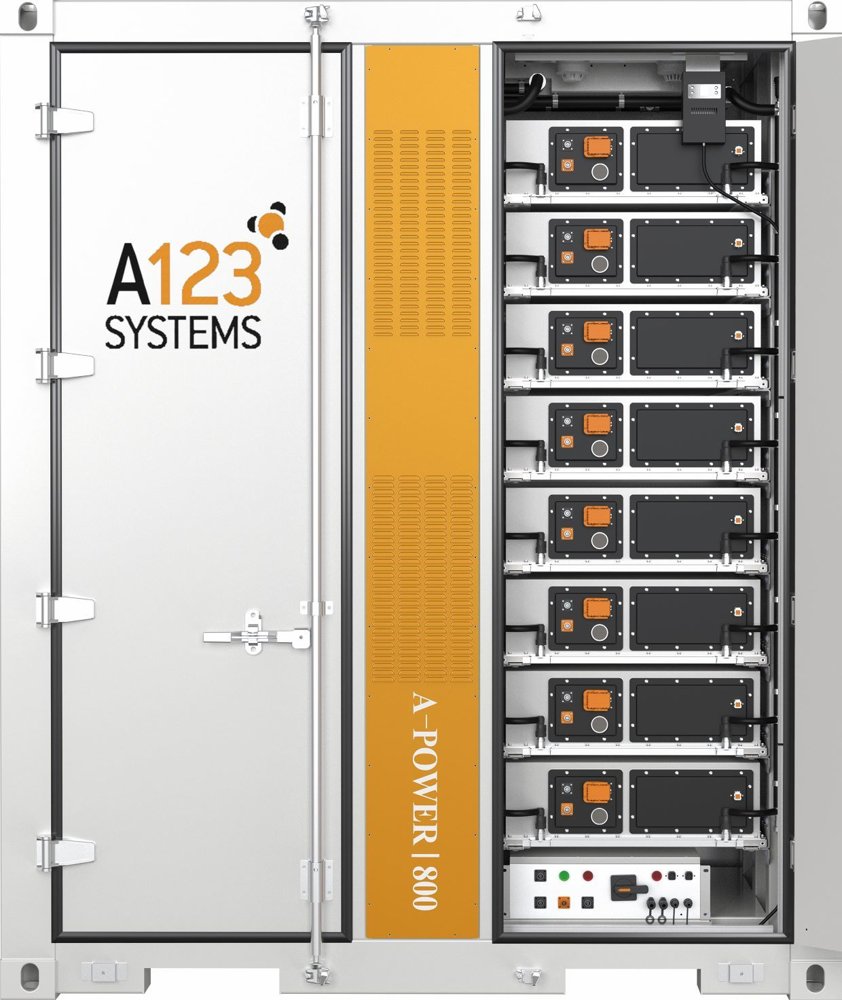

Ultimate safety performance Intelligent and efficient operation Flexible deployment Reliable operation and easy maintenance A-Power I 800 Utility Scalable BESS Solutions for industrial & commercial applications Product Series Application Scenarios Uninterruptable Power Supply Peak shaving Energy arbitrage Frequency regulation Features Advantages: Environmental Responsibility: Minimize the carbon footprint with our eco-friendly shipping and packaging. Streamlined Installation: Pre-assembled and plug-and-play simplicity for faster deployment and reduced costs. Quality-Assured: Each A-POWER I 800 undergoes rigorous factory testing to ensure optimal performance and reliability. Fire Suppression: Three levels of safety measures to prevent fires and mitigate risk on pack, rack and container level. Long-Lasting Performance: Prismatic LFP cells offering 6000 full cycles and 80% SOH at End of Life. Temperature Resilience: Operate confidently in diverse climates from -20°C to +50°C. Advanced Safety Features: Safeguard your system with pressure control deflagration valves and a closed-loop liquid cooling/heating system. Tailored Solutions: Meet your exact needs with our scalable BESS, adaptable to various applications and sizes. Proven Reliability: Trust in our high-volume production for consistent quality and performance. Unparalleled Safety: Our modular design provides an extra layer of housing protection against potential failures. A-Power I 800 technical specifications A-Power I 800 Battery Capacity 2314Ah Chemistry LFP Battery Energy 835.99kWh Configuration 21P416S Nominal Voltage 1331.2V System Voltage 1040V to 1497.6V Charge/Discharge Current 0.5C Max Operating Humidity 5~95%(No Condensation) Operating Temperature -20℃ to +55℃ Recommended Operating Temperature +15°C to +35°C Storage Temperature -40 °C to +60 °C Recommended Storage Temperature 0℃ to +35℃ Dimension WDH 1492mm2438mm2896mm Weight ≈8t Fire Protection System Rack level Protection Level IP54 Communication Interface LAN/RS485 Thermal Management Liquid-cooling Certification IEC61000 / IEC 62477 / IEC 62933 UL 9540A / UN38.3 Remarks Information Certifications partially completed,remaining expected in Novemeber 2024
CATEGORY
Total capacity 3.07MWh Long life lithium iron phosphate battery Intelligent BMS system Level 3 fire safety protection Easy to maintain for external operation Save land area The product has passed IEC, GB, UL, UN and other testing certifications Large energy storage—20ft Liquid-cooled Container-A 1500V Product Series: Large energy storage Application Scenarios: User side; Grid side; Power supply side Features Advantages: 3.07MWh energy LiFePO4 battery with safety performance & long life time Intelligent BMS system Safety/reliable/high energy density Easy maintenance Save floor space The products have passed IEC, GB.UL,UN test certification Battery Container(Ah): 8312 Chemistry: LFP Battery Energy(kWh): 3067 Container Configuration: 84P384S Nominal voltage(V): 1228.8 System Voltage(V): 960 to 1401.6 Charge/Discharge Current: Nominal(0.5C),Max.(1C) Operating Humidity: 20~ 95 % (No Condensation)) Recommended Operating Temp: 15 to +35 Recommended Storage Temp(°C): 0 to +35 Operating Temp(°C): -10 to +55 Storage Temp(°C): -40 to +60 Dimension WDH (mm): 605824382896 Weight(kg): 35 Fire Protection System: Pack Level Protection Level: IP54 Communication Interface: CAN/LAN/Ethernet Thermal Management: Liquid-cooling Certification: IEC 62619/UN38.3/GB/T36276/UL9540/UL9540A/UL1973
CATEGORY

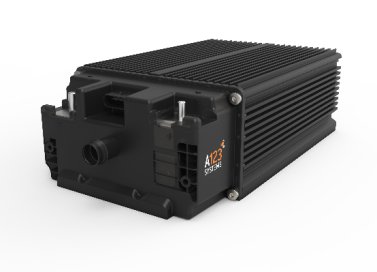

48V Ultra high power to 25 kW Efficient thermal management performance High safety and reliability Long-life Economical Efficiency up to 20% Gen3.0 48V 20Ah Product Series: Low voltage series Application Scenarios: Passenger Vehicle, Bus, Special Vehicle, Engineering machinery, Ship Power Features Advantages: - Ultra-high Power performance - Compact module design, more flexible vehicle layout - Efficient multidimensional Liquid cooling integrated design - Premium BMS design, meet functional safety ASILC - Support AUTOSAR Architecture, OBDII and Cyber Security requirements - High power MOSFET applications, safe, reliable and meet low noise NVH requirements - Support P2 Powertrain architecture Gen3.0 48V 20Ah Technical Specifications Battery Pack(Ah): 20 10s Charge@25℃, BOL, 50%SOC(kW): 25.5 Chemistry: LFP Operating Temp(℃): -30~+65 Configuration: 1P14S Storage Temp(℃): -40~+55 Battery Energy(kWh): 0.924 DimensionWDH (mm): 392.7174159.2 Nominal Voltage(V): 46.2 Weight(kg): 20 Max. Voltage(V): 52 Protection Level: IP67 Min. Voltage(V): 28 Communication Interface: CAN 10s Discharge @25%℃, BOL, 50%SOC(kW): 22.5 Thermal Mnagement: Liquid cooling
CATEGORY
BEV Product Series Application Scenarios Passenger Car Bus Special Vehicle Engineering Machinery Marine Power Features Advantages: Standard Cell-Standard with 590 module High Energy Density and Safety --Pass the hardest Nail Penetration & Thermal runaway abuse test Long life--Excellent cycle and storage performance Take count of energy and power simultaneously Product certificate--GB, UN and other certificates available Customizable development 78Ah NMC Cell Specifications Cell Dimensions (mm) 5421008.5 Nail Penetration Pass – EUCAR 3 Cell Weight (g) 1055 Overcharge Pass – EUCAR 3 Cell Capacity (minimum, Ah) 78 Over-discharge Pass – EUCAR 3 Cell Energy (nominal, Wh) 288 Thermal Stability Pass – EUCAR 4 Voltage range (nominal, V) 2.8-4.25 External Short Pass – EUCAR 3 Voltage (nominal, V) 3.69 Crush Pass – EUCAR 3 Fast charge (8-80%SoC, min) <30 Cycle Life 1,800@1/3C/1/3C,45℃ Specific Energy (nominal, Wh/kg) 280 Energy Density (nominal, Wh/L) 624 Operating Temperature -25℃ ~ 55℃ Storage Temperature -40℃ ~ 60℃
