Use our 25 mm silicone gaskets and any choice of our porous membrane chips to set up your own vacuum filtration with desired filtration cut-off.
3×3 windows 2.9 mm diameter/hexagonal + 0.1 mm thick Sold in packs of 10 US100H-A05Q33A $506.40 Only 10 left! (can be backordered) Material: Amorphous Silicon | Thickness: 5 nm | Porosity: N/A | Window Size: (8) 50x50 µm + (1) 50x100 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick US100H-A09Q33 $506.40 32 available (can be backordered) Material: Amorphous Silicon | Thickness: 9 nm | Porosity: N/A | Window Size: (8) 100x100 µm + (1) 100x350 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick US100H-A15Q33 $506.40 17 available (can be backordered) Material: Amorphous Silicon | Thickness: 15 nm | Porosity: N/A | Window Size: (8) 100x100 µm + (1) 100x350 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick US100H-C25Q33A $506.40 Out of stock Material: Single-crystal (1-0-0) Silicon | Thickness: 25 nm | Porosity: N/A | Window Size: (8) 50x50 µm + (1) 50x100 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Material: Amorphous Silicon, Single-crystal (1-0-0) Silicon Thickness: 5 nm, 9 nm, 15 nm, 25 nm Porosity: N/A Window Size: (8) 50×50 µm + (1) 50×100 µm, (8) 100×100 µm + (1) 100×350 µm Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Primary Application: Electron Microscopy Secondary Applications: High-resolution EM, Sample Deposition
CATEGORY

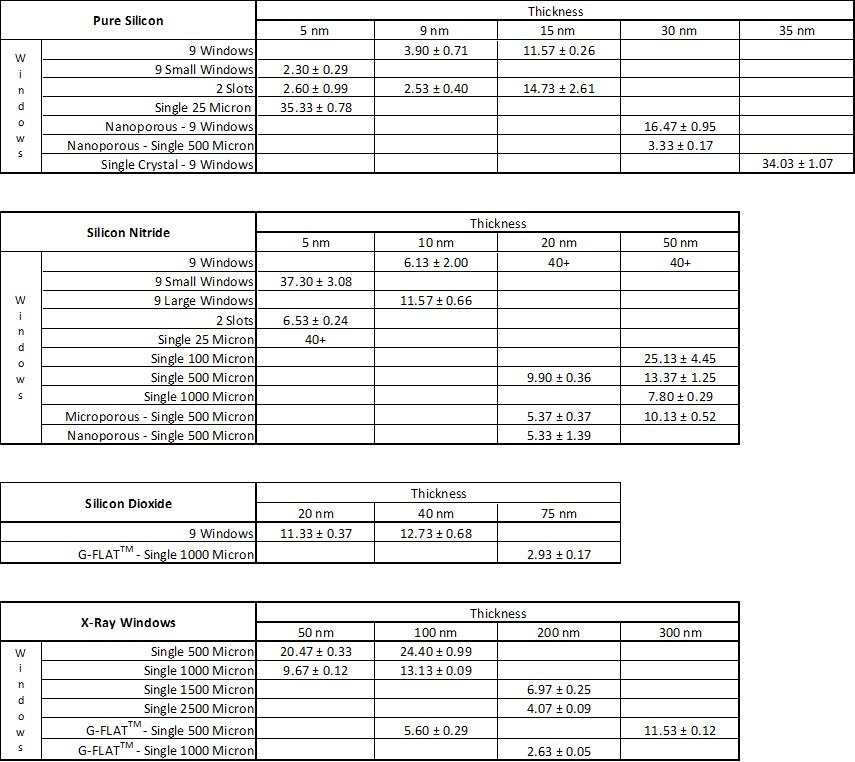

Product Information Sheet: Differential pressure tolerance for TEM and X-Ray Window membranes by thickness and size All our membrane types and membrane area configurations have been robustness tested by application of differential pressure. In these tests, the membrane was oriented such that differential pressure forced the membrane against the chip frame. In the opposite orientation where the membrane would be delaminated from the chip frame, the pressure tolerance would be several times lower. All values below are the maximum tolerated differential pressure reported as mean +/- standard deviation (n = 3), in units of PSI. Window Sizes: - 9 Windows: (8) 100×100, (1) 100×350 micron - 9 Small Windows: (8) 50×50, (1) 50×350 micron - 2 Slots: (2) 50×1500 micron - Single Windows: (1) square window of x micronside-length
CATEGORY

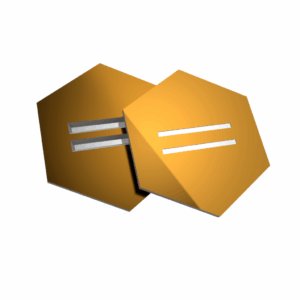

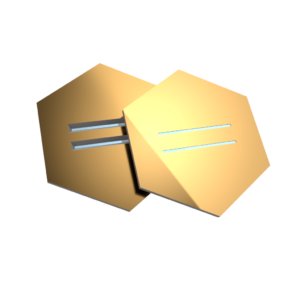

Sold in packs of 10 Material: Amorphous Silicon | Thickness: 5 nm | Porosity: N/A | Window Size: (2) 50x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Material: Amorphous Silicon | Thickness: 9 nm | Porosity: N/A | Window Size: (2) 100x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Material: Amorphous Silicon | Thickness: 15 nm | Porosity: N/A | Window Size: (2) 100x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Material: Amorphous Silicon Thickness: 5 nm, 9 nm, 15 nm Porosity: N/A Window Size: (2) 50×1,500 µm, (2) 100×1,500 µm Chip Frame: 2.9 mm hexagonal + 0.1 mm thick Primary Application: Electron Microscopy Secondary Applications: High-resolution EM, Sample Deposition
CATEGORY

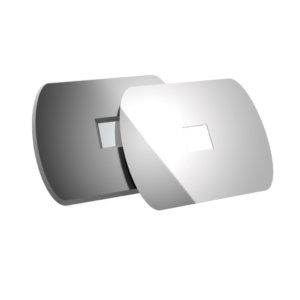

APT100-Q05 $149.20 Only 4 left! Material: Silicon |Window Size: (1) 500 µm |Chip Frame: 2.9 mm diameter + 0.1 mm thick APT100-Q01 $149.20 32 available Material: Silicon |Window Size: (1) 100um |Chip Frame: 2.9 mm diameter + 0.1 mm thick Chip frame: 2.9 mm diameter/hexagonal + 0.1 mm thick Sold in packs of 10 SKU: TEM-APT Material: Silicon Window Size: (1) 100um, (1) 25 µm, (1) 50 µm, (1) 500 µm Chip Frame: 2.9 mm diameter + 0.1 mm thick, 2.9 mm hexagonal + 0.1 mm thick Primary Application: Electron Microscopy Secondary Applications: FIB Sample Preparation, High-resolution EM, Sample Deposition
CATEGORY
