By Elvatech

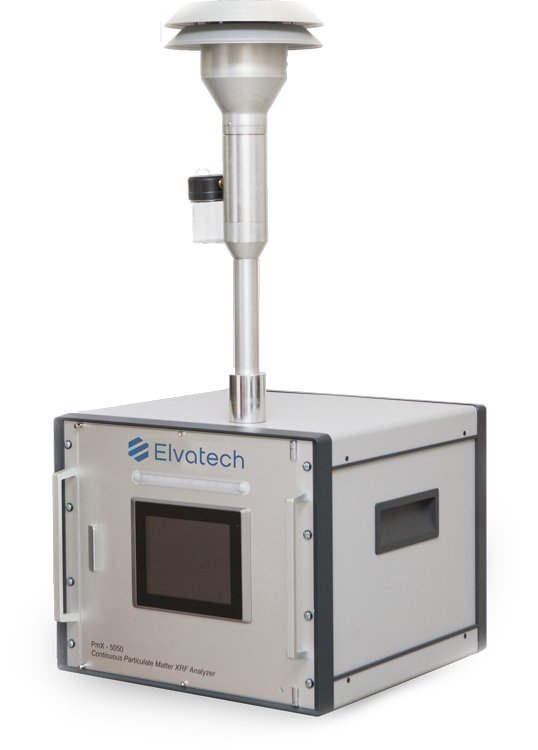

Continuous Particulate Matter Monitoring System PmX-5050 is a fully stand-alone device for continuous analysis of particulate matter (PM) elemental composition, intended for online elemental analysis of heavy metals in the ambient air. Particulate matter’s presence in the air and its overall accumulation in the environment are the subjects of growing public concern, especially in the manufacturing facilities, plants, and factories surrounding areas. It is vital to measure and assess the PM concentration in the air to prevent any possible harm to natural resources, people residing in such areas and overall environmental deterioration of the region. Accuracy With powerful hardware and comprehensive software algorithms, the ElvaX PmX-5050 offers the highest precision and accuracy of PM analysis for a wide range of elements Automation Up to 3 months of stand-alone continuous analysis of PM 2.5 or PM 10 elemental concentration in ambient air Stability Thanks to the automatic correction of ambient temperature, humidity and pressure influence,and automatic calibration adjustment, ElvaX PmX-5050 offers the highest long-term stability of the analysis Benefits - Continuous analysis of PM 2.5 or PM 10 elemental concentration - Full compliance with the US EPA IO-3.3 standard - Up to 3 months of stand-alone continuous operation - Automatic correction of ambient temperature, humidity and pressure influence - Heated sampling stage for condensing prevention - Simple calibration procedure and tape replacement - Intuitive software interface Previous solutions for PM monitoring were able to measure only overall PM presence and concentration, while full understanding of the PM impact on the human health and environment can only be reached based on elemental analysis. Applications - Environmental monitoring Up to 3 months of stand-alone continuous operation Easy to maintain and setup. Simple calibration procedure and tape replacement. Automatic corrections Correction of ambient temperature, humidity and pressure influence. All the necessary ports and interfaces included. SPECS General Applicable standard: USA EPA IO-3.3 Flow rate: (0~20) L/min Filter tape: PTFE Tape replacement interval: up to 3 months Power supply: AC 100V~240V, 50/60 Hz Power consumption: 200 W Dimensions (w/o sampling inlet): 500mm 500mm 450mm Weight (w/o sampling inlet): 40 kg External connection: USB, Ethernet XRF unit X-Ray tube: 50W, 50kV, 3mA Primary beam filter changer: 5 positions, automatic X-Ray detector: SDD Sampling and analysis times: 3 ~ 1440 min Measurement range: 0 ~ 200 µ g/m 3 Detection limit: 0.1 ng/m 3 for most elements Calibration samples: SS316 for energy calibration, NIST 2783 for concentration calibration, other samples(optional) Environmental Conditions Ambient temperature: 0 ° C ~ 40 ° C Humidity: 0 ~ 80% Altitude: up to 1000m
Get a whole lab in one hand. Everywhere and anytime. ProSpector 2 is our time-tested handheld XRF analyzer. Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications. Accuracy: With powerful hardware and unique software algorithms, the ProSpector 2 offers the highest precision and accuracy of elemental analysis for a wide range of materials Speed: Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the Fast SDD detector makes the ProSpector 2 the fastest handheld XRF analyzer on the market Stability: Thanks to the digiX-40 digital X-Ray source, automatic temperature and barometric corrections, and digital calibration adjustment, ProSpector 2 offers long-life reproducibility of the analysis without the need to re-calibrate the system Benefits - High speed of operation @ above 500 000 CPS count rate - Ambient temperature and pressure corrections for highest stability - Over 10 hours operation from the battery - Detector protection - Extensive and editable alloy grade library - Protective film replacement with no tool required - Full compatibility with ElvaX TM PC software - Radiation safety: IR proximity sensor and low count detection - Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc. - Great choice of accessories for comfortable work. ProSpector 2 is a powerful handheld XRF analyzer, designed by Elvatech. Due to the advanced hardware and unique software algorithms, ProSpector 2 provides ultimate speed and accuracy of the elemental analysis. ProSpector 2 combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in seconds. Applications - PMI - RoHS and Weee - Alloy - Mining and Exploration - Soil and sediment - Environmental monitoring - Scrap sorting - Clays and Oxyde - Lead in paint - Car catalyst - Coating thickness - Archeometry - Forensics SPECS Digital X-Ray Source digiX-40 Anode: Rh, W Voltage: 40 kV Current: 200 uАmp Power: 4 W 5 positions filter changer X-Ray Detector Type: SDD (optional PIN) Area: 30 mm 2 Energy resolution: <140 eV @ 5.9 keV Count rate: 500,000 cps Electronics DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate MCA: 4096 channels Display: 4.3″ Connectivity: USB, Bluetooth High resolution video camera (option) General Dimensions: 242 х 230 х 78 mm Weight: 1.4 kg Software Operating system: Windows EC7 Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations ProSpector 2 models X-Ray Tube W, 40 kV Primary Filters Single automatic 5-position changer Collimators Single X-Ray Detector Si-PIN-Diode Detection Range Cl - U CCD Camera No Temperature correction Yes Barometric correction No Bluetooth Option Wi-Fi No Ingress Protection IP54
CATEGORY
Meet the professional XRF ElvaX Pro is the next-generation benchtop X-ray fluorescence analyzer. It offers a new level of analysis accuracy, speed and detection limits for a wide range of elements from Na(11) to U(92) due to the new 60kV, 1000 μA X-ray tube and the ultra large area Fast SDD detector. Powerful hardware combined with unique software algorithms make ElvaX Pro a multipurpose lab instrument for elemental analysis of various materials including solids, powders, liquids etc. Accuracy With innovative hardware and unique software algorithms, the EvaX Pro offers the highest precision and accuracy of elemental analysis for a whole range of analytical applications Speed Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the ultra large area Fast SDD detector makes the ElvaX Pro the fastest XRF analyzer on the market Stability Thanks to the digiX-60 digital X-Ray source, automatic temperature, and pressure corrections, and automatic calibration adjustment, ElvaX Pro offers long-life reproducibility of the analysis without the need to re-calibrate the system Benefits - World’s fastest XRF analyzer (throughput above 500 000 cps) – highest accuracy and excellent precision within the shortest measurement time - 60 kV X-ray tube voltage allows to analyze rare earth elements using K-series and consistently improves sensitivity to the high-energy elements from Pd (Z=46) to Ba (Z=56) - Up to 1000 μA X-ray tube current improves accuracy and detection limits for light elements (Na, Mg, Al, Si, P, S) and allows to use small-size collimators (<1mm) for small spot analysis - Motorized collimator changer for small spot analysis of jewelry, welds etc. - Helium purge feature improves sensitivity to light elements (Na, Mg, Al, Si, P, S) several times - 16-position automatic sample changer increases the productivity of your lab - Sample spinner for analysis of inhomogeneous samples - Excellent calibration stability, compensation of ambient temperature and pressure influence - High-resolution CCD camera for precise sample positioning ElvaX Pro is the most powerful EDXRF spectrometer among the ElvaX Family for the most demanding users. It offers excellent performances for the light elements analysis, as well as for the high energy elements including the rare earth. Improved Light Elements Capabilities ElvaX Pro offers excellent precision, lowest detection limits for the light elements such as Na, Mg, Al, Si, P, S due to the high anode current (1000 uAmp) X-ray tube and the helium purge feature Small Spot Analysis The high resolution CCD camera combined with the automatic collimator changer offers simple positioning and local analysis of jewelry, welds and small objects. The powerful X-ray tube and ultra large Fast SDD provide high count rate and short measurement time even with collimators less than 1 mm. Rare Earth Elements The high-voltage 60 kV X-ray tube allows analyzing elements, which could not be measured before by using K-lines: La, Ce, Pr, Nd, Pm, Sm, Eu, Gd. Sample Changer The automatic 16-positions sample changer coupled with the fast measurement increases the productivity of your lab up to 1000 samples per workday. SPECS Digital X-Ray Source digiX-60 Anode: W, Rh, Ag Voltage: 60 kV Power: 12 W 8 position filter changer 5 position collimator changer X-Ray Detector Type: CSA SDD Area: 40 mm2 Energy resolution: 130 eV at Mn Kα, 85 eV at Al Kα Count rate: 500 000 cps Electronics DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate MCA: 4096 channels General Dimensions: 430 х 340 х 200 mm Weight: 18 kg Power supply: 90 – 240 V, 50/60 Hz Power consumption: 50 W Software Operating system: Windows XP/Vista/7/8/10 Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations, Manual spectra comparison
CATEGORY
The fastest, lightest and smallest XRF gun on the market Four times faster. Twice lower detection limits. Twice better precision. One and a half times lighter. 40% Improved light elements capabilities. Full range of applications: PMI, Alloys, Precious metals, Archeometry, Petrochemical, Soils, Plastics, Automotive catalysts etc. Accuracy With powerful hardware and unique software algorithms, the ProSpector 3 offers twice better precision and accuracy of elemental analysis for a wide range of materials. Speed Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the ultrafast CSA SDD detector makes the ProSpector 3 four times faster than any other handheld XRF analyzer on the market. Stability Thanks to the digiX-50 digital X-Ray source, automatic temperature and barometric corrections, and digital calibration adjustment, ProSpector 3 offers long-life reproducibility of the analysis without the need to re-calibrate the system Benefits - World's fastest XRF analyzer (throughput above 500 000 cps – more than four times faster than any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision - World's smallest (236 х 193 х 68 mm), and lightest (1.05 kg with a battery) handheld analyzer – easy to operate - Dustproof and waterproof instrument body, with IP-67 ingress protection rating – ProSpector 3 can be operated even under water! - Automatic collimator changer for small spot analysis of jewelry, welds etc. - Folding display – for easy operation in the lab stand without connecting to a PC - Highest mobility – up to 16 hours of autonomous operation on a single battery charge, hot battery swap - Superior calibration stability, compensation of influence of ambient temperature and pressure variations – no need to spend time for calibration - Two CCD cameras for macro- and micro- view - Scanning barcodes (commodity EAN and UPC codes, QR codes, book ISBN codes, Databar, Codabar, etc.) that contain information about the sample: name, number, code, etc. - Full compatibility with ElvaX TM PC software - Radiation safety: proximity sensor and low count rate detection - Great choice of accessories for comfortable work. Data can be transferred from ProSpector 3 to a PC directly via USB, WiFi or Bluetooth connection. MicroSD socket is also available for data storage and transfer. The detector shield protects detector window, the most fragile part of the instrument, from being punctured by sharp objects like wires, shavings etc. Bluetooth Wi-Fi Micro SD USB GPS Large folding display ProSpector 3 has the largest touch screen (4.3”) available in hand-held XRF analyzers. All the required data is shown without scrolling. The unique design of the folding display allows for convenient operation in the lab stand with no need to use an external PC. Image autorotation lets you operate the analyzer both in the horizontal and vertical position. Small spot analysis High-resolution CCD camera combined with an automatic collimator changer offers simple positioning and small spot analysis of jewelry, welds, PCBs, etc. SPECS Digital X-Ray Source digiX-50 Anode: Rh, W Voltage: 50 kV Current: 200 uАmp Power: 5 W 8 positions filter changer 2 position collimator changer X-Ray Detector Type: SDD Area: 10, 30, or 40 mm 2 Energy resolution: <140 eV @ 5.9 keV Count rate: 500,000 cps Electronics DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate MCA: 4096 channels Display: 4.3″ Connectivity: USB, Bluetooth, Wi-Fi 2 high-resolution video cameras General Dimensions: 236 х 193 х 68 mm Weight: 0.82 kg, 1.05 with battery kg Protection: IP67 Software Operating system: Windows EC7 Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations X-Ray Tube W, 40 kV (option 50 kV) / Rh, 40 kV (option 50 kV) / Rh, 50 kV Primary Filters Single automatic 8-position changer / automatic 8-position changer Collimators Single automatic 2-position changer / automatic 2-position changer X-Ray Detector SDD (option - large area SDD) / Large area SDD / Extra large area SDD Detector Window Graphene, 1 um / Graphene, 1 um / Graphene, 1 um Detection Range Cl - U / Mg - U / Mg - U (Na - U) CCD Camera Sample view (option) / Sample view (option - macro view) / Sample view, macro view Temperature correction Yes / Yes / Yes Barometric correction No / Yes / Yes Bluetooth Option / Option / Yes Wi-Fi Option / Option / Yes GPS Option / Option / Yes Ingress Protection IP65 / IP65 / IP67 He purge No / No / Option
CATEGORY
ElvaX Jewelry Lab is a benchtop XRF analyzer designed for fast, accurate and non-destructive analysis of gold, silver, platinum-group metals, jewelry and other precious-metal products. The analyzer determines the elemental composition of a sample and displays the result in both weight percent and karats. It also identifies non-standard alloys and automatically detects gold-plated items. Measurement takes only several seconds, depending on the detector configuration, analytical method and required precision. ElvaX Jewelry Lab can operate as a fully standalone system using its embedded computer and high-resolution touchscreen, or it can be connected to a PC running ElvaX software. Accuracy Analysis accuracy of precious metals and jewelry is better than 0,1% Speed The whole measurement process takes only several seconds Completeness Integrated computer, high-accuracy scales, printer and a rechargeable Li-ion battery Automatic Gold-Plating Detection ElvaX Jewelry Lab automatically detects the presence of gold plating, helping the operator distinguish solid precious-metal items from plated products. Elvatech was the first manufacturer to introduce automatic gold-plating detection in a dedicated jewelry XRF analyzer. Precise Sample Positioning Every ElvaX Jewelry Lab analyzer includes an integrated sample-view camera. The camera allows the operator to position the required area of the sample precisely, while the automatic collimator changer makes it possible to select the appropriate measurement spot size. This is particularly useful for analyzing small jewelry components, solder joints, clasps, chains, coatings and other localized areas. Fast Measurement and High Analytical Performance ElvaX Jewelry Lab is available with Si-PIN and SDD detector configurations. Measurement time depends on the detector type, sample composition, analytical method and required precision. SDD configurations provide faster measurements, while both versions benefit from Elvatech’s high-throughput digital pulse processor. The analyzer provides reliable identification and quantitative analysis of precious-metal alloys within several seconds. Standalone Jewelry Testing Workstation ElvaX Jewelry Lab can be configured as a complete jewelry-testing workstation. The integrated sample-view camera is included as standard. High-accuracy scales and an embedded printer are available as options. When these options are installed, the system can generate and print analytical certificates containing: - elemental composition; - gold purity in karats; - sample weight; - calculated price. A customer-facing display allows the customer to see the sample weight and analytical results during the measurement. Key Benefits - Fast, non-destructive analysis of jewelry and precious metals - Results displayed in weight percent and karats - Automatic detection of gold-plated items - Identification of non-standard precious-metal alloys - Integrated sample-view camera as standard - Automatic selection of the measurement spot size - Standalone operation using the embedded computer and touchscreen - PC operation with ElvaX software - Optional high-accuracy scales - Optional embedded certificate printer - Compact benchtop design for jewelry stores, pawnshops and laboratories X-ray fluorescence analysis surpasses the rest of analytical methods in terms of speed, accuracy, and simplicity. It’s a non-destructive method, in which analysis is targeted at the spot of interest. The diameter of an analytical spot can be easily changed. Measurement Results in Karat and % ElvaX Jewelry Lab provides the complete elemental composition of a jewelry item and calculates its gold purity in karats. The analyzer also detects the presence of gold plating and helps identify non-standard or potentially fraudulent alloys. Camera and Collimators The integrated sample-view camera helps the operator select the exact area to be analyzed. The automatic collimator changer allows the measurement spot diameter to be adapted to the size and geometry of the sample. Integrated Precise Scales Optional high-accuracy scales allow the operator to determine the sample weight and combine weight, composition and purity data in a single analytical report. Embedded Printer The optional embedded printer produces an analytical certificate immediately after measurement. Depending on the system configuration, the certificate can include the elemental composition, karat value, sample weight and calculated price. SPECS Digital X-Ray Source digiX-40 Anode: W Voltage: 40 kV Current: 200 uAmp Power: 4 W 5 position collimator changer from 1 to 6mm X-Ray Detector Type: CSA SDD (optional Si-PIN) Area: 30 mm2 (6 mm2 for Si-PIN) Energy resolution: 140 eV (165 eV for Si-PIN) at Mn Kα Electronics DPP: proprietory DAS (Dynamically Adaptive Shaping) type MCA: 4096 channels General Dimensions: 280 х 385 х 200 mm Analitycal chamber: 185 x 212 x90 mm Weight: 7 kg Power supply: 90 – 240 V, 50/60 Hz Power consumption: 40 W Battery: 6 hours continuous operation Software Operating system: Windows EC Analysis algorithm: Fundamental parameters (FPA) Connectivity Data transfer: 2 USB ports, Micro SD, Ethernet Data input: Keyboard and mouse can be connected for data input
CATEGORY
