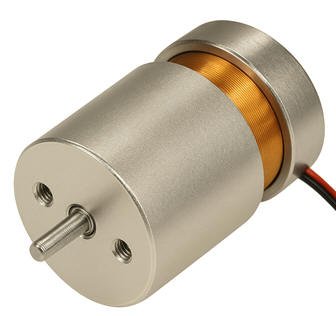

Linear DC Motors, Voice Coil Motors (VCM) or Voice Coil Actuators (VCA) are the simplest type of electric motors. These motors consist of two separate parts; the magnetic housing and the coil.This type of motor is supplied with internal linear bearings and shaft.
Stroke: 1.50 in. (38.1 mm), Continuous Force: 15.4 lb (68.3 N), Aperture: 2.00 in. (50.8 mm) Housing Outside Diameter, 3.750 inch, 95.3 mm The HVCM-095-064-051-01 Hollow Core Linear Voice Coil Servo Motor featuring a 38.1 mm (1.500 in.) stroke and 50.8 mm (2.000 in.) open aperture. This high-speed low inertia servo motor when used with an external high resolution position sensor in a closed servo loop, provides sub-micron positioning. The HVCM-095-064-051-01 Servo Motor has a continuous force rating of 68.3 N (15.4 lbs.) and a peak force of 215.9 N (48.6 lbs.) at a 10% duty cycle. Clean and quiet, this non-commutated, long life brushless linear servo motor features: High acceleration/deceleration, zero cogging and zero backlash when connected directly to a load. The 50.8 mm (2.000 in.) diameter open aperture of the HVCM-095-064-051-01 Hollow Core Voice Coil Linear Servo Motor, also called a Moving Coil Motor, allows for optics, illumination, laser beams, tubing, and cable passage. The motor is 95.2 mm (3.750 in.) in diameter and 95.2 mm (3.750 in.) long at mid-stroke. This high speed, low inertia motor is Ideal for: Clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications. Two threaded 10-32 UNF-2B X 0.38 deep mounting holes on 69.9 mm (2.750 in.) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications. If a longer stroke, higher force, a smaller footprint, or customized mounting is required, please consult Moticont’ team of engineers. Product Overview The HVCM-095-064-051-01 is a hollow core linear voice coil motor designed for fast, precise, short-stroke motion. Its 2.00 in. (50.8 mm) clear through-aperture allows optical beams, illumination, wiring, tubing, or other components to pass through the center of the actuator. Performance and Construction The actuator measures 3.750 in. (95.3 mm) in outside diameter with a 2.50 in. (63.5 mm) housing length. It provides a 1.50 in. (38.1 mm) stroke, 15.4 lb (68.3 N) of continuous force, and 48.6 lb (215.9 N) of intermittent force at a 10% duty cycle. Its non-commutated brushless direct-drive construction provides smooth bidirectional force, zero cogging, quiet operation, rapid acceleration and deceleration, and long service life. Key Features - 2.00 in. (50.8 mm) clear through-aperture - Compact 3.750 in. (95.3 mm) housing outside diameter - 1.50 in. (38.1 mm) linear stroke - 15.4 lb (68.3 N) continuous force - 48.6 lb (215.9 N) intermittent force at 10% duty cycle - Brushless, non-commutated operation with no cogging - Direct-drive motion with zero mechanical backlash when coupled directly to the load - Fast response, high acceleration, and smooth force control Applications Optical and Laser Systems: Optical focusing, beam steering, scanning, illumination, laser drilling, cutting, welding, and machining. Medical and Laboratory Equipment: Diagnostic instruments, haptic feedback, testing systems, sampling, and precision positioning. Semiconductor and Industrial Automation: Wafer handling, inspection, short-stroke positioning, dynamic vibration absorption, precision assembly, and automated test equipment. Mechanical Integration and Closed-Loop Control The actuator includes threaded mounting provisions for integration into new or existing equipment; refer to the mechanical drawing for the applicable thread size, bolt circle, and mounting depth. For closed-loop position or velocity control, the motor can be combined with an appropriate position sensor, mechanical guidance system, servo controller, and current amplifier. Final positioning accuracy and repeatability depend on the sensor, guidance mechanism, load, structural stiffness, controller, and servo tuning. Model Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia. HVCM-095-064-051-01 1.50 inch 15.4 lb 48.6 lb 2.50 inch 2.00 inch 38.1 mm 68.3 N 215.9 N 63.5 mm 50.8 mm
CATEGORY
The HVCM-095-051-051-01 Hollow Core Linear Voice Coil Servo Motor, features an open aperture, a 1.0 in. (25.4 mm) stroke, high speed, and sub-micron positioning accuracy if an external high resolution position sensor is used. This Linear DC Servo Motor from Moticont has a continuous force rating of 16.1 lbs. (71.4 N) and a peak force of 50.8 lbs. (225.8 N) at a 10% duty cycle. Clean and quiet, this non-commutated, long life brushless linear servo motor features: Zero cogging and zero backlash when connected directly to a load, and high acceleration/deceleration. The 2.000 in. (50.8 mm) diameter open aperture of the HVCM-095-051-051-01 Hollow Core Voice Coil Linear Servo Motor allows for optics, illumination, laser beams, tubing, and cable passage. The extended length of the motor is 3.0 inch (76.2 mm) at mid-stroke. This high speed, low inertia motor is Ideal for: Clamping, assembly, testing, optical focusing, positioning, laser beam steering, wafer handling, dynamic vibration absorption and vibration testing, laser drilling, cutting, welding, and machining applications. Two threaded 10-32 UNF-2B X 0.38 Deep mounting holes on 2.750 in. (69.9 mm) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications. If a longer stroke, higher force, a smaller footprint, or customized mounting is required, please consult Moticont team of engineers. Product Overview The HVCM-095-051-051-01 is a hollow core linear voice coil motor designed for fast, precise, short-stroke motion. Its 2.00 in. (50.8 mm) clear through-aperture allows optical beams, illumination, wiring, tubing, or other components to pass through the center of the actuator. Performance and Construction The actuator measures 3.750 in. (95.3 mm) in outside diameter with a 2.00 in. (50.8 mm) housing length. It provides a 1.00 in. (25.4 mm) stroke, 16.1 lb (71.4 N) of continuous force, and 50.8 lb (225.8 N) of intermittent force at a 10% duty cycle. Its non-commutated brushless direct-drive construction provides smooth bidirectional force, zero cogging, quiet operation, rapid acceleration and deceleration, and long service life. Key Features - 2.00 in. (50.8 mm) clear through-aperture - Compact 3.750 in. (95.3 mm) housing outside diameter - 1.00 in. (25.4 mm) linear stroke - 16.1 lb (71.4 N) continuous force - 50.8 lb (225.8 N) intermittent force at 10% duty cycle - Brushless, non-commutated operation with no cogging - Direct-drive motion with zero mechanical backlash when coupled directly to the load - Fast response, high acceleration, and smooth force control Applications Optical and Laser Systems: Optical focusing, beam steering, scanning, illumination, laser drilling, cutting, welding, and machining. Medical and Laboratory Equipment: Diagnostic instruments, haptic feedback, testing systems, sampling, and precision positioning. Semiconductor and Industrial Automation: Wafer handling, inspection, short-stroke positioning, dynamic vibration absorption, precision assembly, and automated test equipment. Mechanical Integration and Closed-Loop Control The actuator includes threaded mounting provisions for integration into new or existing equipment; refer to the mechanical drawing for the applicable thread size, bolt circle, and mounting depth. For closed-loop position or velocity control, the motor can be combined with an appropriate position sensor, mechanical guidance system, servo controller, and current amplifier. Final positioning accuracy and repeatability depend on the sensor, guidance mechanism, load, structural stiffness, controller, and servo tuning.
CATEGORY
Stroke: 1.000 in. (25.4 mm), Continuous Force: 3.8 lb (16.8 N), Encoder Resolution: 1.25 microns Housing Outside Diameter, 1.500 inch, 38.1 mm Product Overview The SDLM-038-095-01-01M is a high-force one-inch-stroke direct drive linear servo actuator for demanding positioning and force-control applications. Its housing measures 1.500 in. (38.1 mm) in diameter and 3.750 in. (95.3 mm) long. The actuator provides a 1.000 in. (25.4 mm) stroke, 3.8 lb (16.8 N) of continuous force, and 11.9 lb (52.9 N) of intermittent force at a 10% duty cycle. Performance and Construction The non-commutated direct-drive design eliminates ball screws, gears, belts, and other mechanical transmission components. Direct coupling to the low-inertia output shaft provides zero mechanical backlash, no cogging, high acceleration and deceleration, smooth bidirectional motion, quiet operation, and long service life. Side-load capacity up to 5.4 lb (24.0 N). Integrated Encoder and Temperature Sensor The integrated linear encoder for closed-loop servo operation is protected inside the actuator housing and directly coupled to the output shaft. It provides 1.25 microns resolution for closed-loop position and velocity control. Final system accuracy and repeatability also depend on the controller, mechanical installation, load, structural stiffness, and servo tuning. The integrated temperature sensor provides thermal feedback that can be used to maximize throughput while keeping the actuator within its operating limits. An integrated HOME sensor supports repeatable system initialization. Key Features - 1.000 in. (25.4 mm) linear stroke - 3.8 lb (16.8 N) continuous force - 11.9 lb (52.9 N) intermittent force at 10% duty cycle - Integrated linear encoder for closed-loop servo operation - Non-rotating 0.250 in. (6.4 mm) shaft with long-life linear bearings - Direct-drive operation with zero mechanical backlash and no cogging - High acceleration, rapid reversal, quiet operation, and long service life - Integrated temperature sensor for thermal monitoring - Integrated HOME sensor - Side-load capacity up to 5.4 lb (24.0 N) Applications Medical and Laboratory: Medical equipment, sampling systems, scanning, and laboratory automation. Industrial Automation: Assembly, workholding, clamping, sorting, packaging, and precision handling. Laser and Optical Systems: Laser machining, drilling, beam steering, filtering, and high-response optical positioning. Mechanical Integration and Control Threaded mounting holes on a 0.750 in. (19.1 mm) bolt circle are provided at each end of the housing. Threaded shaft ends enable direct, zero-backlash load connection. For closed-loop operation, use a compatible servo controller and current amplifier selected for the required force, speed, duty cycle, load, and motion profile. Model Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length SDLM-038-095-01-01M 1.000 inch 3.8 lb 11.9 lb 3.750 inch 25.4 mm 16.8 N 52.9 N 95.3 mm Encoder: Integrated linear encoder for closed-loop servo operation Resolution: 1.25 microns Output Shaft: Non-rotating Temperature Sensor: Integrated HOME Sensor: Integrated
CATEGORY
All models of Linear Voice Coil Motors, Linear Voice Coil Motors with Internal Bearing and Hollow Core Linear Voice Coil Motors are available with vacuum compatibility. Model / Stroke / Continuous Force / Intermittent Force @ 10% Duty Cycle / Force Constant / Coil Mass / Body Mass / Housing Outside Diameter / Housing Length LVCM-010-013-01VCM - 0.25 inch, 1.0 oz, 3.2 oz, 1.0 oz/A, 0.09 oz, 0.13 oz, 0.375 inch, 0.500 inch - 6.4 mm, 0.28 N, 0.88 N, 0.29 N/A, 2.5 gr, 3.8 gr, 9.5 mm, 12.7 mm LVCM-013-008-02VCM - 0.125 inch, 2.9 oz, 9.1 oz, 3.5 oz/A, 0.1 oz, 0.18 oz, 0.500 inch, 0.313 inch - 3.2 mm, 0.8 N, 2.53 N, 0.97 N/A, 2.7 gr, 5.0 gr, 12.7 mm, 8.0 mm LVCM-013-013-02VCM - 0.25 inch, 3.1 oz, 9.8 oz, 2.5 oz/A, 0.19 oz, 0.27 oz, 0.500 inch, 0.500 inch - 6.4 mm, 0.86 N, 2.73 N, 0.69 N/A, 5.4 gr, 7.6 gr, 12.7 mm, 12.7 mm LVCM-013-013-3VCM - 0.125 inch, 5.1 oz, 16.1 oz, 4.1 oz/A, 0.19 oz, 0.27 oz, 0.500 inch, 0.500 inch - 6.4 mm, 1.42 N, 2.73 N, 1.14 N/A, 5.4 gr, 7.6 gr, 12.7 mm, 12.7 mm LVCM-013-019-02VCM - 0.50 inch, 2.9 oz, 9.2 oz, 2.8 oz/A, 0.23 oz, 0.37 oz, 0.500 inch, 0.750 inch - 12.7 mm, 0.81 N, 2.55 N, 0.77 N/A, 6.4 gr, 10.6 gr, 12.7 mm, 19.1 mm LVCM-013-019-03VCM - 0.25 inch, 6.8 oz, 21.6 oz, 6.5 oz/A, 0.23 oz, 0.37 oz, 0.500 inch, 0.750 inch - 6.4 mm, 1.9 N, 6.01 N, 1.82 N/A, 6.4 gr, 10.6 gr, 12.7 mm, 19.1 mm LVCM-013-025-02VCM - 0.75 inch, 2.9 oz, 9.0 oz, 2.9 oz/A, 0.32 oz, 0.49 oz, 0.500 inch, 1.000 inch - 19.1 mm, 0.79 N, 2.51 N, 0.80 N/A, 9.0 gr, 13.8 gr, 12.7 mm, 25.4 mm LVCM-013-025-03VCM - 0.375 inch, 7.9 oz, 25.0 oz, 8.0 oz/A, 0.32 oz, 0.49 oz, 0.500 inch, 1.000 inch - 9.5 mm, 2.20 N, 6.96 N, 2.22 N/A, 9.0 gr, 13.8 gr, 12.7 mm, 25.4 mm LVCM-013-032-02VCM - 1.00 inch, 2.5 oz, 7.9 oz, 2.7 oz/A, 0.38 oz, 0.60 oz, 0.500 inch, 1.250 inch - 25.4 mm, 0.70 N, 2.20 N, 0.76 N/A, 10.8 gr, 17 gr, 12.7 mm, 31.8 mm LVCM-013-032-03VCM - 0.50 inch, 7.9 oz, 25.0 oz, 8.6 oz/A, 0.38 oz, 0.60 oz, 0.500 inch, 1.250 inch - 12.7 mm, 2.20 N, 6.95 N, 2.39 N/A, 10.8 gr, 17 gr, 12.7 mm, 31.8 mm LVCM-013-044-02VCM - 1.50 inch, 2.5 oz, 8.0 oz, 3.0 oz/A, 0.52 oz, 0.88 oz, 0.500 inch, 1.750 inch - 38.1 mm, 0.71 N, 2.23 N, 0.84 N/A, 14.6 gr, 25 gr, 12.7 mm, 44.5 mm LVCM-013-044-03VCM - 0.60 inch, 6.9 oz, 21.7 oz, 8.01 oz/A, 0.51 oz, 0.88 oz, 0.500 inch, 1.750 inch - 15.2 mm, 1.9 N, 6.0 N, 2.23 N/A, 14.5 gr, 25 gr, 12.7 mm, 44.5 mm LVCM-016-010-01VCM - 0.125 inch, 5.9 oz, 18.6 oz, 4.0 oz/A, 0.18 oz, 0.25 oz, 0.625 inch, 0.375 inch - 3.2 mm, 1.6 N, 5.2 N, 1.1 N/A, 5.0 gr, 7.0 gr, 15.9 mm, 9.5 mm LVCM-016-013-01VCM - 0.25 inch, 6.3 oz, 20.0 oz, 5.1 oz/A, 0.25 oz, 0.42 oz, 0.625 inch, 0.500 inch - 6.4 mm, 1.8 N, 5.6 N, 1.4 N/A, 7.0 gr, 12 gr, 15.9 mm, 12.7 mm LVCM-016-019-01VCM - 0.50 inch, 6.1 oz, 19.3 oz, 6.3 oz/A, 0.32 oz, 0.60 oz, 0.625 inch, 0.750 inch - 12.7 mm, 1.7 N, 5.4 N, 1.7 N/A, 9.0 gr, 17 gr, 15.9 mm, 19.1 mm LVCM-019-016-02VCM - 0.25 inch, 8.9 oz, 28.0 oz, 5.28 oz/A, 0.28 oz, 0.9 oz, 0.750 inch, 0.875 inch - 6.4 mm, 2.5 N, 7.8 N, 1.5 N/A, 8 gr, 26 gr, 19.1 mm, 22.2 mm LVCM-019-022-02VCM - 0.5 inch, 8.1 oz, 25.7 oz, 5.74 oz/A, 0.39 oz, 1.3 oz, 0.750 inch, 0.875 inch - 12.7 mm, 2.3 N, 7.1 N, 1.6 N/A, 11 gr, 36 gr, 19.1 mm, 22.2 mm LVCM-019-032-02VCM - 0.875 inch, 8.1 oz, 25.7 oz, 7.12 oz/A, 0.49 oz, 1.7 oz, 0.750 inch, 1.250 inch - 22.2 mm, 2.3 N, 7.2 N, 2.0 N/A, 14 gr, 48 gr, 19.1 mm, 31.8 mm LVCM-019-048-02VCM - 1.5 inch, 7.4 oz, 23.5 oz, 7.06 oz/A, 0.71 oz, 2.6 oz, 0.750 inch, 1.875 inch - 38.1 mm, 2.1 N, 6.5 N, 2.0 N/A, 20 gr, 73 gr, 19.1 mm, 47.6 mm LVCM-022-013-01VCM - 0.25 inch, 14.5 oz, 45.7 oz, 11.3 oz/A, 0.37 oz, 0.92 oz, 0.875 inch, 0.500 inch - 6.4 mm, 4.0 N, 12.7 N, 3.1 N/A, 10.4 gr, 26.0 gr, 22.2 mm, 20.7 mm LVCM-022-013-02VCM - 0.25 inch, 5.9 oz, 18.7 oz, 5.9 oz/A, 0.27 oz, 0.75 oz, 0.500 inch, 0.500 inch - 6.4 mm, 1.6 N, 5.2 N, 1.6 N/A, 7.7 gr, 21.3 gr, 12.7 mm, 12.7 mm LVCM-025-022-01VCM - 0.38 inch, 16.9 oz, 53.5 oz, 11.1 oz/A, 0.71 oz, 2.2 oz, 1.000 inch, 0.875 inch - 9.5 mm, 4.7 N, 14.9 N, 3.1 N/A, 20 gr, 62 gr, 25.4 mm, 22.2 mm LVCM-025-029-01VCM - 0.63 inch, 18.2 oz, 57.7 oz, 13.5 oz/A, 0.95 oz, 2.8 oz, 1.000 inch, 1.125 inch - 15.9 mm, 5.1 N, 16.0 N, 3.75 N/A, 27 gr, 78 gr, 25.4 mm, 28.6 mm LVCM-025-038-01VCM - 0.37 inch, 2.5 lb, 7.8 lb, 2.0 lb/A, 1.16 oz, 3.6 oz, 1.000 inch, 1.50 inch - 9.5 mm, 11 N, 34.7 N, 9.0 N/A, 33 gr, 102 gr, 25.4 mm, 38.1 mm LVCM-025-038-02VCM - 1.00 inch, 16.4 oz, 51.9 oz, 0.88 lb/A, 1.22 oz, 3.6 oz, 1.000 inch, 1.50 inch - 25.4 mm, 4.6 N, 14.4 N, 3.9 N/A, 35 gr, 102 gr, 25.4 mm, 38.1 mm LVCM-032-025-02VCM - 0.50 inch, 2.1 lb, 6.6 lb, 0.88 lb/A, 0.99 oz, 4.5 oz, 1.250 inch, 1.00 inch - 12.7 mm, 9.3 N, 29.3 N, 3.9 N/A, 28 gr, 127 gr, 31.8 mm, 25.4 mm LVCM-032-038-02VCM - 1.00 inch, 1.9 lb, 5.9 lb, 0.94 lb/A, 1.34 oz, 6.5 oz, 1.250 inch, 1.50 inch - 25.4 mm, 8.3 N, 26.1 N, 4.2 N/A, 38 gr, 184 gr, 31.8 mm, 28.6 mm LVCM-032-076-02VCM - 2.50 inch, 1.8 lb, 5.7 lb, 1.11 lb/A, 2.40 oz, 12.7 oz, 1.250 inch, 3.0 inch - 63.5 mm, 8.0 N, 25.3 N, 5.0 N/A, 68 gr, 360 gr, 31.8 mm, 76.2 mm LVCM-038-038-01VCM - 0.75 inch, 3.0 lb, 9.5 lb, 2.3 lb/A, 1.90 oz, 9.5 oz, 1.500 inch, 1.50 inch - 19.1 mm, 13.4 N, 42.5 N, 10.1 N/A, 54 gr, 270 gr, 38.1 mm, 38.1 mm LVCM-038-038-02VCM - 0.38 inch, 5.6 lb, 17.7 lb, 3.9 lb/A, 1.83 oz, 9.3 oz, 1.500 inch, 1.50 inch - 9.5 mm, 24.9 N, 78.8 N, 17.3 N/A, 52 gr, 265 gr, 38.1 mm, 38.1 mm LVCM-044-032-02VCM - 0.50 inch, 5.0 lb, 15.8 lb, 2.8 lb/A, 2.3 oz, 11.3 oz, 1.750 inch, 1.25 inch - 12.7 mm, 22.2 N, 70.4 N, 12.3 N/A, 64 gr, 320 gr, 44.5 mm, 31.8 mm LVCM-044-051-01VCM - 1.25 inch, 4.9 lb, 15.4 lb, 2.3 lb/A, 5.8 oz, 14.3 oz, 1.750 inch, 2.00 inch - 31.8 mm, 21.6 N, 68.4 N, 10.3 N/A, 165 gr, 405 gr, 44.5 mm, 50.8 mm LVCM-044-051-02VCM - 1.25 inch, 5.0 lb, 15.8 lb, 1.6 lb/A, 3.2 oz, 17.5 oz, 1.750 inch, 2.00 inch - 31.8 mm, 22.3 N, 70.4 N, 6.9 N/A, 90 gr, 497 gr, 44.5 mm, 50.8 mm LVCM-051-025-01VCM - 0.50 inch, 5.3 lb, 16.9 lb, 1.6 lb/A, 3.2 oz, 11.5 oz, 2.000 inch, 1.00 inch - 12.7 mm, 23.7 N, 74.8 N, 6.9 N/A, 92 gr, 326 gr, 50.8 mm, 25.4 mm LVCM-051-032-01VCM - 0.75 inch, 6.3 lb, 20.0 lb, 1.9 lb/A, 3.6 oz, 14.4 oz, 2.000 inch, 1.25 inch - 19.1 mm, 28.2 N, 89.9 N, 8.4 N/A, 103 gr, 409 gr, 50.8 mm, 31.8 mm LVCM-051-051-01VCM - 0.75 inch, 6.3 lb, 19.9 lb, 1.8 lb/A, 4.23 oz, 24.2 oz, 2.000 inch, 2.00 inch - 19.1 mm, 28.0 N, 88.6 N, 8.0 N/A, 120 gr, 685 gr, 50.8 mm, 50.8 mm LVCM-051-051-05VCM - 1.00 inch, 6.6 lb, 20.8 lb, 1.98 lb/A, 4.23 oz, 23.6 oz, 2.000 inch, 2.00 inch - 25.4 mm, 29.3 N, 92.6 N, 8.8 N/A, 120 gr, 670 gr, 50.8 mm, 50.8 mm LVCM-051-051-07VCM - 0.625 inch, 5.02 lb, 15.9 lb, 1.59 lb/A, 3.07 oz, 16.1 oz, 2.000 inch, 2.00 inch - 15.9 mm, 22.3 N, 70.6 N, 7.9 N/A, 87 gr, 455 gr, 50.8 mm, 50.8 mm LVCM-051-064-01VCM - 1.25 inch, 6.6 lb, 20.9 lb, 2.2 lb/A, 5.3 oz, 30.0 oz, 2.000 inch, 2.50 inch - 31.8 mm, 29.4 N, 92.9 N, 9.6 N/A, 150 gr, 850 gr, 50.8 mm, 63.5 mm LVCM-051-064-02VCM - 0.50 inch, 15.3 lb, 48.5 lb, 4.8 lb/A, 4.9 oz, 29.6 oz, 2.000 inch, 2.50 inch - 12.7 mm, 68.2 N, 215.5 N, 21.6 N/A, 140 gr, 840 gr, 50.8 mm, 63.5 mm LVCM-051-089-01VCM - 2.25 inch, 5.9 lb, 18.6 lb, 2.3 lb/A, 6.9 oz, 40.7 oz, 2.000 inch, 3.50 inch - 57.2 mm, 26.2 N, 82.7 N, 10.1 N/A, 195 gr, 1155 gr, 50.8 mm, 88.9 mm LVCM-051-089-02VCM - 1.00 inch, 14.9 lb, 47.2 lb, 5.7 lb/A, 6.7 oz, 40.6 oz, 2.000 inch, 3.50 inch - 25.4 mm, 66.4 N, 210 N, 25.5 N/A, 190 gr, 1150 gr, 50.8 mm, 88.9 mm LVCM-051-165-01VCM - 5.25 inch, 4.8 lb, 15.3 lb, 2.4 lb/A, 12.0 oz, 74.0 oz, 2.000 inch, 6.50 inch - 133.4 mm, 21.5 N, 68.1 N, 10.6 N/A, 340 gr, 2100 gr, 50.8 mm, 165.1 mm LVCM-051-165-02VCM - 2.50 inch, 13.4 lb, 42.3 lb, 6.6 lb/A, 12 oz, 340 oz, 2.000 inch, 2.50 inch - 63.5 mm, 59.4 N, 187.8 N, 29.3 N/A, 74 gr, 2100 gr, 50.8 mm, 63.5 mm LVCM-051-165-03VCM - 1.00 inch, 26.5 lb, 83.8 lb, 13.1 lb/A, 11.6 oz, 330 oz, 2.000 inch, 2.50 inch - 25.4 mm, 117.7 N, 372.3 N, 58.2 N/A, 72.7 gr, 2060 gr, 50.8 mm, 63.5 mm LVCM-070-038-01VCM - 0.50 inch, 14.5 lb, 45.9 lb, 4.7 lb/A, 0.42 oz, 2.1 lb, 2.750 inch, 1.50 inch - 12.7 mm, 64.6 N, 204.4 N, 21.2 N/A, 192 gr, 0.95 kg, 69.9 mm, 28.6 mm LVCM-070-051-01VCM - 1.00 inch, 14.6 lb, 46.0 lb, 5.5 lb/A, 0.53 oz, 2.74 oz, 2.750 inch, 2.00 inch - 25.4 mm, 64.7 N, 204.3 N, 24.4 N/A, 240 gr, 1.24 kg, 69.9 mm, 50.8 mm LVCM-070-064-01VCM - 1.50 inch, 14.4 lb, 45.5 lb, 2.5 lb/A, 0.67 oz, 3.37 lb, 2.750 inch, 2.50 inch - 38.2 mm, 64.0 N, 202.0 N, 11.0 N/A, 305 gr, 1.53 kg, 69.9 mm, 63.5 mm LVCM-070-089-01VCM - 2.50 inch, 14.1 lb, 44.6 lb, 2.6 lb/A, 0.904 oz, 4.67 lb, 2.750 inch, 3.50 inch - 63.5 mm, 62.8 N, 198.3 N, 11.5 N/A, 410 gr, 2.12 kg, 69.9 mm, 88.9 mm LVCM-070-089-02VCM - 1.00 inch, 33.9 lb, 107.1 lb, 6.3 lb/A, 0.873 oz, 4.69 lb, 2.750 inch, 3.50 inch - 25.4 mm, 150.7 N, 476.3 N, 28.2 N/A, 396 gr, 2.13 kg, 69.9 mm, 88.9 mm LVCM-095-038-01VCM - 0.50 inch, 23.1 lb, 73.1 lb, 8.5 lb/A, 0.72 oz, 4.07 lb, 3.750 inch, 1.50 inch - 12.7 mm, 102.7 N, 324.4 N, 38.0 N/A, 326 gr, 1.85 kg, 95.3 mm, 28.6 mm LVCM-095-051-01VCM - 1.00 inch, 23.4 lb, 70.0 lb, 10.1 lb/A, 0.87 oz, 5.34 lb, 3.750 inch, 2.0 inch - 25.4 mm, 104.0 N, 328.7 N, 44.8 N/A, 395 gr, 2.42 kg, 95.3 mm, 50.8 mm LVCM-095-064-01VCM - 1.50 inch, 24.4 lb, 77.1 lb, 4.8 lb/A, 1.07 lb, 6.61 lb, 3.750 inch, 2.50 inch - 38.2 mm, 108.2 N, 342.0 N, 21.1 N/A, 484 gr, 3.00 kg, 95.3 mm, 63.5 mm LVCM-095-089-01VCM - 2.50 inch, 25.0 lb, 79.0 lb, 5.0 lb/A, 1.39 lb, 9.14 lb, 3.750 inch, 3.50 inch - 63.5 mm, 111.2 N, 351.3 N, 22.2 N/A, 632 gr, 4.14 kg, 95.3 mm, 88.9 mm LVCM-095-089-02VCM - 1.00 inch, 58.0 lb, 183.1 lb, 11.6 lb/A, 1.37 lb, 9.15 lb, 3.750 inch, 3.50 inch - 25.4 mm, 257.7 N, 814.5 N, 51.6 N/A, 621 gr, 4.15 kg, 95.3 mm, 88.9 mm
