By PAMAS

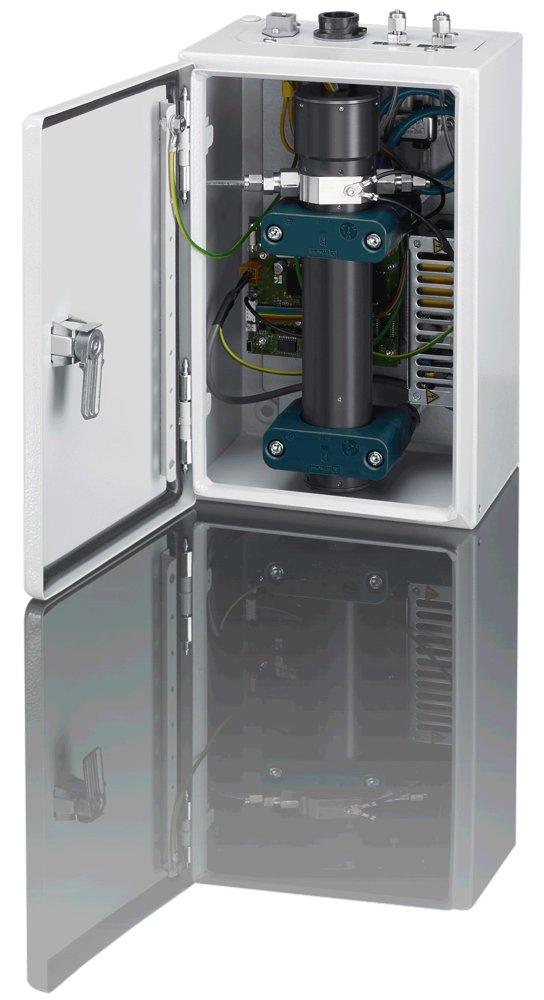

The PAMAS 4132 is used as a particle counting system for Single & Multipass Filter test rigs. The standard system fits in the test rigs of filter manufacturers. In case of a Single Pass Filter Test, the liquid passes the filter only once and then is deviated to the outflow. For ß-ratio-analyses, the Single Pass Filter Test can be performed with two PAMAS 4132 instruments. Two PAMAS 4132 instruments - equipped with 32 size channels each - are also used for the Multipass Filter Test. This test rig with two particle counters allows simultaneous upstream and downstream measurements. For the Multipass Filter Test, the liquid flows continuously through the system. The particle counting system PAMAS 4132 analyses liquids of various viscosity degrees (e.g. oil, fuel, water, etc.). The system is adaptable to any Multipass application and ß-ratio analysis. Standards and methods ISO 11171 ISO 4402 ISO 21501-3 ISO 19438 ISO WD 23820 ISO 4548-12 ISO 16889 ISO 21501-2 ISO DIS 23369 ISO WD 19612
Laboratory particle counter for liquids with a viscosity of up to 1600 cSt with an external pressure supply and precise flow rate control The PAMAS SBSS is a particle counting system for batch sampling. The PAMAS SBSS is the standard instrument used as a reference in many testing labs. The instrument may be programmed to measure a sample without the need of an operator, like pre-filling the internal dead volume, degassing the sample with vacuum, pressurising the sample for a number of measurement runs, and relieving pressure at the end. High accuracy and repeatability, fast purging and back flush possibility are the key benefits of the system. This video presents the product features of the PAMAS SBSS laboratory particle analysing system. Applications - Hydraulic oils - Turbine and insulation oils - Gear and engine oils - Water based hydraulic fluids - Phosphate ester based hydraulic fluids - Fuels - Highly volatile fluids - Parenterals, protein solutions according to common pharmacopoeias Product features - Customisable measurement settings - 16 freely adjustable size channels (32 channels upon request) - Pressure sampling up to 10 bar - Optional vacuum cycle for sample degassing - Integrated magnetic stirrer - Use of any sample vessel with a max. diameter of 7 cm and a height of 18 cm - Measuring volume of 1 to 1,000 ml - Automatic sample flow and volume control via a stepper motor driven syringe module - Interchangeable syringes with 1 ml, 10 ml and 25 ml volume Standards and methods ISO 11171 ISO 4402 SAE AS4059 USP <1788 GJB 420A NAS 1638 ISO 21501-3 ISO 4406 SAE 749D CHARN GJB 420B ISO 21501-2 ISO/DIS 11218.2 GOST 17216 ASTM D7647 NAVAIR 01-1A-17 (in connection with PAMAS PMA software) USP <787 USP <789 Ph. Eur. 2.9.19 IEC 60970 JP 6.0.7 USP <788 BP XIII Ph. Eur. 2.9.53 ASTM D6786 KP XII (in connection with PAMAS USP software) Volumetric sensors PAMAS HCB-LD-50/50 Available size ranges: 1–200 µm (ISO 21501-3) 1–400 µm (ISO 21501-3) option on request 1–100 µm (ISO 4402) 4–70 µm(c) (ISO 11171) Max. particle concentration: 24,000 P/ml at 25 ml/min PAMAS HCB-LD-25/25 Available size ranges: 1–200 µm (ISO 21501-3) 1–100 µm (ISO 4402) 4–70 µm(c) (ISO 11171) Max. particle concentration: 120,000 P/ml at 25 ml/min PAMAS SLS-25/25 Available size ranges: 0,5–20 µm (ISO 21501-2) 1–20 µm (ISO 4402) 1.5–25 µm(c) (ISO 11171) Max. particle concentration: 13,000 P/ml at 10 ml/min Software PAMAS USP for pharmaceutical applications (21 CFR Part 11 compliant) PAMAS PMA for the contamination control of clean liquids
CATEGORY
Particle counter in the rugged case PAMAS GO for the remote on-site analysis of fluid samples – pressureless sampling and up to 420 bar system pressure testing The rugged and resistant PAMAS S40 GO portable particle counter is built to meet the demands of the harshest environments and can be used for field analyses and for laboratory measurements. The instrument includes an integrated battery for mains free operation on site. It is small and light enough to fit into an aircraft overhead locker. The rugged case PAMAS GO is water tight and protects the instrument in harsh environments and during transportation. Applications - Hydraulic oils - Turbine and insulation oils - Gear oils - Fuels Product features - Robust & convenient design - Dust and splash-proof - Lightweight only 8 kg - Suitable as cabin luggage - Customizable measurement analysis settings - Intuitive operation via touch screen - Automatic sample flow and volume control by wear resistant ceramic piston pump - Measurement from pressureless up to 420 bar system pressure - Pressureless measurement of fluids with viscosities of up to 1.000 cSt at 22°C (equal to ISO VG 320) without the need for accessories - Use of any sample vessel - Internal data storage of more than 4,000 measurements - Measurement printout via integrated thermoprinter - Same measurement accuracy as a laboratory unit - Multilingual menu navigation - Battery running time of more than 4 hours Standards and methods ISO 11171 ISO 4402 GJB 420A ASTM D7647 SAE AS4059 CHARN ISO 11500 ISO 4406 GJB 420B ASTM D6786 SAE 749D ISO/DIS 11218.2 IEC 60970 NAS 1638 NAVAIR 01-1A-17 GOST 17216 in connection with PAMAS PMA software Volumetric Sensor PAMAS HCB-LD-50/50 Available size ranges: - 4–70 µm(c) (ISO 11171) - 2–100 µm (ISO 4402) Max. particle concentration: 24.000 P/ml at 25 ml/min Other sensors for larger particle sizes or higher concentrations are available on request. Software PAMAS Download: used to transfer stored measurements to a PC PAMAS CMDM: Condition Monitoring Data Management PAMAS PMA: Particle Measuring and Analysing Software Versions - PAMAS S40 Standard for oils at up to 420 bar system pressure - PAMAS S40 Lube Oil for highly viscous oils of up to 1,000 cSt - PAMAS S40 Skydrol for phosphate ester based hydraulic fluids - PAMAS S40 AVTUR for turbine fuels according to EI-IP 577 and DEF-STAN 91-091 as well as diesel according to IP PM FA
CATEGORY
Laboratory particle counter for aqueous fluids with precise flow control for contamination monitoring and component cleanliness control. The PAMAS S70 Particle Counter creates a new level of excellence in pharmaceutical particle analysis. Featuring state-of-the-art technology including 4,096 size channels, the PAMAS S70 raises the benchmark for precise measurement in the exceptionally high, strictly regulated quality standards of the pharma industry. The 21 CFR Part 11 compliant software is operated via the 12” touchscreen interface enabling efficient and secure measurements without the need for an external PC. Equipped with an integrated laminar flow cabinet and HEPA filter, the PAMAS S70 maintains a clean environment and simplifies sample handling for accurate results. Applications - Parenterals ophthalmic solutions according to common pharmacopoeian test methods - Water - Cleaning solvents Product features - Simple and intuitive system operation via 12“ touch screen - No external hardware required - Flexible measurement settings - Profile and method concept - Long-term archiving and automated backups - Easy export of measurement data and reports via USB stick or network - Ultra-high resolution with 4,096 size channels - Integrated magnetic stirrer - Integrated clean box with HEPA filter - Use of any sample vessels - 100 µl to 1,000 ml measurement volume - Automatic sample flow and volume control via a stepper motor driven syringe module - Interchangeable syringes with 1, 10 and 25 ml volume Standards and methods USP <787ISO 21501-3 Ph. Eur. 2.9.19 JP 6.0.7 USP <788ISO 21501-2 Ph. Eur. 2.9.53 IP 2.5.9 USP <789BP XIII KP XII IP 2.2.32 Volumetric sensors PAMAS HCB-LD-50/50 Available size ranges: 1–200 µm (ISO 21501-3) 1–400 µm (ISO 21501-3) option on request 2–50 µm (USP 1788) Max. particle concentration: 24,000 p/ml at 10 ml/min PAMAS HCB-LD-25/25 Available size ranges: 1–200 µm (ISO 21501-3) 2–50 µm (USP 1788) Max. particle concentration: 120,000 p/ml at 10 ml/min PAMAS SLS-25/25 Available size ranges: 0.5–20 µm (ISO 21501-2) Max. particle concentration: 13,000 p/ml at 10 ml/min Software Intergrated computer with its own operating system
CATEGORY
The PAMAS S50 is a cost-effective, high-performance, laser-based online system with simple integration into industrial data management systems. An automatic digital flow rate determination provides accurate measurement results. For applications with high fluctuations in flow and/or pressure, the PAMAS S50P variant with an integrated metering pump is available. This pump maintains a constant flow rate, independent of changes in system flow or pressure. The PAMAS S50 counts particles with high resolution in eight particle size channels, available via the data interface for report in real time to the PC. The triple code according to the cleanliness class standard ISO 4406 for the particle sizes 4 µm(c), 6 µm(c) and 14 µm(c) is indicated on the instrument display. Applications: Contamination control and Condition Monitoring of - hydraulic oil systems - lube oil systems - test rigs - parts cleaning Standards and methods: ISO 11171 ISO 4402 ISO 4406 SAE AS4059 Pressure range and Sample flow: Pressure range without pump: min. 0.2 to max. 15 bar; Pressure range with additional pump: 0 to 6 bar; Flow: 5 to 50 ml/min, depending on system pressure Viscosity: Up to 1000 cSt, depending on system pressure Volumetric particle sensor: PAMAS HX - Maximum particle concentration: 24.000 particles per ml at a coincidence quote of 7.8% and a flow rate of 25 ml/min; Calibration range: 4 µm(c) to 70 µm(c) according to calibration standard ISO 11171; Measurement in eight size channels: 4 µm(c), 6 µm(c), 10 µm(c), 14 µm(c), 21 µm(c), 25 µm(c), 38 µm(c) and 70 µm(c); Report of measuring results according to cleanliness class standards SAE AS 4059 and ISO 4406. Particle counter measures ISO classes from 0 to 22. Interfaces for data transfer: Standard equipment: RS485; Optional equipment: analogue 4-20 mA interface. Parallel data transmission for the size channels 4 µm(c), 6 µm(c), 14 µm(c) and 70 µm(c) or serial data transmission for all eight size channels. Options: PAMAS S50P: Online particle counter with integrated pump for flow control to a constant flow of 25 ml/min.
