By NuAire

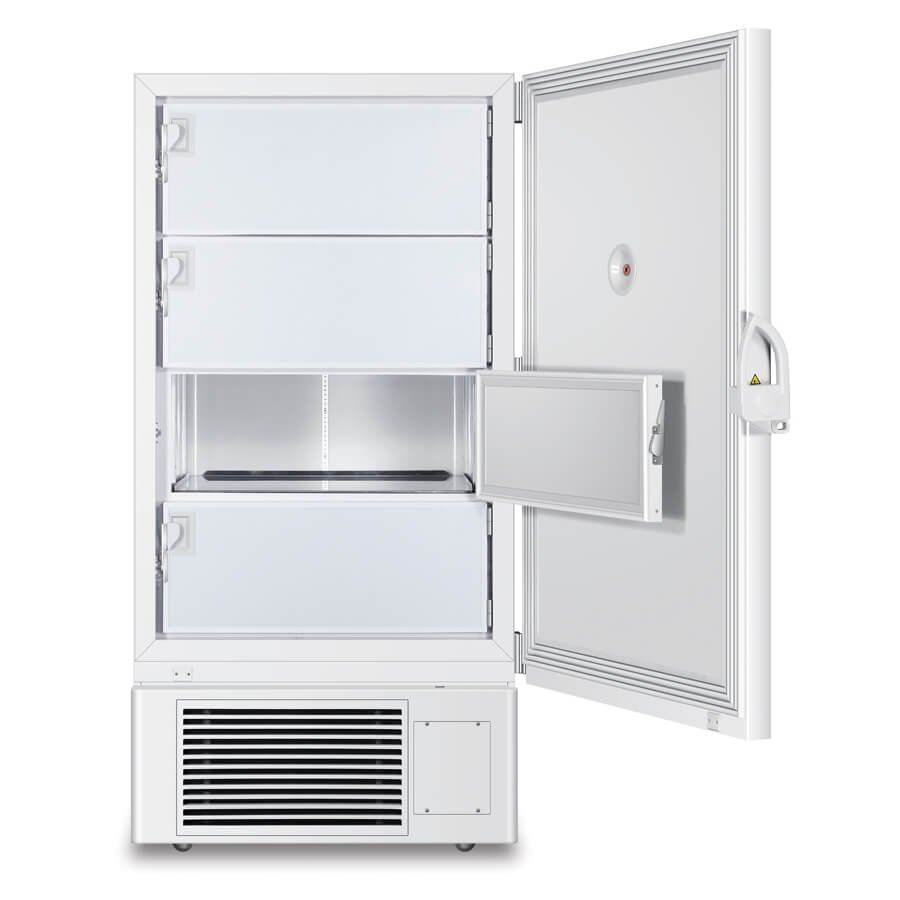

Safeguard vital research with the Blizzard NU-99728J -86°C ULT freezer—a high-capacity solution for reliable, long-term cell preservation with advanced temperature control systems. The Blizzard NU-99728J -86°C Ultralow Temperature Freezer provides dependable storage for sensitive biological samples including stem cells, blood, tissue, and vaccines. With a spacious 28.1 cu. ft. (796 L) interior, this unit supports high-volume sample preservation for research-intensive environments. Precision temperature control is achieved through a dual-compressor cascade system and vacuum-insulated panel construction, ensuring stable and uniform storage conditions. Smart monitoring via audible and visual alarms, combined with a battery backup, keeps your lab informed even during power disruptions. Optional CO₂/LN₂ backup offers added security for mission-critical applications. Engineered for durability and ease of use, the NU-99728J combines quiet operation, ergonomic access, and robust build quality—a reliable choice for PIs and lab managers dedicated to long-term research success. Maximize Lab Efficiency with Smart Control Freezer Our Ultralow Freezer features an advanced electronic control system strategically placed at eye level, making monitoring crucial data at a glance effortlessly accessible. This intelligent interface not only displays the internal temperature, ambient temperature, and voltage in real time but also ensures the safety of your precious samples with an integrated audible and visual alarm system. With several indicator lights, users gain insight into the freezer's condition: operational status, alarm triggers, or maintenance alerts. The intuitive navigation arrows and set key empower users to customize access via passcode, adjust temperature settings, define alarm limits, and tailor freezer preferences to their specific needs, enhancing security and operational efficiency in your laboratory environment. Secure & Efficient Storage with Advanced Insulation The Ultralow Freezer NU-99728J revolutionizes dependable research storage with its cutting-edge insulation and refrigeration system. Featuring insulated inner doors with individual latches, it ensures temperature stability, which is vital for the integrity of sensitive samples. Vacuum Insulated Panels (VIP) combined with high-density, low-conductivity polyurethane foam enhance temperature uniformity and maximize storage capacity, making every inch count. Hydrocarbon (HC) refrigerants, an eco-friendly choice, offer efficient cooling without harming the ozone layer. The quadruple outer and single-gasket inner doors create a pressure-tight seal, drastically reducing icing and thermal intrusion. This freezer is designed to meet the rigorous research storage demands, providing peace of mind with every use. Effortless Access with Smart Freezer Design Blizzard Ultralow Freezers are engineered for seamless access without compromising sample security or temperature stability. The innovative Pressure Equalization Port, equipped with a heated, spring-assisted mechanism, ensures the freezer door can be easily opened right after sample insertion, preventing icing. The outer door features a locking claw latch that maintains a tight seal to minimize frost build-up and allows for effortless opening with minimal effort. The door includes a key lock and padlock option for enhanced security, ensuring your valuable research materials are safeguarded. Inside, individual latching inner doors maintain pressure-tight sales, making organizing and accessing samples straightforwardly without affecting the entire storage environment. This freezer combines practical usability with the stringent security measures essential for high-value research storage. Seamless Data Management in Freezers The NU-99728J Ultralow Temperature Freezer introduces seamless data management and connectivity for modern laboratories, featuring a USB Data Port for easy download of freezer data directly from the electronic control center. With a standard remote alarm and RS485 ports in the power switch panel, this freezer allows for the transmission of temperature and alarm data to independent software for comprehensive monitoring and recording. An optional Circular Chart Recorder offers an extra layer of data reliability with internal temperature monitoring and recording, ensuring your research data is accurately tracked and securely managed. This integration of advanced connectivity options ensures that Blizzard ULTs meet and exceed the data management needs of today's fast-paced scientific environments. Specifications Capacity: 2-inch Box Capacity 500; Rack Capacity 20 Construction: Access Port Location Back Wall; Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms; Cabinet Thickness Inches (mm) 3.5 (90); Casters All-direction caster with fixing stand; Door Thickness Inches (mm) 3.5 (90); Exterior Door Single Door; Exterior Door Seal Quadruple Seal on the Outside Door; Exterior Material Color Coating Cold Plate Steel; Fan Brand EBM; Inner Doors 4; Insulation VIP+CFC Free Foaming Agent; Interior Door Seal Single Seal on all Interior Doors; Interior Material Color Coating Electric Zinc Steel Plate; Leg Levelers 2; Locking Mechanism Key; Shelf Capacity lbs (kg) 199 (90); Shelf Material Stainless Steel; Shelves 3 Shelves, 4 Locations; Style Upright Controls and System Features: Adjustable High/Low Temperature Alarms True; Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.; Auto Voltage Safeguard Included; Data Output Features USB, RS-232/485; Power Switch On-Off with Circuit Breaker; Remote Alarm Terminals Remote Alarm Port, RS232 / RS485 (Optional); Setpoint Security Yes Dimensions: Est. Shipping Depth Inches (mm) 42 (1067); Est. Shipping Height Inches (mm) 84 (2137); Est. Shipping Width Inches (mm) 44 (1118); Exterior Depth Inches (mm) 38.6 (980); Exterior Depth with Door Open Inches (mm) 74.80 (1900); Exterior Height Inches (mm) 78 (1980); Exterior Width Inches (mm) 41 (1041); Footprint Depth inches (mm) 38.6 (980); Footprint Width inches (mm) 41 (1041); Interior Depth Inches (mm) 28.2 (716); Interior Height Inches (mm) 51.6 (1310); Interior Volume Cubic Feet (Liters) 25.7 (728); Interior Width Inches (mm) 30.2 (766); Shelf Depth Inches (mm) 26.6 (677); Shelf Width Inches (mm) 29.5 (750) Electrical: Electrical Configuration 230V50Hz; Input Power (W) 1650; Power Consumption KWh/day 10.5; Power Cord Grounded Three Prong Power Plug, Rated 16A; Power Cord Length Foot (Meter) 8.2 ft (2.5m); Rated Current (A) 9.0; Rated Frequency (Hz) 50; Rated Voltage (V) 230; Stable Current (A) 7.5 Ergonomics: Sound Level 50 dB(A) Performance: 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 45; Cool Down Time (25°C ambient to -80°C) in Minutes 310; Heat Rejected (BTU/Hour) 1404; Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 270 Refrigeration System: Compressor Capacity Watt 950; Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2; Condenser Type Enhanced Micro-Channel & Forced-Air Cooled; Defrost Method Manual; Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment; Refrigerant Charge/Flammable R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG & JGA Versions; Refrigeration System Type Direct cooling Temperature Control: Ambient Temperature (°C) 10 to 32; Temperature Accuracy °C ±1; Temperature Control Microprocessor Controller; Temperature Range °C -40 to -86; Temperature Sensor Type RTD (Pt100); Temperature Uniformity °C ±5 Weight: Est. Shipping Weight lbs (kg) Estimated 849 lbs (385 kgs); Net Weight lbs (kg) 761 lbs (345 kg)
The NU-427 preserves the Class II Type B1 cabinet's traditional role of serving as an intermediate option between recirculating and total exhaust cabinets but gives this design a state-of-the-art control system. The NU-427 preserves the Class II Type B1 cabinet's traditional role of serving as an intermediate option between recirculating and total exhaust cabinets but with a control system fit for modern applications. By exhausting air from the entire length of the back half of the work zone through slots in the back wall, this design not only allows users to continue the recommended practice of working "clean to dirty" and deep inside the work zone but also leaves the dished work surface intact to retain spills. This exhaust is powered by an external facility blower that is interlocked with the cabinet's own motor through a redundant system to provide two layers of protection that minimize the risk of blowing air out of the cabinet should the external blower fail: cabinet exhaust is monitored by not only a mechanical pressure switch but also a differential velocity pressure-flow grid. A touch screen displays the readings from both this flow grid and a downflow sensor in the work zone at all times for the cabinet operator. Standard models meet the requirements of the respected NSF/ANSI 49 standard for biosafety cabinets. TouchLink Control System The airflow dynamics in an externally exhausted type B2 cabinet need to work in constant harmony. The TouchLink control system displays inflow velocity, downflow velocity, and exhaust volume on a single, easy to read front screen. The digital control system interlocks the downflow blower with the external exhaust to shut down the motor if an exhaust failure occurs—a safeguard that is further backed up by a mechanical pressure switch. Digital Exhaust Flow Grid The digital differential velocity pressure flow monitors exhaust to enable the TouchLink to derive not only inflow velocity but also the critical parameter of exhaust volume for display to the cabinet operator. Downflow Air Sensor The downflow sensor measures velocity inside the work zone and passes the data to the TouchLink display to assure users of product protection, a critical aspect in many pharmaceutical and biotechnology applications. Performance History The TouchLink control panel showcases a week's worth of cabinet performance data on-screen, while also facilitating the download of a full month's operational history to a USB. This feature is essential for procedures requiring documented airflow conditions in compliance with Good Manufacturing Practice (GMP) standards. Specifications Product Series Configuration Airflow Control Options: Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override Blower Contact Wires: N/A Closure Panels: Optional Rear Closure Panels for Seismic Brackets Cord Pass Through: Standard on Right Side; Optional on Left Side Gas Supply Interlock with Blower: N/A Glass Sidewalls: N/A IV Bar with 6 Hooks: Optional Motorized Base Stand: Optional as Separate Accessory Motorized Window: N/A Other Built-in Supply Filter Option(s): Optional 99.995% Efficient Metal-Frame Filter Outlet(s): One, Left Front Faring Plumbing: Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Remote Service Valves: Maximum of Three Each Side Wall Optional Seismic Brackets or Studs: Optional Rear or Floor Mount Seismic Brackets Service Couplings (3/8-inch NPT): One Coupling on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional Service Valves (3/8-inch NPT): One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional Side Panels: Required with Plumbing out Bottom, Top or Back Smooth Interior: N/A Ultraviolet (UV) Light: Optional Window Edge Protector: Optional Construction Access Opening Glass Type: Tempered Glass Cabinet Construction: All welded stainless steel 16/18 GA, Type 304 pressure tight design Casters: N/A Decontamination Seal-able Window: N/A Diffuser: Metal, non-flammable Drain Valve Location: Front right Exhaust Filter: 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns Front & Control Panel Material: Painted Steel HEPA Filter Seal Type: HEPEX Zero Leak Neoprene Seal, Spring-loaded Lighting: Fluorescent Main Cabinet Wrap: Single Piece Stainless Steel Side and Back Wall Construction Motor(s): 1/2 HP DC ECM Plenum Type: HEPEX Pre-filter: N/A Style: Bench top, optional base stand Supply Filter: 5-7/8 inch (149mm) 99.99% Efficiency on 0.3 Microns Viewing Window Inches (mm): 18.5 (407) open to fully closed Work Access Opening(s): 8-inch (203mm) Work Surface: One-Piece Dished Stainless Steel, Optional Prop-Up Rod Work Zone Wrap: N/A; Back Wall Inserted into Main Cabinet Wrap Controls and System Features Data Output Features: USB Remote Alarm Terminals: Standard Dimensions Est. Shipping Depth Inches (mm): 43 (1092) Est. Shipping Height Inches (mm): 71 (1803) Est. Shipping Width Inches (mm): 59 (1499) Exterior Depth with Armrest Removed Inches (mm): 33 1/4 (845) Exterior Height (Minimum for Transport) Inches (mm): 61 (1549) Exterior Height Inches (mm): 61 3/8 (1559) Exterior Height with 30-inch Work Surface Height inches (mm): 87 7/8 (2232) Exterior Height with 36-inch Work Surface Height inches (mm): 93 7/8 (2385) Exterior Width Inches (mm): 53 5/8 (1362) Nominal Width Feet (Meters): 4 ft. (1.2m) Useable Work Tray Area Depth Inches (mm): 17 3/4 (451) Useable Work Tray Area Width Inches (mm): 45 5/8 (1159) Work Area Depth Measured at 8-inches Window Height Inches (mm): 23 1/2 (597) Work Area Height Inches (mm): 25 1/2 (648) Work Area Width Inches (mm): 46 3/8 (1178) Electrical Blower/Lights Amps: 2.6 Electrical Configuration: 115V60Hz Junction Box: Optional Outlet Amps: 3 Power Cord: 14 GA - 3 Wire, 15A Power Cord Length Foot (Meter): 12 (3.7) Rated Amps: 10 Ergonomics Light Intensity fc (Lux): 90-120 (968-1291) Reach into workzone Inches (mm): 6 (152) Sound Pressure Level per ISO 4871: Inquire Exhaust Bag In Bag Out: Optional Direct Connection Exhaust Requirement Concurrent Balance Value, CFM(CMH): 282 (479) Other Built-in Exhaust Option(s): Optional Charcoal Module, Optional 99.995% Efficient Metal-Frame Filter Plant Duct Static Pressure Inches (mm): 0.7" w.g. / 18mm w.g General Performance Standard: NSF-ANSI-49 Safety Certification Performance Air Cleanliness (ISO 14644): ISO-Class-5 Downflow fpm (m/s): 70 fpm (0.36 m/s) Fumigation: per NIH/NSF Procedures: True Heat Rejected (BTU/Hour): 543 Inflow fpm (m/s): 105 fpm (0.53 m/s) Protection: Product, Personnel, Environmental Technology Airflow Monitor: AirflowSensorPressureGrid Control System: TouchLink Weight Est. Shipping Weight lbs (kg): 600 (272) Net Weight lbs (kg): 427 (249) Electrical (230V) Blower/Lights Amps: 1.3 Electrical Configuration: 230V5060Hz Heat Rejected (BTU/Hour): 774
CATEGORY
The NU-543 is configurable for a broad range of applications and geographies with a choice of NSF listed access openings, an optional smooth interior, EN 12469 listed configurations, and a global supply chain. The NU-543 carries the LabGard® value proposition across the boundaries of geography and scientific applications by offering the broadest choice of configurations for environmental protection. This model features a dual thermistor airflow sensor and alphanumeric display for laboratories requiring a clear measurement of their cabinet's performance and a choice of two NSF listed work access openings for procedures needing ergonomic access to the work zone, creating the optimal BSC experience for laboratory workers. The NU-543 Biological Safety Cabinet can optionally be made with a smooth interior for procedures such as pharmacy compounding and always includes a prop up work tray to ease regular cleaning under the work surface to prevent contamination. Double exhaust filters can be fitted to meet the requirements of an application or national guidelines regarding air standards. A truly global product, models are available that meet NSF/ANSI 49 and EN 12469, feature multilingual displays, and can ship from multiple locations around the world. Some options and configurations are only available from North America. Consult NuAire for details. FlowGard Control System Calculates Inflow and Downflow Velocities The FlowGard™ Electronic Control System on the NU-543 continuously calculates and displays real-time inflow velocity using data from the exhaust airflow sensor. With clear alphanumeric readouts, intuitive membrane buttons, and support for six world languages, researchers can effortlessly navigate user and service menus. This advanced system enhances safety and efficiency, ensuring accurate airflow monitoring for optimal containment while simplifying operation and maintenance. Experience precision control, seamless usability, and enhanced lab safety—all at your fingertips. Choice of 2 Access Openings on the NU-543 Class II Biosafety Cabinets The NU-543 Class II Biosafety Cabinet offers a choice of 8-inch and 10-inch (203mm and 254mm) NSF-approved access openings, allowing researchers to optimize their workflow while ensuring certified containment and environmental protection. - 8-inch Opening: Ideal for high-containment applications, minimizing air movement, reducing noise, and lowering contamination risk with restricted arm movement. - 10-inch Opening: The best balance of ergonomics and protection, offering comfortable access while maintaining strong containment. Choose the opening that best fits your research needs, without compromising safety or efficiency. Smooth Interior Option For The NU-543 Biological Safety Cabinet The NU-543's smooth interior option is designed to meet the highest cleanability standards required for sterile drug compounding. By removing work zone outlets and service valves, this configuration creates an uninterrupted stainless steel surface, making routine wipe-downs faster and more effective. Benefits for drug compounding applications: - Enhanced Sterility: Seamless stainless steel walls reduce contamination risks and ensure compliance with USP <797 and <800 guidelines. - Reduced Contaminant Accumulation: Fewer crevices mean fewer places for microbial or particulate contaminants to collect. - Simplified Decontamination: A smooth, continuous surface allows for quick and thorough disinfecting between batches. For compounding environments where sterility and ease of cleaning are critical, the smooth interior option provides the ultimate contamination control solution. Configuration Blower Contact Wires Optional Closure Panels Optional Rear Closure Panels for Seismic Brackets Cord Pass Through Standard Right Outlet(s) Standard, two backwall Plumbing Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets Smooth Interior Optional Ultraviolet (UV) Light Optional Construction Access Opening Glass Type Tempered Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design Exhaust Filter 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 microns HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded Lighting LED Motor(s) 1/2 HP DC ECM Plenum Type HEPEX Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns Work Access Opening(s) 8, 10-inch (203, 254 mm) Work Surface One-Piece Dished Stainless Steel with Prop-Up Rod Controls and System Features Data Output Features RS-232 Remote Alarm Terminals Standard Dimensions Exterior Width Inches (mm) 41 5/8 (1057) Nominal Width Feet (Meters) 3 ft. (0.9m) Work Area Width Inches (mm) 34 3/8 (873) Electrical Electrical Configuration 115V60Hz Rated Amps 10 Ergonomics Light Intensity fc (Lux) 90-120 (968-1291) Reach into workzone Inches (mm) 6 (152) Sound Pressure Level per ISO 4871 ≤ 55 dba Exhaust 10-inch Opening Exhaust Requirement for Fixed Canopy CFM (CMH) 320 (544) 8-inch Opening Exhaust Requirement for Fixed Canopy CFM (CMH) 269 (457) Plant Duct Static Pressure Inches (mm) 0.05-0.1"/1.27-2.54mm H2O General Performance Standard NSF-ANSI-49 Safety Certification UL, UL-C Performance Air Cleanliness (ISO 14644) ISO-Class-5 Downflow fpm (m/s) 60 fpm (0.30 m/s) Fumigation: per NIH/NSF Procedures True Inflow fpm (m/s) 105 fpm (0.53 m/s) Protection Product, Personnel, Environmental Technology Airflow Monitor SingleAirflowSensor Control System FlowGard Weight Est. Shipping Weight lbs (kg) 460 lbs. / 209 kg. Net Weight lbs (kg) 410 lbs. / 186 kg. Alternate configuration (230V 50/60Hz): Construction: Access Opening Glass Type Safety Glass; Exhaust Filter 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS; Supply Filter 3-inch (76mm) 99.995% Efficiency @ MPPS; Work Access Opening(s) 10-inch (254 mm). Electrical Configuration 230V5060Hz; Rated Amps 8. General Performance Standard NSF-ANSI-49, EN-12469. 4 ft. nominal width configuration: Construction: Motor(s) 3/4 HP DC ECM; Work Access Opening(s) 8, 10-inch (203, 254 mm). Dimensions: Exterior Width 53 5/8 (1362); Nominal Width 4 ft. (1.2m); Work Area Width 46 3/8 (1178). Electrical Configuration 115V60Hz; Rated Amps 14. Exhaust: 10-inch Opening 320 (544); 12-inch Opening 387 (650); 8-inch Opening 269 (457). Weight: Est. Shipping 515 lbs. / 234 kg.; Net 465 lbs. / 211 kg. 4 ft. nominal width, 230V configuration: Construction: Access Opening Glass Type Safety Glass; Motor(s) 3/4 HP DC ECM; Exhaust Filter 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS; Supply Filter 3-inch (76mm) 99.995% Efficiency @ MPPS; Work Access Opening(s) 10-inch (254 mm). Dimensions: Exterior Width 53 5/8 (1362); Nominal Width 4 ft. (1.2m); Work Area Width 46 3/8 (1178). Electrical Configuration 230V5060Hz; Rated Amps 8. Weight: Est. Shipping 515 lbs. / 234 kg.; Net 465 lbs. / 211 kg.
CATEGORY
The NU-565 sets the bar for Class II Type B2 performance by complying with not only the biological safety cabinet standards of NSF/ANSI 49 but also the fume hood requirements of UL 1805 and ASHRAE 110. The NU-565, a Class II Type B2 biosafety cabinet, excels in biological and chemical vapor protection and is tested to NSF/ANSI 49, UL 1805, and ASHRAE 110 standards. Enhanced safety features include a UL 586 fire retardant exhaust HEPA filter, externalized outlets and service valves, and dual-interlocked exhaust flow via a mechanical switch and velocity pressure flow grid. Continuous monitoring through a touch screen ensures operator awareness of the exhaust grid and work area airflow, mitigating risks of exhaust failure. UL Classified: Experience unparalleled safety with the NU-565, uniquely 'UL Classified' to meet rigorous standards. Its compliance with UL 61010-1 ensures electrical and mechanical reliability, while adherence to UL 1805 guarantees material flame resistance and optimal airflow efficacy, offering users a product and peace of mind. UL 586: Experience unparalleled safety with a UL 586 certified exhaust filter, removing 99.97% of particles 3 microns or larger. This high-efficiency unit doubles as a critical fire line, withstanding up to 700°F (371°C) and halting fire spread through ventilation systems, ensuring your lab's resilience against contaminants and combustion. Advanced Exhaust Interlock: Secure your lab's safety with an advanced exhaust interlock system, engineered to activate the internal supply blower only with adequate exhaust flow, ensuring proper air barrier inflow velocity from the get-go. This intelligent feature prevents contaminated work zone air from compromising your laboratory environment, reinforcing user protection. Specifications Configuration Airflow Control Options: Air Supply On/Off (Requires NU-952-012), Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override Blower Contact Wires: N/A Closure Panels: N/A Cord Pass Through: Standard Right Gas Supply Interlock with Blower: N/A Glass Sidewalls: N/A IV Bar with 6 Hooks: Optional Motorized Base Stand: Optional as Separate Accessory Motorized Window: N/A Other Built-in Supply Filter Option(s): N/A Outlet(s): Standard One Left Front Faring, Optional One Right Front Farring Plumbing: Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Remote Service Valves: Two Valves on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Seismic Brackets or Studs: Optional Rear or Floor Mount Seismic Brackets Service Couplings (3/8-inch NPT): Two Couplings on Left Side Wall are Standard, Maximum of Three Each Side Wall Optional Service Valves (3/8-inch NPT): N/A Side Panels: Required with Plumbing out Bottom, Top or Back Smooth Interior: N/A Ultraviolet (UV) Light: N/A Window Edge Protector: Optional Construction Access Opening Glass Type: Tempered Glass Cabinet Construction: All welded stainless steel 16/18 GA, Type 304 pressure tight design Casters: N/A Decontamination Seal-able Window: N/A Diffuser: Metal, non-flammable Drain Valve Location: Front right Exhaust Filter: 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns Front & Control Panel Material: Painted Steel HEPA Filter Seal Type: HEPEX Zero Leak Neoprene Seal, Spring-loaded (UL 586) Lighting: LED Main Cabinet Wrap: Single Piece Stainless Steel Side and Back Wall Construction Motor(s): 1/2 HP DC ECM Plenum Type: HEPEX Pre-filter: N/A Style: Bench top, optional base stand Supply Filter: 3-inch (76mm) 99.99% Efficiency on 0.3 microns Viewing Window Inches (mm): 18.5 (470) open to fully closed Work Access Opening(s): 8-inch (203mm) Work Surface: One-Piece Dished Stainless Steel with Prop-Up Rod Work Zone Wrap: Single Piece Stainless Steel Side and Back Wall Construction Controls and System Features Data Output Features: RS-232, USB Remote Alarm Terminals: Standard Dimensions (4 ft. model) Exterior Depth with Armrest Removed Inches (mm): 32 3/8 (823) Exterior Height (Minimum for Transport) Inches (mm): 62 (1575) Exterior Height Inches (mm): 62 (1575) Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm): 88 1/2 (2248) Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm): 94 1/2 (2401) Exterior Width Inches (mm): 53 5/8 (1362) Nominal Width Feet (Meters): 4 ft. (1.2m) Useable Work Tray Area Depth Inches (mm): 20 7/8 (530) Useable Work Tray Area Width Inches (mm): 45 7/8 (1165) Work Area Depth Measured at 8-inches (203 mm) Window Height Inches (mm): 26 (660) Work Area Height Inches (mm): 25 3/16 (640) Work Area Width Inches (mm): 46 3/8 (1178) Electrical (4 ft. model) Blower/Lights Amps: 2.1 Electrical Configuration: 115V60Hz Junction Box: Optional Outlet Amps: 3 Power Cord: 14 GA - 3 Wire, 15A Power Cord Length Foot (Meter): 12 (3.7) Rated Amps: 8 Ergonomics Light Intensity fc (Lux): 90-120 (968-1291) Reach into workzone Inches (mm): 6 (152) Sound Pressure Level per ISO 4871: Inquire Exhaust (4 ft. model) Bag In Bag Out: Optional Direct Connection Exhaust Requirement Concurrent Balance Value, CFM(CMH): 815 (1385) Other Built-in Exhaust Option(s): N/A Plant Duct Static Pressure Inches (mm): 1.7 w.g. (43mm w.g.) General Performance Standard: NSF-ANSI-49 Safety Certification: UL, UL-C Performance Air Cleanliness (ISO 14644): ISO-Class-5 Downflow fpm (m/s): 60 fpm (0.30 m/s) Fumigation: per NIH/NSF Procedures: True Heat Rejected (BTU/Hour): 474 Inflow fpm (m/s): 105 fpm (0.53 m/s) Protection: Product, Personnel, Environmental Technology Airflow Monitor: AirflowSensorPressureGrid Control System: TouchLink Weight (4 ft. model) Est. Shipping Weight lbs (kg): 540 (245) Net Weight lbs (kg): 490 (222) Dimensions (6 ft. model) Exterior Depth with Armrest Removed Inches (mm): 32 3/8 (823) Exterior Height (Minimum for Transport) Inches (mm): 62 (1575) Exterior Height Inches (mm): 62 (1575) Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm): 88 1/2 (2248) Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm): 94 1/2 (2401) Exterior Width Inches (mm): 77 5/8 (1972) Nominal Width Feet (Meters): 6 ft. (1.2m) Useable Work Tray Area Depth Inches (mm): 20 7/8 (530) Useable Work Tray Area Width Inches (mm): 69 7/8 (1775) Work Area Depth Measured at 8-inches (203 mm) Window Height Inches (mm): 26 (660) Work Area Height Inches (mm): 25 3/16 (640) Work Area Width Inches (mm): 70 3/8 (1788) Electrical (6 ft. model) Blower/Lights Amps: 2.6 Electrical Configuration: 115V60Hz Junction Box: Optional Outlet Amps: 3 Power Cord: 14 GA - 3 Wire, 15A Power Cord Length Foot (Meter): 12 (3.7) Rated Amps: 10 Exhaust (6 ft. model) Bag In Bag Out: Optional Direct Connection Exhaust Requirement Concurrent Balance Value, CFM(CMH): 1275 (2166) Other Built-in Exhaust Option(s): N/A Plant Duct Static Pressure Inches (mm): 1.8 w.g. (46mm w.g.) Weight (6 ft. model) Est. Shipping Weight lbs (kg): 730 (331) Net Weight lbs (kg): 680 (308) Options Access Opening - 8" (203 mm) Access Opening Tempered Sliding Glass, NSF Approved Cord Pass Through Right Side Airflow Control - Air Supply On/Off Control - Cabinet Off Override - Delay Off Exhaust A
CATEGORY
HEPA-filtered Class I enclosure for safe powder handling in pharmacy, lab, and research. USP <800 compliant for non-sterile hazardous drug and chemical applications. The LabGard® NU-813 Containment Ventilated Enclosure (CVE) delivers trusted Class I containment for the safe manipulation of hazardous powders and aerosols in pharmacy, laboratory, and R&D environments. Engineered for compliance with USP <800, COSHH, and global safety standards, the NU-813 is ideal for non-sterile hazardous drug compounding, chemical weighing, and toxicology workflows. Available in 3-, 4-, and 6-foot benchtop models, the NU-813 features HEPA-filtered negative pressure airflow, real-time digital airflow monitoring with Aeromax™, and a quiet, energy-efficient EC motor. Its compact footprint and optional telescoping base stand make it a flexible solution for compounding pharmacies, biotech labs, academic research facilities, and industrial applications requiring high-performance containment. From oncology drug preparation to powder weighing and analytical sample prep, the NU-813 protects personnel while optimizing workspace integration, certification readiness, and peace of mind. Bag-in/Bag-out Exhaust Filter The bag-in/bag-out feature ensures accredited certifier safety during exhaust HEPA filter changes, allowing direct containment of the old filter within a bag, eliminating exposure to contaminants for maximum protection. Single or Redundant Exhaust HEPA Filters The NU-813 offers adaptable exhaust configurations to align with your pharmacy needs: single exhaust HEPA for a facility exhaust system connection and a redundant filter option for recirculating air back into the pharmacy environment. This flexibility ensures USP 800 compliance, making the NU-813 CVE an ideal Containment Primary Engineering Control (C-PEC) for compounding nonsterile hazardous drugs. Configurability and Comfort Featuring stainless steel airfoils, the NU-813 streamlines the protective inflow into the work zone and provides ergonomic armrest comfort for operators. Standard cord pass-throughs on both sides enhance equipment integration like IV workflow systems, while optional waste chutes and shelves offer tailored adaptability for laboratory and pharmacy environments. Specifications Configuration: Cord Pass Through Standard on Right and Left Side Wall; Double Exhaust HEPA Filter Optional; Motorized Base Stand Optional as Separate Accessory; Outlet(s) Optional; Seismic Brackets or Studs Optional; Service Valves (3/8-inch NPT) N/A; Waste Chute Optional Construction: Casters N/A; Construction Polycarbonate panels with welded blower module; Exhaust Filter 5 7/8-inch (149mm) 99.995% @ 0.3 Micron; Front & Control Panel Material Painted Steel; HEPA Filter Seal Type Neoprene, Spring loaded; Lighting Standard Fluorescent with Optional LED; Motor(s) 1 Impeller; Plenum Type Inquire; Pre-filter N/A; Style Bench top, console with optional base stand; Viewing Window Inches (mm) 24 (610) Open; Work Access Opening(s) 8-inches (203 mm); Work Surface Standard Epoxy Resin, Optional Insert Controls and System Features: Data Output Features RS-232; Remote Alarm Terminals Standard Dimensions: Est. Shipping Depth Inches (mm) 43 (1092); Est. Shipping Height Inches (mm) 66 (1676); Est. Shipping Width Inches (mm) 46 (1169); Exterior Depth Inches (mm) 29 (737); Exterior Height Inches (mm) 54 (1372); Exterior Width Inches (mm) 36 (914); Work Area Depth Inches (mm) 24 (610); Work Area Height Inches (mm) 28 (711); Work Area Width Inches (mm) 37.375 (873) Electrical: Blower Amps 1.6; Electrical Configuration 115V60Hz, 230V5060Hz; Light Amps 0.2; Power Cord 12-foot (3.7 m); Power Cord Length Foot (Meter) 12 (3.7 m); Rated Amps 1.8 Ergonomics: Light Intensity fc (Lux) 50 to 150 (538 to 1600); Sound Level 57 dbA Running Noise in 53 dbA Ambient Exhaust: 8-inch (203mm) Opening Exhaust Requirement for Canopy Exhaust Transition (NU-942) CFM (CMH) 195 (331); Bag In Bag Out Standard; Other Built-in Exhaust Option(s) Exhaust Deflector General: Safety Certification UL, UL-C Performance: Fumigation: per NIH/NSF Procedures True; Heat Rejected (BTU/Hour) 265; Inflow fpm (m/s) 80 fpm (0.40 m/s); Protection Personnel, Environmental Technology: Airflow Monitor Pressure; Control System AeroMax Weight: Est. Shipping Weight lbs (kg) 350 lbs. (159 kg.); Net Weight lbs (kg) 300 lbs. (136 kg.)
CATEGORY
