In addition to providing complete control of the Laser Diode Driver, the 1640 laser system controller (LSC) includes features such as q-switch triggering, external triggering, sync output, and additional I/O signals. The LSC is a cost-effective solution for controlling various laser system setups. The LSC unit has additional connections for q-switch triggering, external triggering, sync output and additional I/O. The q-sw trigger has an adjustable delay referenced off the falling edge of the pulse control signal. This allows for optimum adjustment of triggering a q-switch driver. The external trigger input allows the LSC to be externally triggered via an external source. Rising and falling edges can be selected as well as various modes. The additional I/O connector offers additional signals: photodiode input, two thermistor inputs, a 0-10V analog output, a 0-5V analog input, and 3 TTL inputs that can be monitored. Specifications - 12 bit resolution on current setting - Single shot, continuous, burst and CW modes - Repetition rates from 0.1 Hz to 100 KHz (50KHz in Q-sw mode) - Q-switch Trigger –Delay control with +/-6.5ms adjustment range and 200ns resolution - Sync Output – referenced to diode or Q-switch control pulses - External Trigger - Start, stop, start/stop, gate and rising or falling edge modes - Additional I/O – photodiode, thermistor inputs and 0-10V analog output - 5 setup storage locations - 200ns Resolution - RMS Jitter 1ns - 2 Thermosistor Inputs - 3 TTL Inputs 1550 LDC Advantages - Easy user interface for manual control and readout - Can be used with USB for remote computer control - Quick setup provides all the necessary adjustments and readouts - More controls for additional modules to your laser system - Multiple functions and parameters provide the potential for a number of modes of operation - Remote operation using GUI - Compatible with most Lumina Diode Drivers Service Features - Demo Units Available - Warranty: Full 2 Year Warranty - Service: Integration Assistance, Full Customer Support

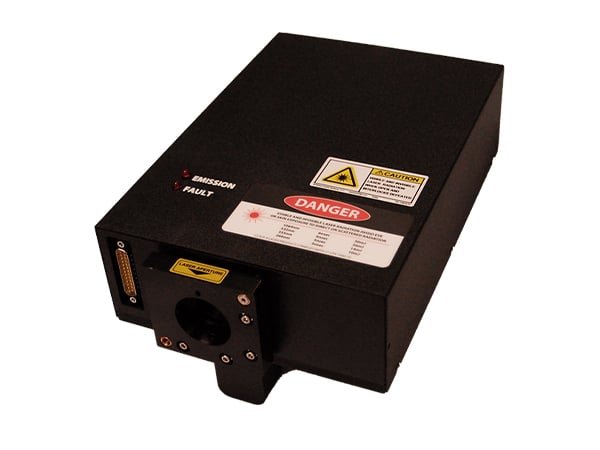

LS-635B is designed for reliable failure analysis and design validation applications with excellent beam uniformity. The LS-635B offers ultimate configuration flexibility, with variable configurations based on 1064/532/355/266nm wavelengths.The laser head is just 81mm x 194mm x 298mm and comes with either a 2U rackmount or tabletop power supply. - Compact DPSS Laser - High beam quality - Standard high energy (up 1.2mJ) - Enhanced pulse-to-pulse stability - Saving up to 6 user-defined cutting recipes - 1064/532nm; 1064/355nm; 532/266nm - 2.5mm standard shutter (4mm optional) - Rotating XY aperture, standard - Video port with c-mount adapter - Passive conductively cooled laser - Low Energy Consumption ( <100W) - Long lifetime 500,000,000 pulses - Low maintenance (no water leaks) - Smart controller (optional) with intuitive, touch-screen software. - Easy access to all parameter setting - Four function buttons for simplified operation - Remove EPOXY on surface by 266nm - Remove RGB color filter and keep metal line by 266nm - Laser marking for NGD (likes INK function) by 532nm - Remove polyimide passivation surface by 266nm Specifications Laser - Jewel Sealed, conductively cooled resonator integrated with drive and control electronics Wavelength: Two wavelengths (1064/532, 532/355, or 532/266) Rep rate: 1-20 Hz Nominal, 21-50 Hz Limited (2) Energy per pulse: 1064nm ≥4.0mJ (1064nm only), ≥1.25mJ (dual wavelength); 532nm ≥1.25mJ; 355nm ≥0.4mJ; 266nm ≥0.4mJ Pulsewidth: 1064nm ≤ 12 ns; 532nm ≤ 11 ns; 355nm ≤ 10 ns; 266nm ≤ 10 ns Pulse to pulse stability: 1064nm ≤3.0% ≤3.5% ≤4.0% ≤6.0%; 532nm ≤3.5% ≤4.0% ≤4.5% ≤6.5%; 355nm ≤4.0% ≤5.0% ≤6.0% ≤8.0%; 266nm ≤4.0% ≤5.0% ≤6.0% ≤8.0% Diode lifetime: 500,000,000 pulses Attenuator Attenuation Range: 0 to 100% Accuracy: ±0.5% Resolution: 0.20% Tact Time: ≤1.0s Initialization: ≤6.0s Filter Wheel Positions: 5 Tact Time: ≤1.0s Initialization: ≤6.0s X-Y Slit Range: 0 to 2.5mm, 0 to 4.0mm (optional) Accuracy: ±(25µm + 0.01 size) Resolution: 25µm Tact Time: ≤1.0s Initialization: ≤6.0s System Size: Laser Head 140mm x 87mm x 233mm; Power Supply 132mm x 58mm x 31mm Weight: Laser Head 3.5 kg; Power Supply ≤0.5 kg Operating Voltage: 110-240VAC, 50/60Hz Operating Power: <100 watts Computer Interface: Standard RS232
CATEGORY

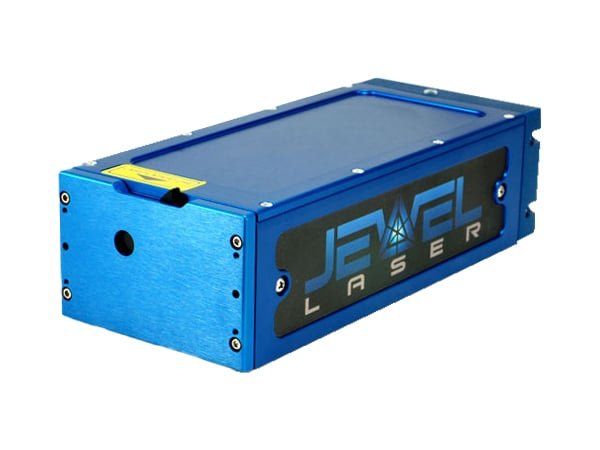

Diode Pumped Solid State Nd:YAG Lasers The Jewel Laser is a rugged, Q-switched, Nd:YAG, DPSS laser with a compact, monolithic design. Reliable, lightweight, with easy-to-swap components, the Jewel is ideal for commercial and OEM applications. The Jewel is just 180mm long and weighs only 1.5kg which will reduce the space and weight limits on laser systems and dramatically decrease downtime and production costs. Accessories and options can be added to optimize the laser to your application (divergence vs energy). Laser Features - Energy Max: 10mJ @1064nm - Rep Rate: 1 to 20Hz Rep Rate - Wavelengths: 1064nm, 532, 355 & 266 - Beam Divergence: (mrad) ≤ 6.0 - Beam Diameter: (mm) 2.0 ± 0.5mm - Pulsewidth: 12.0 ± 2.0 ns at 1064 - Dimensions: 82mm x 180mm x 60mm - Weight: 1.5kg - Power supply: 36-50VDC - Efficient, reliable diode pump - Remote Interlock, Input Trigger Applications - LIBS - LIDAR - PIV - Ablation - Pumping - Micromachining Additional Information The Jewel lasers were designed specifically for 24/7 clean room fabs and portable environmentally challenged applications. It incorporates a sealed housing that has c onductively cooled thermal management, eliminating external fans and water cooling. The power supply is no bigger than your standard laptop charger – providing a smaller footprint for the laser and its power supply. These features allow the laser to be easily integrated onto a gantry, or where space is limited. This laser will also be used for LIDAR, PIV, LIF, OPO, TFT-LCD repair, ablation and mass spectroscopy applications. Nd:YAG DPSS 10mJ Energy 20Hz Rep Rate 1064nm, 532, 355, & 266
CATEGORY

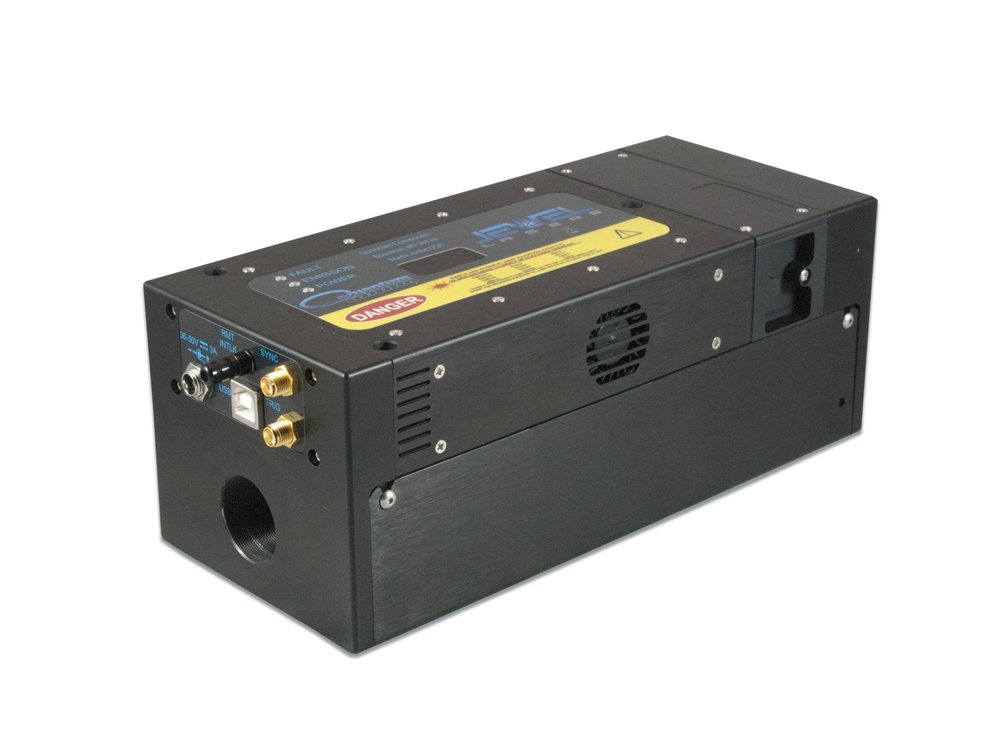

Diode Pumped Solid State Nd:YAG Lasers The MicroJewel Lasers are a series of rugged, pulsed laser, passive Q-switched, Nd:YAG, DPSS lasers with an ultra-compact design delivering 8mJ or 4mJ at 1064nm. Reliable, light-weight, and efficient, the MicroJewel lasers are ideal for commercial and OEM applications requiring small form factors or portable applications The MicroJewel is just 90.5mm long, weighs only 40 grams and has a compact, inline resonator which will reduce the space and weight limits on laser systems. Accessories and options can be added to optimize the laser to your application (divergence vs energy). Laser Features: - Energy Max: 8mJ - Rep Rate: 1 - 30Hz - Wavelength: 1064nm, 532 - Pulse Width/Duration: (ns) 6.0± 2.0 - Beam Divergence: (mrad) ≥ 6.0 @ 1064; ≥ 5.0 @532 - Beam Diameter: (mm) 1.25± 0.5 - Dimensions: 16mm in diameter and 90.5mm in length - Weight: 40 grams - Compact, inline resonator - Efficient, reliable diode pump - Excellent shot-to-shot stability higher rep rate of 50Hz available with proper cooling Applications - LIBS - LIDAR - Ablation - Spectroscopy Applications Information The MicroJewel lasers are perfect for applications needing a small footprint. It has lower power consumption, making it ideal for portable and hand-held applications. These features allow the laser to be easily integrated into portable or hand-held applications: LIDAR, LIBS, ablation, and mass spectroscopy applications. For pricing and orders, please contact sales@quantumcomposers.com. Nd:YAG DPSS (Pulsed) Energy: 8mJ or 4mJ Versions 10Hz Rep Rate, up to 50Hz 1064nm & 532nm
CATEGORY

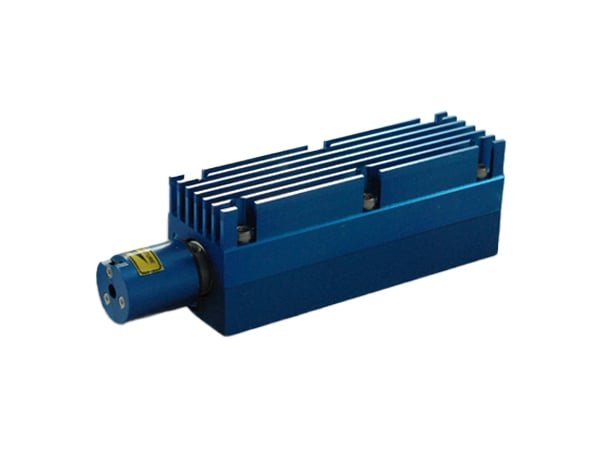

Pulsed Diode Pumped Solid State Nd:YAG Lasers The MiniJewel is a compact, conductively cooled, laser with a fundamental output of 1064nm. The rugged resonator design allows for less misalignment than other lasers. This multi-mode laser weighs 1.4kg and with a 165mm x 97mm x 36mm footprint, it is perfect for portable applications or customers with limited space requirements. Included is our MiniJewel software which the user can utilize to control energy, firing mode, and frequency. Accessories and options can be added to optimize the laser to your application (divergence vs energy). Laser Features - Energy Max: 8mJ @1064nm - Rep Rate: 1 to 30Hz Rep Rate - Wavelengths: 1064nm, 532, 355 & 266 - Beam Divergence: (mrad) ≤ 6.0 - Beam Diameter: (mm) 1.5 ± 0.5mm - Pulsewidth: 6.0 ± 2.0 ns - Dimensions: 165mm x 97mm x 36mm - Weight: 1.4kg - Power supply: 36-50VDC - Efficient, reliable diode pump - Remote Interlock, Input Trigger Applications - LIBS - LIDAR - Micro-ablation - PIV - Marking - Micromachining Additional Information The MiniJewel lasers were designed to be on microscopes and small gantry systems or portable systems. The power supply is no bigger than your standard laptop charger – providing a smaller footprint for the laser and its power supply. This laser will also be used for LIDAR, PIV, Pumping, TFT-LCD repair, MicroLED repairing, ablation, and mass spectroscopy applications. For pricing and orders please contact sales@quantumcomposers.com. Nd:YAG DPSS 8mJ Energy 30Hz Rep Rate 1064nm, 532, 355, & 266
