By Novascan Technologies, Inc.

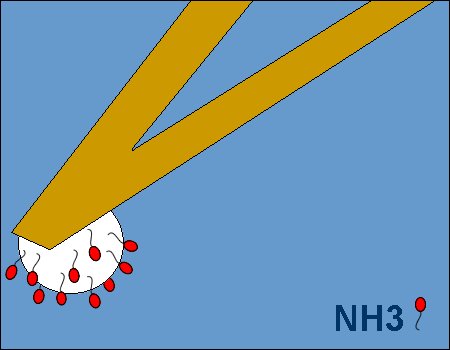

Product: PT.PS.NH3 Description: AFM probe with a polystyrene particle attached; NH3 surface chemistry Particle Types and Sizes Available: - Polystyrene (μm) 1.0, 6.0 Cantilever Spring Constants (N/m): - Silicon (N/m) - 0.03, 0.05, 0.08, 0.3, 0.35, 0.6, 0.65, 0.95, 1.75, 4.5, 7.5, 14.0 - Silicon Nitride (N/m) - 0.01, 0.02, 0.03, 0.05, 0.06, 0.1, 0.12, 0.32, 0.5, 0.58 Modified Surface Chemistry: NH3 Surface Minimum Order: 5 of any given modification type
For over 25 years Novascan has been designing UV systems and has provided expertise, sales and support to thousands of clients from around the world. To meet our clients diverse application requirements we offer UV Ozone Surface Cleaning and Surface Activation Systems in many sizes ranging from 100x100mm up to 500x500mm with many different digital controller types and options. Systems are available in Easy to Operate Manual and Automated versions with prices starting under $3000 for our smallest PSD model. Novascan offers multiple benchtop UV Ozone Cleaner models, system sizes and options to meet your specific needs and budgetary requirements. UV Grid Lamp: Deep UV ozone producing Mercury vapor grid lamp with reflector. Half life approximately 5000 hours. Sparing no expense Novascan Lamps are crafted with the highest quality, closely spaced quartz tubing for highest transmission and most uniform coverage. Electronics: Novascan UV Systems are designed for long term reliability with many of our UV Ozone systems still fully operational after 10 or more years. We use higher quality component such as ultra powerful and reliable linear power supplies instead of cheap switching power supplies. While more costly to produce, Novascan believes that for reliability and safety it is important to use NTRL rated digital controllers, relays, power inlets and other components. All systems are assembled in the USA. Modular Upgradable Designs: At Novascan our mission is to build systems that support our clients changing application and laboratory needs. As such our designs are highly modular allowing future upgradability to different lamp sizes, the addition of options and design updates. Support: All Novascan systems backed by Novascan’s unparalleled support system of Masters and PhD level scientists and technicians. Thermal UV Systems: Enhanced and faster treatment for resist stripping, polymer bonding, etc. up to 200C (300C Optionally) Dual UV Systems: Optional Top and Bottom lamps for simultaneous treatment of both sides of the sample. Ozone Evacuator Option: Ozone Neutralizer/Killer with PTFE Vacuum Pumping system for removal of residual Ozone after the UV treatment cycle has completed. This device allows you to safely operate a UV Ozone system on a benchtop instead of in a chemical fume hood. An Automated Ozone Evacuation also available. Power: 100, 120, 220, 240 VAC, 50-60 cycle Safety: Safety interlock turns off UV lamps when chamber is opened. Sample Height: All systems have an adjustable height stage with an external stage lock for proper sample spacing from the lamp. Standard stages are the UV grid size or larger. Gas Ports: Two ports standard, more ports optional Vacuum Chamber: Optional by special order - Aluminum and Quartz fabrication. UV Reflector: The UV Reflector is generally 1” larger than the grid size. For example for a 4x4” grid the reflector is 5x5”. Sample loading: Chamber hinges up and away from the sample staging area allowing ~360 degree access for loading.
CATEGORY
Product: PT.GS.AU.SUC Description: AFM probe with attached particle; coated with gold; modified with a succinimdyl surface chemistry Particle Types and Sizes Available: - Borosilicate Glass (μm) - ~2.0, 5.0, 10.0, 12.0 - SiO2 (μm) - ~0.6, 1.0, 2.5, 5.0 - Polystyrene (μm) - ~ 1.0, 4.5, 7.9, 10 Cantilever Spring Constants (N/m): - Silicon (N/m) - 0.03, 0.05, 0.08, 0.3, 0.35, 0.6, 0.65, 0.95, 1.75, 4.5, 7.5, 14.0 - Silicon Nitride (N/m) - 0.01, 0.02, 0.03, 0.05, 0.06, 0.1, 0.12, 0.32, 0.5, 0.58 Au Coating: 30nm Surface Chemistry: succinimide Minimum Order: 5 of any given modification type
CATEGORY
Product: PT.GS.AU.COOH Description: AFM probe with attached particle; coated with gold; modified with a COOH surface chemistry Particle Types and Sizes Available: - Borosilicate Glass (μm) - ~2.0, 5.0, 10.0, 12.0 - SiO2 (μm) - ~0.6, 1.0, 2.5, 5.0 - Polystyrene (μm) - ~ 1.0, 4.5, 7.9, 10 Cantilever Spring Constants (N/m): - Silicon (N/m) - 0.03, 0.05, 0.08, 0.3, 0.35, 0.6, 0.65, 0.95, 1.75, 4.5, 7.5, 14.0 - Silicon Nitride (N/m) - 0.01, 0.02, 0.03, 0.05, 0.06, 0.1, 0.12, 0.32, 0.5, 0.58 Au Coating: 30nm Surface Chemistry: COOH Minimum Order: 5 of any given modification type
CATEGORY
Product: PT.GS.PEG.MAL Description: AFM probe with attached particle; coated with gold; modified with a maleimide terminated PEG linker Particle Types and Sizes Available: - Borosilicate Glass (μm) - ~2.0, 5.0, 10.0, 12.0 - SiO2 (μm) - ~0.6, 1.0, 2.5, 5.0 Cantilever Spring Constants (N/m): - Silicon (N/m) - 0.03, 0.05, 0.08, 0.3, 0.35, 0.6, 0.65, 0.95, 1.75, 4.5, 7.5, 14.0 - Silicon Nitride (N/m) - 0.01, 0.02, 0.03, 0.05, 0.06, 0.1, 0.12, 0.32, 0.5, 0.58 Au Coating: 30nm PEG Linker: MW End Molecule: Maleimide Minimum Order: 5 of any given modification type
CATEGORY
