Quantum simulator enables first microscopic observation of charge carriers pairing


Artistic depiction of a pair of holes caused by the magnetic background of the system. @ C. Hohmann/MCQST

Since the discovery of high-temperature superconductors almost 40 years ago, scientists have been trying to track down their fundamental quantum-physical mechanisms. But the complex materials still pose mysteries. The new findings of a team in the Quantum Many-Body Systems Department at MPQ in Garching now provide new microscopic insight into processes that may underlie these so-called unconventional superconductors.


Crucial to any kind of superconductivity is the formation of tightly linked pairs of charge carriers - electrons or holes, as electrons vacancies are called. "The reason for this lies in quantum mechanics," explains MPQ physicist Sarah Hirthe: each electron or hole carries a half-integer spin – a quantum physical quantity that can be imagined as a measure of a particle's internal rotation. Atoms also have a spin. For quantum statistical reasons, however, only particles with an integer spin can move through a crystal lattice without resistance under certain conditions. "Therefore, electrons or holes have to pair up to do this," says Hirthe. In conventional superconductors, lattice vibrations called phonons help with pairing. In non-conventional superconductors, on the other hand, a different mechanism is at work – but the question of which one it is has remained unanswered until now. "In a widely accepted theory, indirect magnetic forces play a crucial role," Sarah Hirthe reports. "But this could not be confirmed in experiments so far."


Solid state model spiked with holes

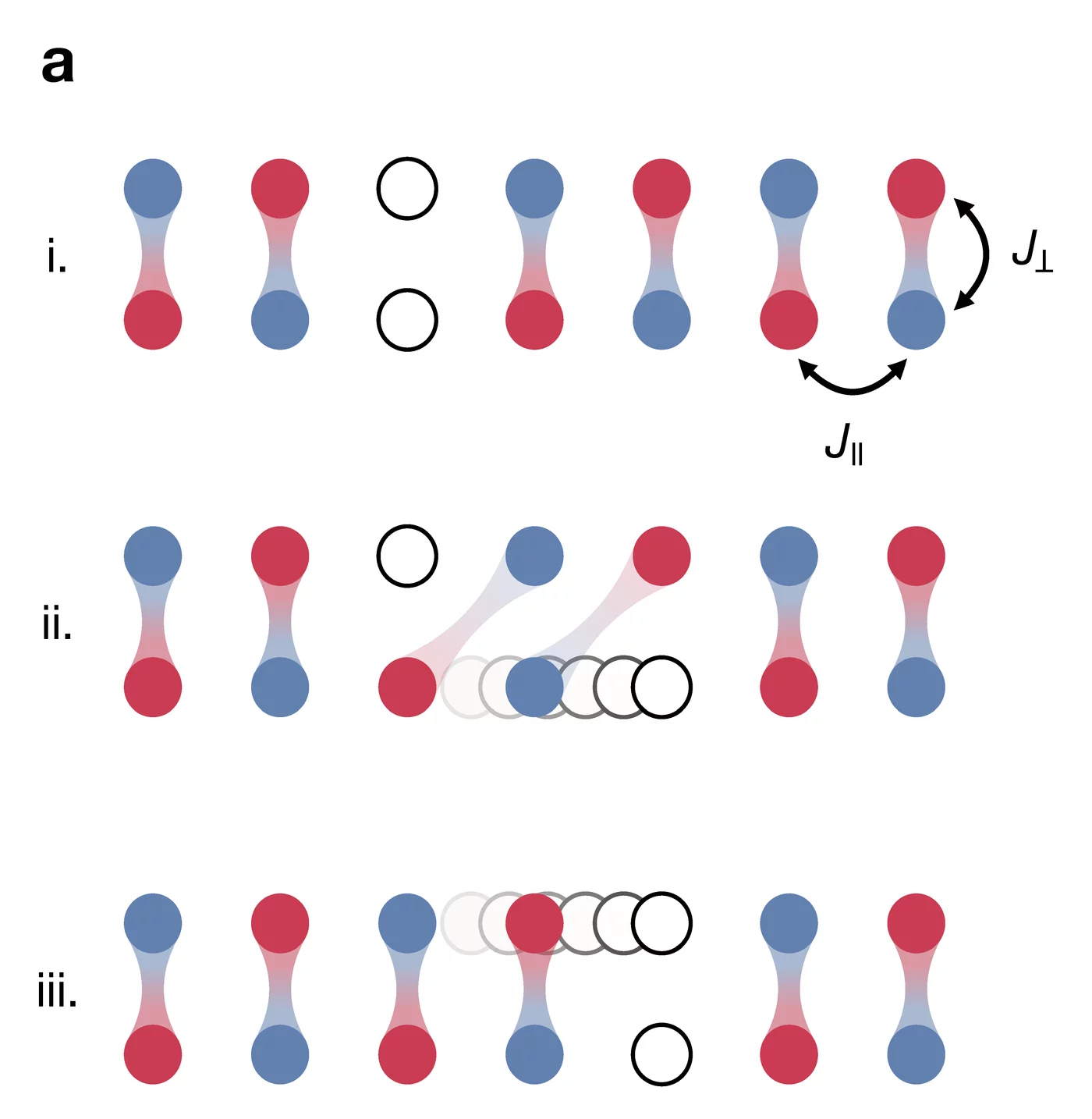

Binding mechanism in a magnetically ordered system. The red and blue spheres are spins of opposite orientations, the shaded bands connecting the spheres show the magnetic order. The white spheres are holes. When a hole moves as shown in (i) and (ii), it perturbs the magnetic order. However, if a second hole is connected to the first, as in (iii), the magnetic order is maintained despite movement. The holes thus pair to maintain the magnetic order in the system. @ MPQ

To better understand the processes in such materials, the researchers used a quantum simulator: a kind of quantum computer that recreates physical systems. To do this, they arranged ultracold atoms in a vacuum with laser light in such a way that they simulate the electrons in a simplified solid-state model. In the process, the spins of the atoms arranged themselves with alternating directions: an antiferromagnetic structure was created, which is characteristic of many high-temperature superconductors – and stabilised by magnetic interactions. The team then "doped" this model by reducing the number of atoms in the system. In that way, holes emerged into the lattice-like structure.


The team at MPQ now could show that the magnetic forces indeed lead to pairs. To achieve this, they used an experimental trick. "Moving charge carriers in a material like high-temperature superconductors are subject to a competition of different forces," explains Hirthe. On the one hand, they have the urge to spread out, i.e. to be everywhere at the same time. This gives them an energetic advantage. On the other hand, magnetic interactions ensure a regular arrangement of the spin states of atoms, electrons and holes – and presumably also the formation of charge carrier pairs. However: "The competition of forces has so far prevented us from observing such pairs microscopically," says Timon Hilker, leader of the research group. "That's why we had the idea of preventing the disruptive movement of the charge carriers in one spatial direction."


A close look through the quantum gas microscope

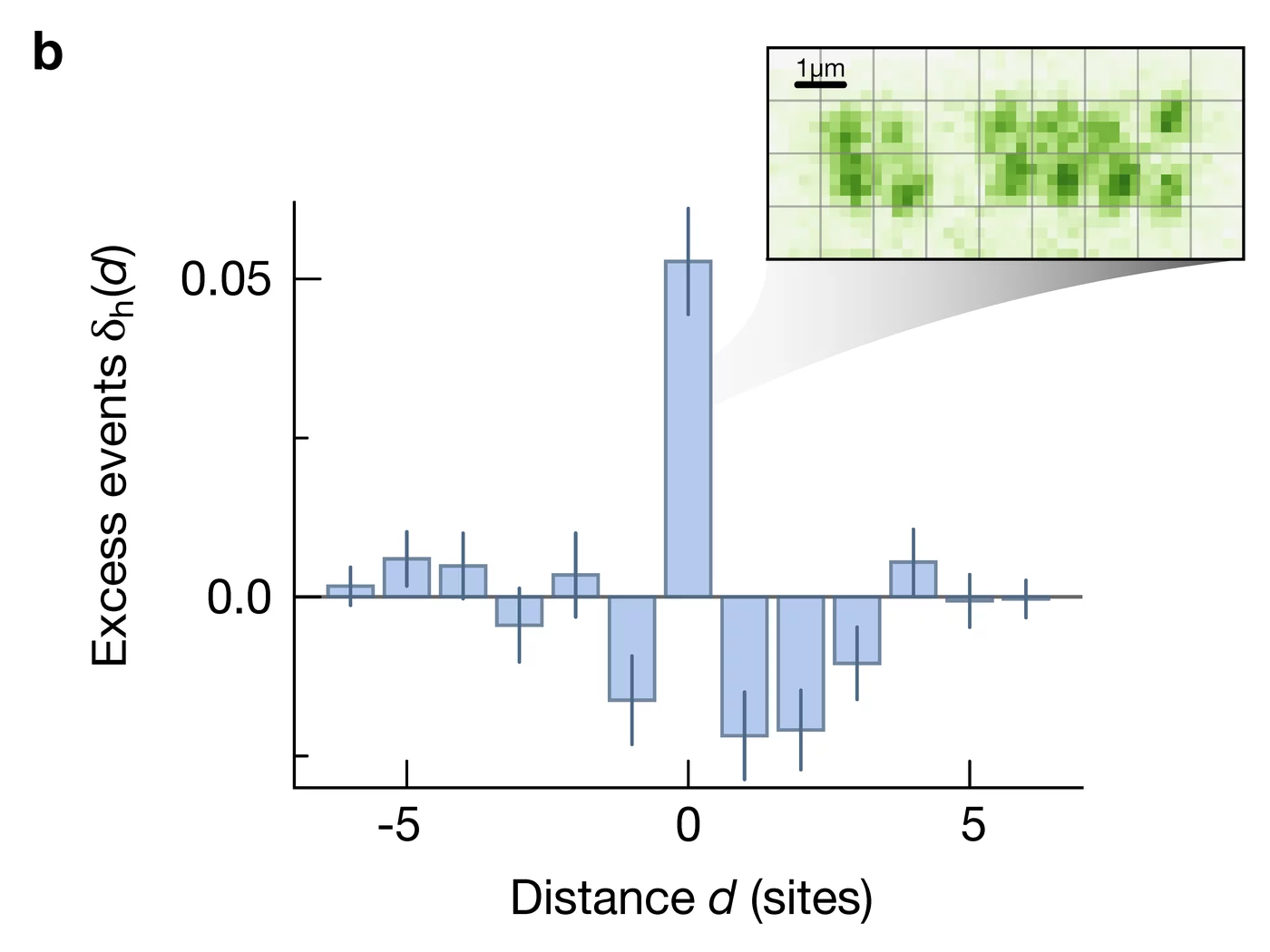

The graph shows an experimentally measured hole distribution, with a clear maximum at distance d=0, which corresponds to two neighbouring holes and shows that the holes pair. In the inset, an exemplary experimental image of our quantum gas microscope with neighbouring holes at distance d=0. Each green spot is the signal of a single atom. @ MPQ

This way, the magnetic forces were, to a large extent, undisturbed. The result: holes that came close to each other formed the expected pairs. To observe such pairing, the team used a quantum gas microscope – a device with which quantum mechanical processes can be followed in detail. Not only were the hole pairs revealed , but the relative arrangement of the pairs was also observed, suggesting repulsive forces between them. The team reports on their work in the scientific journal "Nature". "The results underline the idea that the loss of electrical resistance in non-conventional superconductors is caused by magnetic forces," emphasises Prof Immanuel Bloch, Director at MPQ and Head of the Quantum Many-Body Systems Division. "This leads to a better understanding of these extraordinary materials and shows a new way of how stable hole pairs can form even at very high temperatures, potentially significantly increasing the critical temperature of superconductors".


The researchers at the Max Planck Institute of Quantum Optics now plan new experiments on more complex models in which large two-dimensional arrays of atoms are connected. Such larger systems will hopefully create more hole pairs and allow for the observation of their motion through the lattice: the transport of electric current without resistance due to superconductivity. Reference Magnetically mediated hole pairing in fermionic ladders of ultracold atoms

Sarah Hirthe, Thomas Chalopin, Dominik Bourgund, Petar Bojović, Annabelle Bohrdt, Eugene Demler, Fabian Grusdt, Immanuel Bloch & Timon A. Hilker
