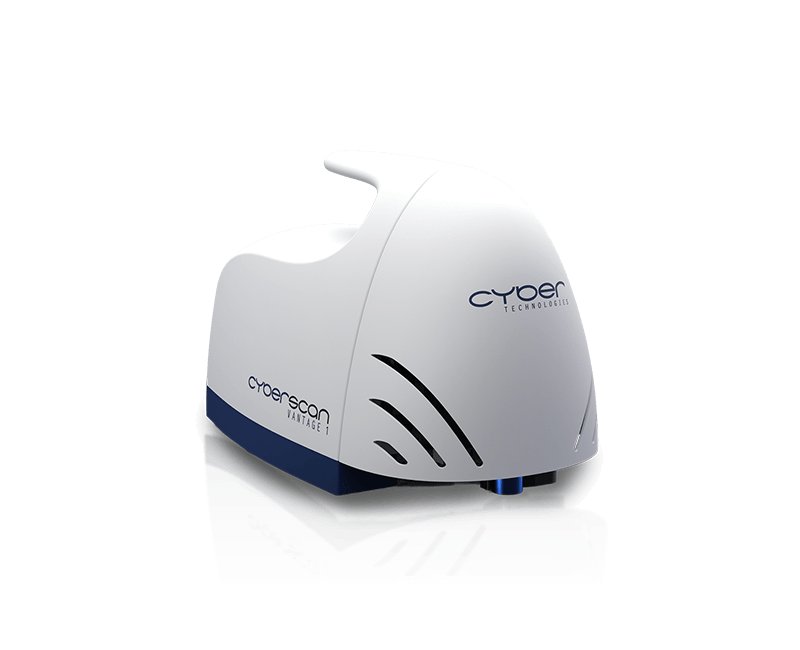

High-Resolution 2D Profilometer Measurement and Analysis Modes: Manual / Semi-Automated Measurement Length: 50 mm Use-Case Examples: Roughness, thick film and step height measurements on substrates, pads, PCBs Measure with Ease The VANTAGE 1 is a 2D Profilometer for high-resolution measurement on a length up of 50 mm. Easy to handle and fast to measure to get high-accurate results in no time. Technology The VANTAGE 1 offers an innovative, compact design that seamlessly integrates all electronics and sensors into one sleek housing. This intelligent integration minimizes the system’s footprint, freeing up valuable workspace and offering great flexibility in use. Z-Axis Y-Axis Built-In Camera The system features a 45 mm z-axis to adjust for different samples heights. The optional automated Z-axis provides autofocus functionality and includes a range extender to measure heights beyond the sensor’s standard measurement range. The VANTAGE 1 is equipped with an automatic scan axis featuring 50-nanometer encoders for highly precise scans over lengths of up to 50 mm. Measure surfaces with exceptional accuracy, achieving lateral measurement point spacing down to one micrometer. Focus on what matters. The system features a built-in camera with multiple magnification options, allowing you to easily navigate on your samples or choose the sensor’s scanning area in live view. Additionally, the camera enables quick and automated fiducial alignment. Available Sensors Chromatic Confocal: Achieve flexible measurements with the compact chromatic confocal point sensors, featuring interchangeable sensor heads and a resolution down to 8 nm. Interferometer: Control the thickness of transparent and infrared-transparent materials (e.g. silicon, glass) with a resolution as fine as 1 nm. Sophisticated Software Profile Measurement: Easily select profile position in live view and adjust settings in a few clicks. 2D Analysis: Select measurement or reference regions and choose from 100+ 2D analyses. Data operations: Prepare scans and data for precise analysis with templates for recurring measurements. Automation: Streamline your recurring measurements and analysis with semi-automation, providing an instant overview of results. Application Examples The VANTAGE 1 offers extensive 2D analysis capabilities, from measuring heights, flatness and thickness to evaluating roughness. It’s your versatile partner for 2D metrology needs. Roughness Heights Thickness Options Customize the VANTAGE 1 to fit your exact needs with a range of versatile upgrade options. Granite Base: Enhance the VANTAGE 1 with a durable granite base for a secure setup and smooth, stable sample placement. Calibration Targets: Calibrate and certify the system anytime with ease. A wide selection of calibration targets and built-in automated procedures make the process fast and easy. VANTAGE 1 Mounting Brackets: Elevate the entire VANTAGE 1 system above your samples with the flexible brackets, providing maximum flexibility to easily position and scan even larger parts underneath.
Resolution: down to 50 nm Speed: up to 36 million datapoints /sec Features: Interchangeable sensor heads Linesensor 2 Measuring rate: 7.9 – 18.3 kHz Light source: Laser Diodes Measurement points per line: 1200 Sensor head Measuring Range Working distance Axial Resolution Measurement angle Line length Pitch L-CHR2 600 680 µm 9.2 mm 50 nm +/- 50° 2.36 mm 1.97 µm L-CHR2 2500 2500 µm 27 mm 200 nm +/- 33° 4.40 mm 3.69 µm L-CHR2 10000 10600 µm 36.6 mm 800 nm +/- 13° 11.9 mm 9.90 µm Linesensor 2 Pro Measuring rate: 7.9 – 36 kHz Light source: Laser Diodes Measurement points per line: 1200 Sensor head Measuring Range Working distance Axial Resolution Measurement angle Line length Pitch L-CHR2 1250 Pro 1250 µm 13 mm 100 nm +/- 45° 4.50 mm 3.75 µm L-CHR2 2400 Pro 2400 µm 21.4 mm 200 nm +/- 38° 8 mm 6.67 µm L-CHR2 3000 Pro 3000 µm 40 mm 250 nm +/- 15° 20 mm 16.67 µm L-CHR2 5000 Pro 5000 µm 42 mm 400 nm +/- 25° 11.9 mm 9.92 µm
CATEGORY
For high-resolution lateral measurements Resolution: up to 235 MP Speed: up to 72 fps Available Models Camera Type Camera Type Color Native Resolution Maximum Resolution (Pixel Shift) Frame Rate 235M Monochrome 5120 x 5120 15360 x 15360 px 72 fps (8 fps for maximum resolution) 235C RGB 5120 x 5120 5120 x 5120 px (True Color) 72 fps (8 fps for true color mode) Objective Objecive Working Distance Magnification Field of View Aperture Lateral Resolution Xenon-Sapphire 110 mm -1.53 15 x 15 mm² 0.09 0.98 – 2.9 µm Working Principle This advanced measurement technology offers precise distance measurements using a polychromatic light source. Pixel Shifting Pixel shifting boosts resolution beyond sensor limits by capturing multiple shifted images. High Resolution The VWC-235M achieves 235 MP in black and white, while the VWC-235C captures high-resolution color by recording separate RGB values for each pixel.
CATEGORY
Production software for a fully automated metrology process. Management for Metrology Systems. M-Link is our software for controlling handling and multiple metrology systems. Operator-friendly and easily integrated into production environments through SECS/GEM. Key Features: Overview at a glance - Get a real-time view on handling, systems, magazines, measurements and results. Touch screen optimized - Full touch control designed for cleanroom environments. Production ready - SECS/GEM integration for seamless connection to your production environment. ASCAN remote control - Use M-Link to control ASCAN automation software, optimized for full-scale production environments.
CATEGORY
High-Throughput Wafer Metrology Measurement and Analysis Modes Fully Automated including Handling Measurement Area up to 2x 250 x 250 mm² single or double-sided Use-Case Examples Step Height, Flatness (Bow, Warpage), Coplanarity (Bumps, Plugs), Thin Film, Lasermarks and many more Fully Automated Metrology Cell The AL 200D integrates two dockable CT 300 or CT 350T units with a wafer handling system, supporting wafers from 4” to 8”. This design maximizes throughput and can be used for a wide range of front-end applications.
