By BaySpec, Inc

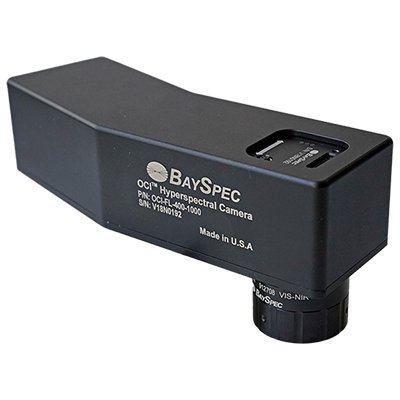

Ultra-compact and fast-covering the VIS – NIR and SWIR ranges Product Overview: OCI™- F series hyperspectral imaging cameras cover from visible, near-infrared to shortwave-infrared (VIS – NIR – SWIR) spectral range. They feature ultra-compactness, light weight, and ultrafast data transfer rates. In this way, the OCI-F series hyperspectral imaging cameras offer versatility on various platforms with perfect hyperspectral image stitching. As the innovative push-broom cameras with automatic data capturing and processing, they can move to scan at various scanning speeds. These imagers offer an aberration-corrected optical system with high optical throughput, the data quality, sensitivity, and resolution are truly state of the art. BaySpec offers various models of OCI™- F series hyperspectral imagers satisfying your desired demands, from spectral ranges, number of spectral channels, spectral resolutions to spatial pixels. The elegant completely integrated design and manufacturing in our quality certified production facility with world-class quality control to deliver high precision, superb signal-to-noise, excellent spectral & spatial resolution, and outstanding imaging quality. With the free packed operation software, OCI™ - F series hyperspectral imaging cameras are automatic and have minimal human intervention. OCI™- F series hyperspectral imaging cameras are ideally catered to various unmanned aerial vehicles/systems (UAV/UAS) and remotely operated vehicles (ROV). BaySpec also provides ready-to-fly hyperspectral solutions. Extreme compactness with uncompromised performance, automatic operation and data processing makes the OCI-UAV a straightforward system for applications, such as precision agriculture, oceanography, geological survey, remote sensing, security/defense, and anti-counterfeiting. For more details, please inquire with sales@bayspec.com Key Features - VIS - NIR and SWIR coverage - Real-time sample preview - Extremely compact and lightweight - No moving parts, excellent reliability - Push-broom scanning with random speed - Easy integration on a variety of platforms - Eliminates costly GPS/INS orthorectification post processing - Yields distortion-free hyperspectral band images - Various models to fit your budget and customized requirements Specification Model OCI™- F OCI™- FSWIR Number of Spectral Bands 60 / 120 / 240 80 Spectral Range 400 - 1000 nm 900 - 1700 nm Spectral Resolution 10 nm FWHM / 5-7 nm FWHM / 3 nm FWHM 10 – 12 nm FWHM Frame Rate 50 frames/sec 50 frames/sec Dimension 14 x 4.5 x 4.5 cm3 16 x 5 x 5 cm3 Weight 340 g 535 g
Handheld spectrometer equipped integrating sphere BreezeTM - IS, the integrating sphere equipped model is a prominent upgrade for all BreezeTM series handheld spectrometers. The BreezeTM - IS model only slightly increases the size but empowers the device to provide much more accurate and detailed spectral information. The IS model can measure diffuse reflection of a material’s surface and average all angles of illumination. Featuring proprietary miniaturized optics, BreezeTM - IS acquires maximum sensitivity and ultrafast acquisition with only one-button operation in your hand. Just as other BreezeTM smart handheld portable spectrometers, the BreezeTM - IS model was built as a user-central product. The fully automatic spectrum analysis requires none of training and any technical background and strips out the cost of and logistics chore for lab test outsourcing. The measurement operations are controlled by any smartphone, which are connected to a Cloud based database. This handheld device can perform spectroscopic analysis at anytime and anywhere. It is an ideal solution for all on-site chemicals analysis applications, such as illicit drugs, pharmaceuticals, explosives, biological warfare agents, cannabis, plastic, and food. Key Features - Handheld device with ONLY ONE BUTTON operation - Full VIS - NIR to SWIR wavelength coverage from 400 – 1700 nm - Ultrafast and maximum sensitive acquisition - Wireless device with Bluetooth connectivity and equipped internal broadband light source, rechargeable Li-ion battery, and integrating sphere built in - Easy spectrum analysis and management with app “LightSpec” and Cloud-based database - User-friendly with none of required any technical background and training - Automatically adjusted integration time and supports sample averaging - No-third party hardware, everything in BaySpec “Breeze™-IS Smart Handheld Portable Spectrometers” package - Easy-access hardware buttons ergonomically arranged on device Specification Model BRZ-IS VIS-NIR BRZ-IS VIS-NIR-SWIR BR-IS SWIR λ Ranges (nm)400-1000 400-1700 900-1700 Resolution (nm)~5-7 nm~7-12 nm~10-12 nm Dimensions (mm)165 x 70 x 55 165 x 70 x 55 140 x 55 x 50 Weight (g)435 460 405
CATEGORY
High-performance, compact, and wide wavelength coverage NIR – SWIR spectrometer Product Overview: SuperGamut™ near-infrared - shortwave-infrared (NIR - SWIR) spectrometer offers flexible and wide wavelength coverage selections from 900-1700 nm, 1100-2200 nm to 1250-2500 nm. The SuperGamut™ NIR - SWIR spectrometer is designed to meet real-world challenges for best-in-class performance, long-term reliability, compact size, cost - efficiency and ultra-low power consumption. BaySpec offers high spectral resolution, low-noise with a high dynamic range and real-time spectral data acquisition NIR - SWIR spectrometer, as well it supports easy plug via USB connection & packed software “SPEC 20/20” and SDK. With a compact size, high-performance and durability, our device is ideal solution for OEM applications with a wide range selection from UV – NIR to VIS - NIR. BaySpec also provides fully customized OEM solution to meet your specific need and application. Benefiting from experience manufacturing high-volume optical channel performance monitoring devices for the telecommunications industry, BaySpec’s NIR – SWIR Spectrometer utilizes high-performance, field-proven components. The SuperGamut™ NIR - SWIR spectrometer is the ideal solution for various applications, including, contaminant detection, atmosphere & thermal imaging, moisture detection, chemicals detection and agriculture inspection, etc. Key Features - Wide and flexible wavelength ranges from 900-1700nm, 1100-2200nm to 1250-2500 nm or custom - Fast f/2 or f/3 optics for improved throughput with fiber input - High throughput, transmission holographic Volume Phase Grating (VPG®) - Operates over wide -10 to +60°C temperature range - Operates in high +85% relative humidity environments - Hermetic-sealing option for operation in harsh environments and no moving parts - Optimized TEC cooling - Free packed software “SPEC 20/20” and SDK - Factory calibrated for long-life and low maintenance Specification Wavelength Range 900 – 1700 nm or custom Spectral Resolution~1-20 nm Integration Time 20µs - 300s Active Pixels 256 / 512 Dimensions 162 x 105 x 60 mm3 Weight 800 g
CATEGORY
Full UV – VIS – NIR – SWIR wavelength coverage and the most flexible OEM solution Product Overview: SuperGamut™ UV – VIS – NIR – SWIR Benchtop spectrometer system offers the full and most flexible wavelength coverage selections from 200 to 2500 nm (UV – VIS – NIR – SWIR). BaySpec benchtop spectrometer system incorporates all SuperGamut™ series spectrometers (UV – NIR, VIS – NIR and NIR - SWIR), light sources, and sampling optics into one compact turn-key system. In additional we also provide fully customized OEM solution for specific application. The SuperGamut™ benchtop spectrometer system utilizes advanced technology of highly efficient holographic Volume Phase Grating(VPG®) as the spectral dispersion element and an ultra-sensitive CCD or InGaAs detector to achieved more compact benchtop configuration, ultra-low fluorescence interference, high spectral resolution, low noise with a high dynamic range and real-time spectral data acquisition instrument, as well it supports easy plug via USB connection & packed software “SPEC 20/20” and SDK. These are enabling the SuperGamut™ benchtop spectrometer system to be an excellent console for diverse sophisticated applications, including pharmaceutical formulation, rapid narcotics analysis, forensic analysis, polymer blending, and petrochemical, etc. For more details, please inquire with sales@bayspec.com Key Features Specification - Full UV – VIS – NIR – SWIR wavelength coverage from 190-2500 nm or custom - Fast f/2 or f/3 optics for improved throughput with fiber input - High throughput, transmission holographic Volume Phase Grating (VPG®) - Operates over wide -10 to +60°C temperature range - Operates in high +85% relative humidity environments - Hermetic-sealing option for operation in harsh environments and no moving parts - Optimized TEC cooling - Free packed software “SPEC 20/20” and SDK - Factory calibrated for long-life and low maintenance Wavelength Range 190 - 2500 nm or custom Spectral Resolution~1-20 nm Integration time 20µ - 300s Active Pixels 256 / 512 and 1024 / 2048 Dimensions custom Weight custom
CATEGORY
High-performance, compact, and durable UV - VIS - NIR spectrometer SuperGamut™ ultraviolet - visible - near-infrared (UV - VIS - NIR) spectrometer with wide wavelength coverage from 190 – 1100 nm. The SuperGamut™ UV - VIS - NIR spectrometer is designed to meet real-world challenges for best-in-class performance, long-term reliability, compact size, cost - efficiency and ultra-low power consumption. BaySpec offers a high spectral resolution, low-noise with a high dynamic range and real-time spectral data acquisition UV - VIS - NIR spectrometer, as well it supports easy plug via USB connection & packed software “SPEC 20/20” and SDK. With a compact size, high-performance and durability, our device is an ideal solution for OEM applications with a wide range selection from VIS - NIR to NIR-SWIR, BaySpec also provides fully customized OEM solutions to meet your specific need and application. Benefiting from experience manufacturing high-throughput optical channel performance monitoring devices for the telecommunications industry, BaySpec’s UV - VIS - NIR Spectrometer utilizes high-performance, field-proven components. The SuperGamut™ UV - VIS – NIR spectrometer is the ideal solution for various applications, including, adsorption spectroscopy, fluorescence spectroscopy, Raman spectroscopy, biomedical research, explosives & narcotics detection, and counterfeit detection, etc. Key Features - UV - NIR wavelength coverage from 190-1100 nm or custom - Fast f/2 or f/3 optics for improved throughput with fiber input - High throughput, transmission holographic Volume Phase Grating (VPG®) - Operates over wide -10 to +60°C temperature range - Operates in high +85% relative humidity environments - Hermetic-sealing option for operation in harsh environments and no moving parts - Optimized TEC - Free packed software “SPEC 20/20” and SDK - Factory calibrated for long-life and low maintenance Specification Wavelength Range 190 – 1100 nm or custom Spectral Resolution ~1-20 nm Integration time 5ms – 60s Active Pixels 2048 Dimensions 162 x 105 x 60 mm3 Weight 800 g
