By Gatan

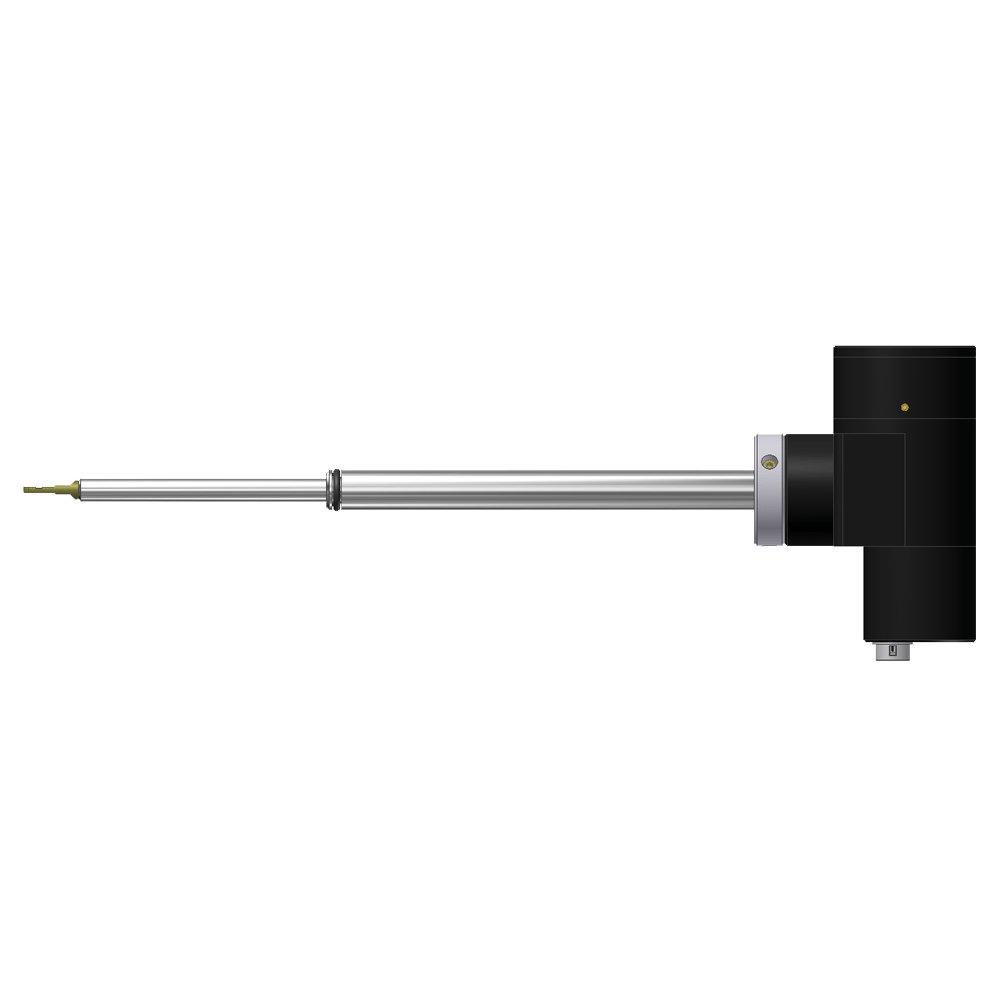

Models 643, 646, 650, 925 Optimized for EDS analysis at ambient temperature. TEM analytical holders are designed for basic imaging and analytical applications, such as electron diffraction and energy dispersive x-ray spectroscopy (EDS) analysis of crystalline TEM specimens. A beryllium specimen cradle minimizes unwanted x-ray signals Cut-outs in the specimen tip are matched to the TEM configuration and provide a clear path between the sample and detector to reduce shadowing for EDS analysis. To facilitate quantitative x-ray analysis, non-rotating holder versions are equipped with a small Faraday cup located near the specimen cradle at the tip of the holder Electrical connections are available for the non-rotating versions of the holder Model number | Beryllium cradle | Specimen positioning | Specimen securing | Motorized control | Faraday cup | Max. electrical feed-throughs (optional) 643 | Standard | α tilt | Hexring® | | Standard | 6 646 | Standard | α, β Tilt | Hexring | β Tilt | Standard | 4 – 6 1 650 | Standard | α Tilt and rotation | Hexring | Rotation | No | 0 925 | Standard | α, β Tilt and rotation 1 | Hexring | | No | 0 1 2 –6 for JEOL UHR, 2 –4 for all other EMMs
Models 1124, 1125. The world’s first direct detection cameras to democratize cryo-EM. Alpine®is the world’s first direct detection camera series to democratize cryo-electron microscopy (cryo-EM) imaging. By enabling the acquisition of high-resolution structures on 80 – 200 keV microscopes, the Alpine series allows routine cryo-EM research on more affordable, workhorse instruments and expands its usefulness to the larger research community. Two models available to match the field of view with your application needs: Alpine (1124) – Turns 80 – 200 keV screening microscopes into data-collection microscopes with single-electron counting capabilities. Delivers a detective quantum efficiency (DQE) up to 2.4-times the performance of scintillator-based cameras. Makes the 2D classification of small molecules possible while improving macromolecule reconstructions. Streamlines your workflow and detects failures early to produce better structures, faster. Real-time counting ensures there is no compromise between data collection speed and quality.
CATEGORY
Models 1124, 1125. The world’s first direct detection cameras to democratize cryo-EM. Alpine®is the world’s first direct detection camera series to democratize cryo-electron microscopy (cryo-EM) imaging. By enabling the acquisition of high-resolution structures on 80 – 200 keV microscopes, the Alpine series allows routine cryo-EM research on more affordable, workhorse instruments and expands its usefulness to the larger research community. Two models available to match the field of view with your application needs: Alpine Vista (1125) – Maximizes imaging throughput for your high-performance microscopes with a large FOV of 5,760 x 4,092 pixels. Delivers a detective quantum efficiency (DQE) up to 2.4-times the performance of scintillator-based cameras. Makes the 2D classification of small molecules possible while improving macromolecule reconstructions. Streamlines your workflow and detects failures early to produce better structures, faster. Real-time counting ensures there is no compromise between data collection speed and quality.
CATEGORY
Model 1140 Delivers non-destructive, high-performance elemental analysis with unmatched flexibility and ease of use. The EDAX® Orbis™ II micro-x-ray fluorescence (micro-XRF) system delivers non-destructive, high-performance elemental analysis with unmatched flexibility and ease of use. Engineered for excellence across the full spectrum of micro-XRF applications, the Orbis II empowers users to analyze everything from the smallest particles to large, complex samples—quickly and accurately. Experience the next level of micro-XRF analysis with the EDAX Orbis II—where precision meets performance. - Custom x-ray window technology enables the detection of light elements - Proprietary coaxial light and x-ray optics precisely targets specific regions – eliminating x-ray interference from adjacent areas - Maximizes throughput by collecting spectra 2.5x faster and spectral maps 3x faster - Streamlines workflows with programmable autorun routines to boost productivity and ensure consistent results
