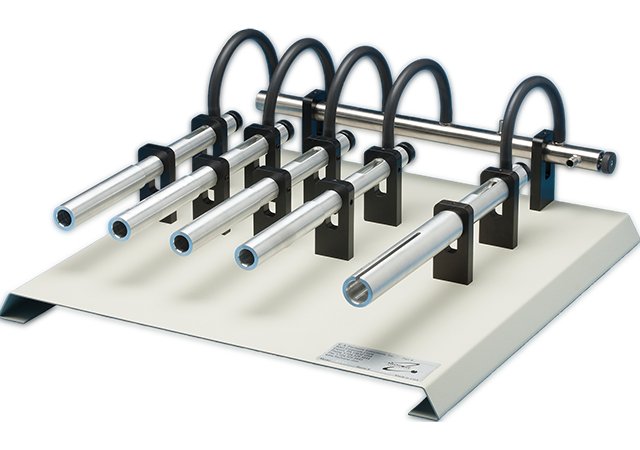

Allows for the simultaneous vacuum storage of up to five plasma-cleaned specimens and TEM specimen holders. It includes a heavy duty metal base, five Model 9010 Vacuum Storage Containers, a vacuum pumping manifold, and all of the necessary components for connection to the Model 1020 Plasma Cleaner and the Model 1070 NanoClean. The Model 9020 Vacuum Pumping Station allows for the simultaneous vacuum storage of up to five plasma-cleaned specimens and TEM specimen holders. It includes a heavy duty metal base, five Model 9010 Vacuum Storage Containers, a vacuum pumping manifold, and all of the necessary components for connection to the Model 1020 Plasma Cleaner and the Model 1070 NanoClean. The Vacuum Storage Containers are individually valved to facilitate specimen holder insertion and removal from the Vacuum Pumping Station. Precision valves ensure vacuum integrity for prolonged periods. The Vacuum Storage Container is typically evacuated through the use of the Model 1020 Plasma Cleaner or the Model 1070 NanoClean. The specimen portion of the TEM specimen holder can be directly observed through a sight glass. An aluminum outer housing provides a high degree of protection to the specimen holder, enabling the safe storage of specimen holders under clean, vacuum conditions. The Vacuum Pumping Station assembly includes the customer's choice of five types of Vacuum Storage Containers. The customer may choose Vacuum Storage Containers from different manufacturers, e.g., three Thermo Fisher Scientific containers and two JEOL containers, or four Hitachi containers and one Zeiss container.
Includes all the components required to produce high quality cross-section specimens for transmission electron microscopy. Widely used cross-section specimens include semiconductor devices (which often have multiple layers and, thus, multiple interfaces), specimens with thin film layers, and composite materials. For the study of interfaces by transmission electron microscopy, it is critical to align the interface of interest parallel to the incident electron beam. One method for preparing such samples is to fabricate cross-section specimens. - Stacks and holds cross-section specimens - Aligns areas and interface of interest - Produces consistent glue layer thickness - Resulting stacks are readily cut by the Model 170 Ultrasonic Disk Cutter - Fabricate self-supported 3 mm diameter disk specimens
CATEGORY
Specimen Grinder. Mechanically prethins specimens for transmission electron microscopy. Produces uniform thickness specimens with parallel sides. Greatly reduces the time spent during the final preparation process of ion beam milling. For transmission electron microscopy, the quality of the initial disk determines the quality of the final specimen. The disk can be mechanically ground using the Model 160 Specimen Grinder to a precisely controlled thickness. Use the Model 200 Dimpling Grinder for final thinning. - Accurate and dependable - Precisely controlled - Specimens up to 18 mm diameter - No additional force needed - Large diameter provides excellent stability - Platen transferable to the Model 200 Dimpling Grinder
CATEGORY
Ultra-Narrow Gap Tomography Holder. A holder capable of tilting up to 90° while providing a maximized field of view for transmission electron microscopy. The Model 2030 Ultra-Narrow Gap Tomography Holder is capable of tilting up to 90° while providing a maximized field of view. The holder is suitable for ultra-narrow gap (< 3 mm) pole-piece geometries. The Ultra-Narrow Gap Tomography Holder accepts a 1.5 mm square or round TEM specimen or grid into a cartridge, securing it with a single clamp. Items included are a specimen loading stand, a Model 9010 Vacuum Storage Container, a loading fixture, a clamp tightening tool, copper grids, tweezers, and a spare parts kit. The holder: - Specimen loading station allows easy positioning and clamping of the specimen into the cartridge - Has a streamlined specimen clamping mechanism eliminates the shadowing associated with most holders at high-tilt angles - Has a retractable clamp that evenly distributes force on the specimen - Accommodates specimen thicknesses up to 100 μm - Is compatible with the TEM’s touch alarm, which stops goniometer movement in the event that a pole touch occurs The holder is available for both JEOL and Thermo Fisher Scientific microscopes.
CATEGORY
Produces high quality disk specimens from thin metal foils. A precision ground punch and die plate eliminate specimen stress and distortion. An ideal accessory to the Model 110 Automatic Twin-Jet Electropolisher. The specimen punch is available with a standard base or with a wide base, which provides extra stability when producing thin foils. A precision ground punch and die plate eliminate specimen stress and distortion of the disk specimen. A spring-loaded return plunger keeps the disk specimen on the die plate surface for convenient handling. Available in standard sizes of 1 mm, 2.3 mm, and 3.0 mm; other sizes available upon request
