Coatings for Unprecedented Droplet Motion Electrowetting has become one of the most widely used tools for manipulating tiny amounts of fluids on surfaces, achieved via electromechanical reduction of a liquid's contact angle on an electrically-charged solid surface. GVD has developed its own electrically and chemically stable electrowetting material system for precise control of liquid streams and droplets. A multilayer design is optimized for the modification of the wetting properties of the surface with a maximum range of response via an applied electric field, eliminating the need for pumps or valves. - Dry, surfactant-free coating application that does not require curing or annealing - Ultra-thin, uniform and pinhole-free film with maximum voltage response - Designed for long term stability, with high breakdown voltage, low defect density and UV & acid stability. - Conformally coats complex-shaped surfaces without plugging small cavities - Exhibits ultralow pinning to ensure minimum hysteresis - Optically transparent coating for analysis and feedback Electrowetting Coating Properties - Breakdown Voltage: > 100 V - Electrowetting Actuation Voltage (Δθ=40°, water in oil): 9 V - Contact Angle Modulation (water in oil): 70°- 170° - Electrowetting Contact Angle Hysteresis (water in oil): < 2° - Static Contact Angle (water in oil): 170° - Water Absorption: < 0.1% - Optical Transparency: > 95% (300mm-1200mm) Electrowetting Coatings can be Utilized in: Microfluidic Devices, Lab-on-a-chip, Electrowetting Displays, Switchable Optics, MEMS FAQs: Coating is applied via a contactless, solvent-free, chemical vapor deposition process in specialized chambers. This process produces uniformly coated samples that require no curing. The excellent properties of GVD's coatings allow an actuation voltage of less than 10 VDC. For greater wetting modulation, voltages as high as 100 VDC may be applied. GVD coating system replaces parylene as the dielectric layer and Cytop as the hydrophobic layer. For water in silicone oil, we were able to achieve contact angles upwards of 170° with < 2° hysteresis. GVD's proprietary dielectric material provides superior dielectric strength and ensures low leakage currents, while the low-energy and ultra-smooth hydrophobic surface ensures the maximum wetting control with minimum applied voltage and excellent reversibility. GVD's coating material is resistant to water absorption, chemical breakdown, delamination and electrochemical degradation. GVD's coating utilizes a construction that resists attachment of cells and non-specific adsorption of biomolecules. GVD's coating process easily accommodates non-flat substrates and even 3-dimensional parts.
For Challenging Mold Structures RapidRelease is an ultra-thin, permanent PTFE coating designed to provide clean release for the most demanding mold applications. RapidRelease provides quick and efficient demolding for higher quality parts, increased yields, and significantly lower operating expense.
CATEGORY

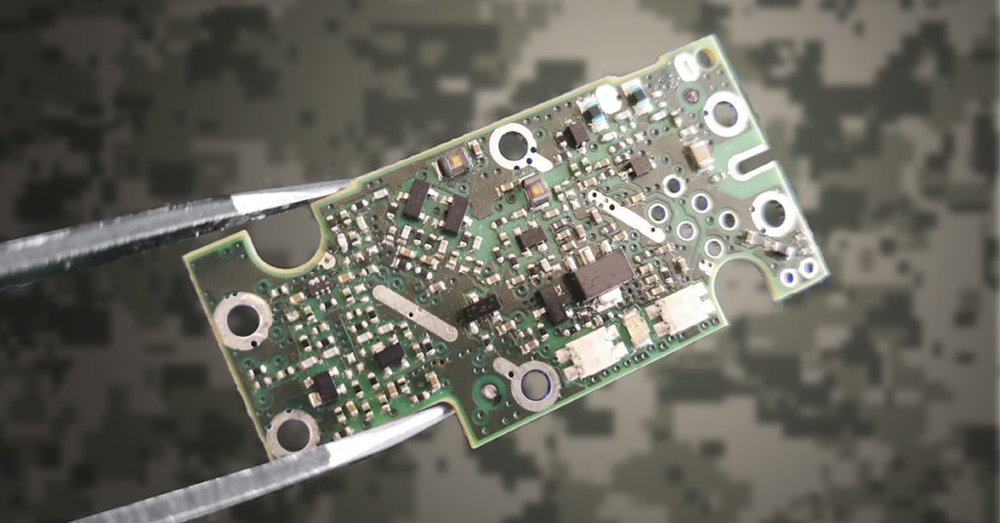

For High Frequency Electronics SignalSeal is an advanced and proven vapor deposited polymer coating that provides unprecedented protection for circuit boards & devices in extreme environments without adding weight or sacrificing RF or high-speed digital performance.
CATEGORY
For Solvent-free, Non-stick Surfaces GVD’s thin film PTFE can transform surfaces to be non-stick, low friction, hydrophobic and lubricous through a contactless coating application free of harsh chemicals or high temperature processing.
CATEGORY
