By KMLabs

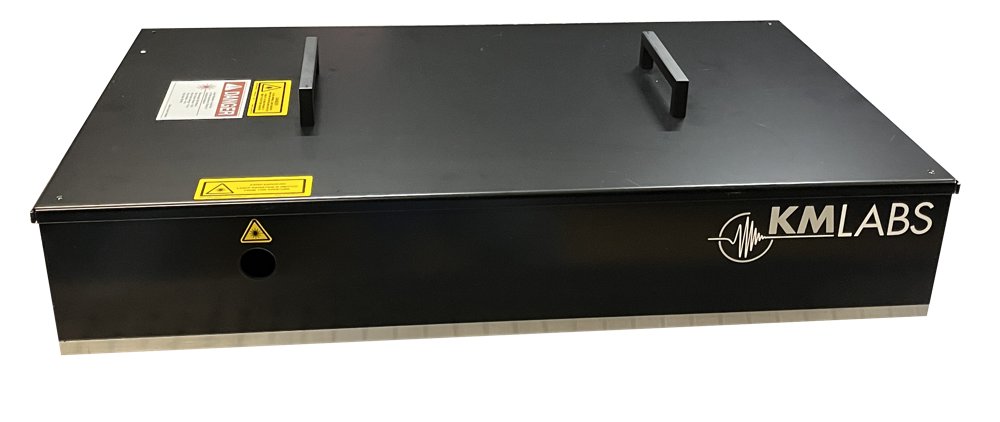

The KMLabs Griffin™ series of Ti:sapphire oscillators gives customers ultimate control over their system, are simple to maintain, and offer a wide range of performance specifications enabling many different applications.Griffin™ series use Kerr lens modelocking to generate ultrashort < 12 fs pulses. All Griffin lasers include computerized control of the spectral bandwidth and center wavelength and water-cooled breadboards for maximum long term stability. Applications - Frequency conversion into the UV and mid-IR - Pumping OPO - Materials Research - Femtochemistry - Spectroscopy - THz Generation - Ultrafast Imaging - 2-photon polymerization - Pump-probe experiments Custom configurations available Griffin Specifications Tunable Wavelength Range ~750-850 nm Repetition Rate 75-100 MHz Maximum Mode-locked Power > 500 mW at 800 nm Pulse Duration (based on Fourier transform limit) < 15 fs Pulse Energy > 5 nJ
XUUS 5 upconverts ultrafast laser pulses into the Extreme UV(EUV or XUV) or soft X-ray regions of the spectrum. Employing HHG processes, the output beam inherits the coherent properties of a driving laser such as the KMLabsRAEAwith wavelengths that can be tuned from ~10 to 50 nm. Moreover, customized systems can generate coherent beams with wavelengths as short as 6 nm. The XUUS 5 employs KMLabs' patented hollow waveguide for the high harmonic up-conversion process. Salient Features: Photon Energy Range 20 - 1,600 eV Flux Up to 10 12 ph/s/h at source Pulse Duration Femto- to attoseconds
CATEGORY
The KMLabs Eclipse TM is a high repetition rate, half wave Pockels cell and driver unit, designed for laser pulse picking at up to 20kHz. The Eclipse has a minimum window of 10ns, and 90% throughput between 750-850nm. KMLabs' compact design allows the driver to be packaged in with the optical unit, thus minimizing the high voltage line-length, and thereby maximizing the switching speed. The high voltage source for the Eclipse is an external, 19"w x 13"d x 3.5"h unit. Salient Features: Minimum Switching Window 10 ns Switching Efficiency 90 % for 750 - 850 nm Driver/Cell Aperture Diameter 9 mm Monochromator Single harmonic selector
CATEGORY
The Arterium beamline modules are designed with flexibility in mind. Various modules are available for for different functions such as removing the high power IR that is used for driving harmonics, steering, focusing, and filtering. Please contact us to discuss your specific beamline requirements. Salient Features: Rejector Module Removes 99.8% of IR Filter Wheel Module Up to 4 filters in series with a 28-filter capacity SwitchYard Module Three-way splitter for flexibility Focusing Module Spot sizes down to ~ 1 m m Monochromator Single harmonic selector EUV Diagnostics Spectral content and flux
