By Kibron Inc.

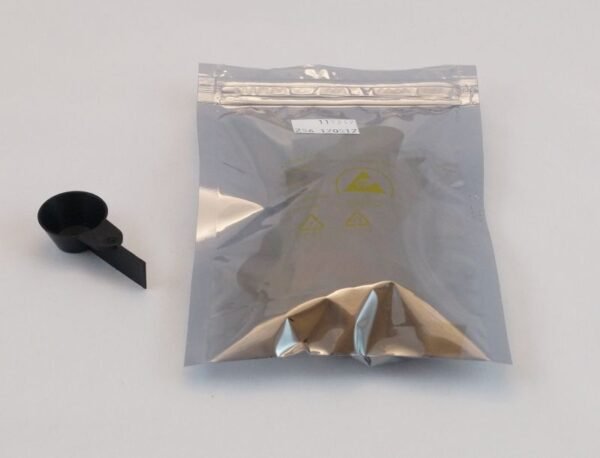

3 ml sample cups for AquaPi, AquaPi Plus and EZ-Pi Plus. Can also be used with Microtrough for surface tension measurements and calibration. One set contains 5 antistatic bags each containing 10 cups. Using consumable polypropene vials instead of glass reduces contamination risk significantly – glassware should be thoroughly cleaned with Piranha solution or similar to qualify for surface tension measurements. Specifications: Material: Polypropene and carbon Temperature range: 0-100 °C
SKU: 8510 Kibron Delta-8 is a unique surface tension platereader for high throughput applications. The Delta-8 is the only surface tension plate reader in the market. It can determine the CMC (critical micelle concentration) of a surfactant up to one hundred times faster than with conventional tensiometers. Surface tension is measured by our proprietary DyneProbe which is ultracompact and requires no correction factors, as usually found with rings and plates. DyneProbes works also with cationic surface active agents. The Delta-8 uses standard size detection plates and conventional dispensing systems. Each well can be charged with individual samples or in the case of CMC determinations with aliquots of solution of different concentration. Before every run, the DyneProbes are heated using the Kibron DyneClean furnace. The bottom end of each probe is brought into contact onto a (very) hot surface. Upon contact, the tip of the probe is heated to around 600 °C. This ensures consistent and repeatably clean surfaces. Alternatively, or as a complimentary method the probes can be dipped in a washing cassette containing the appropriate cleaning solutions. A typical CMC determination consists of: 1: Dispensing aliquots of solution: Liquid handling is done using multichannel handheld pipettes or by a pipetting robot. 2: Probe cleaning: The DyneProbes are heated to red hot to burn off all contaminants. 3: Immersion and withdrawal: The DyneProbes are positioned above a row of 8 wells and immersed gently. The force on the plate is measured continuously (400 times/s) and upon withdrawal the surface tension is determined. 4: Analysis: Up to 96 data points can be acquired in around 3 minutes. These are automatically logged to a PC and the CMC is calculated by our analytical CMCeeker software. Content 8511 – Delta-8 instrument 8750 – Power supply 100-120V /200-240V AC/12V DC 8751 – Power cord, EU 8752 – Power cord, US/JPN 8753 – Power cord, UK 8720 – Data cable, RS-232 8730 – Tool Set 8620 – DyneClean probe cleaning unit 8650 – Set of DynePlates, 10 pcs 1501 – Set of DyneProbes, 8 pcs – License for software. Please specify. 8810 – User Manual Specifications Temperature range 18–30°C Measurement volume 50 μl/well Surface tension range 10-100 mN/m Resolution 0.01 mN/m Balance resolution 0.050 μgrams Precision 0.2 mN/m Method du Noüy-Padday Measurement time(96-well plate) 3 minutes Probe lifetime 100 plates Cleaning of Dyneprobes DyneClean electric furnace DyneClean lifetime 400 plates DynePlate – 96-well plates Dimensions 127.8 × 85.5 mm (standard footprint) Volume per well 50 μl Type Disposable Software Supported OS Windows: NT4.0 /2000/XP/7 Min. requirements PII266 MHz, 64 MB memory, CDROM-drive, SVGA display, one free COM port, 25 MB disk space Communication RS-232 Physical dimensions Weight 24 kg / 52,911 lbs. Height 405 mm / 15,945 in. Width 770 mm / 30,315 in. Depth 380 mm / 14,961 in. Power supply Input 100 –120/200 –240 V, 47– 63 Hz. Output 12 V DC, 10.8 A. Power max.120 W CE-approved Safety standards EMC-Directives IEC61010-1:2001, EN55011:1998, EN61003-3-2:1995, EN61000-3-3:1995, EN61000-4-2:1995, EN61000-4-3:1996, EN61000-4-4:1996, EN1000-4-5:1996, EN61000-4-6:1996, N61000-4-11:1994
CATEGORY
DeltaPi is a tensiometer especially developed for studying interactions in biological systems. DeltaPi and DeltaPi-4 Kibron’s unique single and 4-channel Langmuir-tensiometers Kibron DeltaPi and DeltaPi-4 are novel types of instruments: Langmuir-tensiometers, which allow you to measure the binding of drugs, peptides, and proteins to lipid membranes – easily and with unparalled sensitivity. We innovate instruments for your innovative science. Biomembranes and lipids are entering the forefront of biosciences, biotechnology and drug discovery. In these studies lipid monolayers have paved way to breakthroughs in the elucidation of the molecular mechanisms of action of lung surfactants, antimicrobial peptides, lipid signaling, blood coagulation, and cell adhesion, just to name a few examples. Drug-lipid and protein-lipid interactions have emerged as a new, very exciting area in drug discovery, deciphering the roles of e.g. phosphatidylinositols (PIPs) in controlling cytoskeleton-membrane interactions. Along similar lines, recent findings have demonstrated the key role of lipid membranes in promoting the formation of toxic oligomers by Alzheimer Abeta peptide, prions, alpha-synuclein, and IAPP (amylin). DeltaPi series of Langmuir-tensiometers allow you to detect the penetration of drugs, peptides/proteins and nucleic acids into monolayers of specified lipid composition and at precisely controlled lateral packing density. The volume of the magnetically stirred subphase is minimally 150 microliters, which keeps your material consumption very low. One milligram of an antimicrobial peptide, for instance, is sufficient for a comprehensive characterization of its lipid-binding properties. Further, the choice of materials eliminates unwanted non-specific surface effects. DeltaPi is a single-channel model, while DeltaPi-4 is equipped with four parallel microbalances, increasing significantly the throughput of experiments. When you are in a hurry and need to generate data fast, DeltaPi-4 is your choice. Both instruments measure surface tension with Kibron’s thin wire probes (DyneProbes) from small subphase volumes. They are compact and have an open and robust construction, easy to clean and maintain, operated with our intuitive software, DeltaGraph. Reproducibility and reliability go hand-in-hand in science and in all Kibron products. DeltaPi and Deltapi-4 outperform all competing products, no matter how you compare them. This is the reason why you find Kibron equipment in leading research laboratories worldwide. Content Product code Description 6034 Sensor head 1500 Set of DyneProbes, 4pcs 6102 Aluminium BasePlate 3530 Sample cup, set of 50 pcs 6309 Power supply (110V-240V AC/12V DC) 1502 Mains adapter US/JPN/EU/UK 6305 Ground cable 6238 Connecting cable 6240 Computer cable 6018 Electronics Unit 6198 Connecting cable xxxx DeltaGraph Software License yyyy DeltaGraph User Manual Specifications Base mechanics 33 x 14 x 6 (h) cm ( 13 x 5.5 x 2.4 inches) 0.85 kg ( 1.8 lbs) Electronics 27 x 23 x 8 cm (10.6 x 9 x 3.1 inches) Total weight 2.8 kg (5.9 lbs) Measurement of surface tension and surface pressure Principle Wilhelmy method using a small diameter ( 0.51 mm) special alloy wire. No artefactual hysteresis as when using the conventional Pt-plates. No drying and accumulation of salt which cause significant errors when filter paper is used. Dynamic range 0 to 300 mN/m Resolution 10 µN/m Temperature sensor Automatic monitoring and display of temperature in the course of the experiment, resolution 0.1 degrees (optional feature) Temperature control A heat control plate which connects to a circulating heat bath is available as an optional feature Troughs Materials Metal alloy and high purity PTFE. Several designs available. Also user-defined designs are routinely made. Volume 300 µl in surface pressure measurements. Subphase can be magnetically stirred.
CATEGORY
SKU: 4100 Four channel tensiometer developed for studying interactions in biological systems. Kibron’s unique single and 4-channel Langmuir-tensiometers Kibron DeltaPi and DeltaPi-4 are novel types of instruments: Langmuir-tensiometers, which allow you to measure the binding of drugs, peptides, and proteins to lipid membranes – easily and with unparalled sensitivity. We innovate instruments for your innovative science. Biomembranes and lipids are entering the forefront of biosciences, biotechnology and drug discovery. In these studies lipid monolayers have paved way to breakthroughs in the elucidation of the molecular mechanisms of action of lung surfactants, antimicrobial peptides, lipid signaling, blood coagulation, and cell adhesion, just to name a few examples. Drug-lipid and protein-lipid interactions have emerged as a new, very exciting area in drug discovery, deciphering the roles of e.g. phosphatidylinositols (PIPs) in controlling cytoskeleton-membrane interactions. Along similar lines, recent findings have demonstrated the key role of lipid membranes in promoting the formation of toxic oligomers by Alzheimer Abeta peptide, prions, alpha-synuclein, and IAPP (amylin). DeltaPi series of Langmuir-tensiometers allow you to detect the penetration of drugs, peptides/proteins and nucleic acids into monolayers of specified lipid composition and at precisely controlled lateral packing density. The volume of the magnetically stirred subphase is minimally 150 microliters, which keeps your material consumption very low. One milligram of an antimicrobial peptide, for instance, is sufficient for a comprehensive characterization of its lipid-binding properties. Further, the choice of materials eliminates unwanted non-specific surface effects. DeltaPi is a single-channel model, while DeltaPi-4 is equipped with four parallel microbalances, increasing significantly the throughput of experiments. When you are in a hurry and need to generate data fast, DeltaPi-4 is your choice. Both instruments measure surface tension with Kibron’s thin wire probes (DyneProbes) from small subphase volumes. They are compact and have an open and robust construction, easy to clean and maintain, operated with our intuitive software, DeltaGraph. Reproducibility and reliability go hand-in-hand in science and in all Kibron products. DeltaPi and Deltapi-4 outperform all competing products, no matter how you compare them. This is the reason why you find Kibron equipment in leading research laboratories worldwide. Specifications Base mechanics 27 x 28 x 16 (h) cm ( 10,6 x 11 x 6,3 inches) 5 kg ( 10,5 lbs) Electronics 27 x 23 x 8 cm (10.6 x 9 x 3.1 inches) Total weight 7 kg (14,7 lbs) Measurement of surface tension and surface pressure Principle Wilhelmy method using a small diameter ( 0.51 mm) special alloy wire. No artefactual hysteresis as when using the conventional Pt-plates. No drying and accumulation of salt which cause significant errors when filter paper is used. The DeltaPi-4 is equipped with four parallel sensors. Dynamic range 0 to 300 mN/m Resolution 10 µN/m Temperature sensor Automatic monitoring and display of temperature in the course of the experiment, resolution 0.1 °C (optional feature) Troughs Materials 15 well plate, high purity PTFE. Several designs available. Also user-defined designs are routinely made. Volume 1 ml in surface pressure measurements. Subphase can be magnetically stirred.
CATEGORY
Microtrough XL is a medium sized and versatile Langmuir instrument for research. The Kibron MicroTroughX is a versatile Langmuir instrument enabling researchers to carry out a variety of surface chemistry experiments. Using Kibron accessories you can convert the instrument into a Langmuir-Blodgett trough, a standard tensiometer, a surface potential recording device, just to name a few examples. MicrotroughX is available in small (S) and large (L). Kibron MicrotroughXL is a medium sized Langmuir instrument. The core technology, Kibron's sensor (0.2 microgram resolution), records surface pressure with a very high sensitivity, better than 0,01 mN/m, yielding excellent reproducibility. The instrument features adjustable feet and protective enclosure. Heat control plate with for connection to an external bath is available as an accessory. We have two different trough materials available, namely PTFE (Standard) and stainless steel with PTFE edges. The hydrophilic bottom of the steel trough allows for a significantly smaller subphase volume. Trough models for various purposes are available in the webshop or on request. Other materials, custom troughs and designs, including previously sold troughs, are available on request. The standard package has POM barriers. PTFE barriers are available from the webshop or on request.. The instrument is controlled by the recently released FilmwareX4.0. The software has a intuitive design, which allows the users to effortlessly do and review experiments. Kibron troughs were designed by scientists for scientists: we know surface chemistry, from basic science and the classroom all the way to leading edge research. Please contact us at info@kibron.com for changes to the basic configuration, custom parts, and quotations. We recommend that you look at the Microtrough G2 as well. It is our next generation trough with more features built into the standard setup. The basic setup includes the following items: 6702 Aluminium Base Plate with stepper motor for smooth compression, XL 6034 Langmuir force balance for surface pressure measurements 1500 Set of DyneProbes, 4 pcs 6407 Set of Two Barriers (POM) 3530 Sample cup (PP), set of 50 pcs (For calibration and surface tension measurements) 6711 Acrylic cover box, XL 6018 Electronics unit 6122 FilmWareX 4.0 Software License 6199 MicroTrough User Manual 6309 Power supply (110V-240V AC/12V DC) 1502 Mains adapter, US/JPN/EU/UK 6035 Ground cable 6238 Connecting cable, 2pcs 6240 Computer cable Specifications Base mechanics 52 x 19 x 6 (h) cm ( 20 x 7.5 x 2.4 inches) Electronics 27 x 23 x 8 cm (10.6 x 9 x 3.1 inches) Total weight 3.55 kg (7.8 lbs) Acrylic casing Prevents perturbation of the film by air flow and accumulation of dust into the interface. Allows for the use of protecting gas to reduce oxidation and photobleaching in fluorescence microscopy and spectroscopy. Dimensions Outer base plate dimensions 51,6 x 19 cm (20,3 x 7,5 inches) Control of film area Barriers Made of hydrophilic, inert polymer (POM). PTFE barriers are available upon request. Compression velocity Can be freely varied between 0 and 200 mm/min (one barrier) Accuracy Better than 0.1 % Barrier motion High precision microstepping motor guarantees extremely precise and smooth control of area Software All measurements are computer controlled, with real-time display of retrieved data Measurements of surface pressure (Surface tension) Principle Wilhelmy method using a small diameter ( 0.51 mm) special alloy wire. No artefactual hysteresis as when using the conventional Pt-plates. No drying and accumulation of salt which cause significant errors when filter paper is used. Other probe materials and shapes available on request. Dynamic range 0 to 130 mN/m Resolution 10 µN/m (1.6 µg) Temperature sensor KTY. Resolution 0.1 degrees. Troughs Material Full PTFE or Stainless steel with PTFE edges. Several designs available on request. User-defined designs are routinely made. Volume 145 ml in Full PTFE Langmuir-troughs, and 270 ml in Full PTFE Langmuir-Blodgett troughs. 45-90 ml in stainless steel Langmuir trough. Subphase can be magnetically stirred. 300 µl in surface pressure measurements (Multiwell plate). Detailed specifications are found under the particular troughs. Area Inner area 39,3 x 5,9 cm (15,5 x 2,3 inches)
