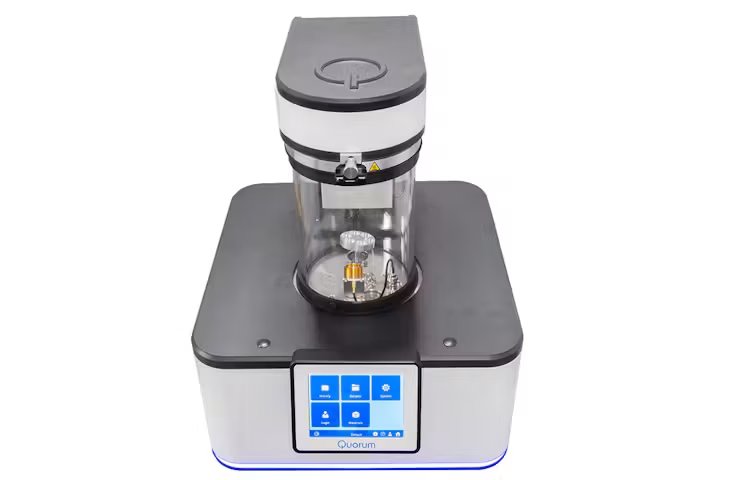

Sputter and Carbon Coaters Sputter coaters - TurboQ S Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, designed for ultra-high-resolution SEM and FIB-SEM applications. Find out more - RotaQ S Rotary pumped coater suitable for sputtering non-oxidising metals (Au, Au/Pd, Ag, Pt, and Pt/Pd). Find out more - MiniQ S Entry-level coater, equipped with rotary pump, suitable for sputter coating non-oxidising metals (Au, Au/Pd and Ag). Find out more Carbon coaters - RotaQ E Rotary pumped coater suitable for carbon evaporation. Find out more - TurboQ E Turbo pumped coater suitable for carbon evaporation, designed for ultra-high-resolution SEM and FIB-SEM applications. Find out more Sputter and carbon coaters - RotaQ ES Rotary pumped coater suitable for sputtering non-oxidising metals (Au, Au/Pd, Ag, Pt, and Pt/Pd), and carbon evaporation. Find out more - TurboQ ES Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, and carbon evaporation, designed for ultra-high-resolution SEM and FIB-SEM applications. Find out more Large chamber coaters - DuoQ Automated and versatile large chamber dual sputter coater offering unparalleled ease of use and flexibility. Recommended for controlled thin film deposition for electron microscopy sample preparation and material fabrication. Find out more - TriQ Automated and versatile large chamber triple head sputter coater offering unparalleled ease of use and flexibility. Recommended for controlled thin film deposition for electron microscopy sample preparation and material fabrication. Find out more Glovebox coaters - Q150 GB Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, and carbon evaporation. Modular design enables vacuum chamber to be mounted into a glovebox. Find out more
The TurboQ ES is an automated and versatile turbo pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). Suitable for use with FE-SEM, FEG-SEM and FIB-SEM. The TurboQ ES is a combined system is capable of both sputtering and carbon coating. The deposition head inserts can be swapped to allow for Metal evaporation/aperture cleaning and Glow Discharge. Key Features - High vacuum instrument for ultra-high-resolution EM up to and beyond 200k - Ultra fine grain size for high-resolution analysis - Combined system capable of sputter and carbon coating - Rapid cycle time for maximum sample throughput - Tilt stage design giving uniform coating of complex 3D structures - Film Thickness Monitor (FTM) to control deposition of coating - Intuitive and responsive touchscreen colour panel design - Multi-colour LED visual status indicator offering process updates - Pre-set recipes for standard protocols resulting in sample reproducibility - Customizable recipes for tailored applications - Easy and quick set-up of profiles - Multiple stage options based on application need
CATEGORY
Key Features - Recommended for low-medium magnification - Suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM - Capable of carbon fibre evaporation (carbon rod evaporation available as option) - Rapid cycle time for maximum sample throughput - Tilt stage design giving uniform coating of complex 3D structures - Film Thickness Monitor (FTM) to control deposition of coating - Intuitive and responsive touchscreen colour panel design - Multi-colour LED visual status indicator offering process updates - Pre-set recipes for standard protocols resulting in sample reproducibility - Customizable recipes for tailored applications - Easy and quick set-up of profiles - Multiple stage options based on application needs Details The RotaQ E is an automated and versatile rotary pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). The rotary pumped carbon coater is suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM. The RotaQ E is an automatic carbon fibre coater designed for TEM applications including for carbon coating of TEM grids and elemental analysis.
CATEGORY
The RotaQ S is an automated and versatile rotary pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). The Rotary pumped coater is suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM. The RotaQ S is an automatic sputter coater for noble metals. Available sputtering targets include Au, Au/Pd, Pd, Ag, Pt/Pd. Key Features - Recommended for low-medium magnification - Suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM - Sputter coater for noble metals. Au target offered as standard. Au/Pd, Ag, Pt, Pt/Pd available as options. - Rapid cycle time for maximum sample throughput - Tilt stage design giving uniform coating of complex 3D structures - Film Thickness Monitor (FTM) to control deposition of coating - Intuitive and responsive touchscreen colour panel design - Multi-colour LED visual status indicator offering process updates - Pre-set recipes for standard protocols resulting in sample reproducibility - Customizable recipes for tailored applications - Easy and quick set-up of profiles - Multiple stage options based on application needs
CATEGORY
Key Features - Turbomolecular pumped system with ultimate vacuum of 1x10⁻⁶ mbar, enabling high quality coatings - Dual head design offering sequential deposition of thin film coatings under high vacuum conditions - Optimised stages for uniform deposition across 4” and 6” diameter samples - Integrated Film Thickness Monitor (FTM) to control deposition of coating - Intuitive and responsive touchscreen colour panel design - Multi-colour LED visual status indicator offering process updates - Pre-set recipes for standard protocols resulting in sample reproducibility - Customisable recipes enabling users to tailor process parameters to their specific requirements - Compatible with a range of target materials Details Multilayer Thin Film Deposition System The DuoQ is an automated and versatile large chamber dual sputter coater offering unparalleled ease of use and flexibility based on your application needs. Recommended for controlled thin film deposition for electron microscopy sample preparation and material fabrication.
CATEGORY
