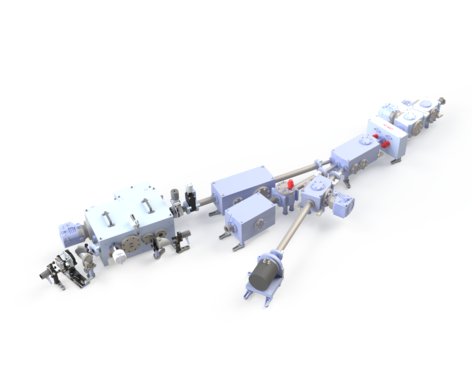

High efficiency, modular vacuum beamline KMLabs’ Arterium vacuum beamline provides optical elements required to connect the EUV source to an experimental end-station at high efficiency, stability and flexibility. Arterium incorporates modular components that may be optionally and readily installed (by the customer) into the beamline and HHG system, as needed, without compromising the beamline vacuum. The optics and windows used in various modules are carefully selected to maximize efficiency and minimize dispersion effects which would distort/prolong the ultrashort pulses. To propagate without significant attenuation, the beam is maintained under vacuum throughout the beamline. For a system with multiple experimental stations, the Aretriuim SwitchYard module enables re-directing the EUV photons to the experimental chamber of choice. Features - Excess IR light rejection - EUV spectrum characterization - EUV light focusing - EUV power monitoring - EUV beam monochromation - High vacuum to UHV interfacing Support Documentation: KMLabs Arterium Filter Wheel Datasheet; KMLabs Arterium Rejectors Datasheet; KMLabs Arterium SwitchYard Datasheet; KMLabs Arterium Focusing Module Datasheet
XUUS 5 upconverts ultrafast laser pulses into the Extreme UV(EUV or XUV) or soft X-ray regions of the spectrum. Employing HHG processes, the output beam inherits the coherent properties of a driving laser such as the KMLabsRAEAwith wavelengths that can be tuned from ~10 to 50 nm. Moreover, customized systems can generate coherent beams with wavelengths as short as 6 nm. The XUUS 5 employs KMLabs' patented hollow waveguide for the high harmonic up-conversion process. Salient Features: Photon Energy Range 20 - 1,600 eV Flux Up to 10 12 ph/s/h at source Pulse Duration Femto- to attoseconds
CATEGORY
The KMLabs Eclipse TM is a high repetition rate, half wave Pockels cell and driver unit, designed for laser pulse picking at up to 20kHz. The Eclipse has a minimum window of 10ns, and 90% throughput between 750-850nm. KMLabs' compact design allows the driver to be packaged in with the optical unit, thus minimizing the high voltage line-length, and thereby maximizing the switching speed. The high voltage source for the Eclipse is an external, 19"w x 13"d x 3.5"h unit. Salient Features: Minimum Switching Window 10 ns Switching Efficiency 90 % for 750 - 850 nm Driver/Cell Aperture Diameter 9 mm Monochromator Single harmonic selector
CATEGORY
The Arterium beamline modules are designed with flexibility in mind. Various modules are available for for different functions such as removing the high power IR that is used for driving harmonics, steering, focusing, and filtering. Please contact us to discuss your specific beamline requirements. Salient Features: Rejector Module Removes 99.8% of IR Filter Wheel Module Up to 4 filters in series with a 28-filter capacity SwitchYard Module Three-way splitter for flexibility Focusing Module Spot sizes down to ~ 1 m m Monochromator Single harmonic selector EUV Diagnostics Spectral content and flux
