By XOS

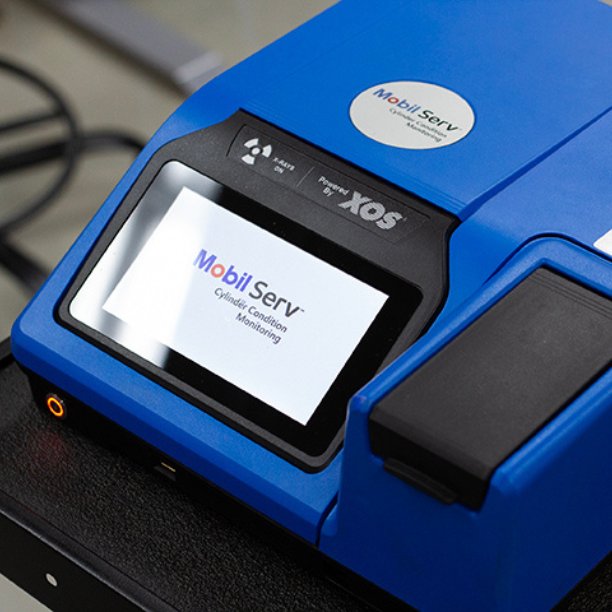

Engine intelligence at sea. Benefits and features Powered by XOS’ technology, Mobil℠ Cylinder Condition Monitoring reduces oil analysis turnaround from hours to minutes. Faster access to real‑time oil analysis helps operators respond quickly to changing engine conditions and protect critical marine assets. Designed for demanding marine environments, the Mobil℠ Cylinder Condition Monitoring service supports shipboard lubricant analysis with simplified, crew‑friendly sampling. No hazardous chemicals or specialized training are required, enabling routine marine oil analysis as part of normal vessel operations. Mobil℠ CCM instruments provide laboratory-quality marine oil diagnostics, delivering precise elemental measurements. Such high‑resolution data supports informed decisions for marine lubricant optimization and engine protection. Available for lease or purchase, these analyzers are supported by expert service to ensure long‑term performance for marine lubrication monitoring programs. Specifications Communication Capabilities Online Mode: Hardwired connection Offline Mode: manual data submissions Consumable/ utility gas Not needed Dimensions (Depth) 16.5 in. Dimensions (Height) 6 in. Dimensions (Width) 14.5 in. Elements & Concentrations S < 50 ppm Ca < 10 ppm V < 1 ppm Cr < 1 ppm Fe < 1 ppm Measurement Time Lube Mode: 30s, Fuel Mode 300s Method Name N/A Options N/A Range 500 ppm – 4000 ppm Sulfur while in Fuel Mode Sample Cup Type 45 mL Sample bottle with Mylar Accucap Specific Technology EDXRF
Effective online sulfur analysis in petroleum process streams. Benefits and features 1. Continuous monitoring with programmable response times 2. Direct and non-destructive - No consumables, no gasses, no high temperature processes 3. Outstanding linearity - One calibration for diesel and gasoline matrices over the full dynamic range 4. Extremely low maintenance Specifications Calibration Curves: 3- to 5-point linear calibration curve Catalysts: No Communication Capabilities: 4-20 mA; Modbus and Ethernet optional Consumable/ utility gas: Instrument air or nitrogen Elements & Concentrations: Sulfur/ 0.5 ppm (mg/kg) Dimensions (Depth): 18 in / 45.7 cm Dimensions (Height): 60 in / 152.4 cm Dimensions (Width): 38 in / 96.5 cm Measurement Time: User selectable (15-300 s typical) Method Name: ASTM D7039 Number of sample streams: One. Optional up to four. Options: C1D2 or ATEX compliant; Sample conditioning system; High range Range: 0.5 ppmw - 3000 ppmw. Extended Range (XR) available XRF Film Type: Kapton What's Included: Base system includes: - SINDIE 6010 On-Line MWD XRF analyzer based on ASTM method D 7039 - Rated for area classification CLASS I Div 2 Groups B, C, D T4A - Stainless steel nameplate - Dynamic range 0.6 - 3000 ppm wt. - Signal output: (2) user configurable 4-20 mA result outputs - Manual sample valve for lab verification - Sample Management System - Modular valves for the introduction of calibration fluids - Pressure and flow regulators/meters -Five (5) 300cc SS sample cylinders for calibration fluids - One (1) reference literature library includes: One (1) Installation Manual, One (1) User Manual, One (1) Maintenance Manual, One (1) CD copy containing all of the above -One (1) Dynamic Window Module
CATEGORY
Rapid sulfur measurement plus 12 other critical elements. Benefits and features 1. Advanced detection performance over traditional XRF technology 2. Precise sulfur measurements with an LOD as low as 5.7 ppm and rapid monitoring of critical elements 3. Easy to use - just plug in and measure 4. Petra MAX is powered by XOS’ EDXRF technology: an elemental analysis technique that offers significantly enhanced detection performance over traditional XRF. This technique applies state-of-the-art monochromating and focusing optics, enabling a dramatically higher signal-to-background ratio compared to traditional polychromatic X-ray Fluorescence Specifications Autosampler: Yes Calibration Curves: 30 calibration curves, linear (automatic calibration available) Catalysts: Yes Communication Capabilities: Printer, USB & Ethernet, LIMS integrated Elements & Concentrations: Sulfur: 5.7 ppm; Phosphorus: 17 ppm; Chlorine: 3 ppm; Potassium: 0.7 ppm; Calcium: 0.4 ppm; Vanadium: 0.1 ppm; Chromium: 0.09 ppm; Manganese: 0.07 ppm; Iron: 0.07 ppm; Cobalt: 0.07 ppm; Nickel: 0.04 ppm; Copper: 0.1 ppm; Zinc: 0.1 ppm Dimensions (Depth): 16.5 in / 41.9 cm Dimensions (Height): 6 in / 15.3 cm Dimensions (Width): 14.5 in / 36.8 cm Measurement Time: User selectable 30-900 s Method Name: ASTM D4294, ISO 8754, IP 336 Options: Vibration plate Range: Sulfur 5.7 ppm (mg/kg) - 10 wt% Sample Cup Type: Standard XRF sample cup Specific Technology: EDXRF What's Included: spare fan filter, 100 sample cups, 100 Etnom sample films, 25 Mylar sample basket windows, sulfur calibration set, 4x10mL multi-element calibration set, sample cup stand, and thumb drive (contains manuals, best practices guide, calibration guide, quick-start guide).
CATEGORY
Online Chlorine Analysis in Liquid Hydrocarbon Process Streams. Benefits and features 1. Optimize performance and immediately see impacts of crude changes (including organic chloride) 2. Direct measurement without sample conversion - Analysis in ppm (wt) 3. Can be used for multiple applications, including upstream desalting, power generation, effluent management, and others 4. Extremely low maintenance Specifications Calibration Curves: One Catalysts: No Communication Capabilities: 4-20 mA; Modbus and Ethernet optional Consumable/ utility gas: Instrument air or nitrogen Elements & Concentrations: Chlorine/ 0.2 ppm (mg/kg) in hydrocarbons, 0.6 ppm (mg/kg) in aqueous streams Dimensions (Depth): 18 in / 45.7 cm Dimensions (Height): 60 in / 152.4 cm Dimensions (Width): 38 in / 96.5 cm Measurement Time: User selectable (15-300 s typical) Method Name: ASTM D7536 Number of sample streams: One. Optional up to four. Options: C1D2 or ATEX compliant; Sample conditioning system Range: 0.2 ppmw - 3000 ppmw XRF Film Type: Kapton What's Included: Base system includes: - Clora Online MWDXRF analyzer - Rated for area classification CLASS I Div II Groups B, C, D T4A - Stainless steel nameplate - Signal output: Two (2) user configurable 4-20 mA result outputs; up to 4 alarm outputs (volt-free) - Manual sample valve for lab verification - Sample management system Modular valves for the introduction of calibration fluids Pressure and flow regulators - One (1) reference literature library includes: - One (1) Installation manual - One (1) User manual - One (1) Maintenance manual - One (1) CD copy containing all of the above - Includes one (1) high viscosity dynamic window module
CATEGORY
From hydrocarbons to plastics, Petra® SUPRA delivers total light element analysis with quick cycle times and no sample preparation. Benefits and features - Low maintenance: no gasses, heating elements, columns, or quartz tubing - Total light element analysis in a wide range of materials, including hydrocarbons, plastics, polymers, and other chemicals - Small footprint - For use in refinery labs, pipeline terminals, inspection laboratories, and manufacturing QC labs Specifications Autosampler: No Calibration Curves: 30 calibration curves Catalysts: Yes Communication Capabilities: Printer, USB & Ethernet, LIMS Integrated Elements & Concentrations: Sulfur / 0.13 ppm (mg/kg); Phosphorus / 0.25 ppm (mg/kg); Potassium / 0.06 ppm (mg/kg); Calcium / 0.03 ppm (mg/kg); Magnesium / 29 ppm (mg/kg); Sodium / 160 ppm (mg/kg); Silicon / 0.6 ppm (mg/kg); Aluminum/ 2 ppm (mg/kg) Dimensions (Depth): 16.5 in / 41.9 cm Dimensions (Height): 6 in / 15.3 cm Dimensions (Width): 14.5 in / 36.8 cm Measurement Time: User selectable 30-900 s Method Name: ASTM D4294, ISO 8754, ISO 13032, and IP 336 Options: Printer (US/CA only), calibration standards, consumables Range: Sulfur 0.13 ppm (mg/kg) - 10 wt% Sample Cup Type: 30 mm sample cup Specific Technology: EDXRF What's Included: 100 sample cups, 100 sample films, 100 pipettes, 1 sulfur calibration set, 1 refinement calibration set, sample cup stand, and thumb drive (contains manuals, best practices guide, calibration guide, quick-start guide). Applications: Petrochemical, Sustainable Aviation Fuel, Plastic Pyrolysis Our solutions are built to effortlessly meet strict ISO, ASTM, and industry regulatory standards.
CATEGORY
