XTPL® Delta Printing System

By XTPL

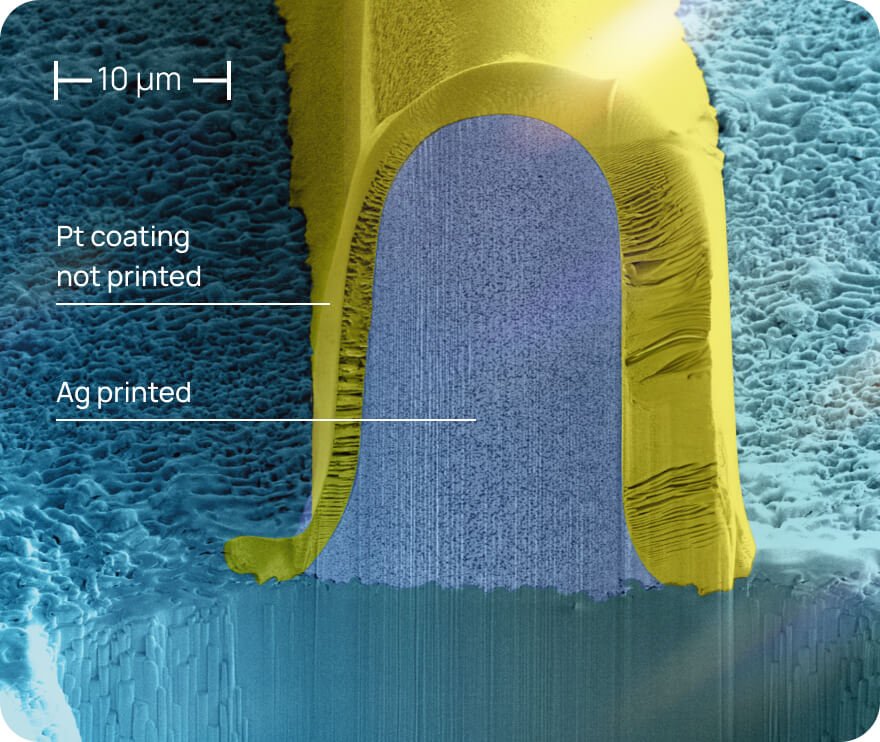

Explore our Open Prototyping Platform, delivering reliable, repeatable, and durable results for high performance materials. Easy to operate and maintain. Ideal tool for R&D in various microelectronics applications. Proven one-stop-shop in R&D and commercial settings Delta Printing System - Stand-alone, open platform - For prototyping and small-volume/nest production - Freedom of control over printhead - Flexibility of user Interface: manual mode, CAD import, advanced scripting - Fast & easy exchange of cartridges & nozzles XTPL® Software - Intuitive navigation: icons, toolbars, and other visual elements provide clues and make it easier to understand app features - Increased productivity & minimize errors: with visual cues and easier navigation, users are less likely to make mistakes - Faster access to features: well-designed software allows to quickly find and use the features Suitable for various applications, such as: - 3d interconnections - Advanced IC packaging - RDL prototyping - TSV filling DPS provides: - High aspect ratios in a single pass benefit memory chips and MEMS - No overflow or spills - Reduced production costs - Convenient cartridge and nozzle exchange - High density interconnections down to 1 µm / 1 µm L/S TFT arrays: - Prototyping TFT and electrical circuit - Open defects repair - No risk to damage discreate elements by eliminating electrical field - Conductive structures down to 1µm Quantum Dots Printing: - DPS supports printing with Quantum Dots-based inks (QD inks) - Its versatility is crucial for OLED and microLED - With printed QD inks having a dimension of 3.5 µm width and below 300nm height, offers time and material savings and precision Delta addresses specific challenges in the prototyping and fabrication of modern PCBs: - Ultra-high resolution printing and feature sizes of 1‑10 μm tackles the design complexity and enables the creation of specific PCB structures - Versatility allows for the integration of diverse materials, both conductive and non-conductive, while maintaining high aspect ratios in a single pass We ensure: - Printing on 3D topographies feature uniformity - The reliability and performance of the PCBs - A comprehensive solution for modern PCB manufacturing Our innovative biosensor solution: - High performance - Size reduction - Cost-effective fabrication methods - Groundbreaking for rapid biosensor prototyping - Enables biosensing patterns on flexible substrates, crucial for wearable sensors Delta system ensures: - Uniform, clean features without spills crucial for intricate biosensor designs - Maintaining reliability and accuracy Our technology Printing on the edge Printing on the edge - Edge interconnections printing - High resolution traces, below 10 µm - Possibility to print over the edge of glass, silicon and flexible foils RDL Redistribution layer prototyping - All printed RDL structure - Down to 1 μm / 1 μm L/S density - Variable materials possible to use in one system, for example metallic nanoparticle paste and high viscous polyimide Chip interconnection Chip interconnection - Reliable connection for flexible hybrid electronics and advanced IC packages - High density interconnections on stacked chips - Resolution <10 μm/10 μm L/S - No satellite droplets and line width homogeneity to prevent electrical shorts Achieve unparalleled accuracy Prototype microelectronic devices with exceptional precision using our XTPL® Delta Printing System and high-viscosity conductive inks.
