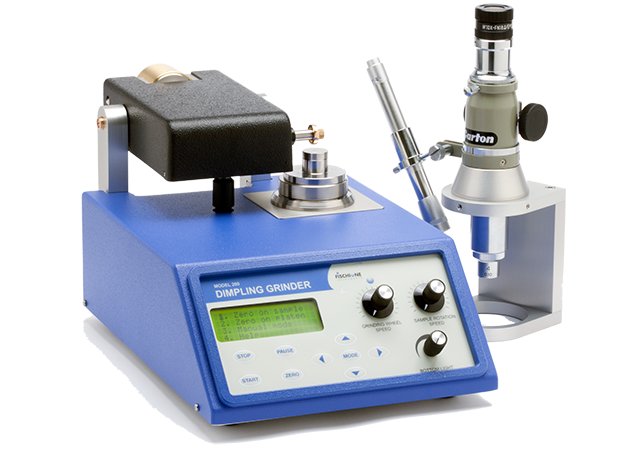

An easy-to-use, state-of-the-art, mechanical thinning instrument designed for the reproducible preparation of high-quality transmission electron microscopy specimens High-quality specimens for transmission electron microscopy need to have a large electron transparent area for analysis, but be rugged. One method that accomplishes both prerequisites is dimpling. Dimpling is a rapid technique that involves simultaneously rotating the specimen on one axis and a grinding wheel on a perpendicular and intersecting axis. This combination of motions provides a specimen with its central area reduced to a thickness of a few microns. By thinning only the central area of the specimen, a thick, rugged outer rim remains, eliminating the need for special handling techniques for fragile specimens. An abrasive slurry that is in contact with the grinding wheel and the specimen removes the material. - Prethin specimens for ion milling - Polish specimens to electron transparency - Controlled grinding force and rate - Vibration-free grinding - Precise indication of specimen thickness - Easy to program - Accepts mounted specimens from the Model 160 Specimen Grinder - Optional 40X microscope attachment - Allows direct observation of the specimen without the need to remove it
Includes all the components required to produce high quality cross-section specimens for transmission electron microscopy. Widely used cross-section specimens include semiconductor devices (which often have multiple layers and, thus, multiple interfaces), specimens with thin film layers, and composite materials. For the study of interfaces by transmission electron microscopy, it is critical to align the interface of interest parallel to the incident electron beam. One method for preparing such samples is to fabricate cross-section specimens. - Stacks and holds cross-section specimens - Aligns areas and interface of interest - Produces consistent glue layer thickness - Resulting stacks are readily cut by the Model 170 Ultrasonic Disk Cutter - Fabricate self-supported 3 mm diameter disk specimens
CATEGORY
Specimen Grinder. Mechanically prethins specimens for transmission electron microscopy. Produces uniform thickness specimens with parallel sides. Greatly reduces the time spent during the final preparation process of ion beam milling. For transmission electron microscopy, the quality of the initial disk determines the quality of the final specimen. The disk can be mechanically ground using the Model 160 Specimen Grinder to a precisely controlled thickness. Use the Model 200 Dimpling Grinder for final thinning. - Accurate and dependable - Precisely controlled - Specimens up to 18 mm diameter - No additional force needed - Large diameter provides excellent stability - Platen transferable to the Model 200 Dimpling Grinder
CATEGORY
Ultra-Narrow Gap Tomography Holder. A holder capable of tilting up to 90° while providing a maximized field of view for transmission electron microscopy. The Model 2030 Ultra-Narrow Gap Tomography Holder is capable of tilting up to 90° while providing a maximized field of view. The holder is suitable for ultra-narrow gap (< 3 mm) pole-piece geometries. The Ultra-Narrow Gap Tomography Holder accepts a 1.5 mm square or round TEM specimen or grid into a cartridge, securing it with a single clamp. Items included are a specimen loading stand, a Model 9010 Vacuum Storage Container, a loading fixture, a clamp tightening tool, copper grids, tweezers, and a spare parts kit. The holder: - Specimen loading station allows easy positioning and clamping of the specimen into the cartridge - Has a streamlined specimen clamping mechanism eliminates the shadowing associated with most holders at high-tilt angles - Has a retractable clamp that evenly distributes force on the specimen - Accommodates specimen thicknesses up to 100 μm - Is compatible with the TEM’s touch alarm, which stops goniometer movement in the event that a pole touch occurs The holder is available for both JEOL and Thermo Fisher Scientific microscopes.
CATEGORY
Produces high quality disk specimens from thin metal foils. A precision ground punch and die plate eliminate specimen stress and distortion. An ideal accessory to the Model 110 Automatic Twin-Jet Electropolisher. The specimen punch is available with a standard base or with a wide base, which provides extra stability when producing thin foils. A precision ground punch and die plate eliminate specimen stress and distortion of the disk specimen. A spring-loaded return plunger keeps the disk specimen on the die plate surface for convenient handling. Available in standard sizes of 1 mm, 2.3 mm, and 3.0 mm; other sizes available upon request
