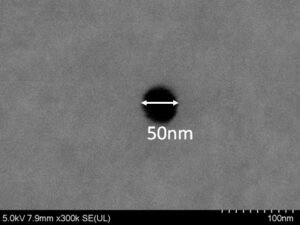

tei Solutions offers 100mm, 150mm, 200mm, and 300mm blanket and pattern wafers for material and tool evaluation including: - Nano Pore Pattern - Line and Space - Hole Pattern - Al Pad wafers - Cu Pad wafers - Others – Please contact us for special structures or materials. Customers can utilize their own mask set if the clean level is acceptable. Nano Pore Pattern Examples Pore Size:50nm Pore Size:200nm Pore Size:10μm φ300mm Patterned Wafer Examples L/S=260/40nm, SiO Etch Pitch=300nm(6.5:1) AR=approx.4.5(Depth=190nm) X-SEM L/S=100/100nm, Si Etch Pitch=200nm(1:1) AR=approx.23(Depth=2300nm) X-SEM TOP CD(Cu)=approx.80nm, Low-k Etch Pitch=160nm(1:1) Depth=180nm X-SEM Si L/S Etch Si Substrate Etching (Top)L/S=150nm/150nm, Pitch=300nm AR=approx.18(Depth=2770nm) X-SEM Si Hole Etch (Top)Hole=φ1000nm Depth=10000nm X-SEM SiO2 L/S Etch SiO film etching (Top)L/S=180nm/120nm, Pitch=300nm Depth=2700nm X-SEM φ300mm Blanket Wafer Examples Diffusion – SiO – Thermal Oxide – 1〜500 nm CVD – SiO – LP-TEOS – 10〜300 nm CVD – SiO – P-TEOS – 30〜2000 nm CVD – SiO – P-SiO2 – 20〜500 nm CVD – SiO – HDP – 30〜1,000 nm CVD – SiN – LP-Si3N4 – 10〜100 nm CVD – SiN – P-Si3N4 – 20〜1000 nm CVD – Si – Poly-Si – 20〜500 nm CVD – Si – amorphous-Si – 20〜500 nm CVD – Si – Doped-Si – 20〜500 nm CVD – SiOC – P-SiOC – 30〜400 nm CVD – SiCN – P-SiCN – 10〜200 nm CVD – AlO – ALD-Al2O3 – 2〜10 nm CVD – HfO – ALD-HfO2 – 2〜10 nm CVD – W – CVD-W – 50〜600 nm CVD – TiN – CVD-TiN – 5〜30 nm CVD – Ti – CVD-Ti – 2〜20 nm Sputter – TiN – PVD-TiN – 5〜30 nm Sputter – Ti – PVD-Ti – 2〜20 nm Sputter – Al(Cu) – PVD-Al(Cu) – 100〜1000 nm Sputter – TaN – PVD-TaN – 5〜50 nm Sputter – Ta – PVD-Ta – 8〜80 nm Sputter – Cu – PVD-Cu – 15〜200 nm Plating – Cu – Cu Plating – 300〜5000 nm Coating – Resist – for ArF – Contact Us Coating – Resist – for KrF – Contact Us Coating – Resist – for i-Line – Contact Us Coating – BARC – for KrF – Contact Us Coating – SOC – for Imm-ArF – Contact Us Coating – SOG – for Imm-ArF – Contact Us Should you require other types or thicknesses of film, please do not hesitate to contact us. φ200mm – Patterned Wafer Examples - High Aspect ratio Si hole pattern, Hole size 200nm, AR=40. - Al Pattern, VIA size 800nm, - Al Pattern, 0.35micron - Deep Si hole, Hole size 10um minimum, depth 50um maximum φ200mm – Blanket Wafer Examples - SiGe Epi on Si, Ge content maximum 20% φ150nm – Patterned Wafer Example - Al Pattern, 0.5micron φ100mm - Patterned Wafer Example - Al Pattern, 0.8micron
